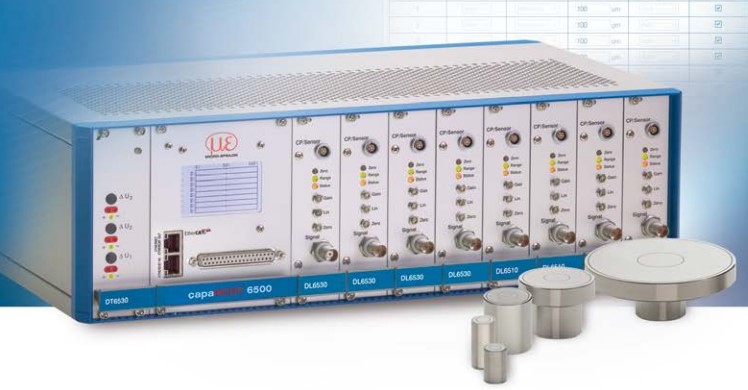

Product Configuration
DT6530 + DL6530 (or)DL6510 with CP6001
|
|
Sub Components
EMR2 CP6001
extended measuring range (factor: 2) in combination with DL6510
RMR 1/2 CP6001
reduced measuring range (factor: 1/2) in combination with DL6510
ECL2 CP6001
special tuning for double standard cable length in combination with DL6510
ECL3 CP6001
special tuning for triple standard cable length in combination with DL6510
ECL4 CP6001
special tuning for quadruple standard cable length in combination with DL6510
ECL2 CPM6011
special tuning for 2 m sensor cable in combination with DL6510
EMR2 DL65x0
extended measuring range (factor: 2)
RMR 1/2 DL65x0
reduced measuring range (factor: 1/2)
ECL2 DL65x0
special tuning for double standard cable length
ECL3 DL65x0
special tuning for triple standard cable length
ECL4 DL65x0
special tuning for 4 m sensor cable
MC2.5
Micrometer for sensor calibration, range 0 - 2.5 mm,
Resolution 0.1 µm.
Suitable for sensors CS005 to CS2
MC25D
Digital micrometer for sensor calibration, range 0 - 25 mm,
adjustable offset (zero).
Suitable for all sensors.
HV/B
Vacuum feed through triaxial

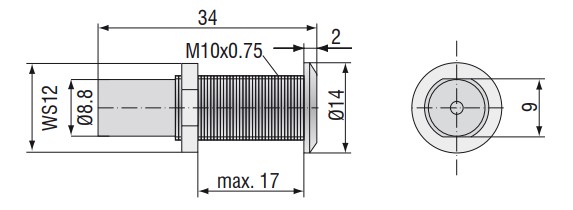

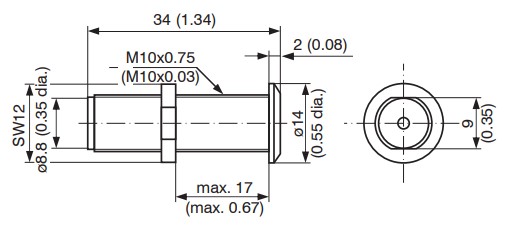

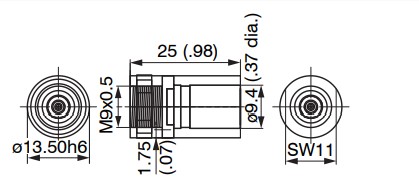

UHV/B (screwable)
Vacuum feed through triax screwable
Max. leak rate 1x10e-9 mbar · l s-1
Compatible with connector type B

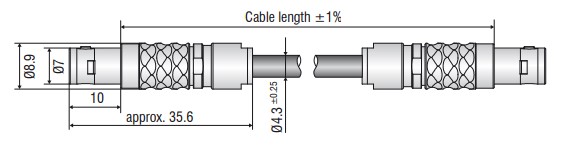

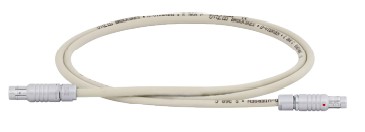

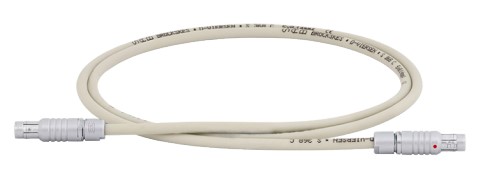

SC6000-1,0
Synchronization cable, 5 pin, 1 m
CA5
Preamplifier cable 5 pin, 5 m
UHV/B (flange)
Vacuum feed through triax with CF16 flange
Max. leak rate 1x10e-9 mbar · l s-1
Compatible with connector type B
UHV/B (weldable)
Vacuum feed through triax weldable
Max. leak rate 1x10e-9 mbar · l s-1
Compatible with connector type B

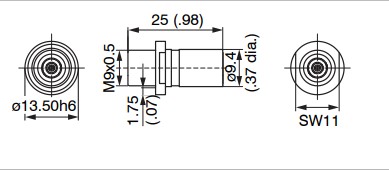

SWH.OS.650.CTMSV
Vacuum feed through,
Max. leak rate 1x10e-7 mbar · l s-1
Compatible with connector type B
SC3100-x
Synchronization cable,
cable length x = 0.3 or 1 m

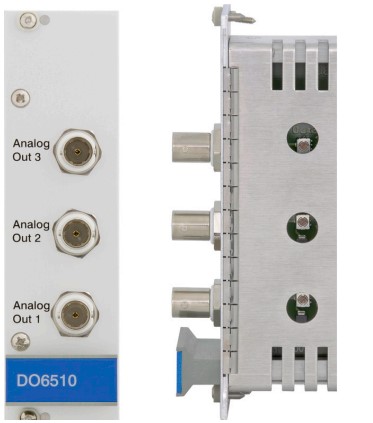

DO6510
Analog output card,
3 channels with 0 ... 10 V, ±5 V or 4 ... 20 mA,
digital resolution 16 bit

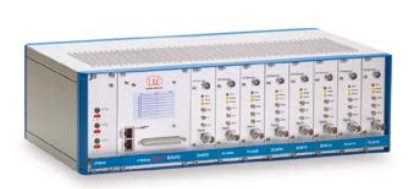

DT6530C
2 channel rack
DT6530
8 channel rack
PS2020
Power supply unit
Input 100-240 VAC
Output 24 VDC / 2.5 A
mounting onto symmetrical standard rail 35 mm x 7.5 mm, DIN 50022
