    PLC Interface: EtherNet/IP™ Module

     Ethernet IP Module

     Simple interface between Orbit® and PLC using Ethernet/IP

     ODVA conformance tested

     Cyclic and Explicit Data

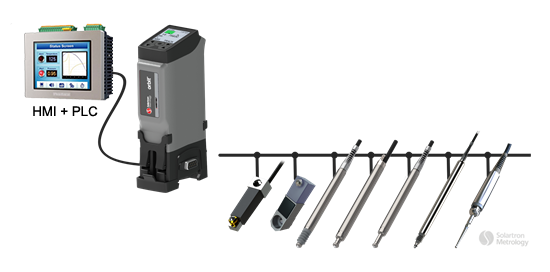

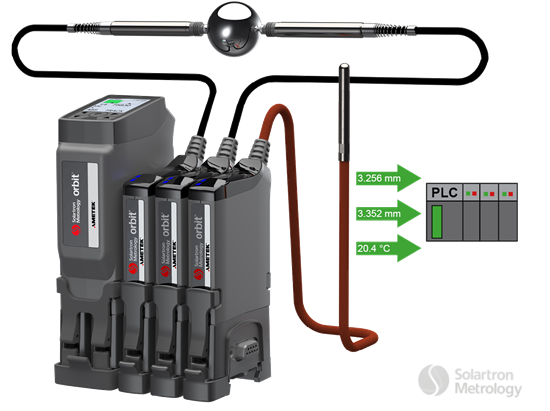

    Connecting EtherNet/IP™ PLC to LVDT type sensors is now easy. The EtherNet/IP™ version of the PIM is a PLC compatible EtherNet/IP™ to ORBIT®3 interface module, that enable easy connections between any EtherNet/IP™ enabled controller and Solartron’s flexible ORBIT®3 digital measurement system allowing LVDT type sensors to connect to a PLC.


    The PIM makes it simple to interface a wide range of contact and non-contact linear measurement sensors, rotary encoders, temperature and pressure sensors and discrete inputs and outputs via EtherNet/IP™.

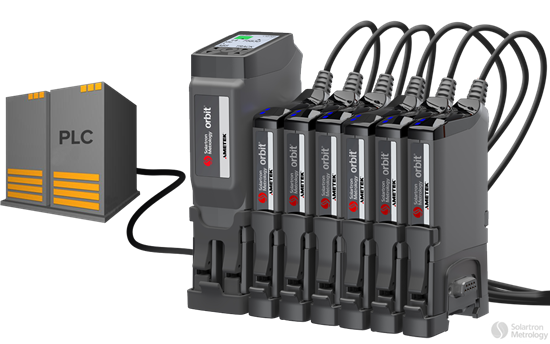

    This stand alone, Din Rail mounted module provides one EtherNet/IP™ port and one ORBIT®3 port which can power up to ten LVDT type displacement sensors or other sensors;. This can be extended up to a maximum of 150 sensors with the use of supplementary power modules. The EtherNet/IP™ protocol driver supports the Explicit and Cyclic Messaging implementation of the protocol as a server. The EtherNet/IP™ port is a very powerful data transfer tool designed for easy connection to Rockwell Automation PLCs. Applications are found in many industries including manufacturing, automation and control, power generation and food processing.

    Ethernet IP Module      Digital Measurement Orbit Modules and Gateways

    PLC Interface: ProfiNet® Module

     Simple interface to any ProfiNet® enabled PLC

     Conformance Tested













    Connecting ProfiNet® PLC to LVDT type sensors is now easy. The ProfiNet® version of the PIM is a PLC compatible ProfiNet® to ORBIT®3 interface module, that enable easy connections between any ProfiNet® enabled controller and Solartron’s flexible ORBIT®3 digital measurement system allowing LVDT type sensors to connect to a PLC.
    The PIM makes it simple to interface a wide range of contact and non-contact linear measurement sensors, rotary encoders, temperature and pressure sensors and discrete inputs and outputs via
     EtherCat™.


    This stand alone, Din Rail mounted module provides one port and one ORBIT®3 port which can power up to ten LVDT type displacement sensors or other sensors. This can be extended up to a maximum of 150 sensors with the use of supplementary power modules. The ProfiNet® protocol driver supports the Explicit and Cyclic Messaging implementation of the protocol as a server. The ProfiNet® port is a very powerful data transfer tool designed for easy connection to Siemens PLCs. Applications are found in many industries including manufacturing, automation and control, power generation and food processing.

    Ethernet IP Module      Digital Measurement Orbit Modules and Gateways

    PLC Interface: EtherCat™ Module

     Simple interface between Orbit® and PLC using EtherCat

     Conformance tested

     Explicit and Implicit Data









    Connecting EtherCat™ PLC to LVDT type sensors is now easy. The EtherCat™ version of the PIM is a PLC compatible EtherCat™ to ORBIT®3 interface module, that enable easy connections between any EtherCat™ enabled controller and Solartron’s flexible ORBIT®3 digital measurement system allowing LVDT type sensors to connect to a PLC.
    The PIM makes it simple to interface a wide range of contact and non-contact linear measurement sensors, rotary encoders, temperature and pressure sensors and discrete inputs and outputs via
     EtherCat™.


    This stand alone, Din Rail mounted module provides one port and one ORBIT®3 port which can power up to ten LVDT type displacement sensors or other sensors. This can be extended up to a maximum of 150 sensors with the use of supplementary power modules. The EtherCat™ protocol driver supports the Explicit and Cyclic Messaging implementation of the protocol as a server. The EtherCat™ port is a very powerful data transfer tool designed for easy connection to EtherCat™ enabled PLCs. Applications are found in many industries including manufacturing, automation and control, power generation and food processing.

    Ethernet IP Module      Digital Measurement Orbit Modules and Gateways

    ModbusTCP™ Module

     Simple interface between Orbit® and PLC using ModbusTCP

     Conformance tested

     Cyclic and Implicit Data







    Connecting ModbusTCP™ PLC to LVDT type sensors is now easy. The ModbusTCP™ version of the PIM is a PLC compatible ModbusTCP™ to ORBIT®3 interface module, that enable easy connections between any ModbusTCP™ enabled controller and Solartron’s flexible ORBIT®3 digital measurement system allowing LVDT type sensors to connect to a PLC.
    The PIM makes it simple to interface a wide range of contact and non-contact linear measurement sensors, rotary encoders, temperature and pressure sensors and discrete inputs and outputs via ModbusTCP™.


    This stand alone, Din Rail mounted module provides one port and one ORBIT®3 port which can power up to ten LVDT type displacement sensors or other sensors. This can be extended up to a maximum of 150 sensors with the use of supplementary power modules. The ModbusTCP™ protocol driver supports the Explicit and Cyclic Messaging implementation of the protocol as a server. The ModbusTCP™ port is a very powerful data transfer tool designed for easy connection to ModbusTCP™ enabled PLCs. Applications are found in many industries including manufacturing, automation and control, power generation and food processing.

    Digital Measurement Orbit Modules and Gateways

    Orbit® Interface Modules/PLC Gateways

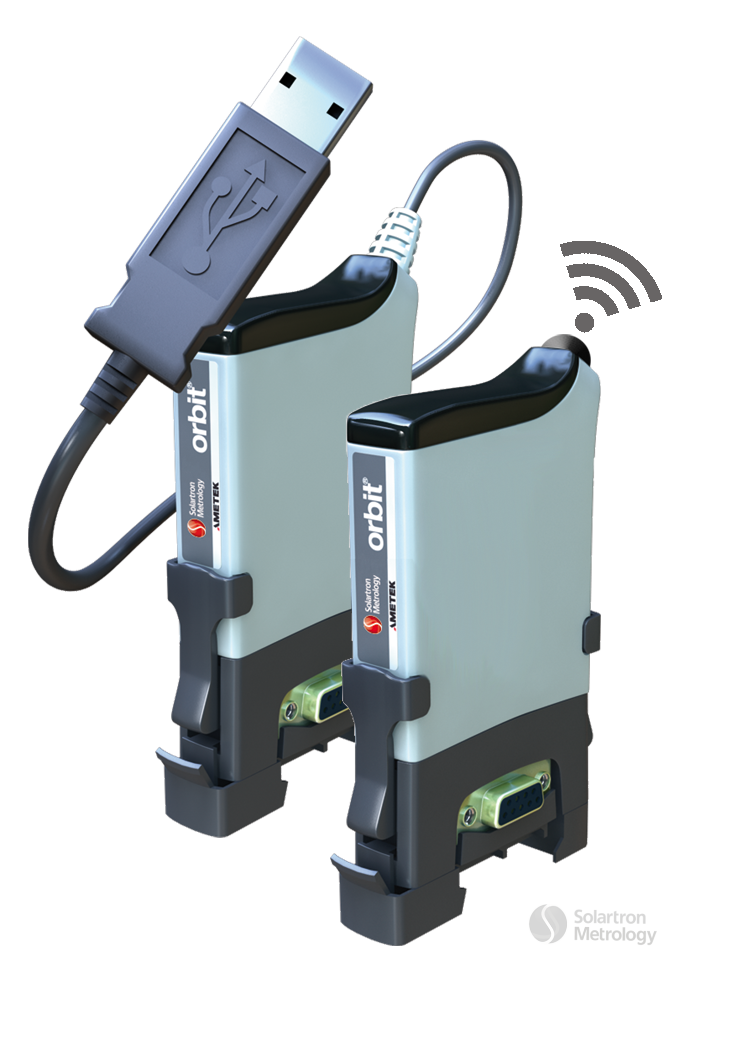

     USB

     Ethernet

     RS232

     Wireless (Bluetooth™)

     Modbus RTU



    Whether it be PC, laptop or PLC, Solartron offers a range of Interface Modules and PLC gateways for directly connecting to an Orbit® Network with the Controller of your choice.The interface module provides a method of connecting controllers to the Orbit® network where the controller itself runs the network. The interface module simply translates and retransmits the Orbit® commands between the Network and the Controller.




    Digital Measurement Orbit Modules and Gateways

    Orbit® Special Modules

     Analogue Input

     Encoder Input

     Digital Input and Output

     Digimatic



     PT100 temperature

     Strain Gauge

     Load Cells

     TTL Output

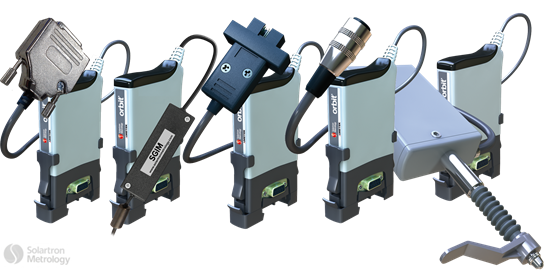

    Solartron offer a range of modules for 3rd party sensors and general instrumentation tasks that expand the Orbit® Measurement System for applications that are not just linear measurement.






    Air Gauging Measurement system      Air Gauge to Orbit

    Air Gauge to Orbit

     Interfaces to most Air Gauge spindles, mandrels or bore heads

     High stability Air to Orbit Converter

     Resolution better than 0.1 µm

     Pressure 30 psi

     Simple set up and Mastering using Orbit or integral screen

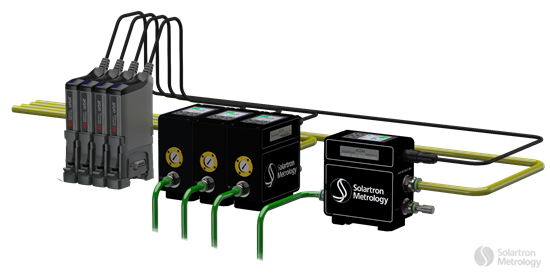

    Solartron Metrology’s Orbit Air Gauge Interface Module (AGM) makes connecting air gauge Measurement Probes to Orbit simple, allowing the user to mix air gauges with all of our contact and non contact sensors to fully utilise the full performance of the Orbit Digital Measurement Network.
