• DAC/PRF Series - Outside Diameter Control System

    These units control diameter by outputting feedback signals to extruding machine or winding machine in continuous extruding molding production line

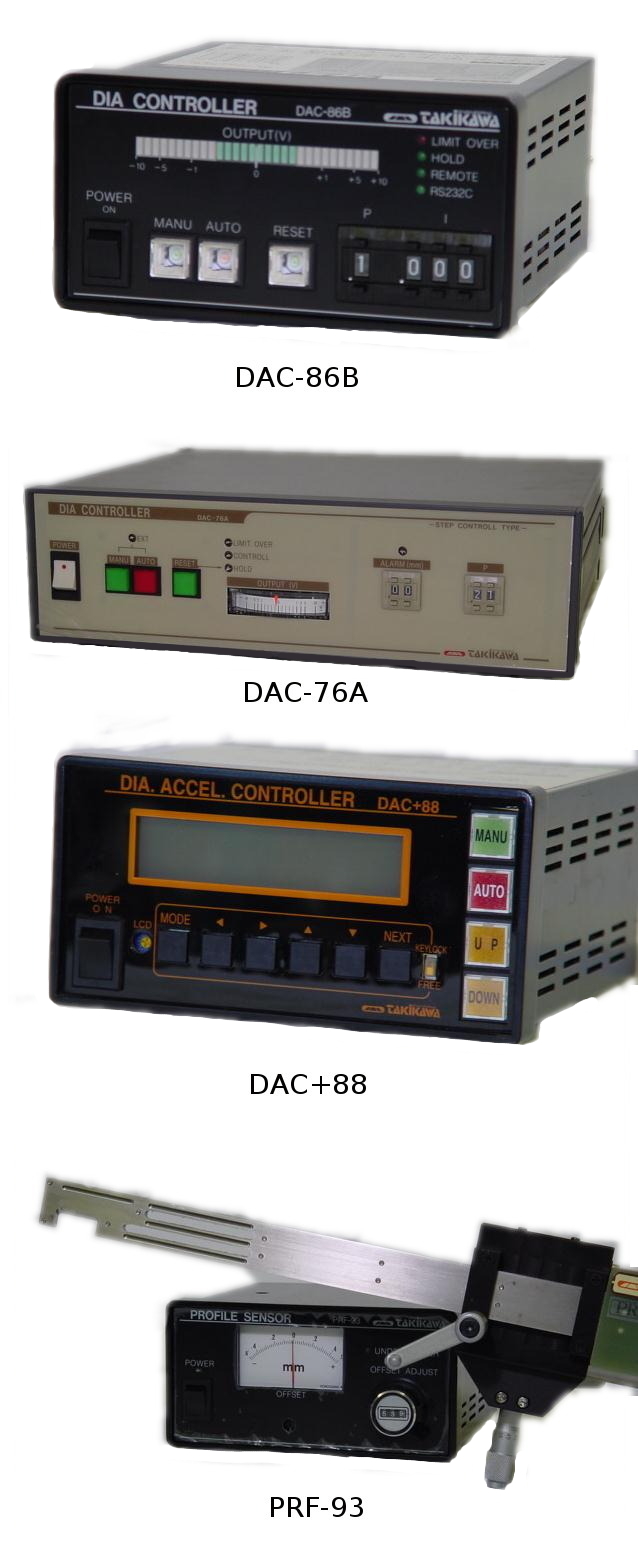

    The range consists of DAC-76A(Step delay control type), DAC-86B(PI control type) and DAC+88(Automatic starting-up type).

    The LDM-210C builds the control unit into the measuring instrument of the LASER DIAMETER.

     Deformed material extruding control systems (DRF-10H, DRF-40H and DRF-93)  keep shape of profile constant by extruding plastic or resin

    SPECIFICATIONS



    Model DAC-86B DAC-76A DAC+88 LDM-210C
    (Dia.Control Part)
    Control
    method
    P/I/SPEED
    Control
    Step delay
    Control
    Parameter
    Control
    Selected
    P/I Control or Step delay Control
    Automatic
    starting-up
    NG NG OK NG
    Applicable
    Micrometers
    All devices which have
    Analog deviation output
    Only LDM-Series Included LDM
    Input kinds Error input,
    Line speed input
    Error input, Extruder input,
    Capstan input
    Line speed input
    Input isolation OK OK OK OK
    Input range
    [DCV]
    Error: +/-10V
    Line speed: +10V
    Error: +/-10V Extruder: +10V
    Capstan: +10V
    Line speed: +10V
    Input impedance 200k ohm 200k ohm 200k ohm 200k ohm
    Error
    gain setting
    NG 10um/V-10mm/V
    (decade steps)
    NG NG
    Output kinds Control output Control output Extruder output,
    Capstan output
    Control output
    Output method Deviation control Deviation control Absolute control Deviation control
    Output isolation OK OK OK OK
    Output range DC+/-10V DC+/-10V DC+/-10V DC+10V
    (Ext./Cap. each)
    Max. current DC+/-20mA DC+/-20mA DC+10mA
    (Ext./Cap. each)
    DC+/-20mA
    Output impedance less than 6 ohm less than 6 ohm less than 10 ohm
    (Ext./Cap. each)
    less than 6 ohm
    Output limit
    setting
    OK OK OK OK
    Setting items P,I Alarm,P System data(11items)[*1]
    Work data(12items)
    P,I or
    P,Speed voltage,Distance
    Programing
    function
    NG NG OK
    (100 kinds)
    NG
    Operation button MANU/AUTO
    /RESET
    MANU/AUTO
    /RESET
    MANU/AUTO/UP/DOWN MANU/AUTO
    External remote input OK OK OK OK
    Pulse signal
    of length
    Unnecessary Necessary Unnecessary Unnecessary
    Main display Output display
    by LED bargraph
    Output display
    by analog meter
    Operation state
    display by LCD
    Output display
    by LED bargraph
    RS-232C OK NG OK OK
    Tacho-generator
    input
    NG OK NG NG
    Power supply AC100-240V 50/60Hz Free power supply
    Power
    consumption
    less than 8VA less than 15VA less than 10VA less than 20VA
    Ambient condition Temperature:0-45 degree centigrade,
    Humidity:30-85%(No condensation)
    Outside dimension
    W * H * D[mm]
    144 * 72 * 191 350 * 99 * 331 144 * 72 * 191 144 * 72 * 241
    Weight Approx. 1.5kg Approx. 3kg Approx. 1.7kg Approx. 1.8kg




    [*1] The data backed up by the battery may not necessarily apply to every product.



    Deformed Material Extruding Control System



    This system helps keep the shape of profile constant through direct compensation/control of extruding machine or drawing machine by measuring in Non-contact method a discrepancy from standard value of profile to be extruded with a detecting head to be set just behind extruding machine at the time when extruding plastic or resin.

    SPECIFICATIONS


    Edge sensor Sensing method Non-contact/Infrared optical fiber sensing
    PRF-10H

    PRF-40H
    Measuring range 1mm * 20mm(PRF-10H),
    4mm * 20mm(PRF-40H)
    Resolution +/-1um
    Accuracy +/-5um
    Operation temperature Max. 300 degree centigrade
    Outside dimension 360(W) * 45(H) * 20(D)[mm]
    Weight 400g
    Controller Deviation indicator Analog meter
    +/-0.5mm(PRF=10H), +/-2mm(PRF-40H)

    PRF-93
    Deviation output DC voltage(Range: -4V to +4V)
    4V/0.5mm(PRF-10H)、4V/2mm(PRF-40H)
    High/Low limit output Muti-level setting available, Contact output 250V 1A
    Power supply AC100~240V 50/60Hz 10VA
    Outside dimention 144(W) * 72(H) * 191(D)[mm]
    Weight 1.5kg
    Control unit DAC-86B(See Spec. of DAC-86B)
    Sensor mounting unit Option
