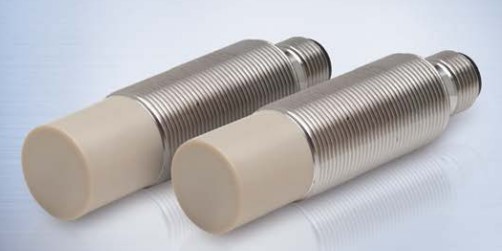

DT3001-U6-A-SA
Brand : Micro-Epsilon
Type : eddyNCDT 3001
Model : DT3001-U6-A-SA
Measuring ranges : 6 mm
Start of measuring range:0.6 mm
Frequency response (-3dB): 5kHz
Target material : Aluminum
Min. target size (flat) : Ø 72 mm
Sensor Type : unshielded
Linearity : < ±15 µm
Resolution : 3 µm
Temperature stability:< 1.5 µm/K
Protection class : IP67(plugged)
Supply voltage : 12 … 32 VDC
Power consumption : 0.6 W
Analog output : 0.5 … 9.5 V
Temperature range : -20 …+70 °C


Sub Components

PCx/5-M12

Supply and signal cable (DT3001 , DT3005)

5-pole with M12 connector

Standard length: 5 m

Optionally available: 20 m

Add

PS2020

Power supply unit (DT3001 , DT3005 , DT3060 , DT3070 , DT3300 , DZ140 , SGS)

Input 100-240 VAC

Output 24 VDC / 2.5 A

mounting onto symmetrical standard rail 35 mm x 7.5 mm, DIN 50022
