Product Configuration

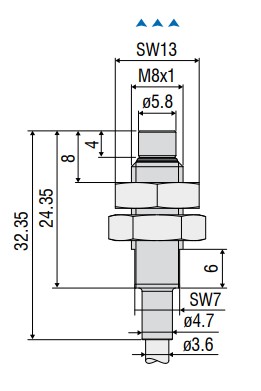

ES-U2
|
|
Sub Components

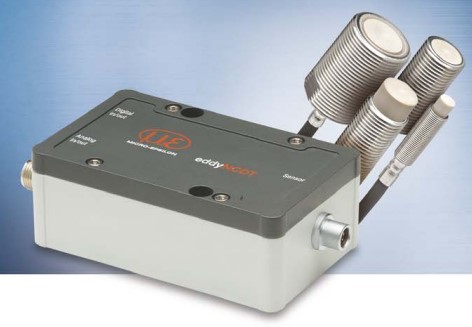

DT3060
|
Brand : Micro-Epsilon Type : eddyNCDT 3060 Model : DT3060 Measuring rate : 50 kSa/s No. of characteristic curves:1 Frequency response (-3dB) 20 kHz, 5 kHz, 20 Hz Target material : Steel, aluminum |
Linearity : < ±0.2 % FSO Resolution : 0.01 % FSO Temperature stability:< 0.015 % FSO / K Protection class : IP67(plugged) Supply voltage : 12 … 32 VDC Power consumption : 2.5 W Analog output : 0 … 10 V; 4 … 20 mA Digital interface : Ethernet Temperature range : 0 …+50 °C |
DT3061
|
Brand : Micro-Epsilon Type : eddyNCDT 3060 Model : DT3061 Measuring rate : 50 kSa/s No. of characteristic curves:max.4 Frequency response (-3dB) 20 kHz, 5 kHz, 20 Hz Target material : Steel, aluminum |
Linearity : < ±0.1 % FSO Resolution : 0.01 % FSO Temperature stability:< 0.015 % FSO / K Protection class : IP67(plugged) Supply voltage : 12 … 32 VDC Power consumption : 2.5 W Analog output : 0 … 10 V; 4 … 20 mA Digital interface : Ethernet Temperature range : 0 …+50 °C |
PCx/8-M12
Supply and signal cable (DT3060 , DT3070)
8-pole with M12 connector
Standard length: 3 m
Optionally available: 5 m/ 10 m /15 m / 10 m as drag-chain suitable variant
SCD2/4/RJ45
Ethernet cable (DT3060 ,DT3070)
4-pole with M12 connector on RJ45 connector
Standard length: 2 m
PS2020
Power supply unit (DT3001 , DT3005 , DT3060 , DT3070 , DT3300 , DZ140 , SGS)
Input 100-240 VAC
Output 24 VDC / 2.5 A
mounting onto symmetrical standard rail 35 mm x 7.5 mm, DIN 50022
Sensors with integrated cable: cable type ES-xx-C-CAx
Coaxial cable with Viton sheathing (DT3060)
Cable diameter: Ø 3.6 mm
Minimum bending radius: static approx. 18 mm / dynamic approx. 36 mm
Temperature resistance: up to 200 °C (3000 hrs.)
Available length: 1 m / 3 m / 6 m (9 m on request)
Sensors with socket: cable type EC-x/mB0/mB0
Coaxial cable with Viton sheathing (DT3060)
Cable diameter: Ø 3.6 mm
Minimum bending radius: static approx. 18 mm / dynamic approx. 36 mm
Temperature resistance: up to 200 °C (3000 hrs.)
Available length: 1 m / 3 m / 6 m (9 m on request)

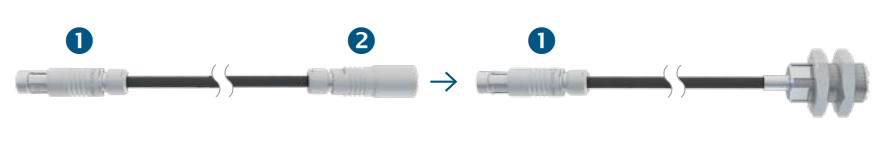

Extension cable: cable type ECE-x/fB0/mB0
Coaxial cable with Viton sheathing (DT3060)
Cable diameter: Ø 3.6 mm
Minimum bending radius: static approx. 18 mm / dynamic approx. 36 mm
Temperature resistance: up to 200 °C (3000 hrs.)
Available length: 1 m / 3 m / 6 m (9 m on request)
Connector Triax 0323118: Type S 102 A014-120 D4,1
Triaxial connector (DT3060 , DT3070)
Type: mB0
Connection: push-pull
Temperature resistance: 200 °C (3000 hrs.
Socket Triax 0323141: Type KE102 A014-120 D4,1
Triaxial socket (DT3060 , DT3070)
Type: fB0
Connection: push-pull
Temperature resistance: 200 °C (3000 hrs.)
