Product Configuration

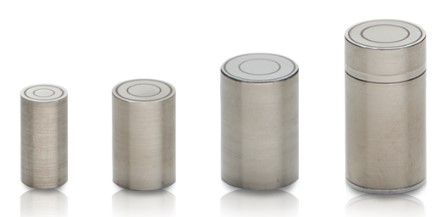

CS08
|
|
Sub Components

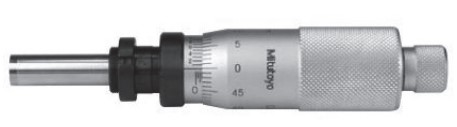

MC2.5
Micrometer for sensor calibration, range 0 - 2.5 mm,
Resolution 0.1 µm.
Suitable for sensors CS005 to CS2
CC1,0C
Low-outgassing cable up to 4 m length,
for applications in clean rooms

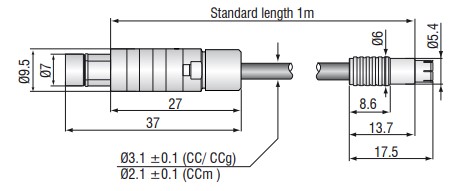

Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
2 x straight connector
Standard 1 m
CCm1,4C
Low-outgassing cable up to 4.2 m length,
for applications in clean rooms, UHV and EUV
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
2 x straight connector
1.4 m
CCg1,0C
Robust cable up to 8 m length,
for industrial applications
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
2 x straight connector
Standard 1 m
CC1,0C/90
Low-outgassing cable up to 4 m length,
for applications in clean rooms
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
1 x straight / 1 x 90° connector
Standard 1 m
CCm1,4C/90
Low-outgassing cable up to 4.2 m length,
for applications in clean rooms, UHV and EUV
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
1 x straight / 1 x 90° connector
1.4 m
CCg1,0C/90
Robust cable up to 8 m length,
for industrial applications
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
1 x straight / 1 x 90° connector
Standard 1 m
CC2,0C
Low-outgassing cable up to 4 m length, for applications in clean rooms
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
2 x straight connector
2 m
CC3,0C
Low-outgassing cable up to 4 m length, for applications in clean rooms
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
2 x straight connector
3 m
CCm2,8C
Low-outgassing cable up to 4.2 m length, for applications in clean rooms, UHV and EUV
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
2 x straight connector
2.8 m
CCm4,2C
Low-outgassing cable up to 4.2 m length, for applications in clean rooms, UHV and EUV
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
2 x straight connector
4.2 m
CCg2,0C
Robust cable up to 8 m length, for industrial applications
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
2 x straight connector
2 m
CCg4,0C
Robust cable up to 8 m length, for industrial applications
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
2 x straight connector
4 m
CCg6,0C
Robust cable up to 8 m length, for industrial applications
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
2 x straight connector
6 m
CCg8,0C
Robust cable up to 8 m length, for industrial applications
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
2 x straight connector
8 m
CC2,0C/90
Low-outgassing cable up to 4 m length, for applications in clean rooms
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
1 x straight / 1 x 90° connector
2 m
CC3,0C/90
Low-outgassing cable up to 4 m length, for applications in clean rooms
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
1 x straight / 1 x 90° connector
3 m
CCm2,8C/90
Low-outgassing cable up to 4.2 m length, for applications in clean rooms, UHV and EUV
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
1 x straight / 1 x 90° connector
2.8 m
CCm4,2C/90
Low-outgassing cable up to 4.2 m length, for applications in clean rooms, UHV and EUV
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
1 x straight / 1 x 90° connector
4.2 m
CCg2,0C/90
Robust cable up to 8 m length, for industrial applications
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
1 x straight / 1 x 90° connector
2 m
CCg4,0C/90
Robust cable up to 8 m length, for industrial applications
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
1 x straight / 1 x 90° connector
4 m
CCg6,0C/90
Robust cable up to 8 m length, for industrial applications
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
1 x straight / 1 x 90° connector
6 m
CCg8,0C/90
Robust cable up to 8 m length, for industrial applications
Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1
1 x straight / 1 x 90° connector
8 m

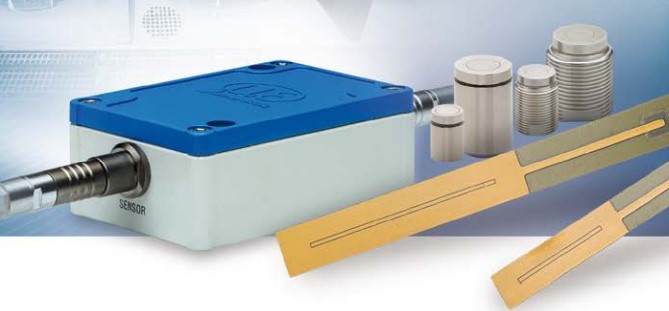

DT6124/5
|
Brand : Micro-Epsilon Type : capaNCDT 61x4 Model : DT6124/5 Frequency response (-3 dB):1 kHz Measuring rate : max. 2 kSa/s Synchronization : no |
Linearity : < ±0.1 % FSO Resolution : 0.015 % FSO Sensitivity : < ±0.2 % FSO Temperature stability: < 100 ppm FSO / K Temperature range : +10 …+60 °C Protection class : IP40 Supply voltage : 9 … 36 VDC Power consumption : 1.44 W Analog output : 0 … 10 V optional: ±5 V; 10 … 0 V Digital interface : RS485; 24 bit |
DT6124/15
|
Brand : Micro-Epsilon Type : capaNCDT 61x4 Model : DT6124/15 Frequency response (-3 dB):1 kHz Measuring rate : max. 2 kSa/s Synchronization : no |
Linearity : < ±0.25 % FSO Resolution : 0.015 % FSO Sensitivity : < ±0.2 % FSO Temperature stability: < 100 ppm FSO / K Temperature range : +10 …+60 °C Protection class : IP40 Supply voltage : 9 … 36 VDC Power consumption : 1.44 W Analog output : 0 … 10 V optional: ±5 V; 10 … 0 V Digital interface : RS485; 24 bit |
DT6120
|
Brand : Micro-Epsilon Type : capaNCDT 6120 Model : DT6120 Bandwidth :1 kHz Synchronous operation : no Insulator measurement : no |
Linearity : ≤ ±0.05 % FSO Resolution : 0.015 % FSO Sensitivity deviation : ≤ ±0.1 % FSO Temperature stability: 200 ppm Temperature range : +10 …+60 °C Supply voltage : 24 VDC Power consumption : 60 mA Analog output : 0 … 10 V Digital interface : RS485 |
DT6120/ECL2
|
Brand : Micro-Epsilon Type : capaNCDT 6120/ECL2 Model : DT6120/ECL2 Bandwidth :1 kHz Synchronous operation : no Insulator measurement : no |
Linearity : ≤ ±0.05 % FSO Resolution : 0.015 % FSO Sensitivity deviation : ≤ ±0.1 % FSO Temperature stability: 200 ppm Temperature range : +10 …+60 °C Supply voltage : 24 VDC Power consumption : 60 mA Analog output : 0 … 10 V Digital interface : RS485 |

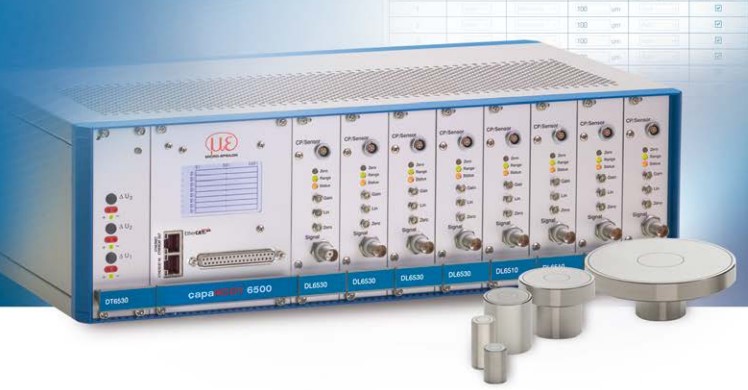

DT6530 + DL6530
|
Brand : Micro-Epsilon Type : capaNCDT 6500 Model : DT6530 + DL6530 Data rate analog output : 8.5 kHz (-3 dB) Data rate digital output: 4 x 7.8 kSa/s; 8 x 3.9 kSa/s Bandwidth : 20 Hz; 1 kHz; 8.5 kHz Synchronous operation : yes Insulator measurement : yes Trigger : TTL, 5 V No. of channels : max. 8 |
Linearity : ≤ ±0.025 % FSO Resolution : 0.002 % FSO Repeatability : 0.0003 % FSO Sensitivity deviation : ≤ ±0.05 % FSO Temperature stability: ±digital: 5 ppm/°C analog: 10 ppm/°C Temperature range : +10 …+60 °C Supply voltage : 230 VAC Output : 0 ... 10 V , 4 ... 20 mA |
DT6530 with pre-amplifier CPM6011
|
Brand : Micro-Epsilon Type : capaNCDT 6500 Model:DT6530 with pre-amplifier CPM6011 Data rate analog output : 8.5 kHz (-3 dB) Data rate digital output: 4 x 7.8 kSa/s; 8 x 3.9 kSa/s Bandwidth : 20 Hz; 1 kHz; 8.5 kHz Synchronous operation : yes Insulator measurement : no Trigger : TTL, 5 V No. of channels : max. 8 |
Linearity : ≤ ±0.05 % FSO Resolution : 0.015 % FSO Repeatability : 0.001 % FSO Sensitivity deviation : ≤ ±0.1 % FSO Temperature stability: 80 ppm Temperature range : +10 …+60 °C Supply voltage : 230 VAC Output : 0 ... 10 V , 4 ... 20 mA |
Demodulator DL6220
|
Brand : Micro-Epsilon Type : capaNCDT 6200 Model : Demodulator DL6220 Data rate digital output: 3.906 kSa/s Bandwidth : 5 kHz, 20 Hz Synchronous operation : yes Insulator measurement : no Trigger : TTL, 5 V No. of channels : max. 4 |
Linearity : ≤ ±0.05 % FSO Resolution : 0.02 % FSO Sensitivity deviation : ≤ ±0.1 % FSO Temperature stability: 200 ppm Temperature range : +10 …+60 °C Supply voltage : 24 VDC Power consumption : 3.1 W Analog output : 0...10 V , 4...20 mA |

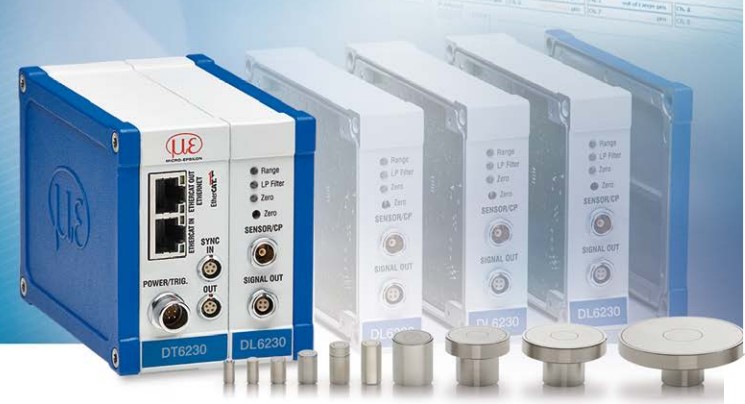

Demodulator DL6230
|
Brand : Micro-Epsilon Type : capaNCDT 6200 Model : Demodulator DL6230 Data rate digital output: 3.906 kSa/s Bandwidth : 5 kHz, 20 Hz Synchronous operation : yes Insulator measurement : no Trigger : TTL, 5 V No. of channels : max. 4 |
Linearity : ≤ ±0.025 % FSO Resolution : 0.005 % FSO Sensitivity deviation : ≤ ±0.1 % FSO Temperature stability: 200 ppm Temperature range : +10 …+60 °C Supply voltage : 24 VDC Power consumption : 3.1 W Analog output : 0...10 V , 4...20 mA |
Demodulator DL6222
|
Brand : Micro-Epsilon Type : capaNCDT 6200 Model : Demodulator DL6222 Data rate digital output: 3.906 kSa/s Bandwidth : 20 kHz, 20 Hz Synchronous operation : no Insulator measurement : no Trigger : TTL, 5 V No. of channels : max. 4 |
Linearity : ≤ ±0.1 % FSO Resolution : 0.05 % FSO Sensitivity deviation : ≤ ±0.1 % FSO Temperature stability: 200 ppm Temperature range : +10 …+60 °C Supply voltage : 24 VDC Power consumption : 2.8 W Analog output : 0...10 V , 4...20 mA |
Demodulator DL6222/ECL2
|
Brand : Micro-Epsilon Type : capaNCDT 6200 Model : Demodulator DL6222/ECL2 Data rate digital output: 3.906 kSa/s Bandwidth : 20 kHz, 20 Hz Synchronous operation : no Insulator measurement : no Trigger : TTL, 5 V No. of channels : max. 4 |
Linearity : ≤ ±0.2 % FSO Resolution : 0.1 % FSO Sensitivity deviation : ≤ ±0.1 % FSO Temperature stability: 200 ppm Temperature range : +10 …+60 °C Supply voltage : 24 VDC Power consumption : 2.8 W Analog output : 0...10 V , 4...20 mA |

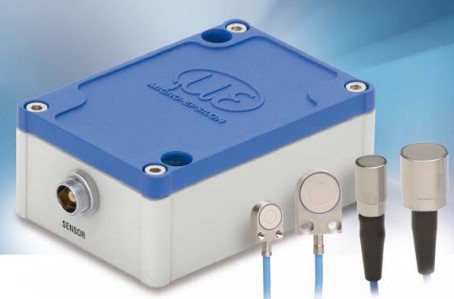

DT6110
|
Brand : Micro-Epsilon Type : capaNCDT 6110 Model : DT6110 Bandwidth :1 kHz Synchronous operation : no Insulator measurement : no |
Linearity : ≤ ±0.05 % FSO Resolution : 0.015 % FSO Sensitivity deviation : ≤ ±0.1 % FSO Temperature stability: 200 ppm Temperature range : +10 …+60 °C Supply voltage : 24 VDC Power consumption : 55 mA Analog output : 0 … 10 V |
DT6110/ECL2
|
Brand : Micro-Epsilon Type : capaNCDT 6110 Model : DT6110/ECL2 Bandwidth :1 kHz Synchronous operation : no Insulator measurement : no |
Linearity : ≤ ±0.05 % FSO Resolution : 0.015 % FSO Sensitivity deviation : ≤ ±0.1 % FSO Temperature stability: 200 ppm Temperature range : +10 …+60 °C Supply voltage : 24 VDC Power consumption : 55 mA Analog output : 0 … 10 V |

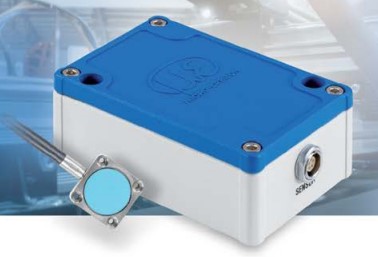

DT6112
|
Brand : Micro-Epsilon Type : capaNCDT 6112 Model : DT6112 Bandwidth : 20 kHz Synchronous operation : no Insulator measurement : no |
Linearity : ≤ ±0.1 % FSO Resolution : 0.03 % FSO Sensitivity deviation : ≤ ±0.1 % FSO Temperature stability: 200 ppm Temperature range : +10 …+60 °C Supply voltage : 24 VDC Power consumption : 55 mA Analog output : 0 … 10 V |
DT6110/IP/U
|
Brand : Micro-Epsilon Type : capaNCDT 61x0/IP Model : DT6110/IP/U Frequency response (-3 dB):1 kHz Synchronous operation : no |
Linearity : ≤ ± 0.1 % FSO Sensitivity : ≤ ± 0.1 % FSO Temperature stability: 50 ppm FSO/K Temperature range : -20 …+60 °C Protection class : IP68 Supply voltage : 9 ... 28 VDC Power consumption : 1.4 W Analog output : 0 ... 10 V / ± 5 V Digital interface : - |
DT6120/IP/U
|
Brand : Micro-Epsilon Type : capaNCDT 61x0/IP Model : DT6120/IP/U Frequency response (-3 dB):1 kHz Synchronous operation : no |
Linearity : ≤ ± 0.1 % FSO Sensitivity : ≤ ± 0.1 % FSO Temperature stability: 50 ppm FSO/K Temperature range : -20 …+60 °C Protection class : IP68 Supply voltage : 9 ... 28 VDC Power consumption : 1.6 W Analog output : 0 ... 10 V / ± 5 V Digital interface : RS485 |
DT6110/IP/I
|
Brand : Micro-Epsilon Type : capaNCDT 61x0/IP Model : DT6110/IP/I Frequency response (-3 dB):1 kHz Synchronous operation : no |
Linearity : ≤ ± 0.1 % FSO Sensitivity : ≤ ± 0.1 % FSO Temperature stability: 50 ppm FSO/K Temperature range : -20 …+60 °C Protection class : IP68 Supply voltage : 11 ... 28 VDC Power consumption : 2 W Analog output : 4 ... 20 mA Digital interface : - |
DT6120/IP/I
|
Brand : Micro-Epsilon Type : capaNCDT 61x0/IP Model : DT6120/IP/I Frequency response (-3 dB):1 kHz Synchronous operation : no |
Linearity : ≤ ± 0.1 % FSO Sensitivity : ≤ ± 0.1 % FSO Temperature stability: 50 ppm FSO/K Temperature range : -20 …+60 °C Protection class : IP68 Supply voltage : 11 ... 28 VDC Power consumption : 2.2 W Analog output : 4 ... 20 mA Digital interface : RS485 |
DT6220 with DL6230
|
Brand : Micro-Epsilon Type : capaNCDT DTV Model : DT6220 with DL6230 Bandwidth : 5kHz, 20Hz Data rate digital output : 3.906kSa/s Trigger : TTL, 5V No. of channels : max. 4 |
Linearity : < ±0.25 % FSO Resolution : 0.015 % FSO Sensitivity deviation : ≤±0.1% FSO Temperature stability: < 100 ppm FSO / K Temperature range : +10 …+60 °C Supply voltage : 24VDC (12...36 VDC) Analog output : 0 … 10 V , 4...20mA Digital interface : Ethernet + EtherCAT |
DT6112/ECL2
|
Brand : Micro-Epsilon Type : capaNCDT 6112 Model : DT6112/ECL2 Bandwidth : 20 kHz Synchronous operation : no Insulator measurement : no |
Linearity : ≤ ±0.2 % FSO Resolution : 0.1 % FSO Sensitivity deviation : ≤ ±0.1 % FSO Temperature stability: 200 ppm Temperature range : +10 …+60 °C Supply voltage : 24 VDC Power consumption : 55 mA Analog output : 0 … 10 V |
DT6530 +DL6510 with CP6001
|
Brand : Micro-Epsilon Type : capaNCDT 6500 Model : DT6530 +DL6510 with CP6001 Data rate analog output : 8.5 kHz (-3 dB) Data rate digital output: 4 x 7.8 kSa/s; 8 x 3.9 kSa/s Bandwidth : 20 Hz; 1 kHz; 8.5 kHz Synchronous operation : yes Insulator measurement : yes Trigger : TTL, 5 V No. of channels : max. 8 |
Linearity : ≤ ±0.025 % FSO Resolution : 0.002 % FSO Repeatability : 0.0003 % FSO Sensitivity deviation : ≤ ±0.05 % FSO Temperature stability: ±digital: 5 ppm/°C analog: 10 ppm/°C Temperature range : +10 …+60 °C Supply voltage : 230 VAC Output : 0 ... 10 V , 4 ... 20 mA |

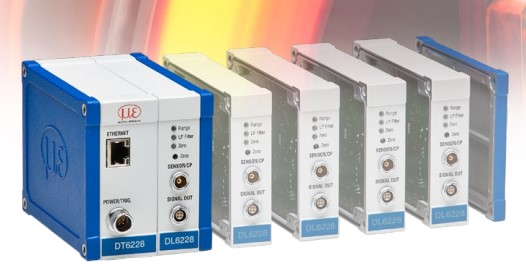

DT6228 with DL6228
|
Brand : Micro-Epsilon Type : capaNCDT 6228 Model : DT6228 with DL6228 Frequency response (-3dB) : 1kHz Measuring rate : max. 3.906kSa/s Synchronization : yes(only internal) Trigger : Signal input : TTL(5V) No. of channels : max. 4 |
Linearity : < ±0.05 % FSO Resolution : 0.01 % FSO Sensitivity : ≤±0.1% FSO Temperature stability: < 200 ppm FSO / K Temperature range : +10 …+60 °C Supply voltage : 24VDC (12...36 VDC) Analog output : 0 … 10 V , 4...20mA Digital interface : Ethernet Protection Class : IP40 |
DT6238 with DL6228
|
Brand : Micro-Epsilon Type : capaNCDT 6228 Model : DT6238 with DL6228 Frequency response (-3dB) : 1kHz Measuring rate : max. 3.906kSa/s Synchronization : yes Trigger : Signal input : TTL(5V) No. of channels : max. 4 |
Linearity : < ±0.05 % FSO Resolution : 0.01 % FSO Sensitivity deviation : ≤±0.1% FSO Temperature stability: < 200 ppm FSO / K Temperature range : +10 …+60 °C Supply voltage : 24VDC (15...36 VDC) Analog output : 0 … 10 V , 4...20mA Digital interface : Ethernet /EtherCAT Protection Class : IP40 |
DT6114/5
|
Brand : Micro-Epsilon Type : capaNCDT 61x4 Model : DT6114/5 Frequency response (-3 dB):1 kHz Measuring rate : - Synchronization : no |
Linearity : < ±0.1 % FSO Resolution : 0.015 % FSO Sensitivity : < ±0.2 % FSO Temperature stability: < 100 ppm FSO / K Temperature range : +10 …+60 °C Protection class : IP40 Supply voltage : 9 … 36 VDC Power consumption : 1.32 W Analog output : 0 … 10 V optional: ±5 V; 10 … 0 V Digital interface : - |
DT6114/15
|
Brand : Micro-Epsilon Type : capaNCDT 61x4 Model : DT6114/15 Frequency response (-3 dB):1 kHz Measuring rate : - Synchronization : no |
Linearity : < ±0.25 % FSO Resolution : 0.015 % FSO Sensitivity : < ±0.2 % FSO Temperature stability: < 100 ppm FSO / K Temperature range : +10 …+60 °C Protection class : IP40 Supply voltage : 9 … 36 VDC Power consumption : 1.32 W Analog output : 0 … 10 V optional: ±5 V; 10 … 0 V Digital interface : - |
