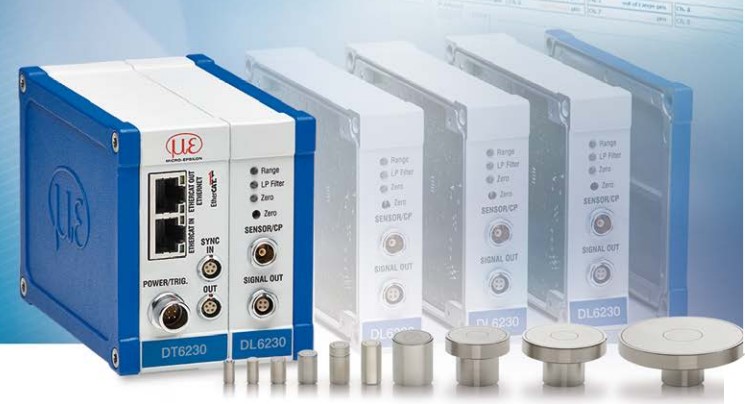

Demodulator DL6220
Brand : Micro-Epsilon
Type : capaNCDT 6200
Model : Demodulator DL6220
Data rate digital output: 3.906 kSa/s
Bandwidth : 5 kHz, 20 Hz
Synchronous operation : yes
Insulator measurement : no
Trigger : TTL, 5 V
No. of channels : max. 4
Linearity : ≤ ±0.05 % FSO
Resolution : 0.02 % FSO
Sensitivity deviation : ≤ ±0.1 % FSO
Temperature stability: 200 ppm
Temperature range : +10 …+60 °C
Supply voltage : 24 VDC
Power consumption : 3.1 W
Analog output : 0...10 V , 4...20 mA
Digital interface : Ethernet


Sub Components

PS2020

Power supply unit (DT3001 , DT3005 , DT3060 , DT3070 , DT3300 , DZ140 , SGS)

Input 100-240 VAC

Output 24 VDC / 2.5 A

mounting onto symmetrical standard rail 35 mm x 7.5 mm, DIN 50022

Add

LC DL62x0 digital

special calibration of linearity on digital output

Add

LC DL62x0 analog

special calibration of linearity on analog output

Add

EMR2 DL6220

extended measuring range (factor: 2) contains LC DL62x0 digital and LC DL62x0 analog

Add

RMR1/2 DL6220

reduced measuring range (factor: 1/2) contains LC DL62x0 digital and LC DL62x0 analog

Add

MC2.5

Micrometer for sensor calibration, range 0 - 2.5 mm,

Resolution 0.1 µm.

Suitable for sensors CS005 to CS2

Add

MC25D

Digital micrometer for sensor calibration, range 0 - 25 mm,

adjustable offset (zero).

Suitable for all sensors.

Add

HV/B

 Vacuum feed through triaxial

Add

UHV/B (screwable)

Vacuum feed through triax screwable

Max. leak rate 1x10e-9 mbar · l s-1

Compatible with connector type B

Add

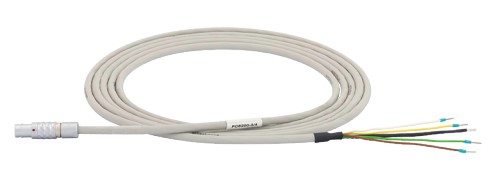

PC6200-3/4

 Power supply and trigger cable, 4 pin, 3 m

Add

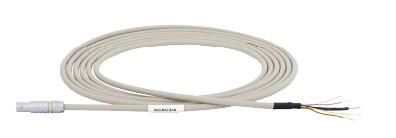

SCAC3/4

Signal output cable, (necessary for multi-channel applications), 4 pin, 3 m

Add

SC6000-1,0

Synchronization cable, 5 pin, 1 m

Add

UHV/B (flange)

Vacuum feed through triax with CF16 flange

Max. leak rate 1x10e-9 mbar · l s-1

Compatible with connector type B

Add

UHV/B (weldable)

Vacuum feed through triax weldable

Max. leak rate 1x10e-9 mbar · l s-1

Compatible with connector type B

Add

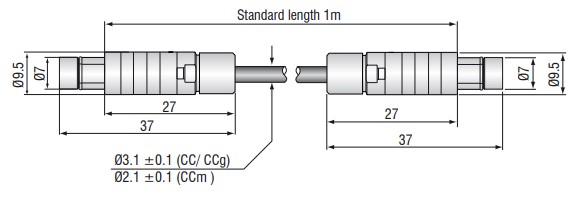

CC1,0C

Low-outgassing cable up to 4 m length, for applications in clean rooms

Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1

2 x straight connector

Standard 1 m

Add

CCm1,4C

Low-outgassing cable up to 4.2 m length, for applications in clean rooms, UHV and EUV

Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1

2 x straight connector

1.4 m

Add

CC1,0C/90

Low-outgassing cable up to 4 m length, for applications in clean rooms

Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1

1 x straight / 1 x 90° connector

Standard 1 m

Add

CCm1,4C/90

Low-outgassing cable up to 4.2 m length, for applications in clean rooms, UHV and EUV

Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1

1 x straight / 1 x 90° connector

1.4 m

Add

CC1,0B

Low-outgassing cable up to 4 m length, for applications in clean rooms

Cable with connector type B for sensors CS1 / CS1HP / CSE1,25 / CS2 / CSE2 / CS3 / CSE3 / CS5 / CS10

2 x straight connector

Standard 1 m

Add

CCm1,4B

Low-outgassing cable up to 4.2 m length, for applications in clean rooms, UHV and EUV

Cable with connector type B for sensors CS1 / CS1HP / CSE1,25 / CS2 / CSE2 / CS3 / CSE3 / CS5 / CS10

2 x straight connector

1.4 m

Add

CC1,0B/90

Low-outgassing cable up to 4 m length, for applications in clean rooms

Cable with connector type B for sensors CS1 / CS1HP / CSE1,25 / CS2 / CSE2 / CS3 / CSE3 / CS5 / CS10

1 x straight / 1 x 90° connector

Standard 1 m

Add

CCm1,4B/90

Low-outgassing cable up to 4.2 m length, for applications in clean rooms, UHV and EUV

Cable with connector type B for sensors CS1 / CS1HP / CSE1,25 / CS2 / CSE2 / CS3 / CSE3 / CS5 / CS10

1 x straight / 1 x 90° connector

1.4 m

Add

CCg2,0C

Robust cable up to 8 m length, for industrial applications

Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1

2 x straight connector

2 m

Add

CCg2,0C/90

Robust cable up to 8 m length, for industrial applications

Cable with connector type C for sensors CS005 / CS02 / CS05 / CSE05 / CS08 / CSE1

1 x straight / 1 x 90° connector

2 m

Add

CCg2,0B

Robust cable up to 8 m length, for industrial applications

Cable with connector type B for sensors CS1 / CS1HP / CSE1,25 / CS2 / CSE2 / CS3 / CSE3 / CS5 / CS10

2 x straight connector

2 m

Add

CCg2,0B/90

Robust cable up to 8 m length, for industrial applications

Cable with connector type B for sensors CS1 / CS1HP / CSE1,25 / CS2 / CSE2 / CS3 / CSE3 / CS5 / CS10

1 x straight / 1 x 90° connector

2 m

Add

SWH.OS.650.CTMSV

Vacuum feed through,

Max. leak rate 1x10e-7 mbar · l s-1

Compatible with connector type B

Add

CCg2.0C/PT

Robust, industrial cable with type C plug for sensors with a measuring range ≤1 mm

Type B plug controller side, (IP68)

2 m

Temperature resistance -20 °C ... +80 °C (permanent); -20 °C ... +100 °C (10,000 h)

Outer diameter: 6 mm ± 0.15 mm

Minimum bending radius static >20 mm; dynamic 30 mm

Add

CCg2.0B/PT

Robust, industrial cable with type B plug (IP68) for sensors with a measuring range >1 mm

Type B plug controller side, (IP68)

2 m

Temperature resistance -20 °C ... +80 °C (permanent); -20 °C ... +100 °C (10,000 h)

Outer diameter: 6 mm ± 0.15 mm

Minimum bending radius static >20 mm; dynamic 30 mm

Add

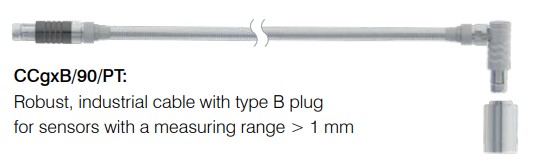

CCg2.0B/90/PT

Robust, industrial cable with type B plug for sensors with a measuring range > 1 mm

Type B plug controller side, (IP68)

2 m

Temperature resistance -20 °C ... +80 °C (permanent); -20 °C ... +100 °C (10,000 h)

Outer diameter: 6 mm ± 0.15 mm

Minimum bending radius static >20 mm; dynamic 30 mm
