Brand : Exemys

Model : SGW1-IA3-MB-NM

Type : Protocol Converters

Application: To read NMEA 0183 data comming from a GPS or weather station using the industry standard protocol Modbus.

Protocol : Modbus RTU, Modbus ASCII, NMEA 0183.

Communication mode: RS232, RS485, USB-B (for configuraton)

Operation modes : NMEA to Modbus

Power : 10~30 VDC

Current : 70mA@12VDC / 40mA@24VDC

Dimension : 100 x 22.5 x 112 mm (H x W x D)

Mounting : DIN rail

Housing:Temperature-resistant industrial case

Tools & Utility : Console

Brand : Exemys

Model : SGW1-IA3-MB-HL

Type : Protocol Converters

Application: To connect an OMRON PLC to a Modbus Network. Protocol conversion is based on easy-to-fill translation tables.

Protocol : Modbus ASCII, Modbus RTU, Hostlink.

Communication mode: RS232, RS485, RS422, USB-B (for configuraton)

Devices supported : Hostlink slave devices, Modbus ASCII/RTU master
devices.

Operation modes : Modbus to Hotlink

Power : 10~30 VDC

Current : 12 VDC 70mA / 24 VDC 40mA.

Dimension : 100 x 22.5 x 112 mm (H x W x D)

Mounting : DIN rail

Housing:Temperature-resistant industrial case

Tools & Utility : USB Console

Brand : Exemys

Model : GRD-XF-4G

Type : Cellular Telemetry

Application: Control and supervise any kind of equipment from distance, be it a control system or process system facilitating the implementation of the remote telemetry systems.

Protocol : Modbus RTU,ASCII,TCP Master/Slaves, SMS, NMEA.

Communication mode: RS232, RS485, USB-B (for configuraton),4G + 3G + 2G Cellular Communication.

Physical I/O : Digital I/O,Analog Input

Feature : Script logic programming

Feature : Alarms and capability to control by SMS text messages.

Power : 10~30 VDC

Current : 12 VDC 70mA / 24 VDC 40mA.

Dimension : 100 x 22.5 x 112 mm (H x W x D)

Mounting : DIN rail

Housing:Temperature-resistant industrial case

Tools & Utility : USB Console, Web Telemetry Server for monitoring,control and data logging.

Brand : Exemys

Model : GRD-MQ

Type : Cellular Telemetry

Application: Enables the physical I/Os and Modbus slave data through a direct connection with an MQTT broker via the mobile network, supporting TLS 1.2 encryption to ensure secure communication."

Protocol :  MQTT Client, Modbus RTU/ASCII, TCP, NMEA.

Communication mode: RS232, RS485, USB-B (for configuraton),4G + 3G + 2G Cellular Communication, Ethernet.

Physical I/O : Digital I/O,Analog Input

Additional feature : Script logic programming.

Power : 10~30 VDC

Current : 12 VDC 70mA / 24 VDC 40mA.

Dimension : 100 x 22.5 x 112 mm (H x W x D)

Mounting : DIN rail

Housing:Temperature-resistant industrial case

Tools & Utility : USB Console, Web Telemetry Server for monitoring,control and data logging.

Brand : Exemys

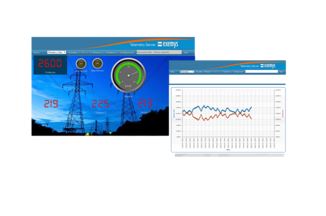

Model : WEB SERVER

Type : Cellular Telemetry

Application: Can implement immediately, using pre-designed web pages, all applications of cellular telemetry. Just connect sensors to the Exemys GRD Devices, and configure in minutes, application.

Advantages :  Immediate implementation of applications.Avoid costly hosting services. Simple Web access to all field devices.Robustness and reliability of a datacenter.Remote control & datalogging.

Tools & Utility : Needs PC/mobile with internet access

Brand : Exemys

Model : wRemote

Type : 2.4GHz Telemetry

Application: System consists of 2 devices, a Concentrator and Remote Nodes. Design for industrial or open field,where you need to collect remote and dispersed information in a reliable.

Protocol : Modbus RTU/ASCII, Modbus TCP, Zig Bee.

Communication mode: RS232, RS485, Ethernet,USB-B (for configuraton), Communication IEEE 802.15.4 in 2.4GHz.

Physical I/O : Digital I/O, Analog Input.

Power : 10~30 VDC

Current : 12 VDC 70mA / 24 VDC 40mA.

Dimension : 90 x 70 x 65 mm (H x W x D)

Mounting : DIN rail

Housing: Temperature-resistant industrial case.

Tools & Utility : wRemote Config software (Free).

Brand : Exemys

Model : wSerial

Type : 2.4GHz Telemetry

Application: System consists of 2 devices, a Concentrator and Remote Nodes. Design to be a real network of serial ports to industrial facilities where need to gather information from remote and dispersed devices,
reliably and inexpensively.

Protocol : Modbus RTU/ASCII, Modbus TCP.

Communication mode: RS232, RS485, USB-B (for configuraton), Communication IEEE 802.15.4 in 2.4GHz, RF.

Physical I/O : Digital I/O,Analog Input

Power : 10~30 VDC

Current : 12 VDC 70mA / 24 VDC 40mA.

Dimension : 90 x 70 x 65 mm (H x W x D) (General).

Mounting : DIN rail

Housing:Temperature-resistant industrial case

Tools & Utility : wSerial Config software (Free)

Brand : Exemys

Model : wTunnel

Type : 2.4GHz Telemetry

Application: Enables reflect device inputs as outputs in the other. Design to be a true Point to Point Tunnel to reflect conditions and field values, reliably and at low cost.

Protocol : Modbus RTU/ASCII,Zig Bee

Communication mode: RS232, RS485, USB-B (for configuration), Communication IEEE 802.15.4 in 2.4GHz.

Physical I/O : Digital I/O,Analog Input

Power : 10~30 VDC

Current : 12 VDC 70mA / 24 VDC 40mA.

Dimension : 90 x 70 x 65 mm (H x W x D) (General).

Mounting : DIN rail

Housing:Temperature-resistant industrial case

Tools & Utility : wTunnel Config software (Free)

Brand : Exemys

Model : cLAN

Type : Ethernet Telemetry

Application: Allows for remote monitoring and control of sensors, transducers, and intelligent devices from your own control system or through our Web Server for telemetry applications.

Protocol : Modbus Master/Slave, Modbus TCP Slave, Iridium SBD, NMEA 0183 y, MetPak (Gill Instruments), Free Port (User protocol parsing using script
programming).

Supported device : Device with serial port RS232 / Rs485.

Communication mode: RS232, RS485, RS422,Ethernet,USB-B (for configuraton), Satellite (optional).

Physical I/O : Digital I/O,Analog Input

Additional feature : Script logic programming.

Power : 10~30 VDC

Current : 12 VDC 70mA / 24 VDC 40mA.

Dimension : 100 x 22.5 x 112 mm (H x W x D)

Mounting : DIN rail

Housing:Temperature-resistant industrial case

Tools & Utility : GRD Config for configuration, Web Telemetry Server for monitoring,control and data logging.

Brand : Exemys

Model : cLAN-MQ

Type : Ethernet Telemetry

Application: Allows for remote monitoring and control of sensors, transducers, and intelligent devices from your own control system or through our Web Server for telemetry applications. Allows
perform telemetry using the MQTT protocol, widely disseminated in the
Industry 4.0.

Protocol : Modbus Master/Slave, Modbus TCP Slave,NMEA 0183 and
MetPak (Gill Instruments), Free Port (User protocol parsing using script
programming) MQTT, TLS 1.2.

Supported device : Device with serial port RS232 / Rs485.

Communication mode: RS232, RS485, Ethernet, USB-B (for configuraton), Satellite (optional).

Physical I/O : Digital I/O,Analog Input

Additional feature : Script logic programming.

Power : 10~30 VDC

Current : 12 VDC 70mA / 24 VDC 40mA.

Dimension : 100 x 22.5 x 112 mm (H x W x D) (General)

Mounting : DIN rail

Housing:Temperature-resistant industrial case

Tools & Utility : GRD Config for configuration.
