High Speed Photospectrometer colorCONTROL ACS7000

The colorCONTROL ACS7000 color measurement system not only recognizes reference colors by comparison, but identifies individual colors clearly from their coordinates in the color space. With its high speed spectrometer, the colorCONTROL ACS7000 is suitable for applications where colors and shades have to be examined online with the highest accuracy.


 Characteristics

  •  Measurement speed: max. 2 kHz
  •  Non-contact measurements
  •  Measurement precision ΔE ≤ 0.08 (5 nm)
  •  Color spaces: XYZ; L*a*b*; L* u* v*
  •  Reference colors: 15 taught-in spectra
  •  Adjustable light source: A, C, D65, D50, D75, E, F4, F7, F11
  •  Standard observer: 2°, 10° (adjustable)
  •  Web browser operation

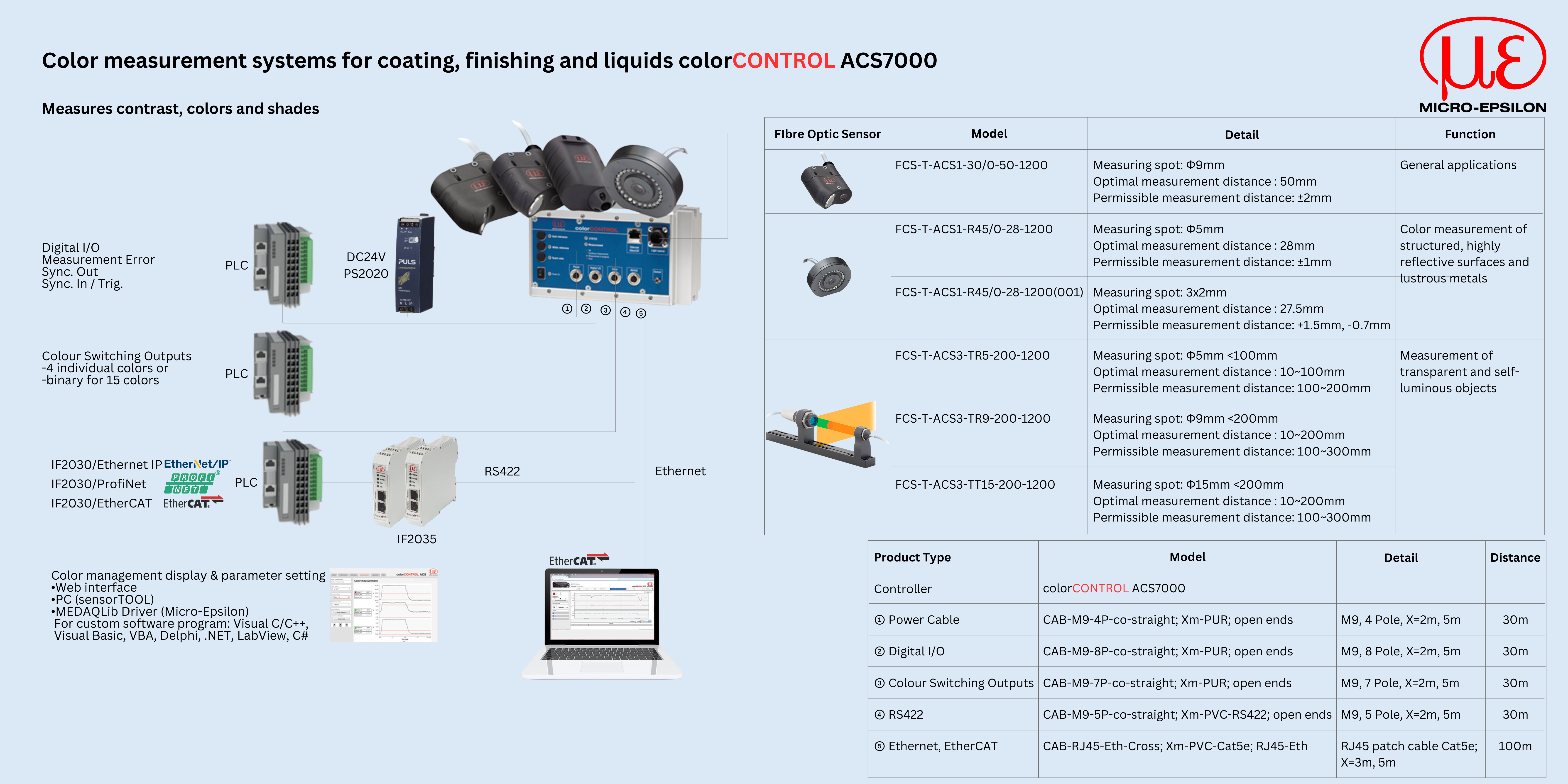

  •  Ethernet/EtherCAT, RS 422, digital I/O


Standard sensor ACS1

The standard sensor ACS1 is used for common measuring tasks. The transmitter and the receiver inside the sensor are arranged at an angle of 30°/0° to each other, producing a working distance of 50 mm. An optionally available adapter permits applying the sensor even in tactile measurements.

  •  Measurement distance: 50 mm
  •  Measurement geometry: 30°x:0°
  •  Measurement spot: ø 9 mm




Circular sensor ACS2

The circular sensor ACS2 is used for color measurement of structured and highly reflective surfaces as well as lustrous metals. In the sensor, 24 lighting optics are circularly arranged around the receiving optics and provide a constant lighting permitting that the measurement can be executed independently from the angular position of the measurement object. There are two ACS2 versions with different measurement distance and spot size.

  •  Measurement distance: 28 mm / 27.5 mm / 28.5 mm
  •  Measurement geometry: 45°c:0°
  •  Measurement spot: ø5 / 3x2 mm / 9 mm


Transmission sensor ACS3

The transmission sensor ACS3 is applied for measurements of self-luminous objects and transparent objects as well. Measuring the color of self-luminous objects requires only the receiver unit, whereas a transmitter and a receiver unit are necessary when detecting transparent objects. The transmitter and the receiver unit can easily be fixed by means of a mounting set.


  •  Measurement distance: max. 300 mm
  •  Measurement geometry: transmission
  •  Measurement spot: ø 5 / ø 9 mm / 3x2 mm (at a measurement distance up to 200 mm)
