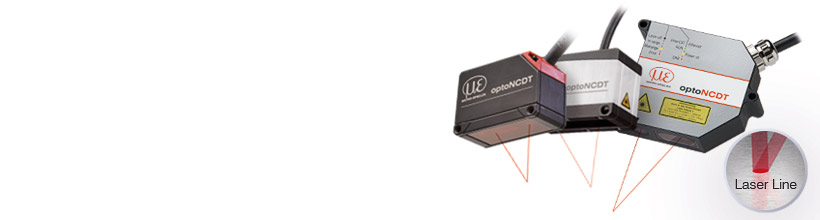

New: Smart laser sensor for shiny metallic objects – optoNCDT 1420LL

The compact optoNCDT 1420 LL laser sensors are designed for measurements of shiny metallic and rough surfaces. The oval light spot, which resembles a short laser line, can better compensate for unevenness such as texture and roughness. Special software algorithms filter out interference caused by surface roughness, defects, depressions or the smallest holes.

 Characteristics

  •  Laser sensor with special lens with oval light spot (short laser line)
  •  Precise measurement on metal surfaces and structured surfaces
  •  Active Surface Compensation for changing surfaces (ASC)
  •  ntegrated controller
  •  Measuring range (mm): 10 | 25 | 50
  •  Linearity from 8 µm
  •  Adjustable measuring rate up to 4 kHz
  •  Digital interface (integrated): RS422 (16 bit)
  •  Digital interfaces (optional connection via interface module): PROFINET, EtherNet/IP
  •  Scalable analog output
