Data sheet thermoMETER UC


High-performance industrial pyrometer for non-contact infrared temperature measurement

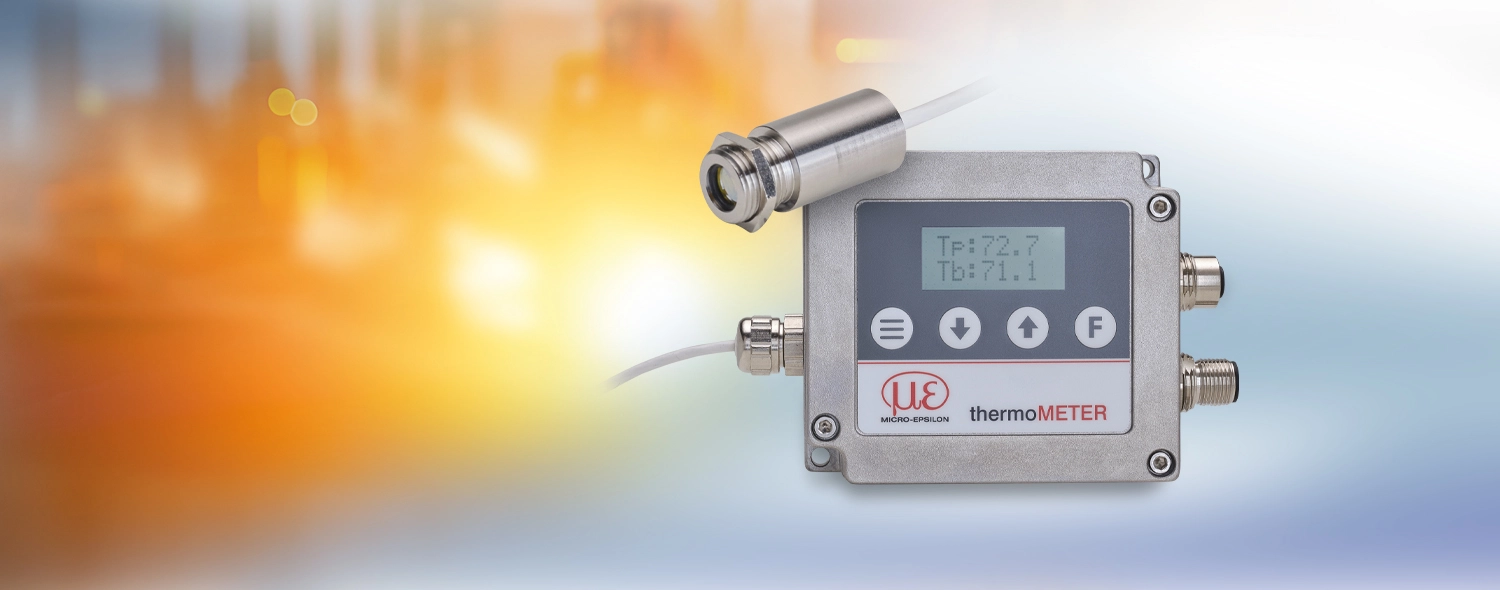

The thermoMETER UC is an extremely powerful system for non-contact temperature measurement from -50 to +1.000 °C. It offers extensive functions and a modern design with standard M12 connections. The sensor is extremely small and can be used in environments with high temperatures up to 180 °C. Due to its high performance and robustness, it is primarily used in machine building and machine design, in production processes and for quality assurance. Various interfaces such as analog and digital outputs or switching and alarm signals offer numerous possibilities for integration into processes, machines and systems.



 Characteristics

  •  Large temperature measuring range from -50 to +1.000 °C
  •  Universal spectral range from 8 ... 14 µm enables measurement on numerous objects
  •  Short response time of 20 ms for measuring fast inline processes
  •  Robust pyrometer consisting of stainless steel sensor and controller in die-cast aluminum housing
  •  Can be operated without a PC via keys and two-line display
  •  Powerful alarm relay for controlling external devices
  •  Alignment aid for quick commissioning
  •  Analog output and RS485 interface on board with parallel data output
  •  Minimal installation effort: no need to unscrew the electronics box thanks to M12 connections




Flexible setup via display & keys or software

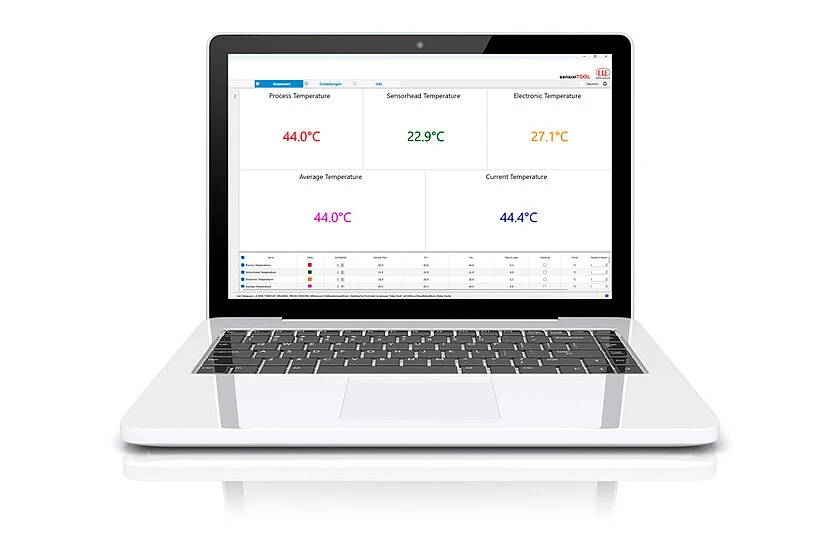

The robust controller in a die-cast aluminum housing has an integrated display with RGB backlight. The system can be set conveniently and easily using the large membrane keypad. Set alarm signals can be displayed via the backlight. As an option, sensorTOOL software is available free of charge for parameterization via a PC.


Minimal installation effort

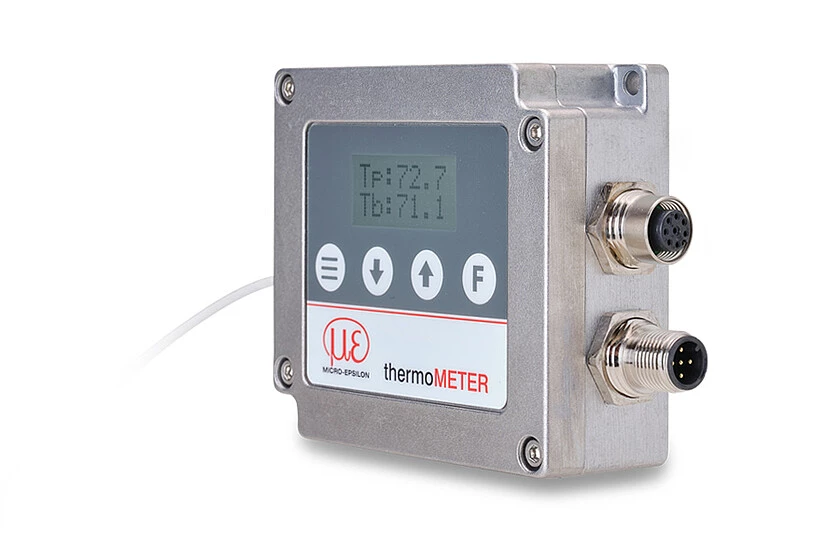

The controller of the thermoMETER UC has two M12 connections, which enable quick and easy wiring with standard industrial cables without having to remove the cover. The sensor is already permanently connected to the controller, whereby different cable lengths are available. The completeness of the cabling can be conveniently checked using a simulation mode. When mounting the sensor, an integrated aiming aid function supports the alignment of the sensor to the measuring object.







Powerful pyrometer with extensive functions

The thermoMETER UC offers many functions and parameterization options for data acquisition, processing and output. For example, the emissivity of the measuring object can be calculated automatically for correct measurement recording. Intelligent averaging and filter functions are available for signal processing, as well as a calibration option via offset/gain. The output configuration is highly flexible. The desired alarm or analog output can be selected and scaled as required. Settings can be made for all processing stages of the temperature signal.
