Specifications of PS-5711W (Core i3 model)
Functional Specifications
|
Display Size |
15.6" (wide 16:9) |
|
Display Colors |
16.7 million |
|
Backlight |
LED
Life span > 50,000 h @ 25 ℃ (77 ℉) |
|
Brightness Control |
Step less adjustment |
|
Supported OS |
Windows® 7 Ultimate 64 bit MUI / Windows® Embedded Standard 7 (Premium) 64 bit MUI / Windows® Embedded 8.1 Industry 64 bit MUI |
|
CPU |
Core™ i3-4010U 1.7 GHz |
|
Main Memory |
8 GB, DDR3L 1600 MHz, SO-DIMM SDRAM |
|
Graphics Accelerator |
Intel® HD Graphics 4400 |
|
Video Memory |
Up to 1.7 GB, Shared system memory |
|
Graphics |
FWXGA TFT (1,366 x 768 pixels) |
|
Touch Panel Type |
Capacitive multi-touch 5 simultaneous touch (projected capacitive) |
|
Touch Panel Resolution |
4,096 x 4,096 |
|
Interface |
Serial ATA |
HDD / SSD x 1
CFast x 1 |
|
Serial (COM1) |
RS-232C (D-Sub 9-pin, plug) |
|
Serial (COM2) |
RS-232C / 422 / 485 (D-Sub 9-pin, plug) |
|
Ethernet (LAN1) |
10 / 100 / 1,000 Mbps (RJ-45 Modular jack) |
|
Ethernet (LAN2) |
10 / 100 / 1,000 Mbps (RJ-45 Modular jack) |
|
USB |
USB 3.0 x 2 (Type A) |
|
Video |
HDMI x 1 |
|
Audio |
Line Out x 1 |
|
Mini PCIe |
x 1 (revision 1.2) |
General Specifications
|
International Safety Standards |
 |
|
Rated Input Voltage |
DC Power Model: 24 Vdc ±20 %
When using AC power supply unit: 100 to 240 Vac *1 |
|
Power Consumption |
18 W (Max. 60 W) |
|
Inrush Current |
7 A |
|
Surrounding Air Temperature |
When using SSD / CFast running: 0 to 55 ℃ [32 to 131 ℉]
When using HDD running: 0 to 45 ℃ [32 to 113 ℉] |
|
Storage Temperature |
-20 to 60 ℃ [-4 to 140 ℉] |
|
Ambient Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Storage Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Pollution Degree |
For use in Pollution Degree 2 environment |
|
Air Pressure (Altitude Range) |
2,000 m [6,560 ft] max. |
|
Vibration Resistance |
Operation for products with SSD / CF card storage device: 5 to 500 Hz: 2 Grms
Operation for products with HDD storage device: 5 to 500 Hz: 1 Grms |
|
Concussion Resistance |
IEC 60068-2-27 Ea test |
|
Electromagnetic Compatibility (EMC) |
Immunity to High Frequency Interference
Electromagnetic Emissions Class A |
|
Structure |
IP66 (front side of display) |
|
Installation Configuration |
Panel mounting |
|
Cooling Method |
Passive heat sink |
|
Weight Approx. |
6.0 kg [13.22 lb] |
|
External Dimensions |
W419.7 x H269.0 x D56.7 mm
[W16.52 x H10.59 x D2.23 in.] |
|
Panel Cut Dimensions |
W412.4 x H261.7 mm
[W16.24 x H10.30 in.] |

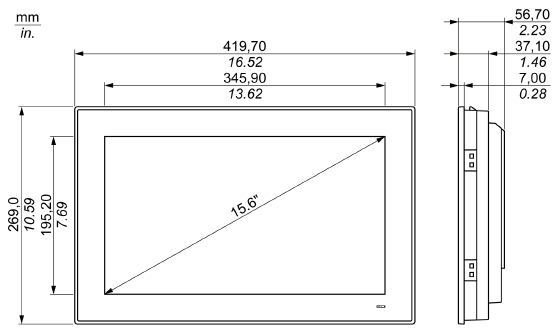

External Dimensions
Panel Cut Dimensions
|
A |
B |
C |
R |
412.4 ±0.7 mm
(16.24 ±0.03 in.) |
261.7 ±0.4 mm
(10.30 ±0.02 in.) |
2 to 6 mm
(0.08 to 0.23 in.) |
5 mm
(0.20 in.) |

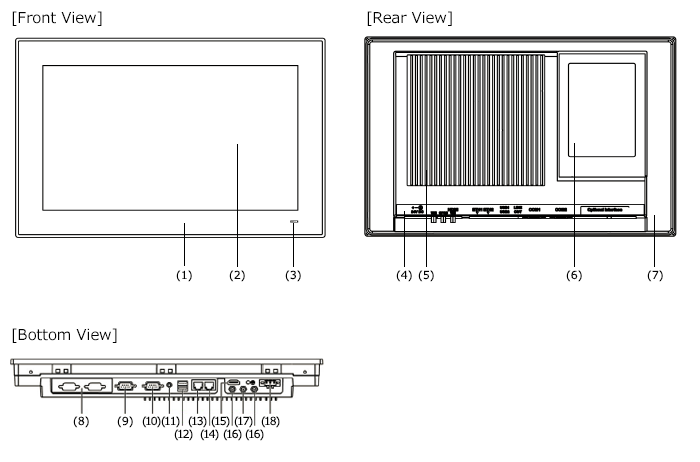

Descriptions
|
(1) Multi-touch Panel (2) Status Indicator (3) Heat Sink (4) Cover to Storage Drives (2.5" SATA HDD / SSD, CFast) (5) Interface Module position for Expansion Slot (6) Serial Interface: COM2 (RS-232C / 422 / 485) (7) SMA Connector for the wireless LAN external antenna (8) Audio Line Out (9) USB Interface: USB1 and USB2 (USB 3.0) (10) Ethernet Interface: Eth2 (10 / 100 / 1,000 Mbps) (11) Ethernet Interface: Eth1 (10 / 100 / 1,000 Mbps) support AMT (12) SMA Connector for the GPRS external antenna (13) Monitor / Panel: HDMI (14) Serial Interface: COM1 (RS-232C) (15) DC Power Connector |
-
*1 For use at 100 to 240 Vac, an optional AC/DC power adapter (PFXZPSPUAC3) that is separately sold is required.
|
|
|
|
|
|
