Specifications of PS-5821W (Core i3 model / Enclosed model)
Functional Specifications
|
Display Size |
18.5" (wide 16:9) |
|
Display Colors |
16.7 million |
|
Backlight |
LED
Life span > 50,000 h @ 25 ℃ (77 ℉) |
|
Brightness Control |
Step less adjustment |
|
Supported OS |
Windows® 7 Ultimate 64 bit MUI / Windows® Embedded Standard 7 (Premium) 64 bit MUI / Windows® Embedded 8.1 Industry 64 bit MUI |
|
CPU |
Core™ i3-4010U 1.7 GHz |
|
Main Memory |
8 GB, DDR3L 1600 MHz, SO-DIMM SDRAM |
|
Graphics Accelerator |
Intel® HD Graphics 4400 |
|
Video Memory |
Up to 1.7 GB, Shared system memory |
|
Graphics |
FWXGA TFT (1,366 x 768 pixels) |
|
Touch Panel Type |
Capacitive multi-touch 5 simultaneous touch (projected capacitive) |
|
Touch Panel Resolution |
4,096 x 4,096 |
|
Interface |
Serial ATA |
HDD / SSD x 1 |
|
Serial (COM1) |
RS-232C (M12 A-coding, 8-pin plug) |
|
Serial (COM2) |
- |
|
Ethernet (LAN1) |
10 / 100 / 1000 Mbit/s
(M12 A-coding, 8-pin socket) |
|
Ethernet (LAN2) |
10 / 100 / 1000 Mbit/s
(M12 A-coding, 8-pin socket) |
|
USB |
USB 2.0 x 1
(M12 A-coding, 8-pin socket) |
|
Video |
- |
|
Audio |
- |
|
Mini PCIe |
- |
General Specifications
|
International Safety Standards |
 |
|
Rated Input Voltage |
DC Power Model: 24 Vdc ±20 %
(M12 A-coding, 8-pin female) |
|
Power Consumption |
35 W (Max. 60 W) |
|
Inrush Current |
7 A |
|
Surrounding Air Temperature |
When using SSD running: 0 to 55 ℃ [32 to 131 ℉]
When using HDD running: 0 to 45 ℃ [32 to 113 ℉] |
|
Storage Temperature |
-20 to 60 ℃ [-4 to 140 ℉] |
|
Ambient Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Storage Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Pollution Degree |
For use in Pollution Degree 2 environment |
|
Air Pressure (Altitude Range) |
2,000 m [6,560 ft] max. |
|
Vibration Resistance |
Operation for products with SSD storage device: 5 to 500 Hz: 2 Grms
Operation for products with HDD storage device: 5 to 500 Hz: 1 Grms |
|
Concussion Resistance |
IEC 60068-2-27 Ea test |
|
Electromagnetic Compatibility (EMC) |
Immunity to High Frequency Interference
Electromagnetic Emissions Class A |
|
Structure |
IP66 (all around) |
|
Installation Configuration |
VESA arm mounting |
|
Cooling Method |
Passive heat sink |
|
Weight Approx. |
8.0 kg [17.63 lb] |
|
External Dimensions |
W488.0 x H309.0 x D65 mm
[W19.21 x H12.17 x D2.56 in.] |
|
Panel Cut Dimensions |
- |

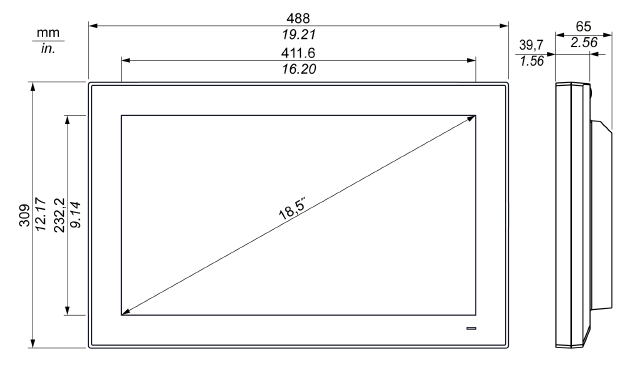

External Dimensions

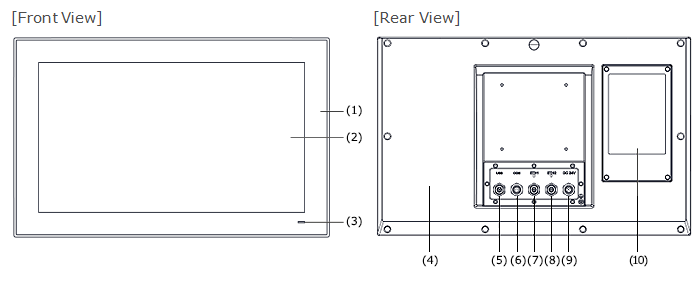

Descriptions
|
(1) Panel (2) Multi-touch Panel (3) Status Indicator (4) Cover (5) USB 2.0 with M12 connector 8-pin female (6) RS-232 with M12 connector 8-pin male (7) ETH1 10 / 100 / 1000 base-T with M12 connector 8-pin female (8) ETH2 10 / 100 / 1000 base-T with M12 connector 8-pin female (9) DC power with M12 connector 5-pin male (10) Back cover for access HDD / SSD |
|
|
|
|
|
|
