Specifications of PS-5701W (Atom model)
Functional Specifications
|
Display Size |
15.6“ (wide 16:9) |
|
Display Colors |
16.7 million |
|
Backlight |
LED
Life span > 50,000 h @ 25 ℃ (77 ℉) |
|
Brightness Control |
Step less adjustment |
|
Supported OS |
Windows® 7 Ultimate 64 bit MUI / Windows® Embedded Standard 7 (Premium) 64 bit MUI / Windows® Embedded 8.1 Industry 64 bit MUI |
|
CPU |
Atom™ E3827 1.75 GHz |
|
Main Memory |
4 GB, DDR3L 1600 MHz, SO-DIMM SDRAM |
|
Graphics Accelerator |
Intel® HD Graphics |
|
Video Memory |
Up to 1.7 GB, Shared system memory |
|
Graphics |
FWXGA TFT (1,366 x 768 pixels) |
|
Touch Panel Type |
Capacitive multi-touch
5 simultaneous touch (projected capacitive) |
|
Touch Panel Resolution |
4,096 x 4,096 |
|
Interface |
Serial ATA |
CFast: x 1
HDD / SSD x 1 *1 |
|
Serial (COM1) |
RS-232C (D-Sub 9-pin, plug) |
|
Serial (COM2) |
RS-232C / 422 / 485 (D-Sub 9-pin, plug) |
|
Ethernet (LAN1) |
10 / 100 / 1,000 Mbps (RJ-45 Modular jack) |
|
Ethernet (LAN2) |
10 / 100 / 1,000 Mbps (RJ-45 Modular jack) |
|
USB |
USB 3.0 x 1, USB 2.0 x 1 (Type A) |
|
Mini PCIe |
x 1 (revision 1.2) |
General Specifications
|
International Safety Standards |
 |
|
Rated Input Voltage |
DC Power Model: 24 Vdc ±20 %
When using AC power supply unit: 100 to 240 Vac *2 |
|
Power Consumption |
18 W (Max. 30 W) |
|
Inrush Current |
7.5 A |
|
Surrounding Air Temperature |
When using SSD / CFast running: 0 to 55 ℃ [32 to 131 ℉]
When using HDD running: 0 to 45 ℃ [32 to 113 ℉] |
|
Storage Temperature |
-20 to 60 ℃ [-4 to 140 ℉] |
|
Ambient Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Storage Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Pollution Degree |
For use in Pollution Degree 2 environment |
|
Air Pressure (Altitude Range) |
2,000 m [6,560 ft] max. |
|
Vibration Resistance |
Operation for products with SSD / CF card storage device: 5 to 500 Hz: 2 Grms
Operation for products with HDD storage device: 5 to 500 Hz: 1 Grms |
|
Concussion Resistance |
IEC 60068-2-27 Ea test |
|
Electromagnetic Compatibility (EMC) |
Immunity to High Frequency Interference
Electromagnetic Emissions Class A |
|
Structure |
IP66 (front side of display) |
|
Installation Configuration |
Panel mounting / VESA arm mounting *3 |
|
Cooling Method |
Passive heat sink |
|
Weight Approx. |
3.9 kg [8.6 lb] |
|
External Dimensions |
W419.7 x H269.0 x D61.9 mm
[W16.52 x H10.59 x D2.44 in.] |
|
Panel Cut Dimensions |
W412.4 x H261.7 mm
[W16.24 x H10.30 in.] |

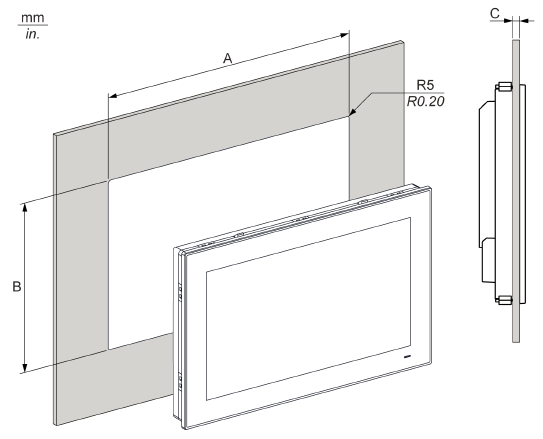

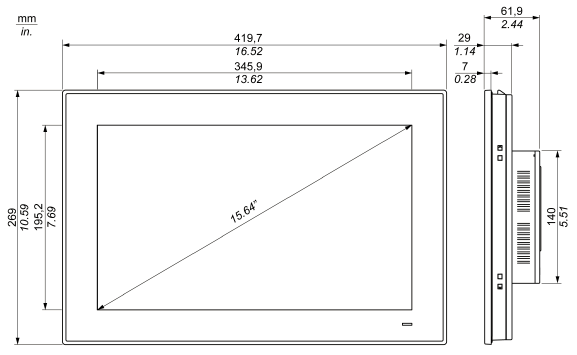

External Dimensions
Panel Cut Dimensions
|
A |
B |
C |
R |
412.4 ±0.7 mm
(16.24 ±0.03 in.) |
261.7 ±0.4 mm
(10.30 ±0.02 in.) |
2 to 6 mm
(0.08 to 0.23 in.) |
5 mm
(0.20 in.) |
Descriptions
|

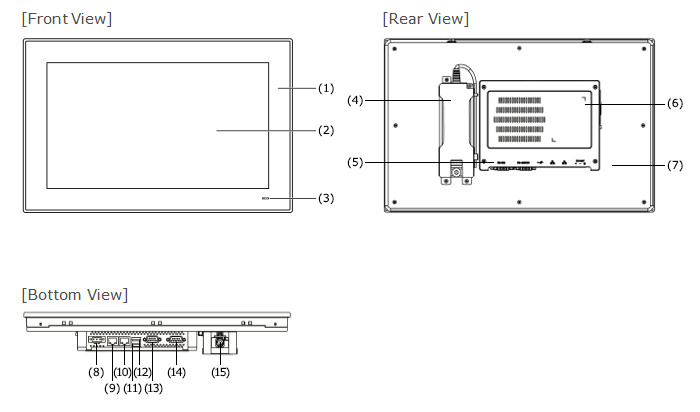

(1) Panel (2) Multi-touch Panel (3) Status Indicator (4) Optional AC Power Supply (5) Slim Panel interface (6) Cover for access mini PCIe card and HDD/SSD drive (7) Panel (8) DC Power Connector (9) Eth2 (10 / 100 / 1000 Mbit/s) (10) Eth1 (10 / 100 / 1000 Mbit/s) (11) USB2 (USB 3.0) (12) USB1 (USB 2.0) (13) COM2 port RS-232/422/485 (14) COM1 port RS-232 (15) Optional AC power supply |
-
*1 When installed, an optional disk adapter unit (PFXZPSADSSD2) that is separately sold is required.
-
*2 For use at 100 to 240 Vac, an optional AC/DC power adapter (PFXZPSPUAC2) that is separately sold is required.
-
*3 For VESA arm mounting, an optional VESA mounting kit (15.6": PFXZPSADVS152, 10.1": PFXZPSADVS102) that is separately sold is required.
|
|
|
|
|
|
