Specifications of PS-5000B (Core i7 model)

Functional Specifications

Supported OS Windows® 7 Ultimate 64 bit MUI / Windows® Embedded Standard 7 (Premium) 64 bit MUI / Windows® Embedded 8.1 Industry 64 bit MUI
CPU  Core™ i7-4650U 1.7 GHz
Main Memory 8 GB / 16 GB, DDR3L 1600 MHz, SO-DIMM SDRAM
512 KB NVRAM for the user applications
Graphics Accelerator Intel® HD Graphics 5000
Video Memory Up to 1.7 GB, Shared system memory
Graphics Up to Full HD (1,920 x 1,080 pixels)
Interface Serial ATA HDD / SSD x 2
CFast x 1
mSATA x 1
Serial (COM1)  RS-232C / 422 / 485 (D-Sub 9-pin, plug)
Ethernet (LAN1)  10 / 100 / 1,000 Mbps (RJ-45 Modular jack)
Ethernet (LAN2)  10 / 100 / 1,000 Mbps (RJ-45 Modular jack)
USB USB 3.0 x 2, USB 2.0 x 2 (Type A)
Video DisplayPort (Type A)　x 2
Mini PCIe x 2 (revision 1.2)
Expansion Slot *1 PCIe (x4) x 2 / PCI x 2 / PCI x 1 + PCIe (x4) x 1
Page Top

General Specifications

International Safety Standards standards
Rated Input Voltage DC Power Model: 24 Vdc ±20 %
When using AC power supply unit: 100 to 240 Vac *2
Power Consumption  18 W (Max. 40 W)
Inrush Current 8.9 A
Surrounding Air Temperature  When using SSD / CFast running: 0 to 55 ℃ [32 to 131 ℉]
When using HDD running: 0 to 45 ℃ [32 to 113 ℉]
When using PCI/PCIe: 0 to 45 ℃ [32 to 113 ℉]
Storage Temperature  -30 to 70 ℃ [-22 to 158 ℉]]
Ambient Humidity  10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation)
Storage Humidity  10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation)
Pollution Degree  For use in Pollution Degree 2 environment
Air Pressure (Altitude Range)  2,000 m [6,560 ft] max.
Vibration Resistance Operation for products with SSD / CF card storage device: 5 to 500 Hz: 2 Grms
Operation for products with HDD storage device: 5 to 500 Hz: 1 Grms
Concussion Resistance IEC 60068-2-27 Ea test
Electromagnetic Compatibility (EMC) Immunity to High Frequency Interference
Electromagnetic Emissions Class A
Cooling Method Passive heat sink
Weight Approx. 0 Slot: 3.1 kg (6.8 lbs.)
2 Slots: 3.9 kg (8.6 lbs.)
External Dimensions 0 Slot: W65.2 x H207.0 x D254.0mm [W2.57 x H8.15 x D10.00 in.]
2 Slots: W103.2 x H207.0 x D254.0mm [W4.06 x H8.15 x D10.00 in.]
Page Top

External Dimensions

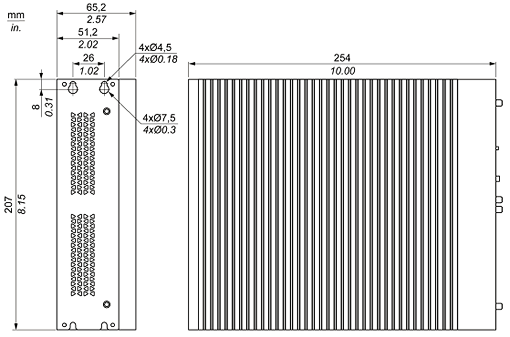

0 Slot Type

Dimensions
Page Top

2 Slot Type

Dimensions
Page Top

Descriptions

0 Slot Type

Descriptions
(1) DisplayPort 2 (2) Slide-in CFast slot (3) LEDs and power/reset button (4) HDD/SSD 2 (can be RAID configuration) (5) HDD/SSD 1 (can be RAID configuration) (6) SMA connector for the wiereless LAN external antenna (7) SMA connector for the GPRS external antenna (8) SMA connector for the wiereless LAN external antenna (9) DC power connector (10) Optional interface 1 (11) DisplayPort 1 (12) Eth1 (10/100/1000 Mbit/s) IEEE1588 (13) Eth2 (10/100/1000 Mbit/s) IEEE1588 (14) USB1 and USB2 (USB 3.0) (15) USB3 and USB4 (USB 2.0) (16) Optional interface 2 (17) COM1 port RS-232/RS-422/RS485 (isolated) (18) Ground connection pin
Page Top

2 Slot Type

Descriptions
(1) DisplayPort 2 (2) Slide-in CFast slot (3) LEDs and power/reset button (4) HDD/SSD 2 (can be RAID configuration) (5) HDD/SSD 1 (can be RAID configuration) (6) SMA connector for the wiereless LAN external antenna (7) SMA connector for the GPRS external antenna (8) SMA connector for the wiereless LAN external antenna (9) DC power connector (10) Optional interface 1 (11) DisplayPort 1 (12) Eth1 (10/100/1000 Mbit/s) IEEE1588 (13) Eth2 (10/100/1000 Mbit/s) IEEE1588 (14) USB1 and USB2 (USB 3.0) (15) USB3 and USB4 (USB 2.0) (16) PCI/PCIe (peripheral component interconnect express) slots (17) Optional interface 2 (18) COM1 port RS-232/RS-422/RS485 (isolated) (19) Ground connection pin
Page Top

  1. *1     2 slot model only
  2. *2     For use at 100 to 240 Vac, an optional AC/DC power adapter (PFXZPSPUAC3) that is separately sold is required.
