Recommended Substitute
Model in use Comments

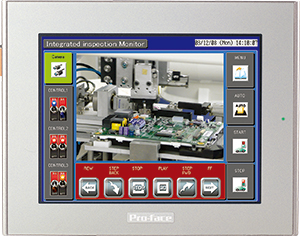

AGP3360-T1-D24 GP3000 Series
5.7" TFT color LCD
VGA
Video input
DC power supply

Recommended Substitutes Comments
SP-5400WA + SP-5B10 SP5000 series　7" Wide
Panel-cut-out different
Not support Video feature
GP-4401T GP4000 Series
7.5"
Not support video feature
Panel-cut-out Different
PFXSP5400WAD + PFXSP5B10 SP5000 Series Coated Model
panel cut-out size difference
 See the differences from GP4000!



[ Migration ] Replacing GP-3360T with SP-5400WA

Specification Comparison

  GP-3360T SP-5400WA + SP-5B10
Model No. DC: AGP3360-T1-D24

DC: PFXSP5400WAD + PFXSP5B10
Coated Model No. - DC: PFXSP5400WADF0C + PFXSP5B10F0C
(Customized Model)
Display Type TFT Color LCD
Display Colors 65,536 colors (without blink)/16,384 colors (with blink) 262,144 colors (without blink)/65,536 colors (with blink)
Display Resolution VGA (640 x 480 pixels) WVGA (800 x 480 pixels)
Panel Cutout Dimensions (mm) W156.0 x H123.5mm
Panel Thickness: 1.6 to 5.0mm		 W190 x H135mm
Panel Thickness: 1.6 to 5.0mm
External Dimensions (mm) W167.5 x H135 x D59.5mm W203.6×H148.6×D67mm *1
Touch Panel Type Resistive Film (analog)
Memory (Application) 8MB 64MB
Memory (SRAM) SRAM 320KB NVRAM 320KB
Backup Battery Secondary Battery
(Rechargeable Lithium battery)		 No battery needed.
Rated Voltage DC24V DC12 to 24V
Serial I/F (COM1) D-Sub9 pin (plug), RS-232C/422/485
Serial I/F (COM2) D-Sub9 pin (socket), RS-422/485 D-Sub9 pin (plug), RS-232C/422/485
Ethernet I/F 10BASE-T/100BASE-TX 10BASE-T/100BASE-TX/1000BASE-T x 2 ports
CF Card I/F CF Card Slot (TYPE-II) -
SD Card I/F - SD Card Slot (System) x 1 port
SD Card Slot (Storage) x 1 port
USB I/F TYPE-A USB 1.1 x 2 ports USB 2.0 x 2 ports
mini-B - USB 2.0 x 1 port
Auxiliary I/O I/F Output: Alarm/RUN/Buzzer, Input: Remote Reset, Connector Two piece type terminal block Output: Alarm/Buzzer, Connector Two piece type terminal block
Sound Output I/F Speaker Output: 70mW, Speaker Output, Connector Two piece type terminal block (Same as Auxiliary I/O I/F) Speaker Output: 300mW, Speaker Output, Connector Two piece type terminal block (Same as Auxiliary I/O I/F)
Expansion Unit I/F ✔ ✔
Software GP-Pro EX Ver. 2.50 or later GP-Pro EX Ver. 4.00 or later

*1The dimensions of when combining SP-5400WA (Advanced Display) with SP-5B10 (Power Box).


[ Migration ] Replacing GP-3360T with GP-4401T

Specification Comparison

  GP-3360T GP-4401T
Model No. DC: AGP3360-T1-D24

DC: PFXGP4401TAD
Coated Model No. - DC: PFXGP4401TADF0C (Customized Model)
Display Type TFT Color LCD
Display Colors 65,536 colors (without blink)/16,384 colors (with blink)
Display Resolution VGA (640 x 480 pixels)
Panel Cutout Dimensions (mm) W156.0 x H123.5mm
Panel Thickness: 1.6 to 5.0mm		 W204.5 x H159.5mm
Panel Thickness: 1.6 to 5.0mm
External Dimensions (mm) W167.5 x H135 x D59.5mm W218 x H173 x D60mm
Touch Panel Type Resistive Film (analog)
Memory (Application) 8MB 32MB
Memory (SRAM) 320KB
Backup Battery Secondary Battery
(Rechargeable Lithium battery)		 Primary Battery
(Replaceable Lithium battery)
Rated Voltage DC24V
Serial I/F (COM1) D-Sub9 pin (plug), RS-232C/422/485 D-Sub9 pin (plug), RS-232C
Serial I/F (COM2) D-Sub9 pin (socket), RS-422/485 D-Sub9 pin (plug), RS-422/485
Ethernet I/F 10BASE-T/100BASE-TX
CF Card I/F CF Card Slot (TYPE-II) -
SD Card I/F - SD Card Slot
USB I/F TYPE-A USB 1.1 x 2 ports USB 2.0 x 1 port
mini-B - USB 2.0 x 1 port
Auxiliary I/O I/F Output: Alarm/RUN/Buzzer, Input: Remote Reset, Connector Two piece type terminal block -
Video Input I/F *1 NTSC/PAL Input, Connector RCA -
Audio Input I/F *1 MIC/LINE Input, Connector MINI-JACK -
Sound Output I/F Speaker Output, Connector Two piece type terminal block (Same as Auxiliary I/O I/F) -
Expansion Unit I/F ✔ -

*1This interface is built in M class model.


Three major points which are different from GP4000 Series

Three major points which different from GP4000 Series

Use Windows Applications via the On-Site Smart Portal

SP5000 stores the documents you always use to the Smart Portal so that you can utilize them. Use manuals and troubleshooting guides that you already have as they are, without special instruction screens, to drastically cut design man-hours.

Supports Flexible Designs

SP5000’s module structure makes it easy to change display size according to a use scenario and customer demands. No configuration changes to the project file are required, and display boxes can be easily converted. Premium Display also supports automatic screen scaling.




Large Display

The largest 15-inch (1024 x 768) of SP5000 series can show lots of information on a screen. A wide selection of sizes from 7 to 15-inch display is available.

 The Smart Portal has a lot of new features. For details, please see the SP5000 page.


Functional Specifications

Display Type
TFT Color LCD
Display Size
5.7"
Resolution
640 X 480 pixels (VGA)
Dot pitch
W0.18 X H0.18mm [W0.01 X H0.01in.]
Effective Display Area
W115.2 X H86.4mm [W4.54 X H3.40in.]
Display Colors
65,536 Colors (No blink)/16,384 Colors (Blink)
Backlight
White LED (User nonreplaceable parts, return system to distributor.)
Brightness Control
8 Levels (Adjusted with the software.)
Contrast Control
Not applicable
Language Fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.
Character Sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font Sizes
Standard font: Width can be expanded up to 8 times., Height can be expanded up to 8 times.
8 x 16 dots
80 char. X 30 rows
16 x 16 dots
40 char. X 30 rows
32 x 32 dots
20 char. X 15 rows
8 x 8 dots
80 char. X 60 rows
Program Area
FLASH EPROM 132 KB
Number of Step
Equivalent to 15,000 steps*1
Variable Area
SRAM 64 KB (uses lithium battery)*2
Application Memory
FLASH EPROM 8 MB*3
Data Backup
SRAM 320KB (uses lithium battery)*4
Clock Accuracy
±65 sec./month (deviation at room temperature and power is OFF)*5
Touch Panel Type
Resistive Film (analog)
Touch Panel Resolution
1,024 X 1,024
Touch Panel Service Life
1,000,000 times or more
Serial (COM1)
RS-232C/422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
Serial (COM2)
RS-422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI), Connector: D-Sub9 (socket)
Ethernet (LAN)
IEEE802.3u,10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45)×1
Expansion Unit 1
Communication Expansion Unit X 1
USB (TYPE-A)
Conforms to USB1.1 (TYPE-A) x 2, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m or less
CF Card
Compact Flash CF Card Slot (TYPE-II) X 1
Video Input
NTSC: 59.9Hz, PAL: 50Hz, SECAM: 50Hz, Connector: RCA 75Ω X 1
Sound Input
MIC or LINE input (software switch), Connector: MINI-JACK Φ3.5 X 1
Sound Output
Speaker Output, 70 mW (Rated Load: 8 Ω, Frequency: 1 kHz), Connector: 2-piece terminal block (AUX) x 1

1Up to 60,000 steps can be converted in software. However, this reduces internal memory capacity (for screen data) by 1 MB.

2A Lithium battery's lifetime is:
10 years when the battery's ambient temperature is 40°C or less
4.1 years when the battery's ambient temperature is 50°C or less.
1.5 years when the battery's ambient temperature is 60°C or less.
When used for back up: Approximately 100 days, with a fully charged battery.
Approximately 6 days, with a half-charged battery.

3Capacity available for user.

4A Lithium battery's lifetime is:
10 years when the battery's ambient temperature is 40°C or less
4.1 years when the battery's ambient temperature is 50°C or less.
1.5 years when the battery's ambient temperature is 60°C or less.
When used for back up: Approximately 100 days, with a fully charged battery.
Approximately 6 days, with a half-charged battery.

5Depending on the operating temperature and age of unit, the clock can deviate from -380 to +90 sec./month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.

6When using GP-Pro EX under Ver.2.50, Bit variable enables to input/output 256 points. When using GP-Pro EX under Ver.2.50, Integer variable enables to input/output 64 points.

General Specifications

International Safety Standards
Rated Input Voltage
DC 24V
Input Voltage Limits
DC 19.2 to 28.8V
Allowable Voltage Drop
5 ms or less
Power Consumption
26 W or less
In-Rush Current
30 A or less
Voltage Endurance
AC1,000V 20mA for 1 minute, (between charging and FG terminals)
Insulation Resistance
DC500V 10MΩ (min.), (between charging and FG terminals)
Surrounding Air Temperature
0 to 50 °C (32 to 122 °F)
Storage Temperature
-20 to 60 °C (-4 to 140 °F)
Ambient Humidity
10 to 90% RH (Wet bulb temperature: 39℃ max. - no condensation.)
Storage Humidity
10 to 90% RH (Wet bulb temperature: 39℃ max. - no condensation.)
Dust
0.1mg/m³ and below (non-conductive levels)
Pollution Degree
For use in Pollution Degree 2 environment
Atmosphere
Free of corrosive gases
Air Pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less)
Vibration Resistance
IEC/EN61131-2 compliant, 5 to 9Hz Single amplitude 3.5mm [0.14in.], 9 to 150Hz Fixed acceleration: 9.8m/s², X,Y,Z directions for 10 cycles (100 minutes)
Concussion Resistance
IEC/EN61131-2 compliant, 147 m/s², X, Y, Z directions for 3 times
Noise Immunity
Noise Voltage: 1,000Vp-p, Pulse Duration: 1µs, Rise Time: 1ns, (via noise simulator)
Electrostatic Discharge Immunity
Contact Discarge Method: 6kV (IEC/EN61000-4-2 Level 3)
Electromagnetic Compatibility (EMC)
Normal Mode: 1kV Common Mode 2kV (IEC/EN51000-4-2 Level 3)
Grounding
Functional grounding: Grounding resistance of 100Ω, 2mm² or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)
Structure
Equivalent to IP65f NEMA #250 TYPE 4X/13 (Front surface of embedded panel)*6
Installation Configuration
Embedded panel
Cooling Method
Natural air circulation
Weight Approx.



1 kg [2.2 lb] or less (display unit only)
Panel Cut Dimensions
W156.0 X H123.5mm [W6.14 X H4.86in.], Panel thickness area: 1.6 to 5.0mm [0.06 to 0.20in.]*7

6The front face of the GP unit, installed in a solid panel, has been tested using, conditions equivalent to the standards shown in the specification. Even though the, GP unit's level of resistance is equivalent to these standards, oils that should have, no effect on the GP can possibly harm the unit. This can occur in areas where either, vaporized oils are present, or where low viscosity cutting oils are allowed to adhere, to the unit for long periods of time. If the GP's front face protection sheet becomes, peeled off, these conditions can lead to the ingress of oil into the GP and separate, protection measures are suggested., Also, if non-approved oils are present, it may cause deformation or corrosion of the, front panel’s plastic cover. Therefore, prior to installing the GP be sure to confirm the, type of conditions that will be present in the GP's operating environment., If the installation gasket is used for a long period of time, or if the unit and its gasket, are removed from the panel, the original level of the protection cannot be guaranteed., To maintain the original protection level, be sure to replace the installation gasket, regularly.

7Regarding dimensional tolerance, everything +1/-0mm [+0.04/-0in.] and R in angle are below R3 [R0.12in.].
