Recommended Substitute
Model in use Comments
AGP3500-T1-D24 GP3000 Series
10.4" TFT color LCD
DC power supply

Recommended Substitutes Comments
PFXGP4501TAD GP4000 Series
panel cut-out size same
PFXSP5500TPD + PFXSP5B10 SP5000 Series
panel cut-out size same
DC power supply
 See the differences from GP4000!
PFXGP4521TAA GP4000 Series
10.4" TFT color LCD
When using VM unit/RGB unit, please replace to PFXGP4521TAA
AC power supply only/No coated model


[ Migration ] Replacing GP-3500T/GP-3550T with GP-4501T

Specification Comparison

  GP-3500T GP-4501T
Model No. AC Type Power Supply :AGP3500-T1-AF
DC Type Power Supply :AGP3500-T1-D24		 AC Type Power Supply :PFXGP4501TAA
DC Type Power Supply : PFXGP4501TAD
Coated Model AC Type Power Supply :AGP3500-T1-AF-M
DC Type Power Supply :AGP3500-T1-D24-M		 AC Type Power Supply :PFXGP4501TAAC
DC Type Power Supply : PFXGP4501TADC
Display Type TFT ColorLCD
Display Colors 65,536 colors (without blink)/
16,384 colors (with blink)
Display Resolution VGA（640×480 pixels）
Panel Cutout Dimensions (mm) W259×H201mm
外形寸法 W272.5×H214.5×D57mm
Touch Panel Type Resistive film (Analog) Resistive film (Analog) *1
Memory (Application) 16MB UP!
32MB
Memory (SRAM) 320KB
Backup Battery Secondary Battery
(Rechargeable Lithium battery)		 NEW!
Primary Battery
(Replaceable Lithium battery) *2
Serial I/F (COM1) D-Sub9 pin (plug)
RS-232C/422/485		 NEW!
D-Sub9 pin (plug)
RS-232C *2
Serial I/F (COM2) D-Sub9 pin (socket)
RS-422/485		 NEW!
D-Sub9 pin (plug)
RS-422/485 *2
Ethernet I/F 10BASE-T/100BASE-TX
CF Card I/F ✔ - *2
SD Card I/F - NEW!
✔ *2
USB Type A ✔ NEW!
✔
USB Type mini B -
Auxiliary I/O I/F ✔ - *2
音声出力 I/F
Expansion Unit I/F
(For Communication Unit)
Expansion Unit I/F
(For Video Unit)

*1 You can select the Matrix type that enables 2-point touch input at the same time.(AC model: PFXGP4501TMA, DC model: PFXGP4501TMD)
*2 There are some restrictions regarding replacement with recommended substitutes.

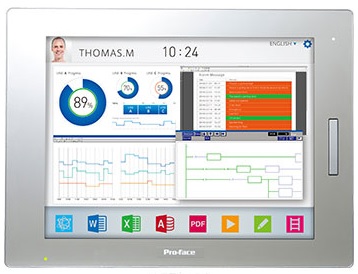

[ Migration ] Replacing GP-3500T/GP-3550T with SP-5500TP+SP-5B10

Specification Comparison

  GP-3500T SP-5500TP+SP-5B10
Model No.

AC Type : AGP3500-T1-AF
DC Type : AGP3500-T1-D24

 -
DC Type : PFXSP5500TPD+PFXSP5B10
Coated Model AC Type : AGP3500-T1-AF-M
DC Type : AGP3500-T1-D24-M		 -
DC Type : PFXSP5500TPD0C+PFXSP5B10
Display Type TFT Color LCD
Display Colors 65,536 colors (without blink)/
16,384 colors (with blink)

UP!
16,777,216 colors (without blink)/
4,194,304 colors (with blink)
Display Resolution VGA(640×480 pixels) NEW!
VGA(640×480 pixels)*2
SVGA(800×600 pixels)
Panel Cutout Dimensions (mm) W259×H201mm
External Dimensions (mm) W270.5×H214.5×D57mm NEW!
W272.5×H214.5×D67mm
Touch Panel Type Resistive film (Analog) NEW!
Resistive film
(Analog, Multi Touch)
Memory (Application) 16MB UP!
64MB
Memory (SRAM) SRAM:320KB NEW!
NVRAM:320KB
Backup Battery Secondary Battery
(Rechargeable Lithium battery)		 NEW!
-*1
Serial I/F (COM1) D-Sub9 pin (plug)
RS-232C/422/485
Serial I/F (COM2) D-Sub9 pin (socket)
RS-422/485		 NEW!
D-Sub9 pin (plug)
RS-232C/422/485 *1
Ethernet I/F 1 port
10BASE-T/100BASE-TX		 NEW!
2 ports*1
10BASE-T/100BASE-TX/1000BASE-T
CF Card I/F ✔ - *1
SD Card I/F - NEW!
✔ *1
USB Type A ✔ NEW!
✔*1
USB Type mini B -
Auxiliary I/O I/F ✔ ✔*1
Sound Output I/F Speaker output : 70mW Speaker output : 300mW*1
Expansion Unit I/F
(Communication Unit)		 ✔ ✔*1
Expansion Unit I/F
(Image Unit)		 ✔ -*1
Software GP-Pro EX 2.00 or later GP-Pro EX 4.00 or later

*1 There are some restrictions regarding replacement with recommended substitutes.
*2 Supported by GP-Pro EX Ver.4.02 or later.​


Three major points which are different from GP4000 Series

Three major points which different from GP4000 Series

Use Windows Applications via the On-Site Smart Portal

SP5000 stores the documents you always use to the Smart Portal so that you can utilize them. Use manuals and troubleshooting guides that you already have as they are, without special instruction screens, to drastically cut design man-hours.

Supports Flexible Designs

SP5000’s module structure makes it easy to change display size according to a use scenario and customer demands. No configuration changes to the project file are required, and display boxes can be easily converted. Premium Display also supports automatic screen scaling.




Large Display

The largest 15-inch (1024 x 768) of SP5000 series can show lots of information on a screen. A wide selection of sizes from 7 to 15-inch display is available.

 The Smart Portal has a lot of new features. For details, please see the SP5000 page.
