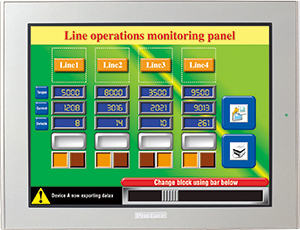

GP-3650U |
GP-3600U + VM Unit |
 |
|
Model No. |
DC: AGP3650-U1-D24 |
DC: AGP3600-U1-D24-CA1M |
|
Display Type |
TFT Color LCD (High Brightness) |
|
Display Colors |
65,536 colors (without blink)/16,384 colors (with blink) |
|
Display Resolution |
SVGA (800 x 600 pixels) |
|
Panel Cutout Dimensions (mm) |
W301.5 x H227.5mm [11.87 x 8.96 in]
Panel Thickness: 1.6 to 10.0 mm [0.06 to 0.39 in] |
|
External Dimensions (mm) |
W313 x H239 x D56mm
[W12.32 x H9.41 x D2.20 in.] |
W313 x H239 x D83mm
[W12.32 x H9.41 x D3.27 in.] |
|
Touch Panel Type |
Resistive Film (analog) |
|
Memory (Application) |
FLASH EPROM 10MB / 8MB |
FLASH EPROM 16MB / 8MB |
|
Memory (SRAM) |
320KB |
|
Backup Battery |
Secondary Battery (Rechargeable Lithium battery) |
|
Rated Voltage |
DC24V |
|
Serial I/F (COM1) |
D-Sub9 pin (plug), RS-232C/422/485 |
|
Serial I/F (COM2) |
D-Sub9 pin (socket), RS-422/485 |
|
Ethernet I/F |
10BASE-T/100BASE-TX |
|
CF Card I/F |
CF Card Slot (TYPE-II) |
|
USB Type A |
Conforms to USB1.1. (TYPE-A conn.) x 2 |
|
Auxiliary I/O I/F |
Output: Alarm/RUN/Buzzer, Input: Remote Reset, Connector Two piece type terminal block |
|
Video Input I/F |
NTSC/PAL Input, Connector RCA |
- |
|
Audio Input I/F |
MIC/LINE Input, Connector MINI-JACK |
- |
|
Sound Output I/F |
Speaker Output, Connector Two piece type terminal block (Same as Auxiliary I/O I/F) |
|
VM Unit I/F |
- |
VM Unit(GP3000-VM01)
Video: NTSC/PAL, 4ch,
Connector RCA
DVI IN: VESA/TMDS,
Connector DVI-I29 pin socket |
