Recommended Substitute

Model in use

Comments

GP37W2-BG41-24V

GP37W Series

5.7" Blue mode Monochrome LCD

Recommended Substitutes	Comments	Details
PFXGP4301TAD	GP4000M Series modular type(22mm circular hole) panel cut-out size difference
PFXGP4301TADW	GP4000 Series panel cut-out size different attachment available (model:CA4-ATM5-01) TFT color LCD (Available Monochrome mode)

[ Migration ] Replacing GP-37W2 with GP4301TM

Specification Comparison

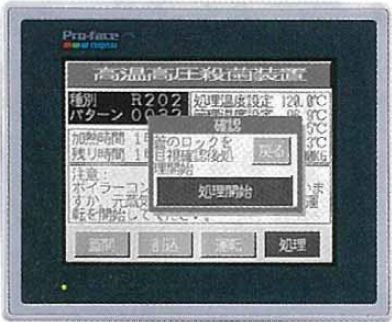

	GP-377S / GP-377L	GP-4301TM
		The panel cutout of GP-4301TM(link is external)is a φ22-mm circular hole. If prefer to the standard type, please refer to replacement guidebook GP-4301TW(link is external).
Model No.	GP-377S: GP377-SC11-24V/GP377-SC41-24V GP-377L: GP377-LG11-24V/GP377-LG41-24V	PFXGM4301TAD
Specification Comparison	GP-377S: STN Color LCD GP-377L: Monochrome LCD	TFT Color LCD
Display Colors	GP-377S: 64 colors(with blink) GP-377L: Monochrome(with blink)	65,536 colors (without blink) *1
Display Resolution	QVGA（320×240 pixels）
Panel Cutout Dimensions (mm)	W156×H123.5mm	NEW! φ22mm　*1
External Dimensions (mm)	W171×H138×D57mm	NEW! W163×H129.4×D56.5mm (The rear module is included)　*1
Touch Panel Type	Resistive film (Matrix)	NEW! Resistive film (Analog)　*1
Memory (Application)	1Mbyte	UP! 8M byte
Memory (SRAM)	96Kbyte	128Kbyte
Backup Battery	Rechargeable Lithium battery	- *1
Serial I/F (COM1)	D-Sub25 pin（socket） RS-232C/422	NEW! D-Sub9 pin（plug） RS-232C/422/485　*1
Ethernet I/F	-	NEW! 10BASE-T/100BASE-TX
Tool Connector	✔	- *1
USB Type A	-	NEW! ✔
USB Type mini B	-	NEW! ✔
Expansion Unit I/F (For Communication Unit)	✔	-

*1 There are some restrictions regarding replacement with recommended substitutes.

[ Migration ] Replacing GP-37W2 with GP-4301TW

Specification Comparison

	GP-37W2	GP-4301TW

Model No.	GP37W2-BG41-24V	PFXGP4301TADW
Display Type	Monochrome blue mode LCD	UP! TFT Color LCD
Display Colors	Blue mode, no levels	65,536 colors(without blink)/ 16,384 colors(with blink)*1
Display Resolution	QVGA(320×240 pixels)
Panel Cutout Dimensions (mm)	W191.5×H141.5mm	W156×H123.5mm*1
External Dimensions (mm)	W207×H157×D58mm	W169.5×H137×D59.5mm
Touch Panel Type	Resistive film (Matrix)	NEW! Resistive film (Analog)*1
Memory (Application)	1MB	UP! 8MB
Memory (SRAM)	96KB	UP! 128KB
Backup Battery	Secondary Battery (Rechargeable Lithium battery)
Serial I/F (COM1)	D-Sub25 pin (socket) RS-232C/422	D-Sub9 pin (plug) RS-232C*1
Serial I/F (COM2)	-	D-Sub9 pin (plug) RS-422/485*1
Ethernet I/F	-	NEW! 10BASE-T/100BASE-TX
Tool Connector	✔	-
USB Type A	-	NEW! ✔*1
USB Type mini B	-	NEW! ✔*1

*1 There are some restrictions regarding replacement with recommended substitutes.
