The Orbit3 Windows Support Pack enables you to take readings from Orbit Modules forming an Orbit Network and Connect Orbit® to SPC, Excel, or build your own program with the Orbit® Support Pack.

Orbit® 3 means this is third generation running products, field proven…

Features
  Windows 10, 8, 7, and XP 64 bit and 32 bit Compatible
  Managed Code based on Microsoft .NET Framework
  Orbit® Library Tester contains source code for all Orbit® commands which may be used by customers to develop own applications
  Language specific programming examples
  Orbit3 support hot swap - Allows compatible models to be changed without the need to reconfigure the computer
  C#, C++, COM and Excel COM code example available.

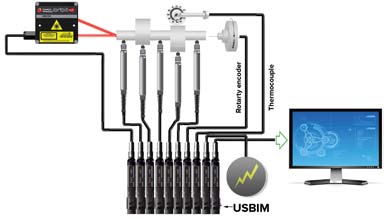

Measurement Interfacing Module
USB 2.0 Ethernet Bluetooth RS232C
12Mbps 10/100Mbps 3 Mbps 115.2Kbps

Calibrated System

Each Solartron probe or instrument is available with a digital module at the end of the cable. Inside the module is a chip that digitizes the analogue signal from the probe. The probe is calibrated and linearized at the Solartron factory, with a guaranteed accuracy of 0.05% of range or 0.2 microns, whichever is greater, 0.15 micron repeatability, and 0.01 micron resolution. You can then master the probe anywhere over its measurement range, and attain the same accuracy from that master point. Solartron also offers a variety of calibrated non-contact Laser sensors available.



Connect to other Sensors

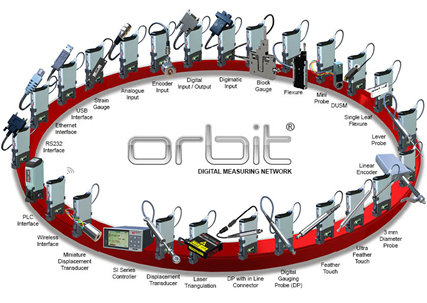

The Orbit® 3 Network will connect to 3rd party sensors via interface modules.

  Analogue Interface Module (AIM): Connect to any sensor with a DC or 4-20mA output.

  Encoder Input Module, (EIM): Connects with any rotary encoder or other device with a TTL output. With these connections, all                readings can be sent to a PLC or PC seamlessly.

  Digimatic Input Module: Connects to any Mitutoyo gauge

  Digital Input/output Module: An eight-pin module that acts as an I/O interface to a PLC.
