SMART TRAK™ FITTING COMPONENTS

View Full Details



P/N : LM30-1001  Description : Level switch car kit, 3/4″ NPT, PP

P/N : LM30-1061  Description : Level switch car kit, 3/4″ Rp, PP

SMART TRAK™ FITTING COMPONENTS

View Full Details





P/N : LM40-1001  Description : 2″ NPT plug fitting, 3/4″ NPT nipple, PP

P/N : LM40-1061  Description : 2″ G plug fitting, 3/4″ Rp nipple, PP

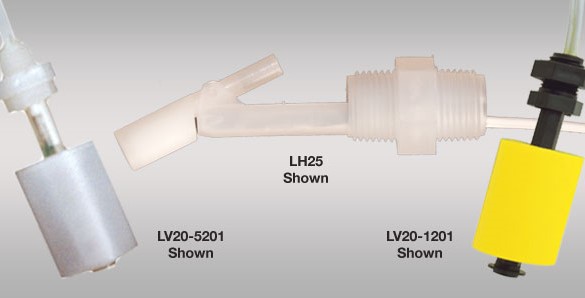

Switch-Tek™ LV20 & LH25 Mini-Float Level Switch

View Full Details

Brand : Flowline

Class : General purpose

Media : Liquids

Type : Float level switch

Application : Water and chemical

Contact type : (1) SPST reed

Contact output : Selectable NO/NC



Rating : 120 VAC/VDC @ 50 VA

Termination : Cable

Mount : 1/8" NPT (Rp), 1/2" NPT(G)

Temperature : -40°C to 221°C

Max.press : 100 PSI (6.9 bar)

Sensor rating : NEMA 8 (IP68)

Sensor material : PP,PVDF

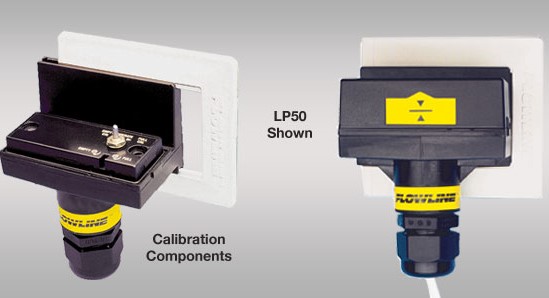

Switch-Tek™ LP50 Non-Intrusive Capacitance Level Switch

View Full Details

Brand : Flowline

Class : General purpose

Media : Liquids

Type : Non-intrusive capacitance level switch

Application : Conductive liquids with non-coating

Supply voltage : 12-36 VDC



Contact output : Selectable NO/NC

Contact type : (1) SPST relay

Contact rating : 60 VA (1A max)

Mount : Tank mounting

Enclosure rating : NEMA 4X (IP65)

Temperature : -40°C to 176°C

Bracket Material : PE, PP, PVDF

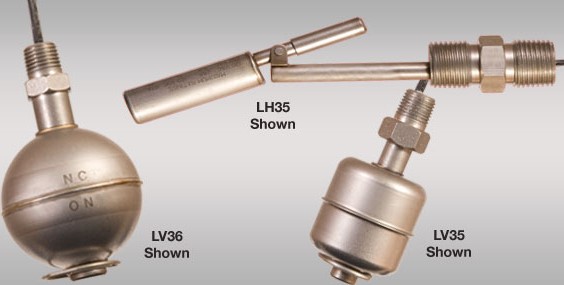

Switch-Tek™ LV3X & LH35 High-Temp Float Level Switch

View Full Details

Brand : Flowline

Class : General purpose

Media : Liquids

Type : High-temp float level switches

Application : Clean water, diluted chemicals and light weight oils

Contact type : (1) SPST reed

Contact rating : 100 VA

Contact output : Selecatable NO/NC

Mount : 1/8", 1/4", 1/2" NPT

Max temperature : -40°C to 200°C

Max pressure : 500 psi (34.5 bar)

Sensor rating : NEMA 6 (IP68)

Sensor material : 316 SS
