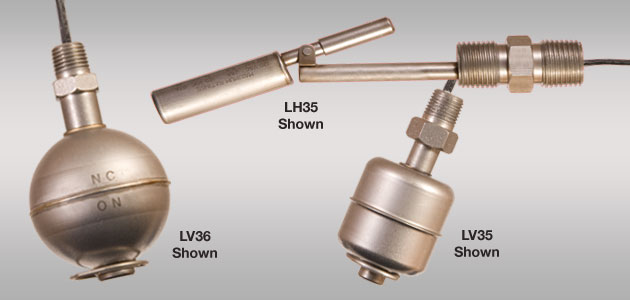

Switch-Tek™ LV3X & LH35 High-Temp Float Level Switch

DOWNLOADS





Application

Offered in both vertical and horizontal configurations, the general purpose high-temp float level switches provide reliable liquid level detection of relatively clean water, diluted chemicals and light weight oils with a 30VA or 100VA reed switch output. Media examples include hot deionized water and cooking oil. The stainless steel liquid level sensors are mounted vertically inside the tank or horizontally through the tank wall as a high level alarm or low level alarm.

Features

316 SS level sensor for high temp and pressure applications

Dry contact reed selectable NO or NC via float orientation

Offered in both vertical and horizontal configurations



Specifications

Orientation:

LV3X: ±20° vertical

LH35: ±20° horizontal

Accuracy: ± 3mm in water
Repeatability: ± 1mm in water
Specific gravity:

LV3X: 0.7 minimum

LH35: 0.6 minimum

Contact type: (1) SPST reed
Contact rating:

LX35: 30 VA

LV36: 100 VA

Contact output: Selectable NO / NC
Process temp.:

F: -40° to 392°

C: -40° to 200°

Pressure:

LV35: 300 psi (20.7 bar)

LV36: 500 psi (34.5 bar)

LH35: 300 psi (20.7 bar)

Sensor rating: NEMA 6 (IP68)
Sensor material: 316 SS
Wire jack. mat.:

Polymeric

Wire type:

2-conductor

Wire length:

2’ (61cm)

Process mount:

LV35: 1/8” NPT

LV36: 1/4” NPT

LH35: 1/2” NPT

Classification: General purpose
Compliance:

CE
