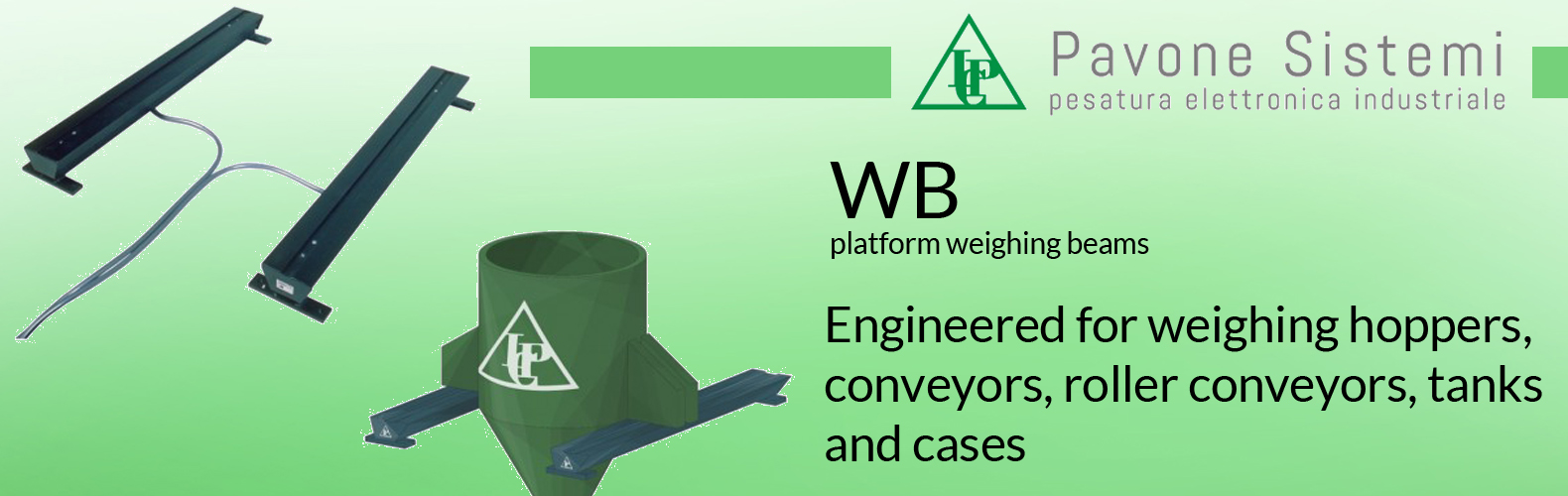

WB
Platforms Weighing Beams
DOWNLOADS
Datasheet

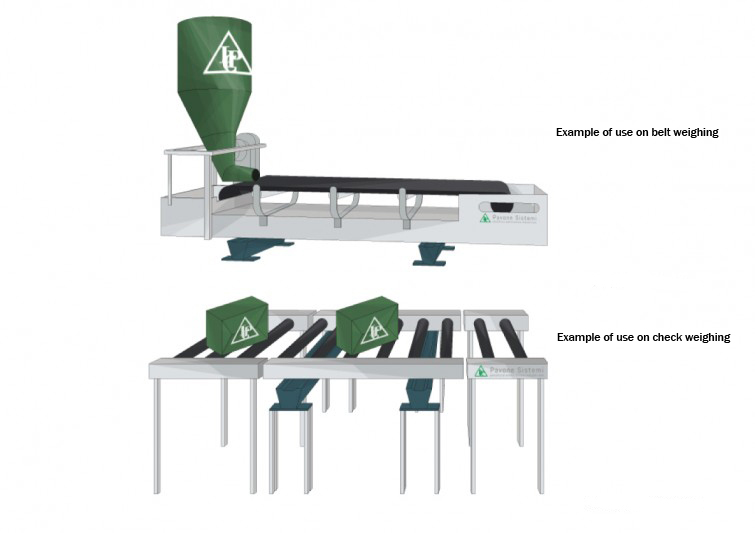

Engineered for weighing hoppers, conveyors, roller conveyors, tanks and cases
Standard version with approved load cell
Functioning with 4 off center load cells in aluminum (OIMLR60 certified)
Power supply 15Vdc max
Equalized sealed IP67 junction box with 6-pin 5m shielded cable with connectors for connection to the indicator
TYPE
DIM. mm
RANGE Kg
HEIGHT
DIV. STD g
DIV. CE-M g(*)
DIV. CE-M2 g(*)
DIV. HR g(*)
WB 1 15
400x80
15
85+20
2
5
-
1
WB 1 30
400x80
30
85+20
5
10
5-10
2
WB 1 60
400x80
60
85+20
10
20
-
5
WB 1 150
400x80
150
85+20
20
50
20-50
10
WB 2 60
600x105
60
130
10
20
10-20
5
WB 2 150
600x105
150
130
20
50
20-50
10
WB 2 300
600x105
300
130
50
100
50-100
20
WB 3 150
800x135
150
130
20
50
20-50
10
WB 3 300
800x135
300
130
50
100
50-100
20
WB 3 600
800x135
600
130
100
200
100-200
50
WB 4 600
1200x150
600
120
100
200
100-200
50
WB 4 1500
1200x150
1500
120
200
500
200-500
100
WB 4 3000
1200x150
3000
120
500
1000
500-1000
200
WB 5 6000
1200x150
6000
120
1000
2000
1000-2000
500
* You can get these divisions only with relatives options

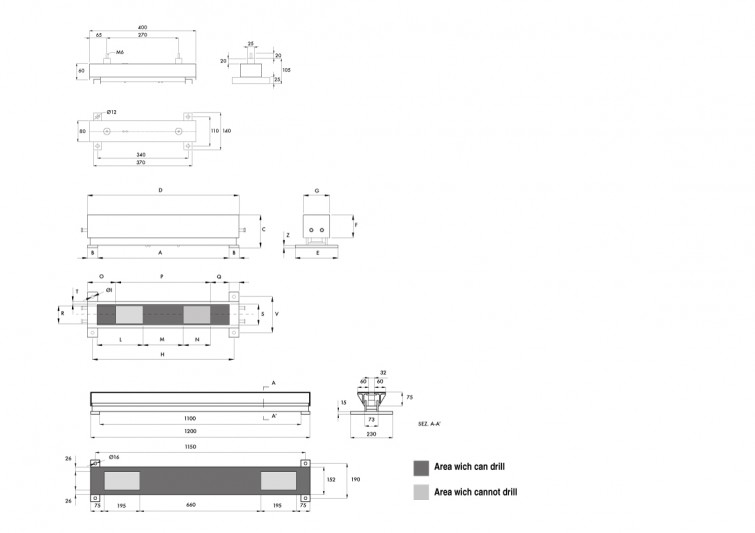

MODEL
A
B
C
D
E
F
G
H
I
L
M
N
O
P
Q
R
S
T
U
V
Z
WB2
520
40
130
600
170
90
105
560
12
182.5
160
107.5
112.5
375
75
70
82
11.5
37.5
130
10
WB3
720
40
130
800
200
90
134
760
12
250
220
148
142
516
102
96
108
13
40
160
10
