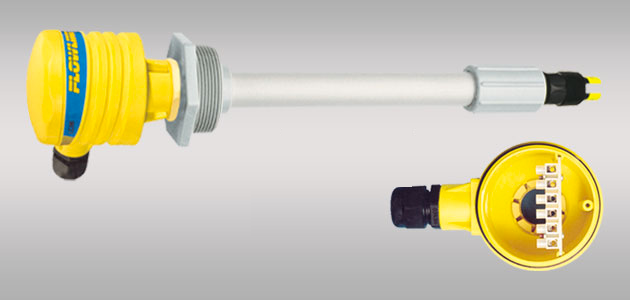

Switch-Pak™ AX1X with Compact Junction Box





Series LU10 LZ12 LP15 LV10 LO10
Type Ultrasonic switch Vibration switch Capacitance switch Buoyancy switch Optic switch
Classification Intrinsically safe General purpose General purpose General purpose General purpose
Application Chemical or light weight oil Wastewater Conductive coating chemical Water or chemical Secondary containment
Installation Universal Universal Side wall Top wall Universal
Function Level switch Level switch Level switch Level switch Leak detection
Max. length
Supply 12-36 VDC 12-36 VDC 12-36 VDC 12-36 VDC
Contact (1) SPST relay (1) SPST relay (1) SPST relay (1) SPST reed (1) SPST relay
Rating 32 VDC (0.5A max) 60 VA (1A max) 60 VA (1A max) 15 VA (0.25A max) 60 VA (1A max)
Enclosure NEMA 6 (IP68) NEMA 6 (IP68) NEMA 6 (IP68) NEMA 6 (IP68) NEMA 6 (IP68)
Termination Cable Cable Cable Cable Cable
Mount 3/4″ NPT (G) 3/4″ NPT (G) 3/4″ NPT (G) 3/4″ NPT (Rp) 3/4″ NPT (G)
Temperature -40º F. (-40º C.) to 176º F. (80º C.) -40º F. (-40º C.) to 176º F. (80º C.) -40º F. (-40º C.) to 176º F. (80º C.) -40º F. (-40º C.) to 176º F. (80º C.) -40º F. (-40º C.) to 176º F. (80º C.)
Max. pressure 150 PSI (10 bar) 150 PSI (10 bar) 150 PSI (10 bar) 25 PSI (10 bar) 150 PSI (10 bar)
Material PP / PFA PP-Ryton PP PP / PVDF PP / PFA


Application

The intrinsically safe or general purpose level switch package provides high or low liquid level detection with one relay or reed switch output, and a compact junction box for wiring termination. Available in three level sensor technologies, choose the sensor type based upon your application media and classification. This PP or PVDF level switch package is selected for bulk storage, IBC or drum, and neutralization tank applications, connected to a PLC or relay controller.



Features



Rugged PP or PVDF construction for use with corrosive liquids

Available in intrinsically safe and general purpose classifications

60VA relay or 15VA dry contact switches selectable NO or NC via wiring

Offered in three sensing technologies for broad application coverage

PP enclosure rated NEMA 4X with swivel base for conduit alignment



Specifications

Length: 6" to 10' (15cm to 3m)
Accuracy: ± 1mm in water
Repeatability: ± 0.5mm in water
Orientation: ± 20º vertical
Switch points: 1 (factory set)
Supply voltage: AV16: N/A
AU18: 12-36 VDC
AZ18: 12-30 VDC
Consumption: AV16: N/A
AU18 / AZ18: 25 mA max.
Contact type: AV16: (1) SPDT reed
AU18 / AZ18: (1) SPST relay
Contact rating: AV16: 15 VA, 0.25A max.
AU18 / AZ18: 60 VA, 1A max.
Contact output: Selectable NO / NC
Process temp.: F: -40° to 176°
C: -40° to 80°
Ambient temp.: F: -40° to 140°
C: -40° to 60°
Installed height: 3.6” (9.1cm) above tank process mount
Pressure: AV16: 25 psi (1.7 bar)
AU18 / AZ18: 150 psi (10 bar)
Enclosure rating: NEMA 4X (IP65)
Enclosure mat.: PP, UL94VO
Terminal strip: 6-pole, socket
Conduit entrance: 1/2" NPT
Wetted material: AV16-224X: PP
AU18-224X: PP
AU18-524X: PVDF
AZ18-424X: PP-Ryton®
Process mount: -X243: 2" NPT
-X247: 1 1/2" G
Classification: AV16 / AZ18: general purpose, AU18: intrinsically safe (see LU10 data sheet for details)
Compliance: CE
