Multiple connectivity

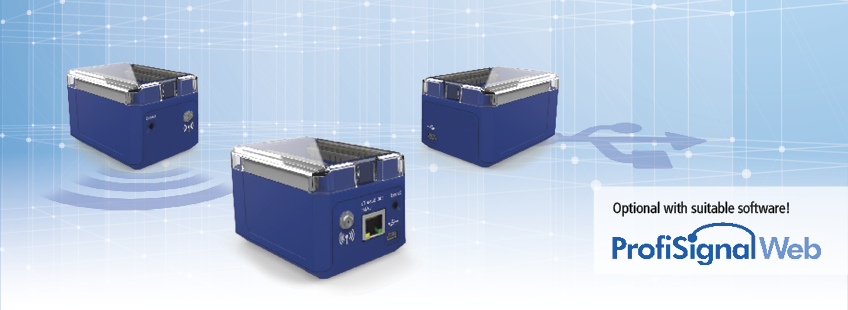

The Loggito series is comprised of the Loggito Logger (master) and the Wireless and USB extension modules. The Loggito brings flexibility to measurement and control technology and provides data access from the mobile devices of users.

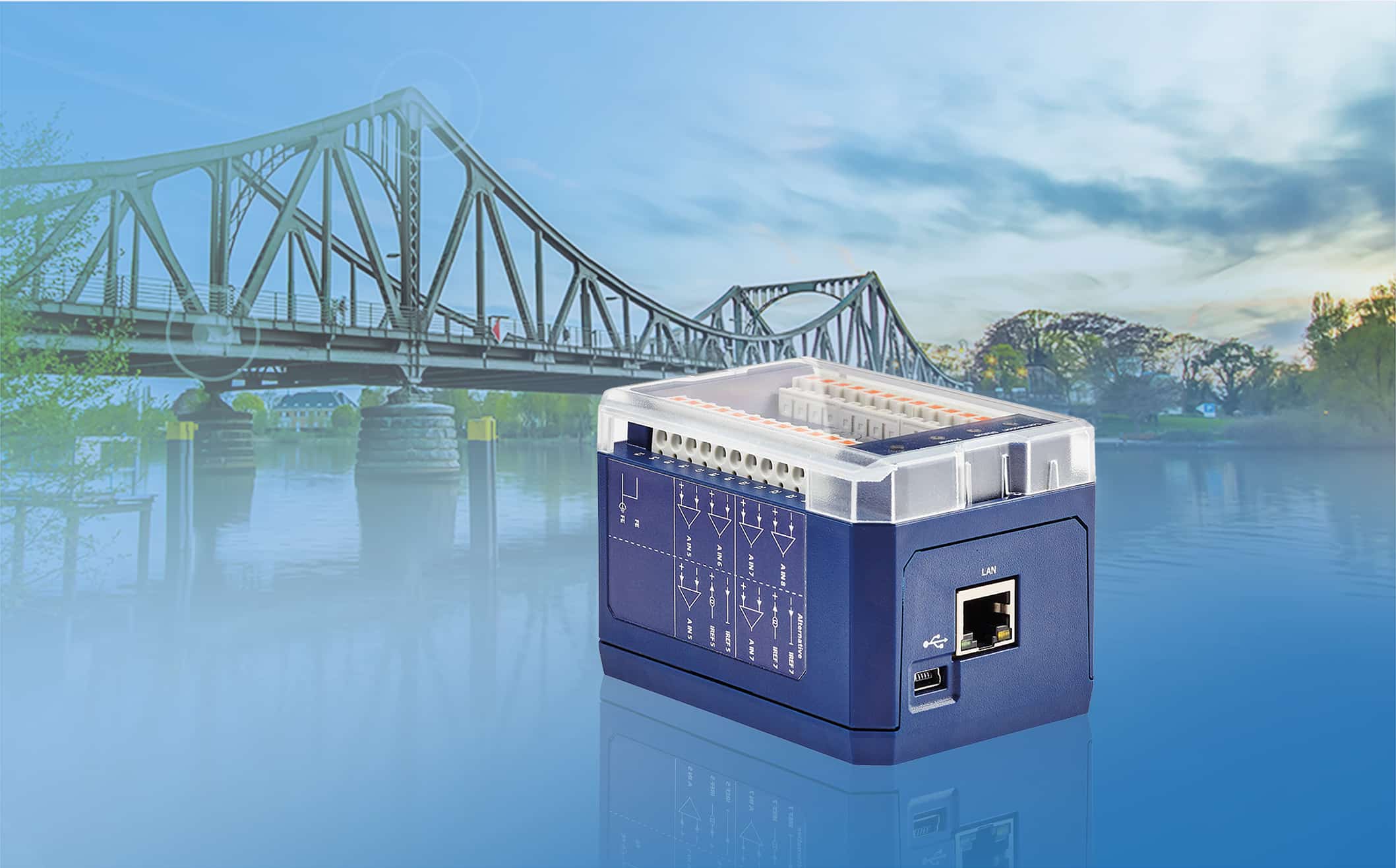

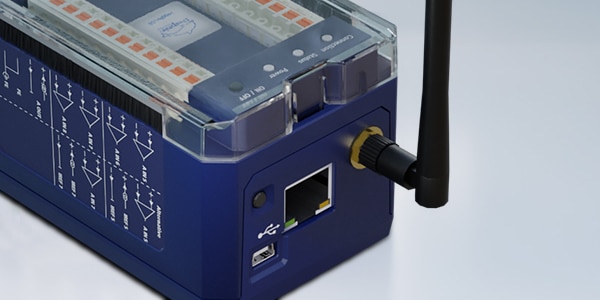

Loggito Logger

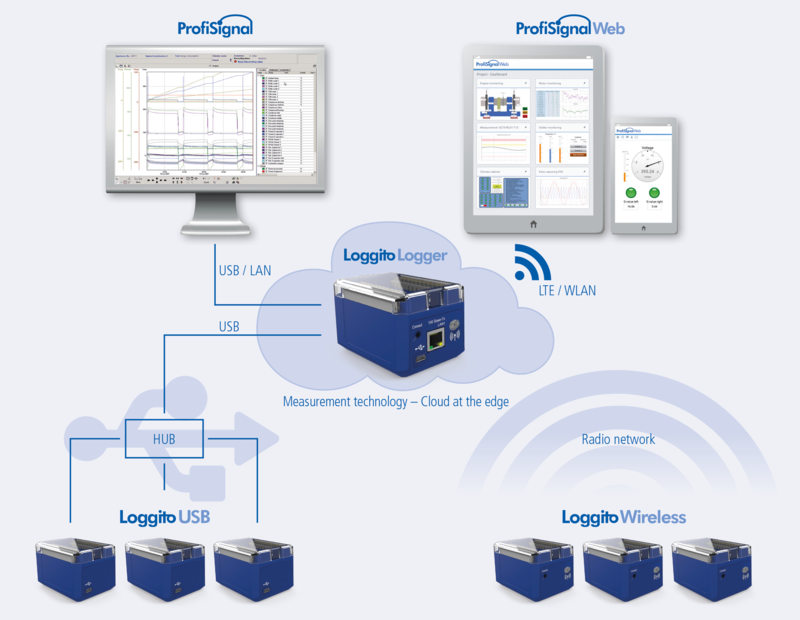

The Loggito Logger is equipped with an internal data storage capability to enable internal processing and the computation of measurement channels. When combined with the Wireless and USB extension modules, the Loggito Logger acts as a coordinator for establishing decentralised measurement networks via USB or remote radio.

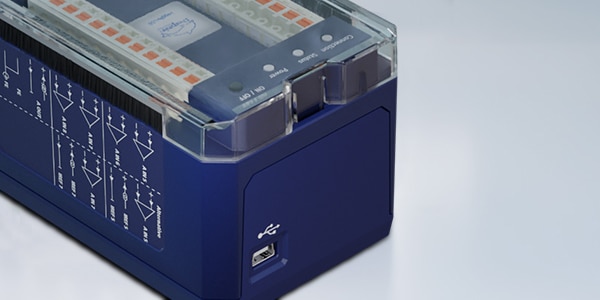

USB extension module

The Loggito USB module fulfils two functions:

  • USB modules enable the required number of channels to be provided, e.g. in control cabinet applications. Power is provided directly via the USB without the need for an internal power supply unit. The USB module does not require an internal storage capability because data logging is undertaken by a main Loggito Logger.
  • The USB module can also be connected directly to a computer. This gives you a highly inexpensive and flexible measurement system, e.g. for measurement stations in a laboratory.

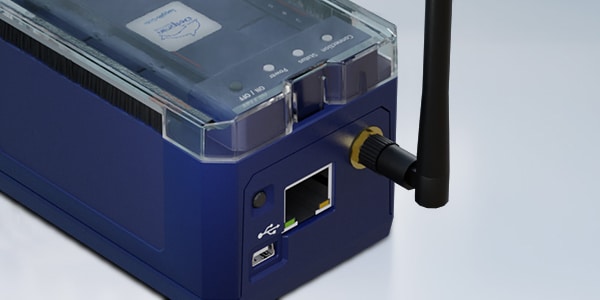

Wireless extension module

The Loggito Wireless module, in combination with the Loggito Logger, provides data acquisition at measuring points where cabling is undesirable or not possible. An extremely low power input enables rechargeable-battery operation with extended standby times. The Wireless modules can communicate with each other in a mesh network to enable extended range.
