Loggito Logger 8 AI-RTD

Catalog
View Full Details
Brand : Delphin
Series : Loggito
Model : Loggito Logger 8 AI-RTD
Analog Input (mV, mA, TC) : 8
Analog Input (RTD) : 4
Analog Output : 0
Digital Input : 0
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 2
Resolution :24 bit Sigma-Delta
Sampling Rate : 500Hz
Ethernet : Yes
WLAN : Optional
Serial COM1 : 0
Serial COM2 : 0
Serial COM3 : 0
Serial COM4 : 0
USB Device : Type-mini B (2.0)
USB Host : Type-A (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 7.5 watts
Protocol
RS 232/485 (via USB extension) :Modbus RTU Master, Modbus RTU slave, SCPI, ASCII
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal : 4/8 GB(approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

Expert Logger 100

View Full Details
Brand : Delphin
Series : Expert Logger
Model : Expert Logger 100
Analog Input (mV, mA, TC) : 16
Analog Input (RTD) : 8
Analog Output : 0
Digital Input : 4
Sensor bus SDI12 : 1
Digital Output : 4
Digital IN/OUT : 4
Resolution :24 bit Sigma-Delta
Sampling Rate : 1000Hz
Ethernet : Yes
WLAN/WWAN : Optional
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM3 : RS-232
Serial COM4 : 0
USB Device : Type-A (2.0)
USB Host : Type-B (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 15 W
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave , CAN 2.0
COM 3 : ASCII / SCPI / Modbus RTU
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal :2 ..14 GB (approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

Expert Logger 200

View Full Details
Brand : Delphin
Series : Expert Logger
Model : Expert Logger 200
Analog Input (mV, mA, TC) : 32
Analog Input (RTD) : 16
Analog Output : 0
Digital Input : 4
Sensor bus SDI12 : 1
Digital Output : 4
Digital IN/OUT : 4
Resolution :24 bit Sigma-Delta
Sampling Rate : 2000Hz
Ethernet : Yes
WLAN/WWAN : Optional
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM3 : RS-232
Serial COM4 : 0
USB Device : Type-A (2.0)
USB Host : Type-B (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 15 W
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave , CAN 2.0
COM 3 : ASCII / SCPI / Modbus RTU
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal :2 ..14 GB (approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

Expert Logger 300

View Full Details
Brand : Delphin
Series : Expert Logger
Model : Expert Logger 300
Analog Input (mV, mA, TC) : 46
Analog Input (RTD) : 23
Analog Output : 0
Digital Input : 0
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 1
Resolution :24 bit Sigma-Delta
Sampling Rate : 3000Hz
Ethernet : Yes
WLAN/WWAN : Optional
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM3 : RS-232
Serial COM4 : 0
USB Device : Type-A (2.0)
USB Host : Type-B (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 15 W
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave , CAN 2.0
COM 3 : ASCII / SCPI / Modbus RTU
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal :2 ..14 GB (approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

Expert Logger 400

View Full Details
Brand : Delphin
Series : Expert Logger
Model : Expert Logger 400
Analog Input (mV, mA, TC) : 16
Analog Input (RTD) : 8
Analog Output : 6
Digital Input : 1
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 24
Resolution :24 bit Sigma-Delta
Sampling Rate : 1000Hz
Ethernet : Yes
WLAN/WWAN : Optional
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM3 : RS-232
Serial COM4 : 0
USB Device : Type-A (2.0)
USB Host : Type-B (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 15 W
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave , CAN 2.0
COM 3 : ASCII / SCPI / Modbus RTU
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal :2 ..14 GB (approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

Loggito Logger 8 AI

Catalog
View Full Details
Brand : Delphin
Series : Loggito
Model : Loggito Logger 8 AI
Analog Input (mV, mA, TC) : 8
Analog Input (RTD) : 0
Analog Output : 0
Digital Input : 0
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 2
Resolution :24 bit Sigma-Delta
Sampling Rate : 500Hz
Ethernet : Yes
WLAN : Optional
Serial COM1 : 0
Serial COM2 : 0
Serial COM3 : 0
Serial COM4 : 0
USB Device : Type-mini B (2.0)
USB Host : Type-A (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 7.5 watts
Protocol
RS 232/485 (via USB extension) :Modbus RTU Master, Modbus RTU slave, SCPI, ASCII
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal : 4/8 GB(approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

Loggito Logger 4 AI-RTD

Catalog
View Full Details
Brand : Delphin
Series : Loggito
Model : Loggito Logger 4 AI-RTD
Analog Input (mV, mA, TC) : 4
Analog Input (RTD) : 2
Analog Output : 0
Digital Input : 0
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 2
Resolution :24 bit Sigma-Delta
Sampling Rate : 500Hz
Ethernet : Yes
WLAN : Optional
Serial COM1 : 0
Serial COM2 : 0
Serial COM3 : 0
Serial COM4 : 0
USB Device : Type-mini B (2.0)
USB Host : Type-A (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 7.5 watts
Protocol
RS 232/485 (via USB extension) :Modbus RTU Master, Modbus RTU slave, SCPI, ASCII
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal : 4/8 GB(approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

Loggito Logger 4 AI

Catalog
View Full Details
Brand : Delphin
Series : Loggito
Model : Loggito Logger 4 AI
Analog Input (mV, mA, TC) : 4
Analog Input (RTD) : 0
Analog Output : 0
Digital Input : 0
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 2
Resolution :24 bit Sigma-Delta
Sampling Rate : 500Hz
Ethernet : Yes
WLAN : Optional
Serial COM1 : 0
Serial COM2 : 0
Serial COM3 : 0
Serial COM4 : 0
USB Device : Type-mini B (2.0)
USB Host : Type-A (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 7.5 watts
Protocol
RS 232/485 (via USB extension) :Modbus RTU Master, Modbus RTU slave, SCPI, ASCII
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal : 4/8 GB(approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

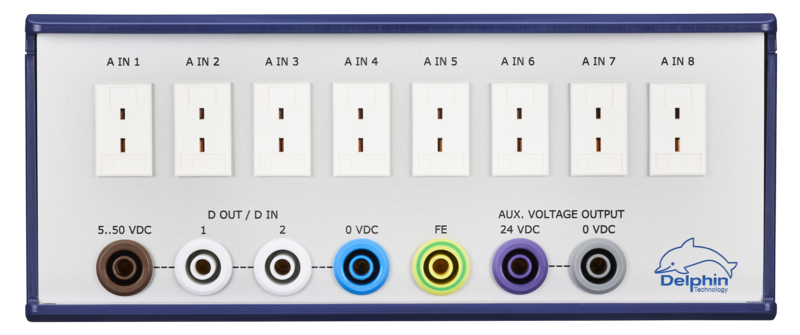

LoggitoLab Logger 8 AI-RTD

Catalog
View Full Details
Brand : Delphin
Series : LoggitoLab
Model : LoggitoLab Logger 8 AI-RTD
Analog Input (mV, mA) : 8
Analog Input (RTD) : 4
Analog Output : 0
Digital Input : 0
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 2
Resolution :24 bit Sigma-Delta
Sampling Rate : 500Hz
Ethernet : Yes
WLAN : Optional
Serial COM1 : 0
Serial COM2 : 0
Serial COM3 : 0
Serial COM4 : 0
USB Device : Type-mini B (2.0)
USB Host : Type-A (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 7.5 watts
Protocol
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal : 4/8 GB(approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

LoggitoLab Logger 8 TC

Catalog
View Full Details
Brand : Delphin
Series : LoggitoLab
Model : LoggitoLab Logger 8 TC
Analog Input (TC) : 8
Analog Input (RTD) : 0
Analog Output : 0
Digital Input : 0
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 2
Resolution :24 bit Sigma-Delta
Sampling Rate : 500Hz
Ethernet : Yes
WLAN : Optional
Serial COM1 : 0
Serial COM2 : 0
Serial COM3 : 0
Serial COM4 : 0
USB Device : Type-mini B (2.0)
USB Host : Type-A (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 7.5 watts
Protocol
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal : 4/8 GB(approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP
