Loggito USB 8 AI
|
|
Brand : Delphin
Series : Loggito
Model : Loggito USB 8 AI
Analog Input (mV, mA, TC) : 8
Analog Input (RTD) : 0
Analog Output : 0
Digital Input : 0
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 2
Resolution :24 bit Sigma-Delta
Sampling Rate : 500Hz
|
Ethernet : 0
WLAN : 0
Serial COM1 : 0
Serial COM2 : 0
Serial COM3 : 0
Serial COM4 : 0
USB Device : Type-mini B (2.0)
USB Host : 0
Supply voltage : 5 VDC(via mini USB connector)
Power input : max. 2.5 watts
|
| |
|
Loggito USB 4 AI-RTD
|
|
Brand : Delphin
Series : Loggito
Model : Loggito USB 4 AI-RTD
Analog Input (mV, mA, TC) : 4
Analog Input (RTD) : 2
Analog Output : 0
Digital Input : 0
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 2
Resolution :24 bit Sigma-Delta
Sampling Rate : 500Hz
|
Ethernet : 0
WLAN : 0
Serial COM1 : 0
Serial COM2 : 0
Serial COM3 : 0
Serial COM4 : 0
USB Device : Type-mini B (2.0)
USB Host : 0
Supply voltage : 5 VDC(via mini USB connector)
Power input : max. 2.5 watts
|
| |
|
Loggito USB 4 AI
|
|
Brand : Delphin
Series : Loggito
Model : Loggito USB 4 AI
Analog Input (mV, mA, TC) : 4
Analog Input (RTD) : 0
Analog Output : 0
Digital Input : 0
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 2
Resolution :24 bit Sigma-Delta
Sampling Rate : 500Hz
|
Ethernet : 0
WLAN : 0
Serial COM1 : 0
Serial COM2 : 0
Serial COM3 : 0
Serial COM4 : 0
USB Device : Type-mini B (2.0)
USB Host : 0
Supply voltage : 5 VDC(via mini USB connector)
Power input : max. 2.5 watts
|
| |
|
LoggitoLab USB 8 AI-RTD
|
|
Brand : Delphin
Series : LoggitoLab
Model : LoggitoLab USB 8 AI-RTD
Analog Input (mV, mA) : 8
Analog Input (RTD) : 4
Analog Output : 0
Digital Input : 0
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 2
Resolution :24 bit Sigma-Delta
Sampling Rate : 500Hz
|
Ethernet : 0
WLAN : 0
Serial COM1 : 0
Serial COM2 : 0
Serial COM3 : 0
Serial COM4 : 0
USB Device : Type-mini B (2.0)
USB Host : 0
Supply voltage : 5 VDC(via mini USB connector)
Power input : max. 2.5 watts
|
| |
|

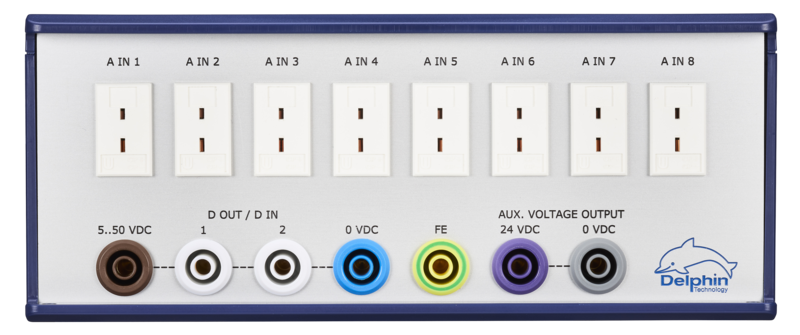

LoggitoLab USB 8 TC
|
|
Brand : Delphin
Series : LoggitoLab
Model : LoggitoLab USB 8 TC
Analog Input (TC) : 8
Analog Input (RTD) : 0
Analog Output : 0
Digital Input : 0
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 2
Resolution :24 bit Sigma-Delta
Sampling Rate : 500Hz
|
Ethernet : 0
WLAN : 0
Serial COM1 : 0
Serial COM2 : 0
Serial COM3 : 0
Serial COM4 : 0
USB Device : Type-mini B (2.0)
USB Host : 0
Supply voltage : 5 VDC(via mini USB connector)
Power input : max. 2.5 watts
|
| |
|

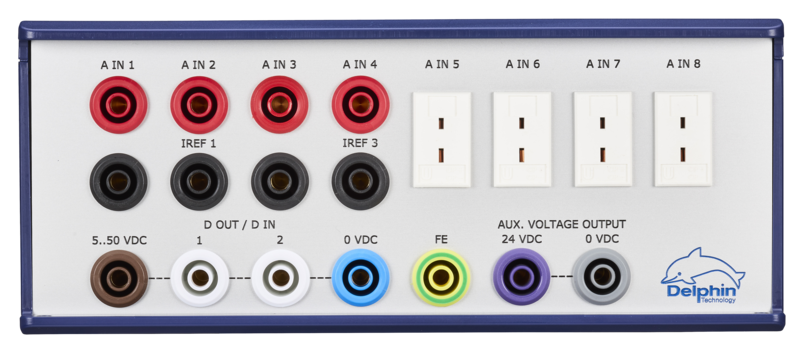

LoggitoLab USB 4 AI-RTD TC
|
|
Brand : Delphin
Series : LoggitoLab
Model : LoggitoLab USB 4 AI-RTD TC
Analog Input (mV, mA) :4 + (TC):4
Analog Input (RTD) : 2
Analog Output : 0
Digital Input : 0
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 2
Resolution :24 bit Sigma-Delta
Sampling Rate : 500Hz
|
Ethernet : 0
WLAN : 0
Serial COM1 : 0
Serial COM2 : 0
Serial COM3 : 0
Serial COM4 : 0
USB Device : Type-mini B (2.0)
USB Host : 0
Supply voltage : 5 VDC(via mini USB connector)
Power input : max. 2.5 watts
|
| |
|

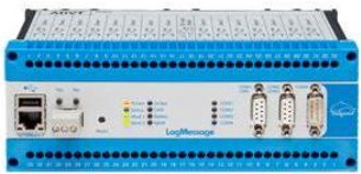

LogMessage 5000
|
|
Brand : Delphin
Series : LogMessage
Model : LogMessage 5000
Analog Input (mV, mA, TC) : 16
Analog Input (RTD) : 16
Analog Output : 0
Digital Input : 0
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 0
Resolution :24 bit Sigma-Delta
Total Sampling Rate : 60Hz
|
Ethernet : Yes
WLAN/WWAN : 0
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM3 : RS-232
Serial COM4 : RS-232
USB Device : 0
USB Host : Type-A (1.0)
Supply voltage : 12 .. 36 VDC / 12 .. 28 VAC eff. / ± 10 %
Power input : max. 10 W
|
|
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave , CAN 2.0
COM 3 and COM 4 : ASCII / SCPI / Modbus RTU
TCP/IP :TCP/IP, HTTP, SMTP, NTP, Modbus TCP and OPC UA client / server
Data Storage
Internal :0.5 .. 15.5 GB (approx. 30 million mesurement values per GB)
|
|

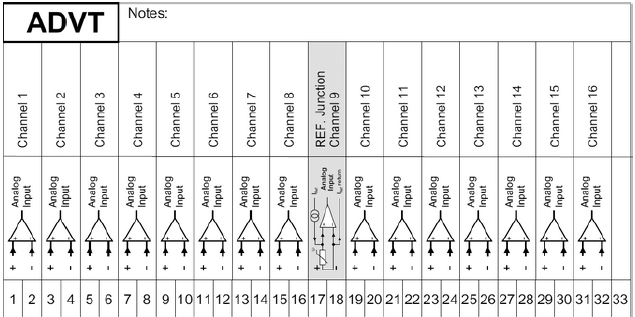

ADVT
|
|
Brand : Delphin
Series : IO Module
Model : ADVT
Analog Input (mV, mA, TC) : 15
Analog Input (RTD) : 0
Analog Output : 0
Digital Input : 0
Digital Output : 0
Digital IN/OUT : 0
AI Resolution :24 bit Sigma-Delta
AO Resolution :NA
Total Sampling Rate : 600Hz
|
|
|
(Note: This module has to be used with ProfiMessage or ProfiLab or ProfiMessage D Device.)
|
|

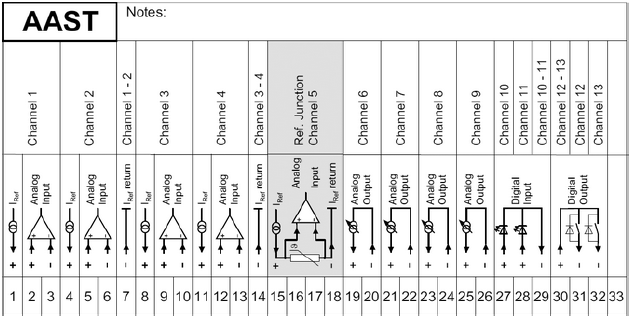

AAST
|
|
Brand : Delphin
Series : IO Module
Model : AAST
Analog Input (mV, mA, TC) : 4
Analog Input (RTD) : 4
Analog Output : 4
Digital Input : 2
Digital Output : 2
Digital IN/OUT : 0
AI Resolution :24 bit Sigma-Delta
AO Resolution :16 bit
Total Sampling Rate : 600Hz
|
|
|
(Note: This module has to be used with ProfiMessage or ProfiLab or ProfiMessage D Device.)
|
|

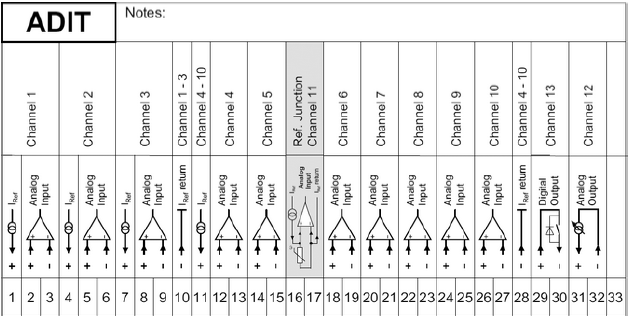

ADIT
|
|
Brand : Delphin
Series : IO Module
Model : ADIT
Analog Input (mV, mA, TC) : 10
Analog Input (RTD) : 10
Analog Output : 1
Digital Input : 0
Digital Output : 1
Digital IN/OUT : 0
AI Resolution :24 bit Sigma-Delta
AO Resolution :16 bit
Total Sampling Rate : 600Hz
|
|
|
(Note: This module has to be used with ProfiMessage or ProfiLab or ProfiMessage D Device.)
|
|
