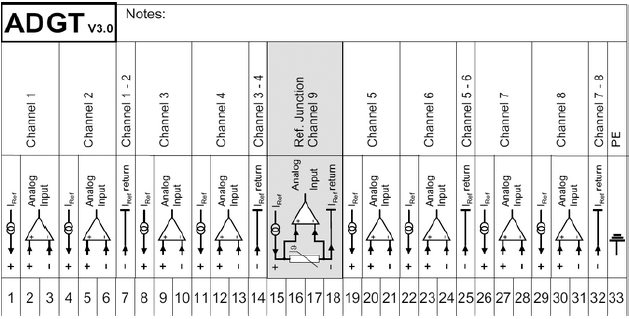

ADGT
|
|
Brand : Delphin
Series : IO Module
Model : ADGT
Analog Input (mV, mA, TC) : 8
Analog Input (RTD) : 8
Analog Output : 0
Digital Input : 0
Digital Output : 0
Digital IN/OUT : 0
AI Resolution :24 bit Sigma-Delta
AO Resolution : NA
Total Sampling Rate : 60Hz
|
|
|
(Note: This module has to be used with ProfiMessage or ProfiLab or ProfiMessage D Device.)
|
|

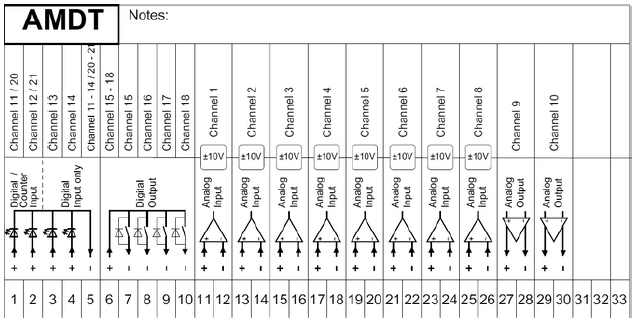

AMDT
|
|
Brand : Delphin
Series : IO Module
Model : AMDT
Analog Input (mV, mA) : 8
Analog Input (RTD) : 0
Analog Output : 2
Digital Input : 2
Digital Output : 4
Digital IN/OUT : 0
AI Resolution :14 bit Sigma-Delta
AO Resolution : 12 bit
Total Sampling Rate : 10 ..160kHz
|
|
|
(Note: This module has to be used with ProfiMessage or ProfiLab or ProfiMessage D Device.)
|
|

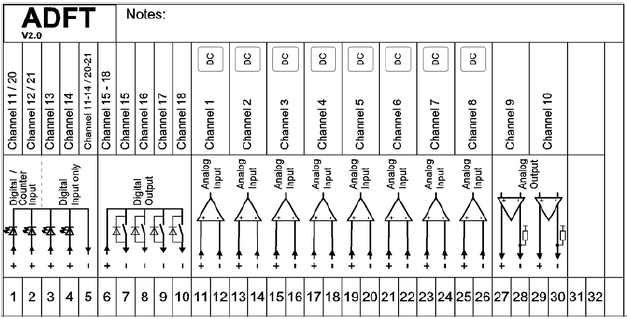

ADFT
|
|
Brand : Delphin
Series : IO Module
Model : AMDT
Analog Input (mV, mA) : 8
Analog Input (RTD) : 0
Analog Output : 2
Digital Input : 2
Digital Output : 4
Digital IN/OUT : 0
AI Resolution :14 bit Sigma-Delta
AO Resolution : 12 bit
Total Sampling Rate : 8kHz
|
|
|
(Note: This module has to be used with ProfiMessage or ProfiLab or ProfiMessage D Device.)
|
|

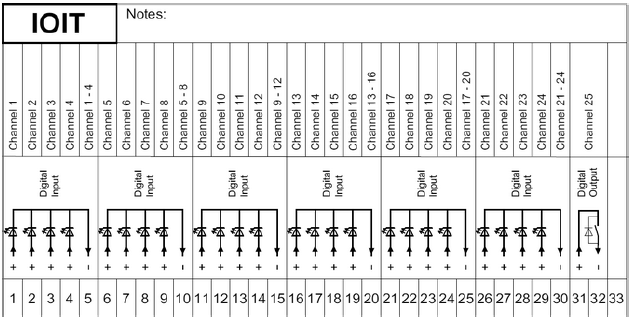

IOIT
|
|
Brand : Delphin
Series : IO Module
Model : IOIT
Analog Input (mV, mA) : 0
Analog Input (RTD) : 0
Analog Output : 0
Digital Input : 24
Digital Output : 1
Digital IN/OUT : 0
AI Resolution :NA
AO Resolution : NA
Total Sampling Rate : NA
|
|
|
(Note: This module has to be used with ProfiMessage or ProfiLab or ProfiMessage D Device.)
|
|

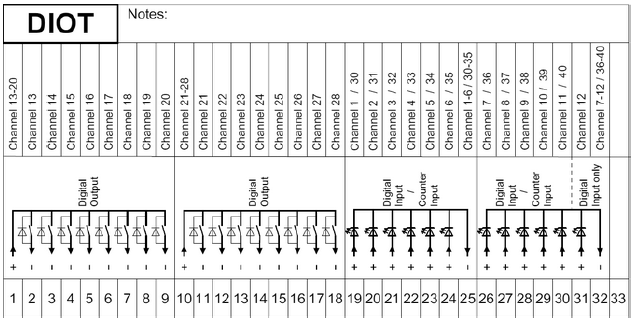

DIOT
|
|
Brand : Delphin
Series : IO Module
Model : DIOT
Analog Input (mV, mA) : 0
Analog Input (RTD) : 0
Analog Output : 0
Digital Input : 12
Digital Output : 16
Digital IN/OUT : 0
AI Resolution :NA
AO Resolution : NA
Total Sampling Rate : NA
|
|
|
(Note: This module has to be used with ProfiMessage or ProfiLab or ProfiMessage D Device.)
|
|

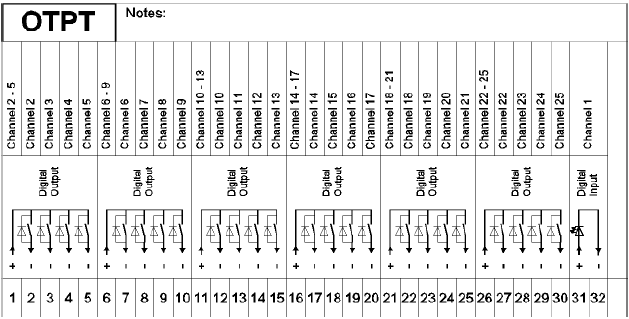

OTPT
|
|
Brand : Delphin
Series : IO Module
Model : OTPT
Analog Input (mV, mA) : 0
Analog Input (RTD) : 0
Analog Output : 0
Digital Input : 1
Digital Output : 24
Digital IN/OUT : 0
AI Resolution :NA
AO Resolution : NA
Total Sampling Rate : NA
|
|
|
(Note: This module has to be used with ProfiMessage or ProfiLab or ProfiMessage D Device.)
|
|

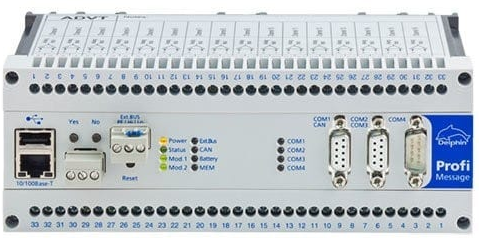

ProfiMessage
|
|
Brand : Delphin
Series : ProfiMessage
Model : ProfiMessage
Ethernet : Yes
WLAN/WWAN : 0
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM3 : RS-232
Serial COM4 : RS-232
USB Device : Type-A (1.1)
USB Host : 0
Supply voltage : 12 .. 36 VDC / 12 .. 28 VAC eff. /± 10 %
Power input : max. 10 W
|
|
|
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave , CAN 2.0
COM 3 and COM 4 : ASCII / SCPI / Modbus RTU
TCP/IP :HTTP, SMTP, NTP, Modbus TCP and OPC UA client / server
Data Storage
Internal :0.5 .. 15.5 GB (approx. 30 million measurement values per GB / 300 million measurement values per GB for AMDT, ADFT)
(Note: IO modules have to be selected from ADVT,AAST,ADIT,ADGT,AMDT,ADFT,IOIT,OTPT,DIOT.)
|
|

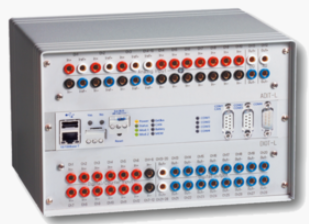

ProfiLab
|
|
Brand : Delphin
Series : ProfiLab
Model : ProfiLab
Ethernet : Yes
WLAN/WWAN : 0
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM3 : RS-232
Serial COM4 : RS-232
USB Device : Type-A (1.1)
USB Host : 0
Supply voltage : 12 .. 36 VDC / 12 .. 28 VAC eff. /± 10 %
Power input : max. 10 W
|
|
|
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave , CAN 2.0
COM 3 and COM 4 : ASCII / SCPI / Modbus RTU
TCP/IP :HTTP, SMTP, NTP, Modbus TCP and OPC UA client / server
Data Storage
Internal :0.5 .. 15.5 GB (approx. 30 million measurement values per GB / 300 million measurement values per GB for AMDT, ADFT)
(Note: IO modules have to be selected from ADVT,AAST,ADIT,ADGT,AMDT,ADFT,IOIT,OTPT,DIOT.)
|
|

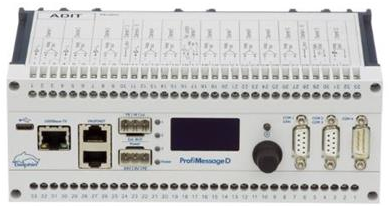

ProfiMessage D
|
|
Brand : Delphin
Series : ProfiMessage D
Model : ProfiMessage D
Ethernet : Yes
WLAN : Optional
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM3 : RS-232
Serial COM4 : RS-232
USB Device : Type-C (2.0)
USB Host : 0
Supply voltage : 12 .. 24 VDC / ± 10 %
Power input : max. 10 W
|
|
|
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave , CAN 2.0
COM 3 and COM 4 : ASCII / SCPI / Modbus RTU
TCP/IP :HTTP, SMTP, NTP, Modbus TCP and OPC UA client / server
PROFINET :Optional
Data Storage
Internal :4 .. 16 GB (approx. 30 million measurement values per GB / 300 million measurement values per GB for AMDT, ADFT)
(Note: IO modules have to be selected from ADVT,AAST,ADIT,ADGT,AMDT,ADFT,IOIT,OTPT,DIOT.)
|
|
