Expert Key 200T

View Full Details
Brand : Delphin
Series : Expert Key
Model : Expert Key 200T
Analog Input (TC) : 28
Analog Output : 2
Digital Input : 1
Digital Output : 1
Digital IN/OUT : 0
AI Resolution :18 bit
AO Resolution :16 bit
Total Sampling Rate : 100kHz
Ethernet : Yes
Serial COM1 : 0
Serial COM2 : 0
Serial COM3 : 0
Serial COM4 : 0
USB Device : Type-B (2.0)
USB Host : 0
Supply voltage : 9..24 VDC / ±15%
Power input : max. 6 watts

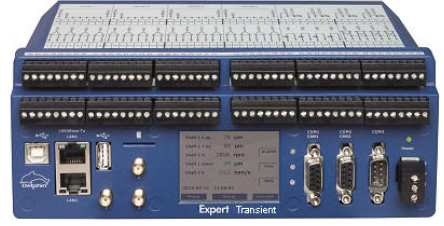

Expert Transient 4

View Full Details
Brand : Delphin
Series : Expert Transient
Model : Expert Transient 4
Analog Input (mV, mA) :4
Analog Input (RTD) : 0
Analog Output : 4
Digital Input : 4
Digital Output : 8
Digital IN/OUT : 0
AI Resolution :24 bit
AO Resolution : 16 bit
Sampling Rate : 50kHz
Ethernet : Yes
WLAN/WWAN : Optional
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave,PROFIBUS sniffer
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave,PROFIBUS sniffer
Serial COM3 : RS-232
Serial COM4 : 0
USB Device : Type-B (2.0)
USB Host : Type-A (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 20 W
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave ,PROFIBUS sniffer, CAN 2.0
COM 3 : ASCII / SCPI / Modbus RTU
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal :2..14 GB (approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

Expert Transient 8

View Full Details
Brand : Delphin
Series : Expert Transient
Model : Expert Transient 8
Analog Input (mV, mA) : 8
Analog Input (RTD) : 0
Analog Output : 4
Digital Input : 4
Digital Output : 8
Digital IN/OUT : 0
AI Resolution :24 bit
AO Resolution : 16 bit
Sampling Rate : 50kHz
Ethernet : Yes
WLAN/WWAN : Optional
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave,PROFIBUS sniffer
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave,PROFIBUS sniffer
Serial COM3 : RS-232
Serial COM4 : 0
USB Device : Type-B (2.0)
USB Host : Type-A (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 20 W
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave ,PROFIBUS sniffer, CAN 2.0
COM 3 : ASCII / SCPI / Modbus RTU
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal :2..14 GB (approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

Expert Transient 12

View Full Details
Brand : Delphin
Series : Expert Transient
Model : Expert Transient 12
Analog Input (mV, mA) :12
Analog Input (RTD) : 0
Analog Output : 4
Digital Input : 4
Digital Output : 8
Digital IN/OUT : 0
AI Resolution : 24 bit
AO Resolution : 16 bit
Sampling Rate : 50kHz
Ethernet : Yes
WLAN/WWAN : Optional
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave,PROFIBUS sniffer
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave,PROFIBUS sniffer
Serial COM3 : RS-232
Serial COM4 : 0
USB Device : Type-B (2.0)
USB Host : Type-A (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 20 W
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave ,PROFIBUS sniffer, CAN 2.0
COM 3 : ASCII / SCPI / Modbus RTU
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal :2..14 GB (approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

Expert Transient 16

View Full Details
Brand : Delphin
Series : Expert Transient
Model : Expert Transient 16
Analog Input (mV, mA) :16
Analog Input (RTD) : 0
Analog Output : 4
Digital Input : 4
Digital Output : 8
Digital IN/OUT : 0
AI Resolution : 24 bit
AO Resolution : 16 bit
Sampling Rate : 50kHz
Ethernet : Yes
WLAN/WWAN : Optional
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave,PROFIBUS sniffer
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave,PROFIBUS sniffer
Serial COM3 : RS-232
Serial COM4 : 0
USB Device : Type-B (2.0)
USB Host : Type-A (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 20 W
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave ,PROFIBUS sniffer, CAN 2.0
COM 3 : ASCII / SCPI / Modbus RTU
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal :2..14 GB (approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

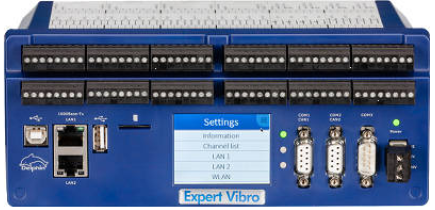

Expert Vibro 4

Catalog
View Full Details
Brand : Delphin
Series : Expert Vibro
Model : Expert Vibro 4
Analog Input (mV, mA) :4
Analog Input (RTD) : 0
Analog Output : 4
Digital Input : 4
Digital Output : 8
Digital IN/OUT : 0
AI Resolution : 24 bit
AO Resolution : 16 bit
Sampling Rate : 50kHz
Ethernet : Yes
WLAN/WWAN : Optional
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM3 : RS-232
Serial COM4 : 0
USB Device : Type-B (2.0)
USB Host : Type-A (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 20 W
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave , CAN 2.0
COM 3 : ASCII / SCPI / Modbus RTU
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal :2..14 GB (approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

Expert Vibro 8

Catalog
View Full Details
Brand : Delphin
Series : Expert Vibro
Model : Expert Vibro 8
Analog Input (mV, mA) : 8
Analog Input (RTD) : 0
Analog Output : 4
Digital Input : 4
Digital Output : 8
Digital IN/OUT : 0
AI Resolution : 24 bit
AO Resolution : 16 bit
Sampling Rate : 50kHz
Ethernet : Yes
WLAN/WWAN : Optional
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM3 : RS-232
Serial COM4 : 0
USB Device : Type-B (2.0)
USB Host : Type-A (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 20 W
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave , CAN 2.0
COM 3 : ASCII / SCPI / Modbus RTU
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal :2..14 GB (approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

Expert Vibro 12

Catalog
View Full Details
Brand : Delphin
Series : Expert Vibro
Model : Expert Vibro 12
Analog Input (mV, mA) :12
Analog Input (RTD) : 0
Analog Output : 4
Digital Input : 4
Digital Output : 8
Digital IN/OUT : 0
AI Resolution : 24 bit
AO Resolution : 16 bit
Sampling Rate : 50kHz
Ethernet : Yes
WLAN/WWAN : Optional
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM3 : RS-232
Serial COM4 : 0
USB Device : Type-B (2.0)
USB Host : Type-A (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 20 W
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave , CAN 2.0
COM 3 : ASCII / SCPI / Modbus RTU
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal :2..14 GB (approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

Expert Vibro 16

Catalog
View Full Details
Brand : Delphin
Series : Expert Vibro
Model : Expert Vibro 16
Analog Input (mV, mA) :16
Analog Input (RTD) : 0
Analog Output : 4
Digital Input : 4
Digital Output : 8
Digital IN/OUT : 0
AI Resolution : 24 bit
AO Resolution : 16 bit
Sampling Rate : 50kHz
Ethernet : Yes
WLAN/WWAN : Optional
Serial COM1 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM2 : RS485 / CAN / PROFIBUS DPV1 slave
Serial COM3 : RS-232
Serial COM4 : 0
USB Device : Type-B (2.0)
USB Host : Type-A (2.0)
Supply voltage : 12 .. 24 VDC / ±10 %
Power input : max. 20 W
Protocol
COM1 and COM 2 :ASCII / Modbus RTU master & slave / PROFIBUS DPV1 slave , CAN 2.0
COM 3 : ASCII / SCPI / Modbus RTU
TCP/IP :Modbus TCP server & client, OPC UA client, OPC UA server

Data Storage
Internal :2..14 GB (approx. 30 million measurement values per GB)
External : USB, NFS, CIFS, (S)FTP

Loggito USB 8 AI-RTD

Catalog
View Full Details
Brand : Delphin
Series : Loggito
Model : Loggito USB 8 AI-RTD
Analog Input (mV, mA, TC) : 8
Analog Input (RTD) : 4
Analog Output : 0
Digital Input : 0
Sensor bus SDI12 : 0
Digital Output : 0
Digital IN/OUT : 2
Resolution :24 bit Sigma-Delta
Sampling Rate : 500Hz
Ethernet : 0
WLAN : 0
Serial COM1 : 0
Serial COM2 : 0
Serial COM3 : 0
Serial COM4 : 0
USB Device : Type-mini B (2.0)
USB Host : 0
Supply voltage : 5 VDC(via mini USB connector)
Power input : max. 2.5 watts
