How does it work?

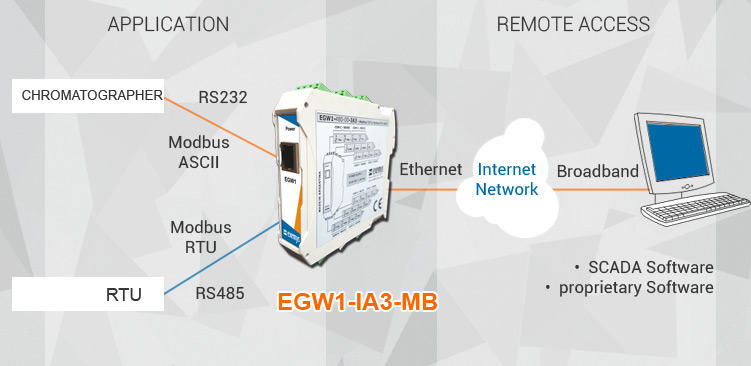

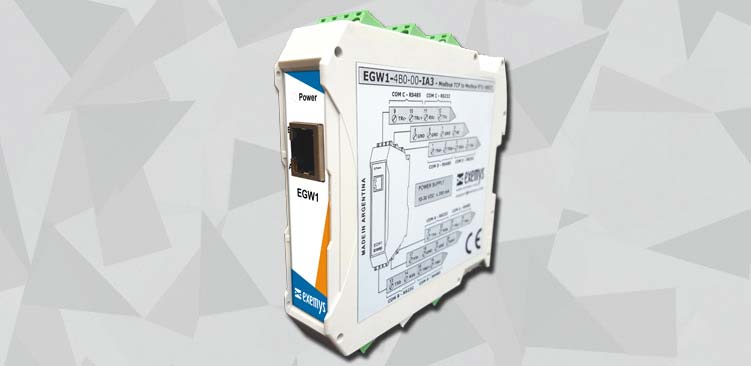

The EGW1-MB module is a device used to connect any industrial equipment with MODBUS RS232 / 485/422 communication, to An Ethernet TCP / IP network.
It also has its own digital inputs and outputs. This Characteristic makes it different from similar devices, since it provides An integrated solution for control applications without the need to Additional modules..


  •  Modbus TCP, ASCII, RTU Protocols
  •  Modbus Master or Slave
  •  Up to 16 Connections Modbus TCP Simultaneously
  •  Selection of RS232/485/422 by software, up to 115 Kbps
  •  Digital I/O’s controlled by Modbus
  •  Install and set up via serial, Telnet or a Web Browser
  •  Software for searching Exemys devices on the network
  •  DIN Rail mounting, temperature-resistant Industrial Case
  •  Industrial terminal blocks
  •  Wide range power supply 10 to 30 Vdc


EGW1-4B0-00-IA3-MB 4 RS232/RS485 Ports configurables
EGW1-1C0-00-IA3-MB-IS 1 RS232/RS485 port cofigurable isolated / RS422 isolated
EGW1-1C0-10C-IA3-MB-IS 1 RS232/RS485 port cofigurable isolated / RS422 isolated + 10 Digital I / O configurables
