Displacement Sensors | Overview of LVDT Displacement Sensor



Solartron Metrology is a world leader in the innovation and manufacture of precision digital and analogue displacement sensors and associated instrumentation.



The culmination of Solartron’s 50+ years of experience manufacturing LVDT displacement sensors is a deep understanding of the need to match the performance of the sensor precisely to the demands of the application and environment. The cost advantage of matching the best sensor to the requirement is clear, this can only be done with a company that has both an extensive range of sensors, accessories and electronics in conjunction with a philosophy of designing “custom products” to specific requirements.



Solartron precision measurement solutions perform vital tasks in a range of diverse industries including aerospace, pharmaceuticals, medical., power generation, oil and gas, paper making, civil engineering, tunnelling, semiconductor manufacture, mining, glass making, water treatment, chemical processing, steel production.



Displacement Sensors | LVDT S Series      Technical Spec Ordering Guide AC                                                                                                                        Ordering Guide AC High Temperature                                                                                                  Ordering Guide DC                                                                                                                        Ordering Guide Digital Orbit                                                                                                            Ordering Guide 4-20mA


Displacement Sensor S-Series
S Series
  •  Linearity better than 0.2%
  •  19 mm diameter stainless steel body
  •  IP65 and IP67 options
  •  Excellent measuring range to body length ratio
  •  Integral electronics: 4-20mA or voltage output
  •  LVDT output

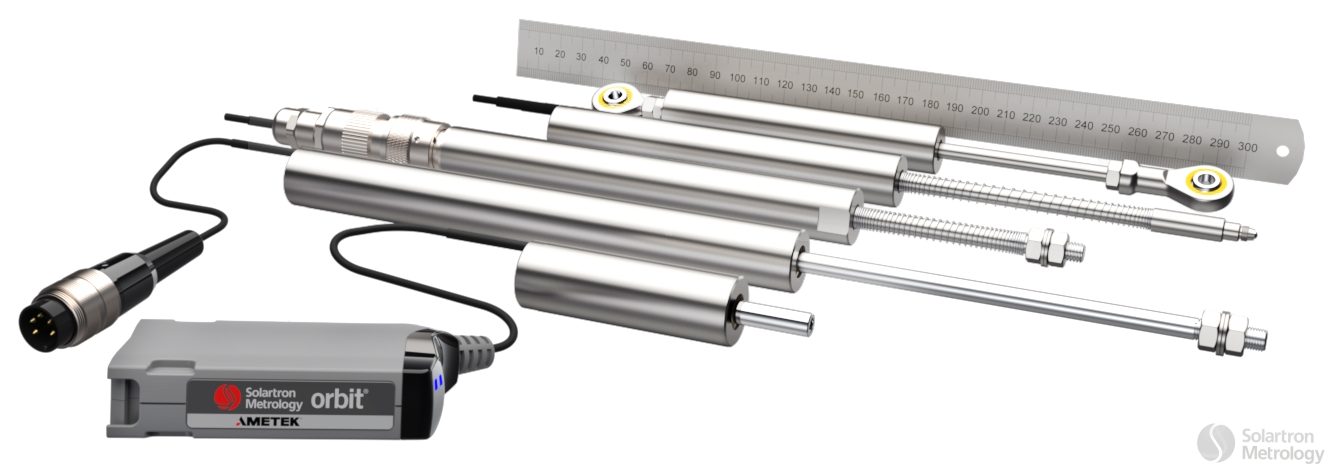

Displacement sensor s-series range



Displacement Sensors | Optimum Series                                Technical Spec Ordering Guide


Displacement Sensors Optimum Series
Optimum Series
  •  Linearity error better than 0.25% FSO
  •  Small body diameter 9.52 mm
  •  IP65 sealing
  •  Excellent measurement range to body length ratio
  •  Large radial bore clearance
  •  Rugged construction
  •  LVDT output

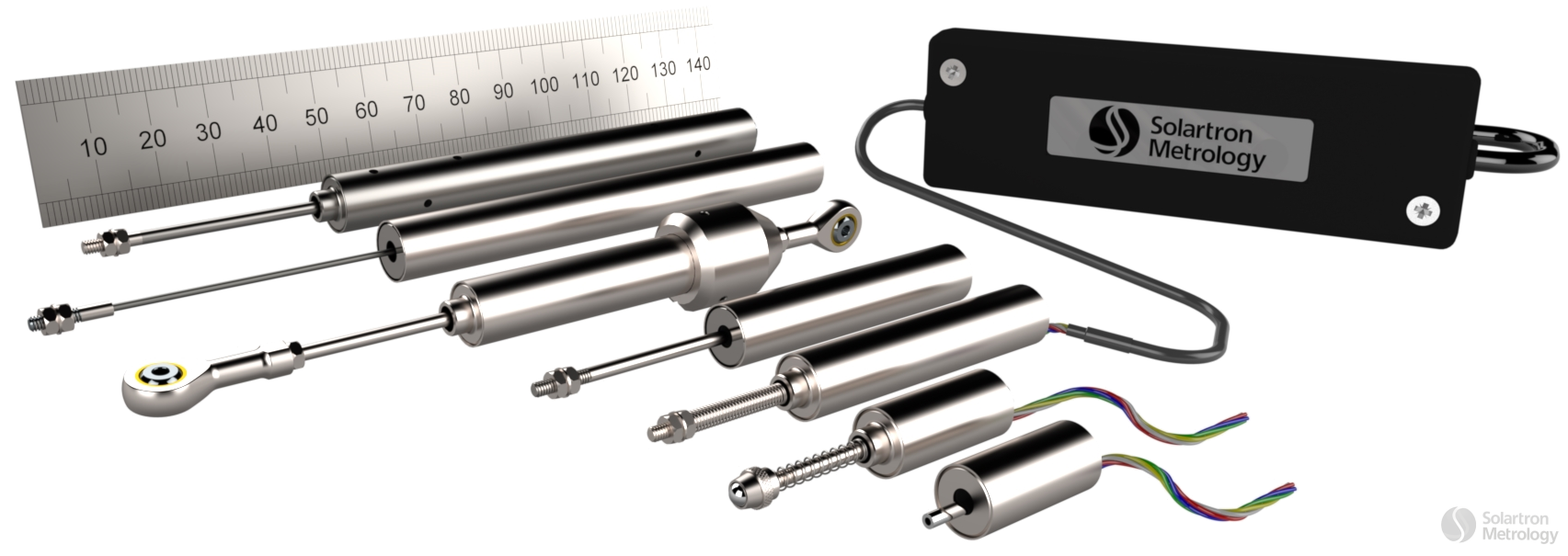

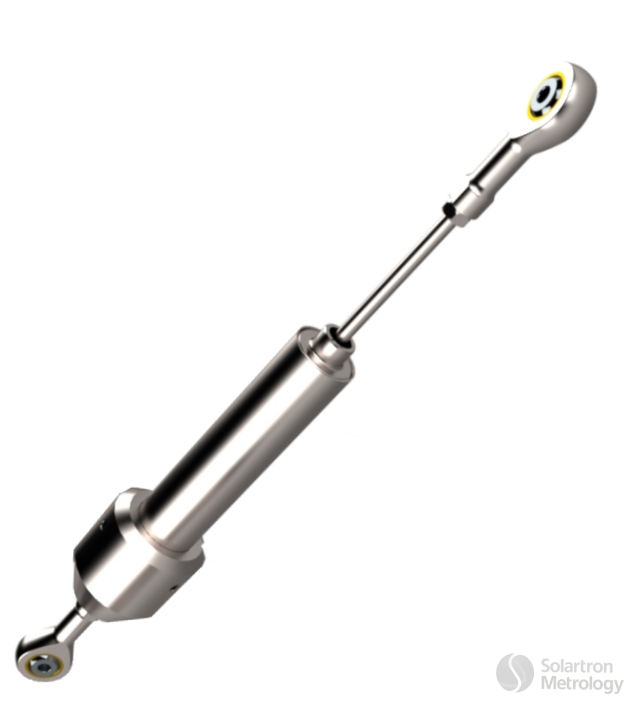

Displacement Sensors Optimum Series



Displacement Sensors | Miniature Displacement                                            Technical Spec

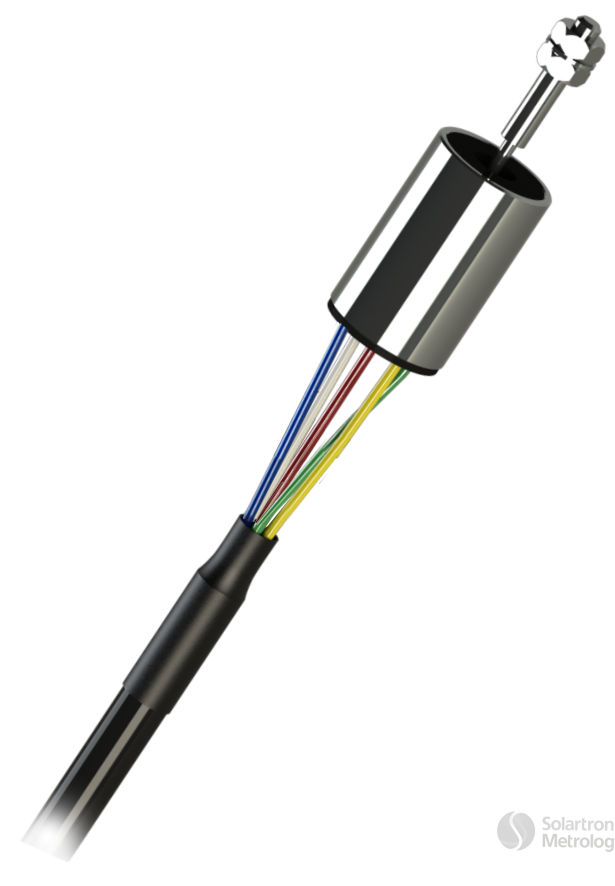

Miniature Displacement SM-Series Sensor
SM Series
  •  Short body length
  •  Rugged Construction
  •  Good Performance

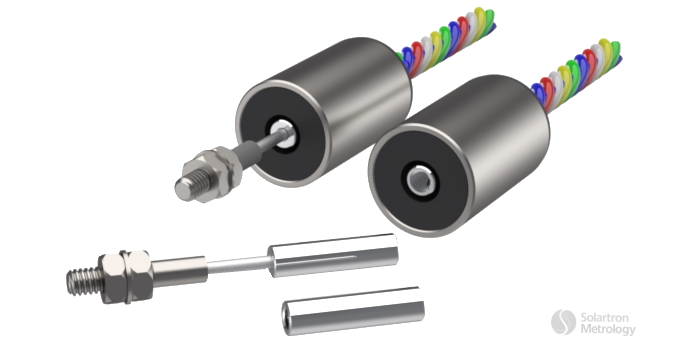

Miniature Displacement SM Series Sensors



Displacement Sensors | Miniature Displacement                                            Technical Spec

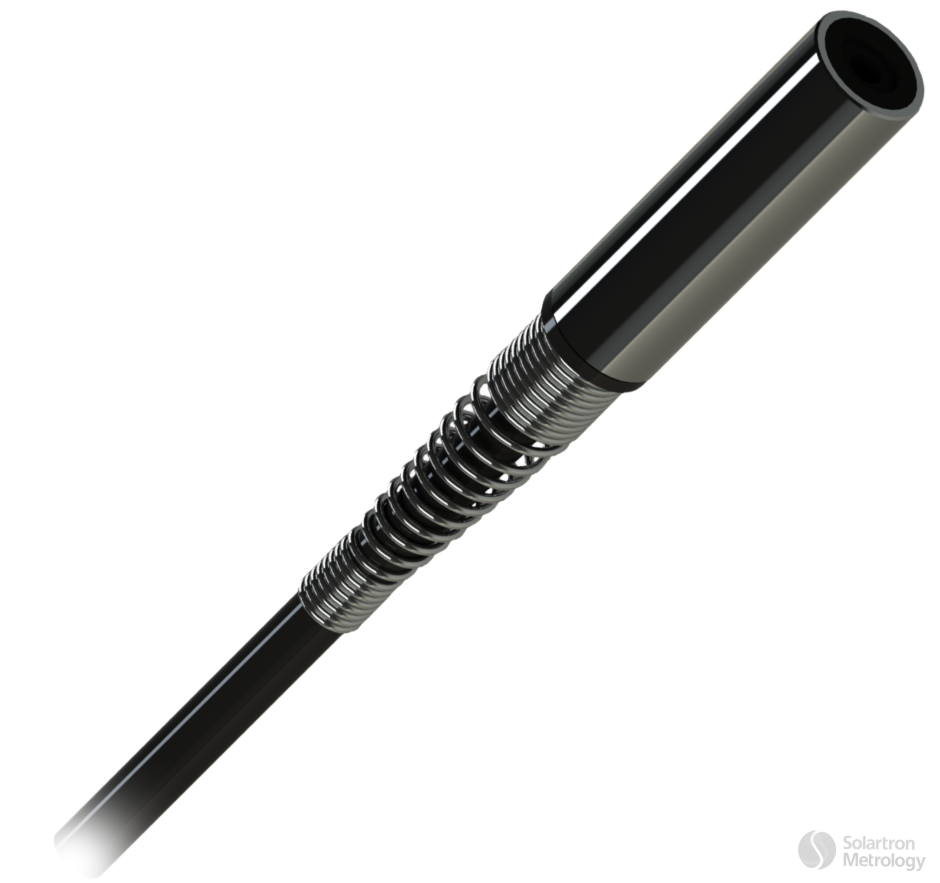

Miniature Displacement Sensor MD SerieS
MD Series
  •  8 mm diameter body
  •  Rugged Construction
  •  Light weight core
  •  Screened Cable

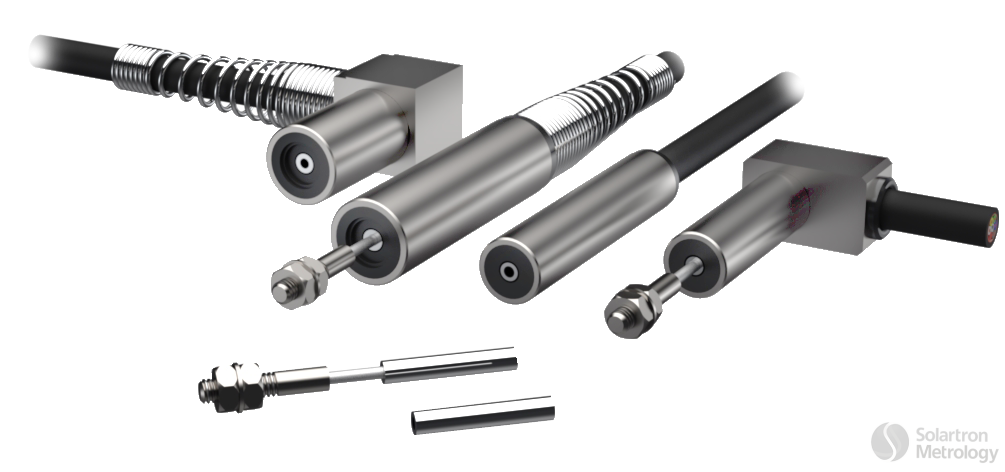

Miniature Displacement Sensor MD Series



Displacement Sensors | Miniature Displacement                                            Technical Spec

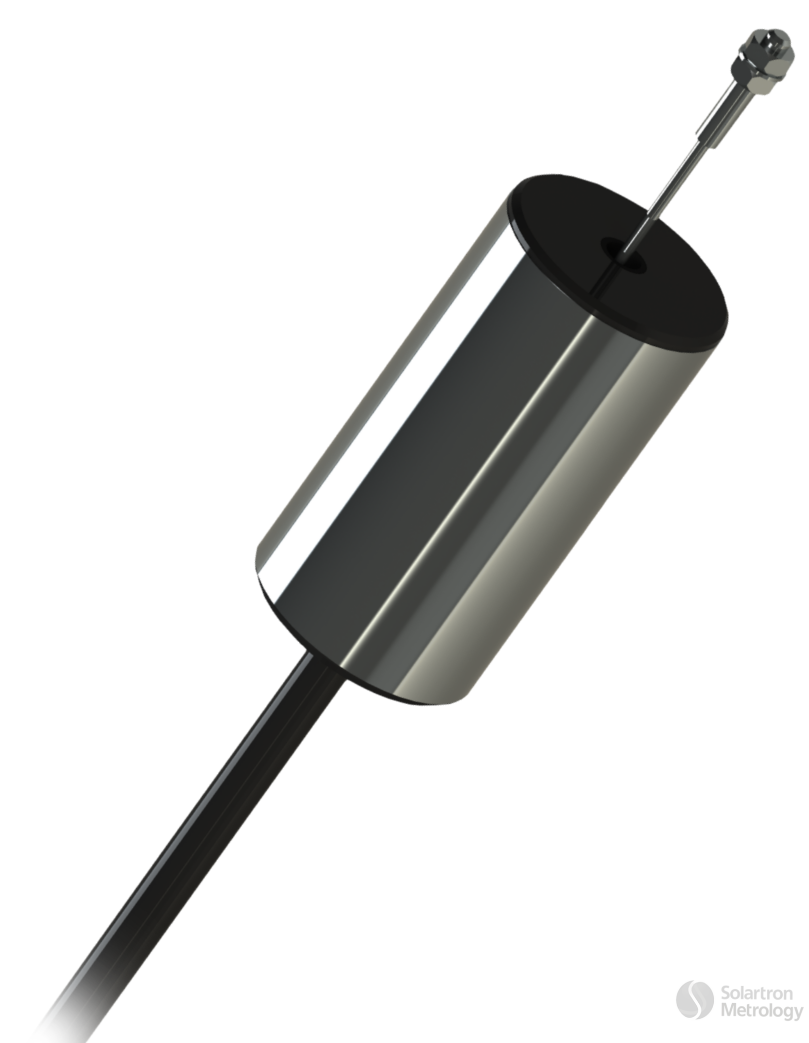

Miniature Displacement Sensor DF SerieS
DF Series
  •  Measurement range up to 10 mm
  •  DC Voltage Output
  •  Low Power
  •  Good Performance

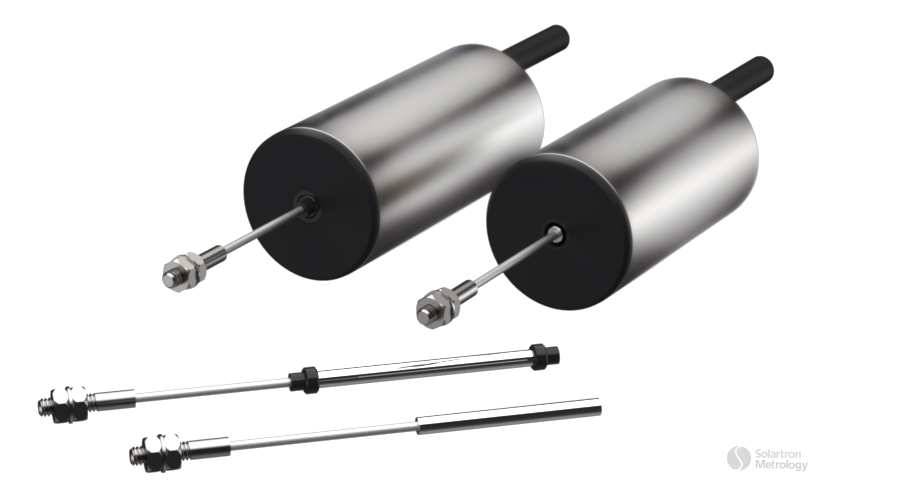

Miniature Displacement Sensor DF Series
