Inductive displacement sensors monitor the clamping position

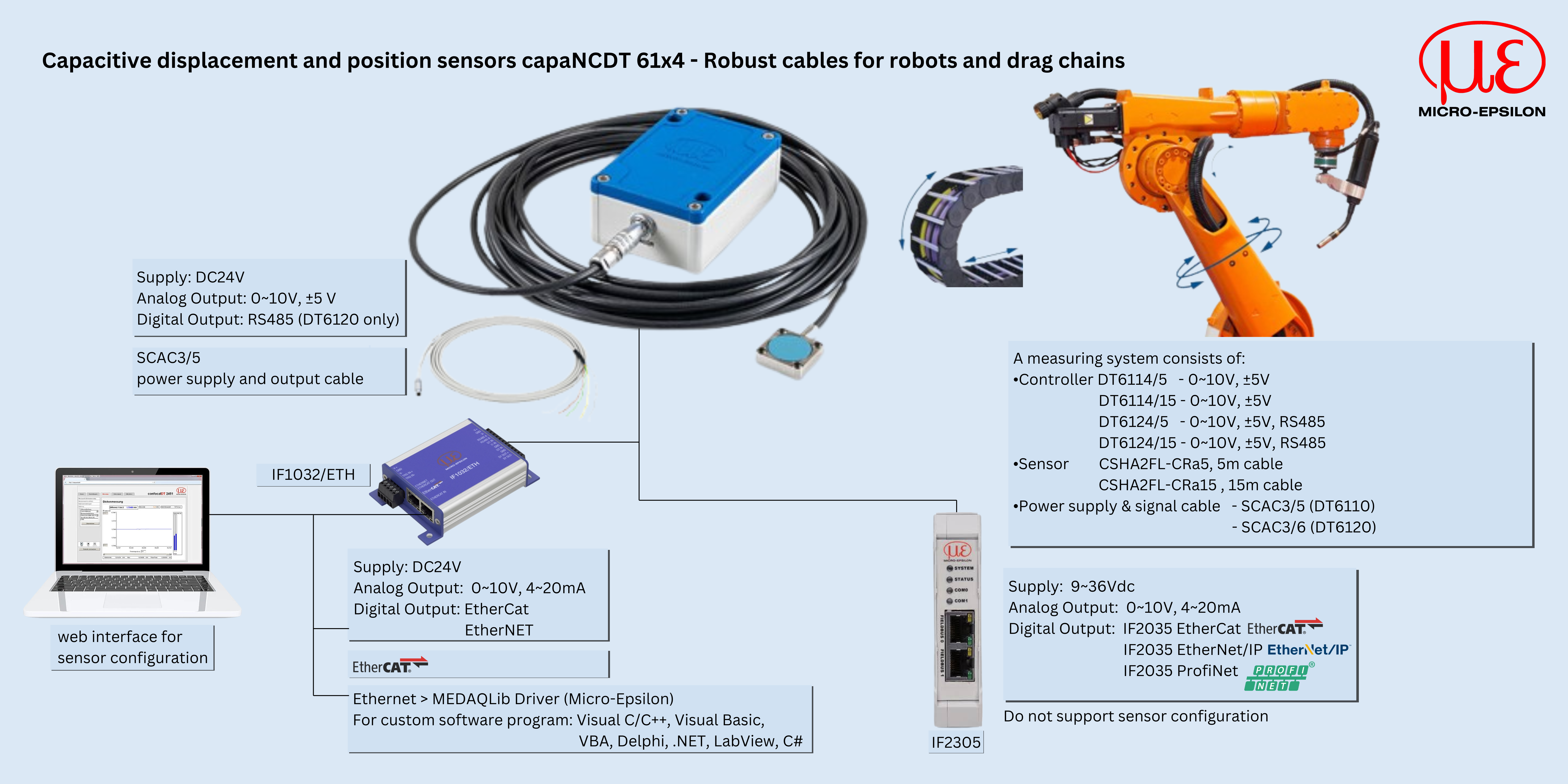

The capaNCDT DT61x4 is an active, capacitive system for displacement, distance and position measurements. Consisting of a sensor with integrated preamplifier, a robust cable and a compact controller, the measuring system is immediately ready for use without any on-site calibration. The measuring system is available with a cable length up to 15 m and is ideal for automation purposes. The capaNCDT 61x4 is particularly suitable for automated robot manufacturing and measurement tasks with a drag chain. Moreover, it is used in machine building and semiconductor production. For optimum signal quality, the desired cable length is already factory-calibrated.


 Characteristics

  •  Measurement ranges (mm): 0.05 | 0.2 | 0.5 | 0.8 | 1 | 2 | 3 | 5 | 10
  •  Linearity: max. 0.025 µm
  •  Resolution: max. 0.005 µm
  •  Analog output (voltage)
  •  Digital output RS485 (controller DT6120)
  •  Miniaturized controller
  •  Supply voltage 24 VDC/55 mA (9 - 36 V)
  •  Ideally suited for measurements requiring high precision and stability


Compact and robust flat sensor

The active flat sensor is designed with a stainless steel housing and a ceramic sensor element. The cable integrated on the sensor side provides considerable advantages: it significantly reduces the required installation space while increasing the mechanical stability of the sensor.


Robust cables for robots and drag chains

Offering high flexibility and lengths up to 15 m, the robust capaNCDT 61x4 cables are ideally suited to measurement tasks on robots and in automation technology.
