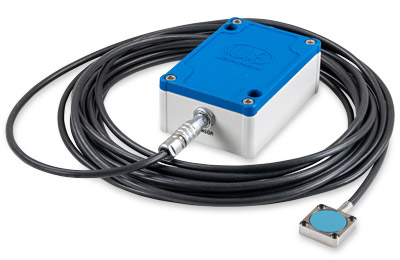

Active capacitive measuring system with analog output – capaNCDT 6114

Characteristics

Measuring ranges (mm): 2
Linearity max. 2 µm
Resolution max. 0.3 µm
Analog output 0..10 V (short circuit proof), optional: ±5 V, 10..0 V

The capacitive capaNCDT 6114 measuring system offers high application versatility due to its long signal transmission path. With a robust and up to 15 m long cable, the system is ideally suited to drag chains and robots. Even with movements of the sensor cable, precise measurement results are achieved with the highest signal stability. The capaNCDT 6114 provides an analog output of 0 ... 10V.

Active capacitive measuring system with RS485 interface – capaNCDT 6124

Characteristics

Measuring ranges (mm): 2
Linearity max. 2 µm
Resolution max. 0.3 µm
RS485 interface

The capacitive capaNCDT 6124 measuring system offers high application versatility due to its long signal transmission path. With a robust and up to 15 m long cable, the system is ideally suited to drag chains and robots. Even with movements of the sensor cable, precise measurement results are achieved with the highest signal stability. The capaNCDT 6124 measuring system provides an analog output via a digital RS485 interface.
