Inductive displacement sensors monitor the clamping position Product Technology

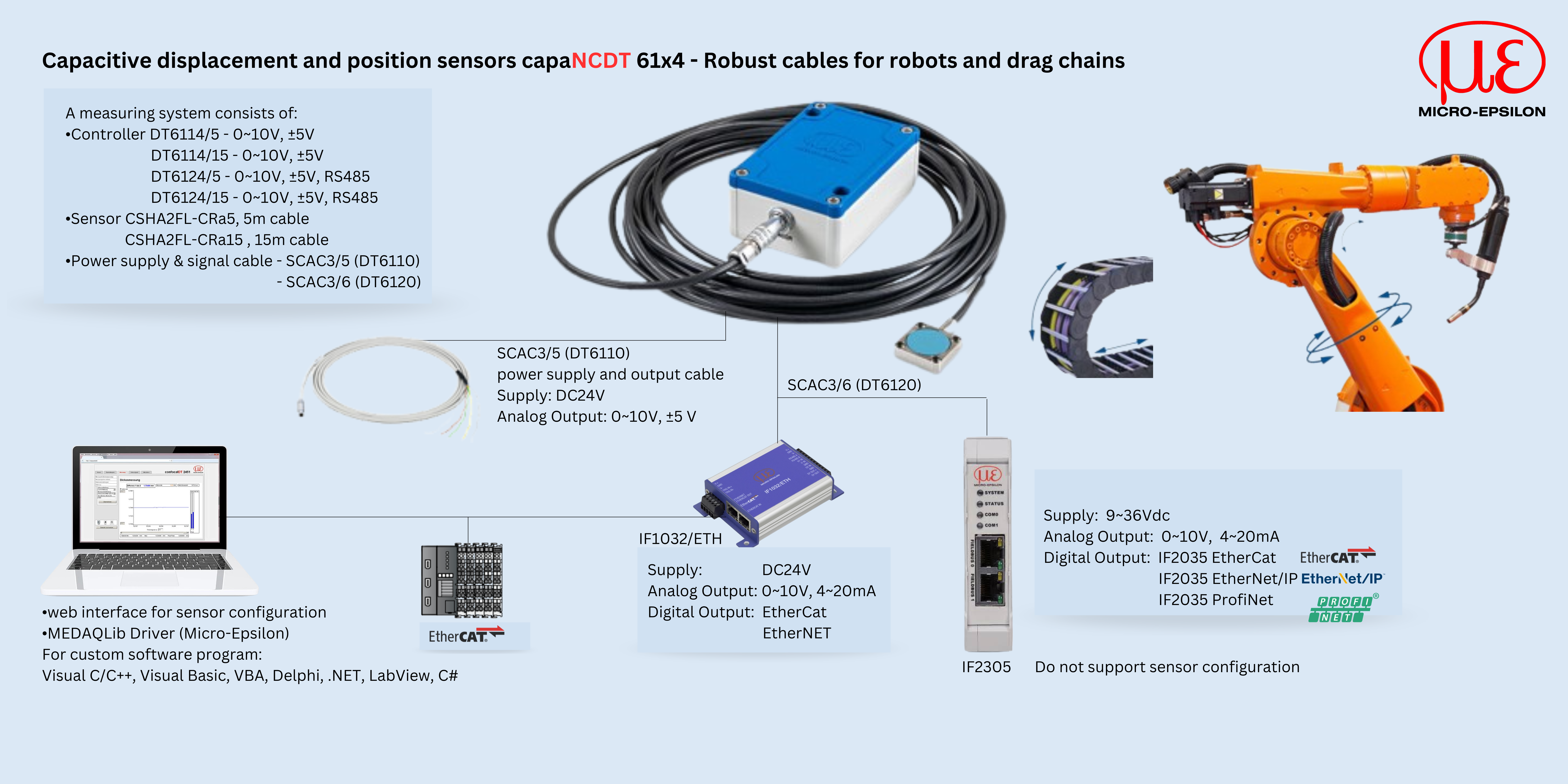

The capaNCDT DT61x4 is an active, capacitive system for displacement, distance and position measurements. Consisting of a sensor with integrated preamplifier, a robust cable and a compact controller, the measuring system is immediately ready for use without any on-site calibration. The measuring system is available with a cable length up to 15 m and is ideal for automation purposes. The capaNCDT 61x4 is particularly suitable for automated robot manufacturing and measurement tasks with a drag chain. Moreover, it is used in machine building and semiconductor production. For optimum signal quality, the desired cable length is already factory-calibrated.

Catalog capaNCDT sensors

Data sheet capaNCDT 61x4

Characteristics

Measurement ranges (mm): 0.05 | 0.2 | 0.5 | 0.8 | 1 | 2 | 3 | 5 | 10
Linearity: max. 0.025 µm
Resolution: max. 0.005 µm
Analog output (voltage)
Digital output RS485 (controller DT6120)
Miniaturized controller
Supply voltage 24 VDC/55 mA (9 - 36 V)
Ideally suited for measurements requiring high precision and stability

Compact and robust flat sensor

The active flat sensor is designed with a stainless steel housing and a ceramic sensor element. The cable integrated on the sensor side provides considerable advantages: it significantly reduces the required installation space while increasing the mechanical stability of the sensor.

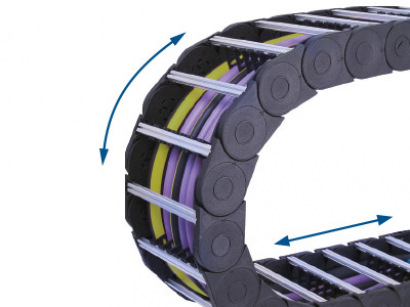

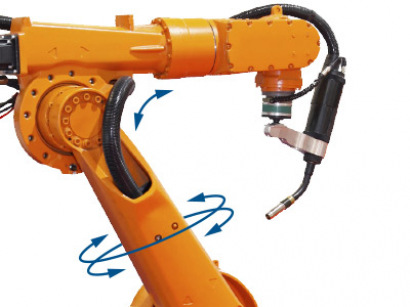

Robust cables for robots and drag chains

Offering high flexibility and lengths up to 15 m, the robust capaNCDT 61x4 cables are ideally suited to measurement tasks on robots and in automation technology.

Active capacitive measuring system with analog output – capaNCDT 6114

Characteristics

Measuring ranges (mm): 2
Linearity max. 2 µm
Resolution max. 0.3 µm
Analog output 0..10 V (short circuit proof), optional: ±5 V, 10..0 V

The capacitive capaNCDT 6114 measuring system offers high application versatility due to its long signal transmission path. With a robust and up to 15 m long cable, the system is ideally suited to drag chains and robots. Even with movements of the sensor cable, precise measurement results are achieved with the highest signal stability. The capaNCDT 6114 provides an analog output of 0 ... 10V.

Active capacitive measuring system with RS485 interface – capaNCDT 6124

Characteristics

Measuring ranges (mm): 2
Linearity max. 2 µm
Resolution max. 0.3 µm
RS485 interface

The capacitive capaNCDT 6124 measuring system offers high application versatility due to its long signal transmission path. With a robust and up to 15 m long cable, the system is ideally suited to drag chains and robots. Even with movements of the sensor cable, precise measurement results are achieved with the highest signal stability. The capaNCDT 6124 measuring system provides an analog output via a digital RS485 interface.
