Next generation confocal chromatic sensor system                                                                 Product Technology

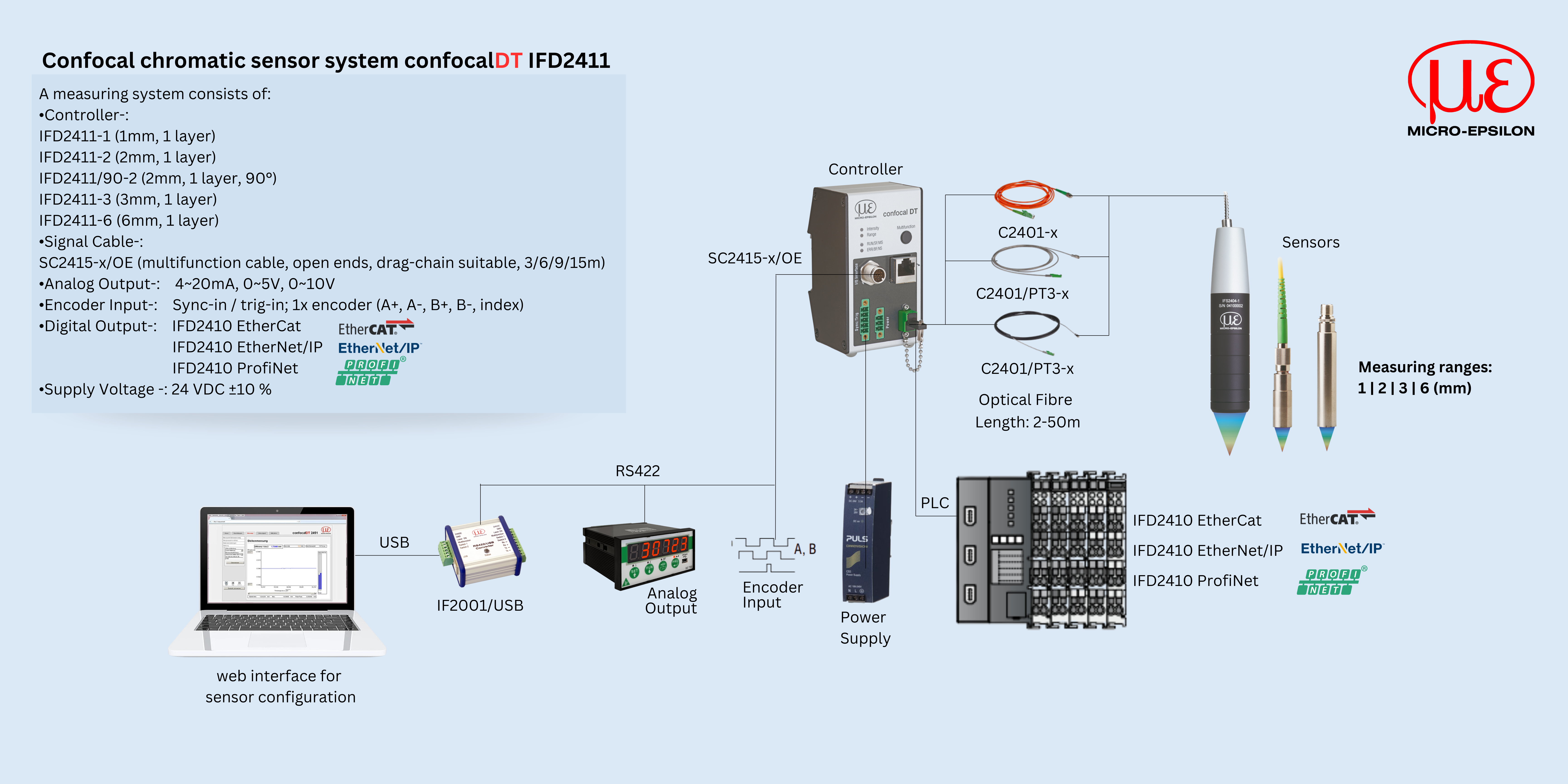

The compact confocal IFD2411 measuring system is a factory-calibrated measuring system for industrial series applications. As well as displacement and distance measurements, the system enables even thickness measurements of transparent materials. The IFD2411 confocal chromatic measuring system is a complete channel which contains a controller and an adapted sensor with measuring ranges of 1 mm, 2 mm, 3 mm and 6 mm. This measuring system is ideal for series applications.



 Characteristics

  •  Measuring ranges (mm): 1 | 2 | 3 | 6
  •  Adjustable measuring rate up to 8 kHz
  •  Resolution from 12 nm
  •  Linearity from 0.5 µm
  •  For precise distance and thickness measurements
  •  Most compact confocal controller on the market
  •  Robust IP40 aluminum housing
  •  Direct PLC connection due to Industrial Ethernet


Most compact design with highest performance

Thanks to its extremely compact design and its robust IP40 aluminum housing, the controller of the IFD2411 measuring system can be integrated in almost all existing plants and systems. In addition, integrated DIN rail mounting enables fast installation in the control cabinet even when the installation space is limited. The housing of the IFD2411 controller is up to 300% smaller than of comparable controllers for unsurpassed lightness of only 335 grams.



Now with integrated Industrial Ethernet interface


The confocal controller is now even smarter - thanks to the integrated Industrial Ethernet interface, you integrate the full sensor performance directly into your PLC. You benefit from real-time data without time delay and with reduced installation effort. In Ethernet mode, the IFD2411 can be set via the intuitive web interface. Industrial Ethernet ensures that the settings are automatically applied to the PLC environment. This eliminates time-consuming setting efforts in the programming environment.


Optimized for industrial series applications

Its compact design makes the IFD2411 ideal for OEM applications.

Ease of use via web interface

Due to a user-friendly web interface, the entire configuration process is carried out without using any additional software. The web interface can be accessed via Ethernet and provides set up and configuration options. Materials are stored in an expandable materials database.




Applications
