Recommended Substitute
|
|
Model in use |
Comments |
|
GLC150-SC41-XY32KF-24V |
Logitouch Series
STN color LCD
|
|
Recommended Substitutes |
Comments |
Details |
|
AGP3300-T1-D24-FN1M |
GP3000 Series
panel cut-out size difference.
Attachment (CA4-ATM5-01) available
|
 |
|
|
|
[ Migration ] Replacing LT Type B/B+/C with GP-3300T/L
Specification Comparison
|
|
LT Type B/B+/C |
GP-3300T/L |
|
|
Panel cut-out size difference.
Attachment (CA4-ATM5-01) available |
|
Model No. |
Type B+(Color) : GLC150-SC41-XY32KF-24V
Type B(Monochrome) : GLC150-BG41-FLEX-24V
Type B+(Monochrome) : GLC150-BG41-XY32KF-24V
Type C(Monochrome) : GLC150-BG41-RSFL-24V |
Color : AGP3300-T1-D24-FN1M
Monochrome : AGP3300-L1-D24-FN1M |
|
Display Type（Color） |
STN Color LCD |
UP!
TFT Color LCD |
|
Display Type（Monochrome） |
Monochrome blue mode LCD |
UP!
Monochrome LCD |
|
Display Colors（Color） |
64 colors |
UP!
65,536 colors (without blink)
16,384 colors (with blink) |
|
Display Colors（Monochrome） |
Monochrome blue mode, 8 levels |
Monochrome, 16 levels |
|
Display Resolution |
QVGA(320×240 pixels) |
|
Panel Cutout Dimensions (mm) |
W191.5×H141.5mm |
W156×H123.5mm*1 |
|
External Dimensions (mm) |
W207×H157×D75.8mm |
W167.5×H135×D78mm |
|
Touch Panel Type |
Resistive film (Matrix) |
NEW!
Resistive film (Analog)*1 |
|
Memory (Application) |
1MB |
UP!
6MB |
|
Memory (SRAM) |
96KB |
UP!
320KB |
|
Control Memory (Program) |
128KB |
UP!
132KB |
|
Control Memory (SRAM) |
32KB |
UP!
64KB |
|
Serial I/F (COM1) |
Type B :
-
Type B+ :
-
Type C :
D-Sub25pin (plug)
RS-232C/422 |
D-Sub9pin (plug)
RS-232C/422/485 |
|
Serial I/F (COM2) |
- |
D-Sub9pin (socket)
RS-422/485 |
|
Ethernet I/F |
- |
NEW!
10BASE-T/100BASE-TX |
|
FLEX NETWORK I/F |
✔ |
|
DIO I/F (COM1) |
Type B :
-
Type B+ :
DIO 32 points
Input : Sink/Source 16 points
Output : Sink 16 points
Type C :
- |
- |
|
CF Card I/F |
- |
NEW!
✔ *1 |
|
USB Host I/F |
- |
NEW!
✔(Type A) *1 |
|
Printer I/F |
- |
NEW!
USB *1 |
|
Alarm Output |
✔ |
- *1 |
*1 There are some restrictions regarding replacement with recommended substitutes.
*2 When LT Type B+ is replaced with GP-3300T/L, the I/O units that were connected to LT Type B+ via the DIO interface before replacement are connected via a FLEX NETWORK interface. A FLEX NETWORK unit is required.
When the display unit type is changed to AGP-3300T/L-FN1M, the I/O setting at the time of using LT Type B/B+/C is all cleared.
Check the setting of the LT Type B/B+/C project file (*.prw) and allocate I/O to the GP-3300T/L project file again.
|
|
◆ FLEX NETWORK Interface Specifications
|
|
LT Type B/B+/C |
GP-3300T/L |
|
Communication Configuration |
1:N |
|
Connection Method |
Multi-Drop Connection |
|
Max. Distance |
200m/channel at 6Mbps
100m/channel at 12Mbps |
|
Communication Method |
During cyclic period, distributed transmission, Half-duplex |
|
Communication Speed |
6Mbps/12Mbps (selectable) |
|
Communication I/F |
Differential Method, pulse transfer resistance |
|
Error Check |
Format, bit, or CRC-12 verification |
|
Max. Number of Nodes |
63 (max)
1008 I/O points
(depending on type of units used) |
Bit variable input : 512 points *1
Bit variable output : 512 points *1
Integer variable input : 128 points *2
Integer variable output : 128 points *2
(depending on type of units used) |
*1 When using GP-Pro EX under Ver.2.50, Bit variable enables to input/output 256 points.
*2 When using GP-Pro EX under Ver.2.50, Integer variable enables to input/output 64 points.
|
|
|
|
|
Recommended Substitute
|
|
Model in use |
Comments |
|
GLC150-SC41-XY32SK-24V |
Logitouch Series
STN color LCD
|
|
Recommended Substitutes |
Comments |
Details |
|
PFXLM4301TADDK |
LT4000M Series
modular type(22mm circular hole)
panel cut-out size difference
|
|
|
LT3300-T1-D24-K |
LT3000 Series
TFT color LCD
panel cut-out size difference.
attachment (CA4-ATM5-01) available |
|
|
|
|

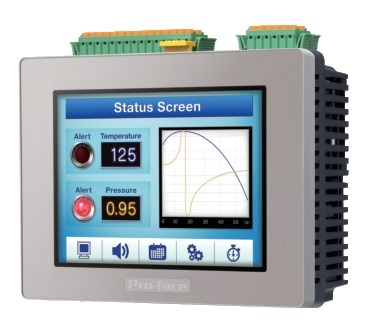

[ Migration ] Replacing LT Type A (color) with LT-4301TM (Modular Type DIO)
Specification Comparison
|
|
LT Type A (Color) |
LT-4301TM
(Modular Type DIO) |
|
|
|
|
Model No. |
GLC150-SC41-XY32SK-24V |
PFXLM4301TADDK |
|
Display Type |
STN Color LCD |
UP!
TFT Color LCD |
|
Display Colors |
64 colors |
UP!
65,536 colors |
|
Display Resolution |
QVGA(320×240 pixels) |
|
Panel Cutout Dimensions (mm) |
W191.5×H141.5mm |
NEW!
φ22mm*1 |
|
External Dimensions (mm) |
W207×H157×D75.8mm |
W63×H129.4×D76.22mm |
|
Touch Panel Type |
Resistive film (Matrix) |
NEW!
Resistive film (Analog)*1 |
|
Memory (Application) |
1MB |
UP!
16MB |
|
Memory (SRAM) |
96KB |
UP!
128KB |
|
Control Memory (Program) |
128KB |
UP!
132KB |
|
Control Memory (SRAM) |
32KB |
UP!
128KB |
|
Serial I/F (COM1) |
- |
NEW!
Serial I/F
(RS-232C/485) *1 |
|
Ethernet I/F |
- |
NEW!
10BASE-T/100BASE-TX |
|
DIO I/F Sink Type |
DIO 32 points
Input : Sink/Source 16 points
Output：Sink 16 points |
DIO 32 points
Input : Sink/Source 20 points
Output：Source 12 points |
|
USB Type A |
- |
NEW!
✔ *1 |
|
Tool Connector I/F |
✔ |
- |
|
Printer I/F |
- |
NEW!
USB *1 |
|
Alarm Output |
✔ |
- *1 |
*1 There are some restrictions regarding replacement with recommended substitutes.
◆ DIO Interface (Input) Specifications
|
|
LT Type A (Color) |
LT-4301TM
(Modular Type DIO) |
|
Rated Voltage |
DC24V |
|
Max. Allowable Voltage |
DC26.4V |
DC30.0V |
|
Input Type |
Sink/Source Input |
|
Rated Current |
5mA (24V) |
I0 to I1 : 7.83mA (DC24V)
I2 to I19 : 5.00mA (DC24V) |
|
Input Resistance |
4.7kΩ |
I0 to I1 : 3.2kΩ (DC24V)
I2 to I19 : 4.9kΩ (DC24V) |
|
Standard Operating Range |
ON voltage : DC21V more
OFF voltage : DC7V less |
ON voltage : DC15V more
OFF voltage : DC5V less |
|
Input Delay |
10ms less |
OFF→ON
1.5μs
ON→OFF
I0 to I1 : 1.9μs
I2 to I19 : 0.5ms to 20ms |
|
Common |
1 |
I0 to I1 : 1
I2 to I19 : 3 |
|
Common Structure |
16 points/1 common |
I0 to I1 : 2 points/1 common
I2 to I19 : 18 points/3 common |
|
External Connection |
40-pin connector (also used for output) |
Spring Clamp Terminal Block |
|
Input Points |
16 points |
20 points |
|
Input Signal Indication |
LED lights up for each point ON (logical side) |
No LED display |
|
Isolation Method |
Photo coupler isolation |
|
External Power Supply |
For Signal:DC24V |
◆ DIO Interface (Output) Specifications
|
|
LT Type A (Color) |
LT-4301TM
(Modular Type DIO) |
|
Rated Voltage |
DC24V |
|
Rated Voltage Range |
DC24V±10% |
DC19.2 to 28.8V |
|
Output Type |
Sink Output |
|
Max. Load Current |
0.2A/1 points, 1.6A/1 common |
0.3A/1 points |
|
Output Voltage Drop |
DC2.5V less |
DC1.5V |
|
Output Delay |
2ms less |
OFF→ON
Q0 to Q1 : 30μs
Q2 to Q11 : 50μs
ON→OFF
Q0 to Q1 : 0.3ms
Q2 to Q11 : 1.0ms |
|
Leakage Current When OFF |
0.4mA less |
|
Output Classification |
Transistor Output |
Q0 to Q1 : MOS-FET
Q2 to Q11 : Transistor Output |
|
Common |
1 |
Q0 to Q1 : 1
Q2 to Q11 : 2 |
|
Common Structure |
16 points/1 common |
Q0 to Q1 : 2 points/1 common
Q2 to Q11 : 10 points/2 common |
|
External Connection |
40-pin connector (also used for input) |
Spring Clamp Terminal Block |
|
Output Protection Classification |
Output is unprotected |
|
Internal Fuse |
3.5A, 125V Chip Fuse
(non-replaceable) |
2A, 125V Chip Fuse
(non-replaceable) |
|
Surge Suppression Circuit |
Diode |
Mov (Metal Oxide Varistor) |
|
Output Points |
16 points |
Q0 to Q1 : 2 points
Q2 to Q11 : 10 points |
|
Output Signal Indication |
LED lights up for each point ON (logical side) |
No LED display |
|
Isolation Method |
Photo coupler isolation |
|
External Power Supply |
For Signal:DC24V |
|
|
|
[ Migration ] Replacing LT Type H with LT-3300T/LT-3301L
Specification Comparison
|
|
LT Type H |
LT-3300T/LT-3301L |
|
|
Panel cut-out size difference.
Attachment (CA4-ATM5-01) available |
|
Model No.*2
|
Color : GLC150-SC41-AD*K-24V
Monochrome(Sink Type) :
GLC150-BG41-AD*K-24V
Monochrome(Source Type) :
GLC150-BG41-AD*C-24V
|
Color : LT3300-T1-D24-K
Monochrome(Sink Type) :
LT3301-L1-D24-K
Monochrome(Source Type) :
LT3301-L1-D24-C
|
|
Display Type (Color） |
STN Color LCD |
UP!
TFT Color LCD |
|
Display Type (Monochrome） |
Monochrome blue mode LCD |
UP!
Monochrome LCD |
|
Display Colors (Color） |
64 colors |
UP!
65,536 colors (without blink)
16,384 colors (with blink) |
|
Display Colors (Monochrome） |
Monochrome blue mode, 8 levels |
Monochrome, 16 levels |
|
Display Resolution |
QVGA(320×240 pixels) |
|
Panel Cutout Dimensions (mm) |
W191.5×H141.5mm |
W156×H123.5mm*1 |
|
External Dimensions (mm) |
W207×H157×D75.8mm |
W167.5×H135×D78mm |
|
Touch Panel Type |
Resistive film (Matrix) |
NEW!
Resistive film (Analog)*1 |
|
Memory (Application) |
1MB |
UP!
6MB |
|
Memory (SRAM) |
96KB |
UP!
128KB |
|
Control Memory (Program) |
128KB |
UP!
132KB |
|
Control Memory (SRAM) |
32KB |
UP!
128KB |
|
Serial I/F (COM1) |
- |
D-Sub25pin (plug)
RS-232C/422/485 |
|
Ethernet I/F（Color） |
- |
NEW!
10BASE-T/100BASE-TX |
|
Ethernet I/F (Monochrome） |
- |
|
DIO I/F Sink Type |
DIO 32 points
Input : Sink/Source 16 points
Output : Sink 16 points |
|
DIO I/F Source Type |
DIO 32 points
Input : Sink/Source 16 points
Output : Source 16 points |
|
USB Host I/F (Type A) |
- |
NEW!
✔ *1 |
|
Tool Connector I/F |
✔ |
- *1 |
|
Printer I/F |
- |
NEW!
USB *1 |
|
Alarm Output |
✔ |
- *1 |
|
Power Input |
Terminal block |
European terminal block |
|
Transfer Port |
Tool Connector |
USB |
|
EX Module Interface *3 |
- |
✔(Up to 3 modules) |
|
Sink/Source Output Method |
✔ *4 |
|
High-Speed Counter Input *5 |
Single phase: 4 points
Double phase: 1 point |
Single phase: 4 points
Double phase: 1 point or 2 points |
|
Pulse Output, PWM Output *5 |
4 points |
|
Pulse Catch *5 |
- |
✔ |
|
Analog Input |
2 points |
For installation of EX module |
|
Analog Output |
-ADK
|
1 point |
For installation of EX module |
|
-ADTK |
2 points |
|
-ADPK |
2 points |
|
Thermocouple (K/J) Input |
-ADK |
- |
For installation of EX module |
|
-ADTK |
3 points |
|
-ADPK |
- |
|
Pt100 Input |
-ADK |
- |
For installation of EX module |
|
-ADTK |
- |
|
-ADPK |
2 points
|
*1 There are some restrictions regarding replacement with recommended substitutes.
*2 Model number is differ depend on DIO standard output type, sink type or source type.
*3 For installation of an EX module on LT-3300T and LT-3301L, set the I/O driver to [EXM Driver] in GP-Pro EX.
DIO input/output terminals can be used as the high-speed counter input, pulse output, PWM output, or pulse catch. Set the functions of each terminal via software.
*4 The output type (sink output or source output) varies depending on the model. For example, the output type of GLC150-SC41AD*K, GLC150-BG41-AD*K, LT3300-T1-D24-K and LT3301-L1-D24-K are sink output, and that of LT3300-T1-D24-C and LT3300-L1-D24-C are source output.
*5 DIO input/output terminals can be used as the high-speed counter input, pulse output, PWM output, or pulse catch. Set the functions of each terminal via software.
|
|
|
|
|
Recommended Substitute
|
|
Model in use |
Comments |
|
GLC150-SC41-ADTK-24V |
Logitouch Series
STN color LCD
|
|
Recommended Substitutes |
Comments |
Details |
|
LT3300-T1-D24-K + EXM-AMM3HT and EXM-ALM3LT |
LT3000 Series
panel cut-out size difference.
Attachment (CA4-ATM5-01) available
|
|
|
|
|
[ Migration ] Replacing LT Type H with LT-3300T/LT-3301L
Specification Comparison
|
|
LT Type H |
LT-3300T/LT-3301L |
|
|
Panel cut-out size difference.
Attachment (CA4-ATM5-01) available |
|
Model No.*2
|
Color : GLC150-SC41-AD*K-24V
Monochrome(Sink Type) :
GLC150-BG41-AD*K-24V
Monochrome(Source Type) :
GLC150-BG41-AD*C-24V
|
Color : LT3300-T1-D24-K
Monochrome(Sink Type) :
LT3301-L1-D24-K
Monochrome(Source Type) :
LT3301-L1-D24-C
|
|
Display Type (Color） |
STN Color LCD |
UP!
TFT Color LCD |
|
Display Type (Monochrome） |
Monochrome blue mode LCD |
UP!
Monochrome LCD |
|
Display Colors (Color） |
64 colors |
UP!
65,536 colors (without blink)
16,384 colors (with blink) |
|
Display Colors (Monochrome） |
Monochrome blue mode, 8 levels |
Monochrome, 16 levels |
|
Display Resolution |
QVGA(320×240 pixels) |
|
Panel Cutout Dimensions (mm) |
W191.5×H141.5mm |
W156×H123.5mm*1 |
|
External Dimensions (mm) |
W207×H157×D75.8mm |
W167.5×H135×D78mm |
|
Touch Panel Type |
Resistive film (Matrix) |
NEW!
Resistive film (Analog)*1 |
|
Memory (Application) |
1MB |
UP!
6MB |
|
Memory (SRAM) |
96KB |
UP!
128KB |
|
Control Memory (Program) |
128KB |
UP!
132KB |
|
Control Memory (SRAM) |
32KB |
UP!
128KB |
|
Serial I/F (COM1) |
- |
D-Sub25pin (plug)
RS-232C/422/485 |
|
Ethernet I/F（Color） |
- |
NEW!
10BASE-T/100BASE-TX |
|
Ethernet I/F (Monochrome） |
- |
|
DIO I/F Sink Type |
DIO 32 points
Input : Sink/Source 16 points
Output : Sink 16 points |
|
DIO I/F Source Type |
DIO 32 points
Input : Sink/Source 16 points
Output : Source 16 points |
|
USB Host I/F (Type A) |
- |
NEW!
✔ *1 |
|
Tool Connector I/F |
✔ |
- *1 |
|
Printer I/F |
- |
NEW!
USB *1 |
|
Alarm Output |
✔ |
- *1 |
|
Power Input |
Terminal block |
European terminal block |
|
Transfer Port |
Tool Connector |
USB |
|
EX Module Interface *3 |
- |
✔(Up to 3 modules) |
|
Sink/Source Output Method |
✔ *4 |
|
High-Speed Counter Input *5 |
Single phase: 4 points
Double phase: 1 point |
Single phase: 4 points
Double phase: 1 point or 2 points |
|
Pulse Output, PWM Output *5 |
4 points |
|
Pulse Catch *5 |
- |
✔ |
|
Analog Input |
2 points |
For installation of EX module |
|
Analog Output |
-ADK
|
1 point |
For installation of EX module |
|
-ADTK |
2 points |
|
-ADPK |
2 points |
|
Thermocouple (K/J) Input |
-ADK |
- |
For installation of EX module |
|
-ADTK |
3 points |
|
-ADPK |
- |
|
Pt100 Input |
-ADK |
- |
For installation of EX module |
|
-ADTK |
- |
|
-ADPK |
2 points |
*1 There are some restrictions regarding replacement with recommended substitutes.
*2 Model number is differ depend on DIO standard output type, sink type or source type.
*3 For installation of an EX module on LT-3300T and LT-3301L, set the I/O driver to [EXM Driver] in GP-Pro EX.
DIO input/output terminals can be used as the high-speed counter input, pulse output, PWM output, or pulse catch. Set the functions of each terminal via software.
*4 The output type (sink output or source output) varies depending on the model. For example, the output type of GLC150-SC41AD*K, GLC150-BG41-AD*K, LT3300-T1-D24-K and LT3301-L1-D24-K are sink output, and that of LT3300-T1-D24-C and LT3300-L1-D24-C are source output.
*5 DIO input/output terminals can be used as the high-speed counter input, pulse output, PWM output, or pulse catch. Set the functions of each terminal via software.
|
|
|
|
|
Recommended Substitute
|
|
Model in use |
Comments |
|
GLC150-SC41-ADPK-24V |
Logitouch Series
STN color LCD
|
|
Recommended Substitutes |
Comments |
Details |
|
LT3300-T1-D24-K + EXM-AMM3HT and EXM-ALM3LT |
LT3000 Series
panel cut-out size difference.
Attachment (CA4-ATM5-01) available
|
|
|
|
|
[ Migration ] Replacing LT Type H with LT-3300T/LT-3301L
Specification Comparison
|
|
LT Type H |
LT-3300T/LT-3301L |
|
|
Panel cut-out size difference.
Attachment (CA4-ATM5-01) available |
|
Model No.*2
|
Color : GLC150-SC41-AD*K-24V
Monochrome(Sink Type) :
GLC150-BG41-AD*K-24V
Monochrome(Source Type) :
GLC150-BG41-AD*C-24V
|
Color : LT3300-T1-D24-K
Monochrome(Sink Type) :
LT3301-L1-D24-K
Monochrome(Source Type) :
LT3301-L1-D24-C
|
|
Display Type (Color） |
STN Color LCD |
UP!
TFT Color LCD |
|
Display Type (Monochrome） |
Monochrome blue mode LCD |
UP!
Monochrome LCD |
|
Display Colors (Color） |
64 colors |
UP!
65,536 colors (without blink)
16,384 colors (with blink) |
|
Display Colors (Monochrome） |
Monochrome blue mode, 8 levels |
Monochrome, 16 levels |
|
Display Resolution |
QVGA(320×240 pixels) |
|
Panel Cutout Dimensions (mm) |
W191.5×H141.5mm |
W156×H123.5mm*1 |
|
External Dimensions (mm) |
W207×H157×D75.8mm |
W167.5×H135×D78mm |
|
Touch Panel Type |
Resistive film (Matrix) |
NEW!
Resistive film (Analog)*1 |
|
Memory (Application) |
1MB |
UP!
6MB |
|
Memory (SRAM) |
96KB |
UP!
128KB |
|
Control Memory (Program) |
128KB |
UP!
132KB |
|
Control Memory (SRAM) |
32KB |
UP!
128KB |
|
Serial I/F (COM1) |
- |
D-Sub25pin (plug)
RS-232C/422/485 |
|
Ethernet I/F（Color） |
- |
NEW!
10BASE-T/100BASE-TX |
|
Ethernet I/F (Monochrome） |
- |
|
DIO I/F Sink Type |
DIO 32 points
Input : Sink/Source 16 points
Output : Sink 16 points |
|
DIO I/F Source Type |
DIO 32 points
Input : Sink/Source 16 points
Output : Source 16 points |
|
USB Host I/F (Type A) |
- |
NEW!
✔ *1 |
|
Tool Connector I/F |
✔ |
- *1 |
|
Printer I/F |
- |
NEW!
USB *1 |
|
Alarm Output |
✔ |
- *1 |
|
Power Input |
Terminal block |
European terminal block |
|
Transfer Port |
Tool Connector |
USB |
|
EX Module Interface *3 |
- |
✔(Up to 3 modules) |
|
Sink/Source Output Method |
✔ *4 |
|
High-Speed Counter Input *5 |
Single phase: 4 points
Double phase: 1 point |
Single phase: 4 points
Double phase: 1 point or 2 points |
|
Pulse Output, PWM Output *5 |
4 points |
|
Pulse Catch *5 |
- |
✔ |
|
Analog Input |
2 points |
For installation of EX module |
|
Analog Output |
-ADK
|
1 point |
For installation of EX module |
|
-ADTK |
2 points |
|
-ADPK |
2 points |
|
Thermocouple (K/J) Input |
-ADK |
- |
For installation of EX module |
|
-ADTK |
3 points |
|
-ADPK |
- |
|
Pt100 Input |
-ADK |
- |
For installation of EX module |
|
-ADTK |
- |
|
-ADPK |
2 points |
*1 There are some restrictions regarding replacement with recommended substitutes.
*2 Model number is differ depend on DIO standard output type, sink type or source type.
*3 For installation of an EX module on LT-3300T and LT-3301L, set the I/O driver to [EXM Driver] in GP-Pro EX.
DIO input/output terminals can be used as the high-speed counter input, pulse output, PWM output, or pulse catch. Set the functions of each terminal via software.
*4 The output type (sink output or source output) varies depending on the model. For example, the output type of GLC150-SC41AD*K, GLC150-BG41-AD*K, LT3300-T1-D24-K and LT3301-L1-D24-K are sink output, and that of LT3300-T1-D24-C and LT3300-L1-D24-C are source output.
*5 DIO input/output terminals can be used as the high-speed counter input, pulse output, PWM output, or pulse catch. Set the functions of each terminal via software.
|
|
|
|
|
Recommended Substitute
|
|
Model in use |
Comments |
|
GLC150-SC41-ADK-24V |
Logitouch Series
STN color LCD
|
|
Recommended Substitutes |
Comments |
Details |
|
LT3300-T1-D24-K + EXM-AMM3HT |
LT3000 Series
panel cut-out size difference.
Attachment (CA4-ATM5-01) available
|
|
|
|
|
[ Migration ] Replacing LT Type H with LT-3300T/LT-3301L
Specification Comparison
|
|
LT Type H |
LT-3300T/LT-3301L |
|
|
Panel cut-out size difference.
Attachment (CA4-ATM5-01) available |
|
Model No.*2
|
Color : GLC150-SC41-AD*K-24V
Monochrome(Sink Type) :
GLC150-BG41-AD*K-24V
Monochrome(Source Type) :
GLC150-BG41-AD*C-24V
|
Color : LT3300-T1-D24-K
Monochrome(Sink Type) :
LT3301-L1-D24-K
Monochrome(Source Type) :
LT3301-L1-D24-C
|
|
Display Type (Color） |
STN Color LCD |
UP!
TFT Color LCD |
|
Display Type (Monochrome） |
Monochrome blue mode LCD |
UP!
Monochrome LCD |
|
Display Colors (Color） |
64 colors |
UP!
65,536 colors (without blink)
16,384 colors (with blink) |
|
Display Colors (Monochrome） |
Monochrome blue mode, 8 levels |
Monochrome, 16 levels |
|
Display Resolution |
QVGA(320×240 pixels) |
|
Panel Cutout Dimensions (mm) |
W191.5×H141.5mm |
W156×H123.5mm*1 |
|
External Dimensions (mm) |
W207×H157×D75.8mm |
W167.5×H135×D78mm |
|
Touch Panel Type |
Resistive film (Matrix) |
NEW!
Resistive film (Analog)*1 |
|
Memory (Application) |
1MB |
UP!
6MB |
|
Memory (SRAM) |
96KB |
UP!
128KB |
|
Control Memory (Program) |
128KB |
UP!
132KB |
|
Control Memory (SRAM) |
32KB |
UP!
128KB |
|
Serial I/F (COM1) |
- |
D-Sub25pin (plug)
RS-232C/422/485 |
|
Ethernet I/F（Color） |
- |
NEW!
10BASE-T/100BASE-TX |
|
Ethernet I/F (Monochrome） |
- |
|
DIO I/F Sink Type |
DIO 32 points
Input : Sink/Source 16 points
Output : Sink 16 points |
|
DIO I/F Source Type |
DIO 32 points
Input : Sink/Source 16 points
Output : Source 16 points |
|
USB Host I/F (Type A) |
- |
NEW!
✔ *1 |
|
Tool Connector I/F |
✔ |
- *1 |
|
Printer I/F |
- |
NEW!
USB *1 |
|
Alarm Output |
✔ |
- *1 |
|
Power Input |
Terminal block |
European terminal block |
|
Transfer Port |
Tool Connector |
USB |
|
EX Module Interface *3 |
- |
✔(Up to 3 modules) |
|
Sink/Source Output Method |
✔ *4 |
|
High-Speed Counter Input *5 |
Single phase: 4 points
Double phase: 1 point |
Single phase: 4 points
Double phase: 1 point or 2 points |
|
Pulse Output, PWM Output *5 |
4 points |
|
Pulse Catch *5 |
- |
✔ |
|
Analog Input |
2 points |
For installation of EX module |
|
Analog Output |
-ADK
|
1 point |
For installation of EX module |
|
-ADTK |
2 points |
|
-ADPK |
2 points |
|
Thermocouple (K/J) Input |
-ADK |
- |
For installation of EX module |
|
-ADTK |
3 points |
|
-ADPK |
- |
|
Pt100 Input |
-ADK |
- |
For installation of EX module |
|
-ADTK |
- |
|
-ADPK |
2 points |
*1 There are some restrictions regarding replacement with recommended substitutes.
*2 Model number is differ depend on DIO standard output type, sink type or source type.
*3 For installation of an EX module on LT-3300T and LT-3301L, set the I/O driver to [EXM Driver] in GP-Pro EX.
DIO input/output terminals can be used as the high-speed counter input, pulse output, PWM output, or pulse catch. Set the functions of each terminal via software.
*4 The output type (sink output or source output) varies depending on the model. For example, the output type of GLC150-SC41AD*K, GLC150-BG41-AD*K, LT3300-T1-D24-K and LT3301-L1-D24-K are sink output, and that of LT3300-T1-D24-C and LT3300-L1-D24-C are source output.
*5 DIO input/output terminals can be used as the high-speed counter input, pulse output, PWM output, or pulse catch. Set the functions of each terminal via software.
|
|
|
|
|
|
