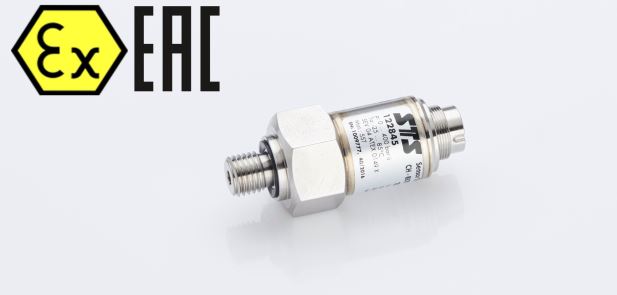

PTM/Ex
|
|
Brand : STS
Model/ Type : PTM/Ex
Type : Programmable pressure transmitter
Application : Suitable for static and dynamic pressure measurements. For High flexibility due to scalable pressure range.
Pressure type : Guage, Absolute, Sealed gauge
Pressure measuring range : 100 mbar~1000 bar
Diameter : 24 mm
|
Accuracy : ≤±0.25/0.1 % FS
Supply voltage : 10~33 VDC
Output signal : 4~20mA
Output type : Pressure
Operating temp : -25~85°C
Process temp : -40~150°C
Materials: Stainless steel, titanium
Cert : ATEX,IEC Ex,EAC, GL/DNV, ABS, Lloyds, CE, RoHS
|
|
TM/Ex
|
|
Brand : STS
Model/ Type : TM/Ex
Type : Passive pressure transmitter
Application : Suitable for static and dynamic pressure measurements with reinforced output signal.
Pressure type : Guage, Absolute, Sealed gauge
Pressure measuring range : 100 mbar~1000 bar
Diameter : 24 mm
|
Accuracy : ≤±0.5/0.25 % FS
Supply voltage : 10/15 VDC
Output signal : mV
Output type : Pressure
Operating temp : -40~125°C
Process temp : -40~150°C
Materials: Titanium
Cert : ATEX,IEC Ex,EAC, GL/DNV, ABS, Lloyds, CE, RoHS
|
|
ATM.1ST/IS
|
|
Brand : STS
Model/ Type : ATM.1ST/IS
Type : High precison transmitter
Application : Short respone time suitable for static and dynamic pressure measurements.
Pressure type : Guage, Absolute, Sealed gauge
Pressure measuring range : 100 mbar~1000 bar
Diameter : 24 mm
|
Accuracy : ≤±0.1/0.05 % FS
Supply voltage : 9~28 VDC
Output signal : 4~20mA
Output type : Pressure
Operating temp : -40~125°C
Process temp : -40~150°C
Materials: Stainless steel, Titanium
Cert : FM, FM-C, IECEx & ATEX
|
|
ATM.ECO/IS
|
|
Brand : STS
Model/ Type : ATM.ECO/IS
Type : Analog transmitter with temperature compensation
Application : For high accuracy which is ensured by sophisticated digital temperature compensation.
Pressure type : Guage, Absolute, Sealed gauge
Pressure measuring range : 100 mbar~1000 bar
Diameter : 24 mm
|
Accuracy : ≤±0.25 % FS
Supply voltage : 9~28 VDC
Output signal : 4~20mA
Output type : Pressure
Operating temp : -40~125°C
Process temp : -40~150°C
Materials: Stainless steel, Titanium
Cert : FM, FM-C, IECEx & ATEX
|
|
ATM/IS
|
|
Brand : STS
Model/ Type : ATM/IS
Type : Analog pressure transmitter FM / FM-C certified
Application : Short response times suitable for dynamic pressure measurements.
Pressure type : Guage, Absolute, Sealed gauge
Pressure measuring range : 100 mbar~1000 bar
Diameter : 24 mm
|
Accuracy : ≤±0.50/0.25/0.1 % FS
Supply voltage : 10~30 VDC
Output signal : 4~20mA
Output type : Pressure
Operating temp : -25~85°C
Process temp : -40~150°C
Materials : Titanium
Cert : FM, FM-C
|
|
ATM/F/IS
|
|
Brand : STS
Model/ Type : ATM/F/IS
Type : Hygienic pressure transmitter
Application : Short response times suitable for dynamic pressure measurements. For highest hygienic standards.
Pressure type : Guage, Absolute, Sealed gauge
Pressure measuring range : 100 mbar~25 bar
Diameter : 34 mm
|
Accuracy : ≤±0.50/0.25/0.1 % FS
Supply voltage : 10~33 VDC
Output signal : 4~20mA, 4~ 20 mA with surge overvoltage protection
Output type : Pressure
Operating temp : -25~85°C
Process temp : -25~100°C
Materials : Stainless steel
Cert : FM, FM-C
|
|
TM/N
|
|
Brand : STS
Model/ Type : TM/N
Type : Passive submersible level transmitter
Application : Short response times suitable for dynamic pressure measurements. Hydrostatic level measurement with simple installation.
Pressure type : Guage, Absolute (vacuum)
Pressure measuring range : 1... 250mH2O
|
Accuracy : ≤±0.50/0.25% FS
Supply voltage : 10/15 VDC
Output signal : mV
Operating temp : -5~80°C
Process temp : -5~80°C
Materials : Stainless steel, titanium
Cert : CE, RoHS
|
|
MTM/N 10
|
|
Brand : STS
Model/ Type : MTM/N 10
Type : Passive submersible level transmitter
Application : Short response times suitable for dynamic pressure measurements. Hydrostatic level measurement with simple installation.
Pressure type : Guage, Absolute
Pressure measuring range : 1... 250mH2O
Diameter : 10mm
|
Accuracy : ≤±0.50/0.25% FS
Supply voltage : 10/15 VDC
Output signal : mV, 4~20mA, 0~10VDC
Operating temp : -5~80°C
Process temp : -5~80°C
Materials : Stainless steel, titanium
Cert : CE, RoHS
|
|
ATM.1ST/N
|
|
Brand : STS
Model/ Type : ATM.1ST/N
Type : High precision submersible level transmitter
Application : Hydrostatic level measurement with simple installation. Suitable for drinking water.
Pressure type : Guage, Absolute
Pressure measuring range : 1... 250mH2O
Diameter : 24mm
|
Accuracy : ≤±0.1 % FS
Supply : 9~33VDC@4-20mA,10~30VDC@0-5VDC, 10~30VDC@0-10VDC
Output signal : 4-20mA, 0-5VDC, 0-10VDC
Operating temp : -5~80°C
Process temp : -5~80°C
Materials : Stainless steel, titanium
Cert : CE, RoHS
|
|
ATM.ECO/N
|
|
Brand : STS
Model/ Type : ATM.ECO/N
Type : Submersible level transmitter
Application : Hydrostatic level measurement with simple installation. Suitable for drinking water.
Pressure type : Guage, Absolute
Pressure measuring range : 1... 250mH2O
Diameter : 24mm
|
Accuracy : ≤±0.25 % FS
Supply : 9~33VDC@4-20mA,10~30VDC@0-5VDC, 10~30VDC@0-10VDC
Output signal : 4-20mA, 0-5VDC, 0-10VDC
Operating temp : -5~80°C
Process temp : -5~80°C
Materials : Stainless steel
Cert : CE, RoHS
|
|
