Specifications of PS-5700T (Celeron model)
Functional Specifications
|
Display Size |
15“ (4:3) |
|
Display Colors |
16.7 million |
|
Backlight |
LED
Life span > 50,000 h @ 25 ℃ (77 ℉) |
|
Brightness Control |
Step less adjustment |
|
Supported OS |
Windows® 7 Ultimate 64 bit MUI / Windows® Embedded Standard 7 (WES7P) 64 bit MUI / Windows® Embedded 8.1 Industry 64 bit MUI |
|
CPU |
Celeron® 2980U 1.6 GHz |
|
Main Memory |
4 GB / 8 GB, DDR3L 1600 MHz, SO-DIMM SDRAM
512 KB NVRAM for the user applications |
|
Graphics Accelerator |
Intel® HD Graphics |
|
Video Memory |
Up to 1.7 GB, Shared system memory |
|
Graphics |
XGA TFT (1,024 x 768 pixels) |
|
Touch Panel Type |
Resistive single touch |
|
Touch Panel Resolution |
2,048 x 2,048 |
|
Interface |
Serial ATA |
HDD / SSD x 2 *1
CFast x 1
mSATA x 1 |
|
Serial (COM1) |
RS-232C / 422 / 485 (D-Sub 9-pin, plug) |
|
Ethernet (LAN1) |
10 / 100 / 1,000 Mbps (RJ-45 Modular jack) |
|
Ethernet (LAN2) |
10 / 100 / 1,000 Mbps (RJ-45 Modular jack) |
|
USB |
USB 3.0 x 2, USB 2.0 x 2, USB 2.0 (front) (Type A) |
|
Video |
DisplayPort (Type A) x 1 |
|
Mini PCIe |
x 2 (revision 1.2) |
|
Expansion Slot *2 |
PCIe (x4) x 2 / PCI x 2 / PCI x 1 + PCIe (x4) x 1 |
General Specifications
|
International Safety Standards |
 |
|
Rated Input Voltage |
DC Power Model: 24 Vdc ±20 %
When using AC power supply unit: 100 to 240 Vac *3 |
|
Power Consumption |
25.5 W (Max. 39.9 W) |
|
Inrush Current |
8.9 A |
|
Surrounding Air Temperature |
When using SSD / CFast running: 0 to 55 ℃ [32 to 131 ℉]
When using HDD running: 0 to 45 ℃ [32 to 113 ℉]
When using mPCI x 2 + Display module : 0 to 45 ℃ [32 to 113 ℉]]
When using PCI/PCIe : 0 to 45 ℃ [32 to 113 ℉]] |
|
Storage Temperature |
-30 to 70 ℃ [-22 to 158 ℉] |
|
Ambient Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Storage Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Pollution Degree |
For use in Pollution Degree 2 environment |
|
Air Pressure (Altitude Range) |
2,000 m [6,560 ft] max. |
|
Vibration Resistance |
Operation for products with SSD / CF card storage device: 5 to 500 Hz: 2 Grms
Operation for products with HDD storage device: 5 to 500 Hz: 1 Grms |
|
Concussion Resistance |
IEC 60068-2-27 Ea test |
|
Electromagnetic Compatibility (EMC) |
Immunity to High Frequency Interference
Electromagnetic Emissions Class A |
|
Structure |
IP66 (front side of display) |
|
Installation Configuration |
Panel mounting / VESA mounting *4 |
|
Cooling Method |
Passive heat sink *5 |
|
Weight Approx. |
0 slot: 7.3 kg (16 lbs.)
2 slot: 8.1 kg (17.8 lbs.) |
|
External Dimensions |
0 slot: W390.7 x H290.0 x D93.2 mm [W15.38 x H11.42 x D3.67 in.]
2 slot: W390.7 x H290.0 x D131.2 mm [W15.38 x H11.42 x D5.16 in.] |
|
Panel Cut Dimensions |
W383.5 x H282.5 mm [W15.09 x H11.12 in.] |

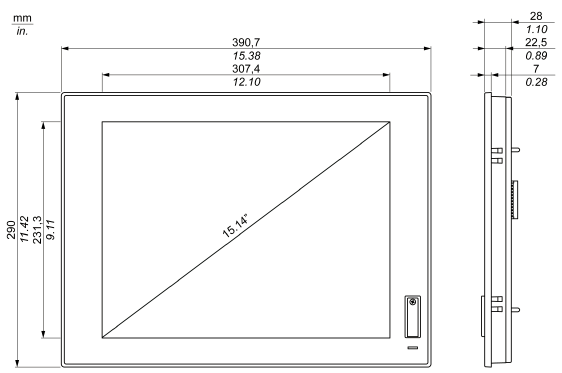

External Dimensions
Panel Cut Dimensions
|
A |
B |
C |
R |
383.5 ±0.7 mm
(15.09 ±0.03 in.) |
282.5 ±0.4 mm
(11.12 ±0.02 in.) |
2 to 6 mm
(0.08 to 0.23 in.) |
5 mm
(0.20 in.) |
Descriptions

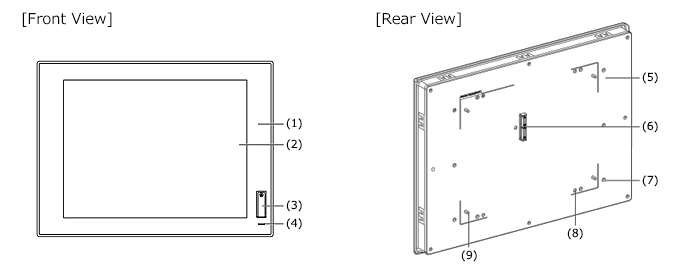

Display Module
|
(1) Panel (15” single touch) (2) Single-touch panel (3) USB port (USB 2.0) (4) Status indicator (5) Panel (6) Panel connector for the Box (7) Mounting holes for the VESA kit (8) Mounting holes for the Box (9) Panel guide for the Box |
Box Module

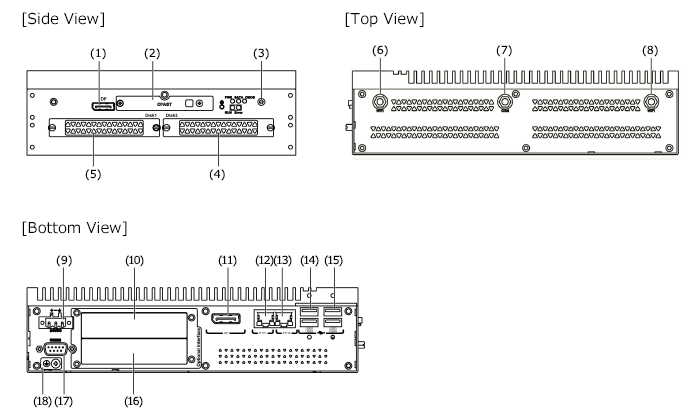

0 Slot Type
|
(1) DisplayPort 2 (2) Slide-in CFast slot (3) LEDs and power/reset button (4) HDD/SSD 2 (can be RAID configuration) (5) HDD/SSD 1 (can be RAID configuration) (6) SMA connector for the wiereless LAN external antenna (7) SMA connector for the GPRS external antenna (8) SMA connector for the wiereless LAN external antenna (9) DC power connector (10) Optional interface 1 (11) DisplayPort 1 (12) Eth1 (10/100/1000 Mbit/s) IEEE1588 (13) Eth2 (10/100/1000 Mbit/s) IEEE1588 (14) USB1 and USB2 (USB 3.0) (15) USB3 and USB4 (USB 2.0) (16) Optional interface 2 (17) COM1 port RS-232/RS-422/RS485 (isolated) (18) Ground connection pin |

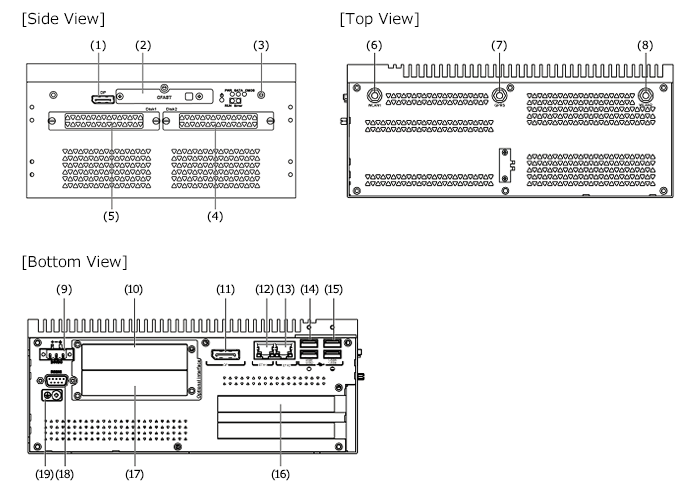

2 Slot Type
|
(1) DisplayPort 2 (2) Slide-in CFast slot (3) LEDs and power/reset button (4) HDD/SSD 2 (can be RAID configuration) (5) HDD/SSD 1 (can be RAID configuration) (6) SMA connector for the wiereless LAN external antenna (7) SMA connector for the GPRS external antenna (8) SMA connector for the wiereless LAN external antenna (9) DC power connector (10) Optional interface 1 (11) DisplayPort 1 (12) Eth1 (10/100/1000 Mbit/s) IEEE1588 (13) Eth2 (10/100/1000 Mbit/s) IEEE1588 (14) USB1 and USB2 (USB 3.0) (15) USB3 and USB4 (USB 2.0) (16) PCI/PCIe (peripheral component interconnect express) slots (17) Optional interface 2 (18) COM1 port RS-232/RS-422/RS485 (isolated) (19) Ground connection pin |
-
*1 When installed, an optional disk adapter unit (PFXZPBADHDD2) that is separately sold is required.
-
*2 2 slot model only
-
*3 For use at 100 to 240 Vac, an optional AC/DC power adapter (PFXZPSPUAC3) that is separately sold is required.
-
*4 For VESA mounting, an optional VESA mounting kit (0 slot: PFXZPBADVS02, 2 slot: PFXZPBADVS22) that is separately sold is required.
-
*5 The operating temperature is limited to 45 ℃ and the cooling FAN is required for PCI/PCIE cards installed on board with power consumption from 3 W to 6 W maximum for two cards or 10 W maximum for one card.
|
|
|
|
|
|
|
|
|
Specifications of PS-5700W (Celeron model)
Functional Specifications
|
Display Size |
15.6“ (wide 16:9) |
|
Display Colors |
16.7 million |
|
Backlight |
LED
Life span > 50,000 h @ 25 ℃ (77 ℉) |
|
Brightness Control |
Step less adjustment |
|
Supported OS |
Windows® 7 Ultimate 64 bit MUI / Windows® Embedded Standard 7 (WES7P) 64 bit MUI / Windows® Embedded 8.1 Industry 64 bit MUI |
|
CPU |
Celeron® 2980U 1.6 GHz |
|
Main Memory |
4 GB / 8 GB, DDR3L 1600 MHz, SO-DIMM SDRAM
512 KB NVRAM for the user applications |
|
Graphics Accelerator |
Intel® HD Graphics |
|
Video Memory |
Up to 1.7 GB, Shared system memory |
|
Graphics |
FWXGA TFT (1,366 x 768 pixels) |
|
Touch Panel Type |
Capacitive multi-touch
5 simultaneous touch (projected capacitive) |
|
Touch Panel Resolution |
4,096 x 4,096 |
|
Interface |
Serial ATA |
HDD / SSD x 2 *1
CFast x 1
mSATA x 1 |
|
Serial (COM1) |
RS-232C / 422 / 485 (D-Sub 9-pin, plug) |
|
Ethernet (LAN1) |
10 / 100 / 1,000 Mbps (RJ-45 Modular jack) |
|
Ethernet (LAN2) |
10 / 100 / 1,000 Mbps (RJ-45 Modular jack) |
|
USB |
USB 3.0 x 2, USB 2.0 x 2 (Type A) |
|
Video |
DisplayPort (Type A) x 1 |
|
Mini PCIe |
x 2 (revision 1.2) |
|
Expansion Slot *2 |
PCIe (x4) x 2 / PCI x 2 / PCI x 1 + PCIe (x4) x 1 |
General Specifications
|
International Safety Standards |
|
|
Rated Input Voltage |
DC Power Model: 24 Vdc ±20 %
When using AC power supply unit: 100 to 240 Vac *3 |
|
Power Consumption |
26.6 W (Max. 40.9 W) |
|
Inrush Current |
8.9 A |
|
Surrounding Air Temperature |
When using SSD / CFast running: 0 to 55 ℃ [32 to 131 ℉]
When using HDD running: 0 to 45 ℃ [32 to 113 ℉]
When using mPCI x 2 + Display module : 0 to 45 ℃ [32 to 113 ℉]]
When using PCI/PCIe : 0 to 45 ℃ [32 to 113 ℉]] |
|
Storage Temperature |
-30 to 70 ℃ [-22 to 158 ℉] |
|
Ambient Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Storage Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Pollution Degree |
For use in Pollution Degree 2 environment |
|
Air Pressure (Altitude Range) |
2,000 m [6,560 ft] max. |
|
Vibration Resistance |
Operation for products with SSD / CF card storage device: 5 to 500 Hz: 2 Grms
Operation for products with HDD storage device: 5 to 500 Hz: 1 Grms |
|
Concussion Resistance |
IEC 60068-2-27 Ea test |
|
Electromagnetic Compatibility (EMC) |
Immunity to High Frequency Interference
Electromagnetic Emissions Class A |
|
Structure |
IP66 (front side of display) |
|
Installation Configuration |
Panel mounting / VESA mounting *4 |
|
Cooling Method |
Passive heat sink *5 |
|
Weight Approx. |
0 slot: 7.4 kg (16.3 lbs.)
2 slot: 8.2 kg (18.1 lbs.) |
|
External Dimensions |
0 slot: W419.7 x H269.0 x D93.2 mm [W16.52 x H10.59 x D3.67 in.]
2 slot: W419.7 x H269.0 x D131.2 mm [W16.52 x H10.59 x D5.16 in.] |
|
Panel Cut Dimensions |
W412.4 x H261.7 mm [W16.24 x H10.30 in.] |

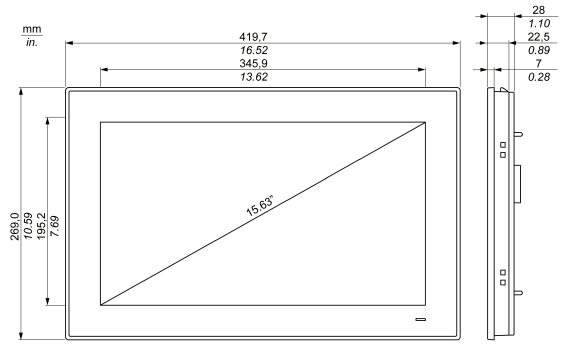

External Dimensions
Panel Cut Dimensions
|
A |
B |
C |
R |
412.4 ±0.7 mm
(16.24 ±0.03 in) |
261.7 ±0.4 mm
(10.30 ±0.02 in) |
2 to 6 mm
(0.08 to 0.23 in.) |
5 mm
(0.20 in.) |
Descriptions
Display Module
|
(1) Panel (W15” multi-touch) (2) Multi-touch panel (3) Status indicator (4) Panel (5) Panel connector for the Box (6) Mounting holes for the VESA kit (7) Mounting holes for the Box (8) Panel guide for the Box |
Box Module
0 Slot Type
|
(1) DisplayPort 2 (2) Slide-in CFast slot (3) LEDs and power/reset button (4) HDD/SSD 2 (can be RAID configuration) (5) HDD/SSD 1 (can be RAID configuration) (6) SMA connector for the wiereless LAN external antenna (7) SMA connector for the GPRS external antenna (8) SMA connector for the wiereless LAN external antenna (9) DC power connector (10) Optional interface 1 (11) DisplayPort 1 (12) Eth1 (10/100/1000 Mbit/s) IEEE1588 (13) Eth2 (10/100/1000 Mbit/s) IEEE1588 (14) USB1 and USB2 (USB 3.0) (15) USB3 and USB4 (USB 2.0) (16) Optional interface 2 (17) COM1 port RS-232/RS-422/RS485 (isolated) (18) Ground connection pin |
2 Slot Type
|
(1) DisplayPort 2 (2) Slide-in CFast slot (3) LEDs and power/reset button (4) HDD/SSD 2 (hot swap and can be RAID configuration) (5) HDD/SSD 1 (hot swap and can be RAID configuration) (6) SMA connector for the wiereless LAN external antenna (7) SMA connector for the GPRS external antenna (8) SMA connector for the wiereless LAN external antenna (9) DC power connector (10) Optional interface 1 (11) DisplayPort 1 (12) Eth1 (10/100/1000 Mbit/s) IEEE1588 (13) Eth2 (10/100/1000 Mbit/s) IEEE1588 (14) USB1 and USB2 (USB 3.0) (15) USB3 and USB4 (USB 2.0) (16) PCI/PCIe (peripheral component interconnect express) slots (17) Optional interface 2 (18) COM1 port RS-232/RS-422/RS485 (isolated) (19) Ground connection pin |
-
*1 When installed, an optional disk adapter unit (PFXZPBADHDD2) that is separately sold is required.
-
*2 2 slot model only
-
*3 For use at 100 to 240 Vac, an optional AC/DC power adapter (PFXZPSPUAC3) that is separately sold is required.
-
*4 For VESA mounting, an optional VESA mounting kit (0 slot: PFXZPBADVS02, 2 slot: PFXZPBADVS22) that is separately sold is required.
-
*5 The operating temperature is limited to 45 ℃ and the cooling FAN is required for PCI/PCIE cards installed on board with power consumption from 3 W to 6 W maximum for two cards or 10 W maximum for one card.
|
|
|
|
|
|
|
|
|
Specifications of PS-5800W (Celeron model)
Functional Specifications
|
Display Size |
18.5” (wide 16:9) |
|
Display Colors |
16.7 million |
|
Backlight |
LED
Life span > 50,000 h @ 25 ℃ (77 ℉) |
|
Brightness Control |
Step less adjustment |
|
Supported OS |
Windows® 7 Ultimate 64 bit MUI / Windows® Embedded Standard 7 (Premium) 64 bit MUI / Windows® Embedded 8.1 Industry 64 bit MUI |
|
CPU |
Celeron® 2980U 1.6 GHz |
|
Main Memory |
4 GB / 8 GB, DDR3L 1600 MHz, SO-DIMM SDRAM
512 KB NVRAM for the user applications |
|
Graphics Accelerator |
Intel® HD Graphics |
|
Video Memory |
Up to 1.7 GB, Shared system memory |
|
Graphics |
FWXGA TFT (1,366 x 768 pixels) |
|
Touch Panel Type |
Capacitive multi-touch
5 simultaneous touch (projected capacitive) |
|
Touch Panel Resolution |
4,096 x 4,096 |
|
Interface |
Serial ATA |
HDD / SSD x 2 *1
CFast x 1
mSATA x 1 |
|
Serial (COM1) |
RS-232C / 422 / 485 (D-Sub 9-pin, plug) |
|
Ethernet (LAN1) |
10 / 100 / 1,000 Mbps (RJ-45 Modular jack) |
|
Ethernet (LAN2) |
10 / 100 / 1,000 Mbps (RJ-45 Modular jack) |
|
USB |
USB 3.0 x 2, USB 2.0 x 2 (Type A) |
|
Video |
DisplayPort (Type A) x 1 |
|
Mini PCIe |
x 2 (revision 1.2) |
|
Expansion Slot *2 |
PCIe (x4) x 2 / PCI x 2 / PCI x 1 + PCIe (x4) x 1 |
General Specifications
|
International Safety Standards |
|
|
Rated Input Voltage |
DC Power Model: 24 Vdc ±20 %
When using AC power supply unit: 100 to 240 Vac *3 |
|
Power Consumption |
27.9 W (Max. 43.1 W) |
|
Inrush Current |
8.9 A |
|
Surrounding Air Temperature |
When using SSD / CFast running: 0 to 55 ℃ [32 to 131 ℉]
When using HDD running: 0 to 45 ℃ [32 to 113 ℉]
When using mPCI x 2 + Display module : 0 to 45 ℃ [32 to 113 ℉]]
When using PCI/PCIe : 0 to 45 ℃ [32 to 113 ℉]] |
|
Storage Temperature |
-30 to 70 ℃ [-22 to 158 ℉] |
|
Ambient Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Storage Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Pollution Degree |
For use in Pollution Degree 2 environment |
|
Air Pressure (Altitude Range) |
2,000 m [6,560 ft] max. |
|
Vibration Resistance |
Operation for products with SSD / CF card storage device: 5 to 500 Hz: 2 Grms
Operation for products with HDD storage device: 5 to 500 Hz: 1 Grms |
|
Concussion Resistance |
IEC 60068-2-27 Ea test |
|
Electromagnetic Compatibility (EMC) |
Immunity to High Frequency Interference
Electromagnetic Emissions Class A |
|
Structure |
IP66 (front side of display) |
|
Installation Configuration |
Panel mounting / VESA mounting *4 |
|
Cooling Method |
Passive heat sink *5 |
|
Weight Approx. |
0 slot: 8.3 kg (18.3 lbs.)
2 slot: 9.1 kg (20.1 lbs.) |
|
External Dimensions |
0 slot: W488.3 x H309.0 x D93.2 mm [W19.21 x H12.17 x D3.67 in.]
2 slot: W488.3 x H309.0 x D131.2 mm [W19.21 x H12.17 x D5.16 in.] |
|
Panel Cut Dimensions |
W479.3 x H300.3 mm [W18.87 x H11.82 in.] |

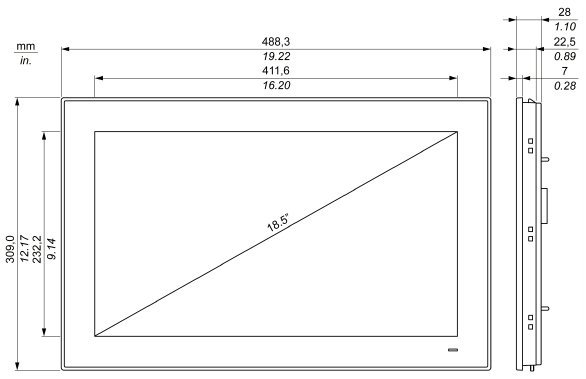

External Dimensions
Panel Cut Dimensions
|
A |
B |
C |
R |
479.3 ±1 mm
(18.87 ±0.04 in) |
300.3 ±0.7 mm
(11.82 ±0.03 in) |
2 to 6 mm
(0.08 to 0.23 in.) |
5 mm
(0.20 in.) |
Descriptions
Display Module
|
(1) Panel (W19” multi-touch) (2) Multi-touch panel (3) Status indicator (4) Panel (5) Panel connector for the Box (6) Mounting holes for the VESA kit (7) Mounting holes for the Box (8) Panel guide for the Box |
Box Module
0 Slot Type
|
(1) DisplayPort 2 (2) Slide-in CFast slot (3) LEDs and power/reset button (4) HDD/SSD 2 (can be RAID configuration) (5) HDD/SSD 1 (can be RAID configuration) (6) SMA connector for the wiereless LAN external antenna (7) SMA connector for the GPRS external antenna (8) SMA connector for the wiereless LAN external antenna (9) DC power connector (10) Optional interface 1 (11) DisplayPort 1 (12) Eth1 (10/100/1000 Mbit/s) IEEE1588 (13) Eth2 (10/100/1000 Mbit/s) IEEE1588 (14) USB1 and USB2 (USB 3.0) (15) USB3 and USB4 (USB 2.0) (16) Optional interface 2 (17) COM1 port RS-232/RS-422/RS485 (isolated) (18) Ground connection pin |
2 Slot Type
|
(1) DisplayPort 2 (2) Slide-in CFast slot (3) LEDs and power/reset button (4) HDD/SSD 2 (can be RAID configuration) (5) HDD/SSD 1 (can be RAID configuration) (6) SMA connector for the wiereless LAN external antenna (7) SMA connector for the GPRS external antenna (8) SMA connector for the wiereless LAN external antenna (9) DC power connector (10) Optional interface 1 (11) DisplayPort 1 (12) Eth1 (10/100/1000 Mbit/s) IEEE1588 (13) Eth2 (10/100/1000 Mbit/s) IEEE1588 (14) USB1 and USB2 (USB 3.0) (15) USB3 and USB4 (USB 2.0) (16) PCI/PCIe (peripheral component interconnect express) slots (17) Optional interface 2 (18) COM1 port RS-232/RS-422/RS485 (isolated) (19) Ground connection pin |
-
*1 When installed, an optional disk adapter unit (PFXZPBADHDD2) that is separately sold is required.
-
*2 2 slot model only
-
*3 For use at 100 to 240 Vac, an optional AC/DC power adapter (PFXZPSPUAC3) that is separately sold is required.
-
*4 For VESA mounting, an optional VESA mounting kit (0 slot: PFXZPBADVS02, 2 slot: PFXZPBADVS22) that is separately sold is required.
-
*5 The operating temperature is limited to 45 ℃ and the cooling FAN is required for PCI/PCIE cards installed on board with power consumption from 3 W to 6 W maximum for two cards or 10 W maximum for one card.
|
|
|
|
|
|
|
|
|
Specifications of PS-5900W (Celeron model)
Functional Specifications
|
Display Size |
21.5" (wide 16:9) |
|
Display Colors |
16.7 million |
|
Backlight |
LED
Life span > 50,000 h @ 25 ℃ (77 ℉) |
|
Brightness Control |
Step less adjustment |
|
Supported OS |
Windows® 7 Ultimate 64 bit MUI / Windows® Embedded Standard 7 (Premium) 64 bit MUI / Windows® Embedded 8.1 Industry 64 bit MUI |
|
CPU |
Celeron® 2980U 1.6 GHz |
|
Main Memory |
4 GB / 8 GB, DDR3L 1600 MHz, SO-DIMM SDRAM
512 KB NVRAM for the user applications |
|
Graphics Accelerator |
Intel® HD Graphics |
|
Video Memory |
Up to 1.7 GB, Shared system memory |
|
Graphics |
Full HD TFT (1,920 x 1,080 pixels) |
|
Touch Panel Type |
Capacitive multi-touch
5 simultaneous touch (projected capacitive) |
|
Touch Panel Resolution |
4,096 x 4,096 |
|
Interface |
Serial ATA |
HDD / SSD x 2 *1
CFast x 1
mSATA x 1 |
|
Serial (COM1) |
RS-232C / 422 / 485 (D-Sub 9-pin, plug) |
|
Ethernet (LAN1) |
10 / 100 / 1,000 Mbps (RJ-45 Modular jack) |
|
Ethernet (LAN2) |
10 / 100 / 1,000 Mbps (RJ-45 Modular jack) |
|
USB |
USB 3.0 x 2, USB 2.0 x 2 (Type A) |
|
Video |
DisplayPort (Type A) x 1 |
|
Mini PCIe |
x 2 (revision 1.2) |
|
Expansion Slot *2 |
PCIe (x4) x 2 / PCI x 2 / PCI x 1 + PCIe (x4) x 1 |
General Specifications
|
International Safety Standards |
|
|
Rated Input Voltage |
DC Power Model: 24 Vdc ±20 %
When using AC power supply unit: 100 to 240 Vac *3 |
|
Power Consumption |
29.9 W (Max. 45.2 W) |
|
Inrush Current |
8.9 A |
|
Surrounding Air Temperature |
When using SSD / CFast running: 0 to 55 ℃ [32 to 131 ℉]
When using HDD running: 0 to 45 ℃ [32 to 113 ℉]
When using mPCI x 2 + Display module : 0 to 45 ℃ [32 to 113 ℉]]
When using PCI/PCIe : 0 to 45 ℃ [32 to 113 ℉]] |
|
Storage Temperature |
-30 to 70 ℃ [-22 to 158 ℉] |
|
Ambient Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Storage Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Pollution Degree |
For use in Pollution Degree 2 environment |
|
Air Pressure (Altitude Range) |
2,000 m [6,560 ft] max. |
|
Vibration Resistance |
Operation for products with SSD / CF card storage device: 5 to 500 Hz: 2 Grms
Operation for products with HDD storage device: 5 to 500 Hz: 1 Grms |
|
Concussion Resistance |
IEC 60068-2-27 Ea test |
|
Electromagnetic Compatibility (EMC) |
Immunity to High Frequency Interference
Electromagnetic Emissions Class A |
|
Structure |
IP66 (front side of display) |
|
Installation Configuration |
Panel mounting / VESA mounting *4 |
|
Cooling Method |
Passive heat sink *5 |
|
Weight Approx. |
0 slot: 9.7 kg (21.3 lbs.)
2 slot: 10.5 kg (23.1 lbs.) |
|
External Dimensions |
0 slot: W558.4 x H349.8 x D93.2 mm [W21.98 x H13.77 x D3.67 in.]
2 slot: W558.4 x H349.8 x D131.2 mm [W21.98 x H13.77 x D5.16 in.] |
|
Panel Cut Dimensions |
W550.3 x H341.8 mm [W21.66 x H13.45 in.] |

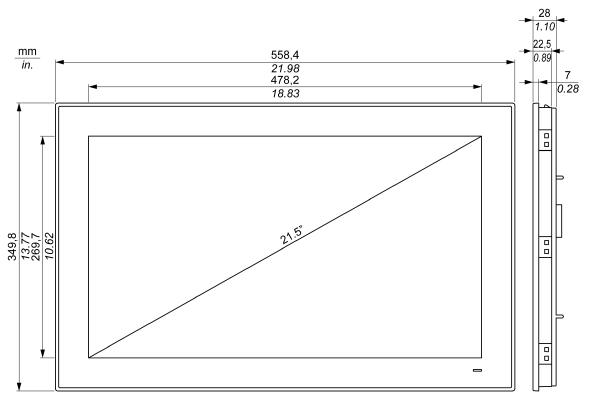

External Dimensions
Panel Cut Dimensions
|
A |
B |
C |
R |
550.3 ±1 mm
(21.66 ±0.04 in.) |
341.8 ±0.7 mm
(13.45 ±0.03 in.) |
2 to 6 mm
(0.08 to 0.23 in.) |
5 mm
(0.20 in.) |
Descriptions

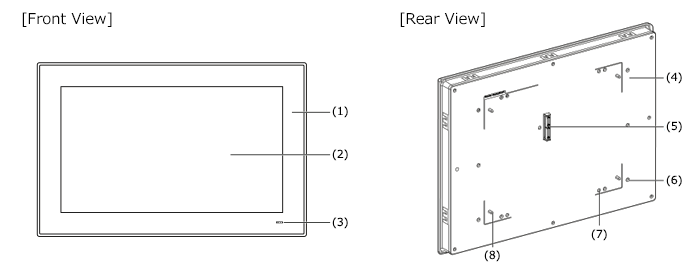

Display Module
|
(1) Panel (W22” multi-touch) (2) Multi-touch panel (3) Status indicator (4) Panel (5) Panel connector for the Box (6) Mounting holes for the VESA kit (7) Mounting holes for the Box (8) Panel guide for the Box |
Box Module
0 Slot Type
|
(1) DisplayPort 2 (2) Slide-in CFast slot (3) LEDs and power/reset button (4) HDD/SSD 2 (can be RAID configuration) (5) HDD/SSD 1 (can be RAID configuration) (6) SMA connector for the wiereless LAN external antenna (7) SMA connector for the GPRS external antenna (8) SMA connector for the wiereless LAN external antenna (9) DC power connector (10) Optional interface 1 (11) DisplayPort 1 (12) Eth1 (10/100/1000 Mbit/s) IEEE1588 (13) Eth2 (10/100/1000 Mbit/s) IEEE1588 (14) USB1 and USB2 (USB 3.0) (15) USB3 and USB4 (USB 2.0) (16) Optional interface 2 (17) COM1 port RS-232/RS-422/RS485 (isolated) (18) Ground connection pin |
2 Slot Type
|
(1) DisplayPort 2 (2) Slide-in CFast slot (3) LEDs and power/reset button (4) HDD/SSD 2 (can be RAID configuration) (5) HDD/SSD 1 (can be RAID configuration) (6) SMA connector for the wiereless LAN external antenna (7) SMA connector for the GPRS external antenna (8) SMA connector for the wiereless LAN external antenna (9) DC power connector (10) Optional interface 1 (11) DisplayPort 1 (12) Eth1 (10/100/1000 Mbit/s) IEEE1588 (13) Eth2 (10/100/1000 Mbit/s) IEEE1588 (14) USB1 and USB2 (USB 3.0) (15) USB3 and USB4 (USB 2.0) (16) PCI/PCIe (peripheral component interconnect express) slots (17) Optional interface 2 (18) COM1 port RS-232/RS-422/RS485 (isolated) (19) Ground connection pin |
-
*1 When installed, an optional disk adapter unit (PFXZPBADHDD2) that is separately sold is required.
-
*2 2 slot model only
-
*3 For use at 100 to 240 Vac, an optional AC/DC power adapter (PFXZPSPUAC3) that is separately sold is required.
-
*4 For VESA mounting, an optional VESA mounting kit (0 slot: PFXZPBADVS02, 2 slot: PFXZPBADVS22) that is separately sold is required.
-
*5 The operating temperature is limited to 45 ℃ and the cooling FAN is required for PCI/PCIE cards installed on board with power consumption from 3 W to 6 W maximum for two cards or 10 W maximum for one card.
|
|
|
|
|
|
|
|
|
Specifications of PS-5700T (Core i7 model)
Functional Specifications
|
Display Size |
15“ (4:3) |
|
Display Colors |
16.7 million |
|
Backlight |
LED
Life span > 50,000 h @ 25 ℃ (77 ℉) |
|
Brightness Control |
Step less adjustment |
|
Supported OS |
Windows® 7 Ultimate 64 bit MUI / Windows® Embedded Standard 7 (WES7P) 64 bit MUI / Windows® Embedded 8.1 Industry 64 bit MUI |
|
CPU |
Core™ i7-4650U 1.7 GHz |
|
Main Memory |
8 GB / 16 GB, DDR3L 1600 MHz, SO-DIMM SDRAM
512 KB NVRAM for the user applications |
|
Graphics Accelerator |
Intel® HD Graphics 5000 |
|
Video Memory |
Up to 1.7 GB, Shared system memory |
|
Graphics |
XGA TFT (1,024 x 768 pixels) |
|
Touch Panel Type |
Resistive single touch |
|
Touch Panel Resolution |
2,048 x 2,048 |
|
Interface |
Serial ATA |
HDD / SSD x 2 *1
CFast x 1
mSATA x 1 |
|
Serial (COM1) |
RS-232C / 422 / 485 (D-Sub 9-pin, plug) |
|
Ethernet (LAN1) |
10 / 100 / 1,000 Mbps (RJ-45 Modular jack) |
|
Ethernet (LAN2) |
10 / 100 / 1,000 Mbps (RJ-45 Modular jack) |
|
USB |
USB 3.0 x 2, USB 2.0 x 2, USB 2.0 (front) (Type A) |
|
Video |
DisplayPort (Type A) x 1 |
|
Mini PCIe |
x 2 (revision 1.2) |
|
Expansion Slot *2 |
PCIe (x4) x 2 / PCI x 2 / PCI x 1 + PCIe (x4) x 1 |
General Specifications
|
International Safety Standards |
 |
|
Rated Input Voltage |
DC Power Model: 24 Vdc ±20 %
When using AC power supply unit: 100 to 240 Vac *3 |
|
Power Consumption |
25.9 W (Max. 44.9 W) |
|
Inrush Current |
8.9 A |
|
Surrounding Air Temperature |
When using SSD / CFast running: 0 to 55 ℃ [32 to 131 ℉]
When using HDD running: 0 to 45 ℃ [32 to 113 ℉]
When using mPCI x 2 + Display module : 0 to 45 ℃ [32 to 113 ℉]]
When using PCI/PCIe : 0 to 45 ℃ [32 to 113 ℉]] |
|
Storage Temperature |
-30 to 70 ℃ [-22 to 158 ℉] |
|
Ambient Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Storage Humidity |
10 to 95 % RH (Wet bulb temperature: 40 ℃ [104 ℉] max. - no condensation) |
|
Pollution Degree |
For use in Pollution Degree 2 environment |
|
Air Pressure (Altitude Range) |
2,000 m [6,560 ft] max. |
|
Vibration Resistance |
Operation for products with SSD / CF card storage device: 5 to 500 Hz: 2 Grms
Operation for products with HDD storage device: 5 to 500 Hz: 1 Grms |
|
Concussion Resistance |
IEC 60068-2-27 Ea test |
|
Electromagnetic Compatibility (EMC) |
Immunity to High Frequency Interference
Electromagnetic Emissions Class A |
|
Structure |
IP66 (front side of display) |
|
Installation Configuration |
Panel mounting / VESA mounting *4 |
|
Cooling Method |
Passive heat sink *5 |
|
Weight Approx. |
0 slot: 7.3 kg (16 lbs.)
2 slot: 8.1 kg (17.8 lbs.) |
|
External Dimensions |
0 slot: W390.7 x H290.0 x D93.2 mm [W15.38 x H11.42 x D3.67 in.]
2 slot: W390.7 x H290.0 x D131.2 mm [W15.38 x H11.42 x D5.16 in.] |
|
Panel Cut Dimensions |
W383.5 x H282.5 mm [W15.09 x H11.12 in.] |
External Dimensions
Panel Cut Dimensions
|
A |
B |
C |
R |
383.5 ±0.7 mm
(15.09 ±0.03 in.) |
282.5 ±0.4 mm
(11.12 ±0.02 in.) |
2 to 6 mm
(0.08 to 0.23 in.) |
5 mm
(0.20 in.) |
Descriptions
Display Module
|
(1) Panel (15” single touch) (2) Single-touch panel (3) USB port (USB 2.0) (4) Status indicator (5) Panel (6) Panel connector for the Box (7) Mounting holes for the VESA kit (8) Mounting holes for the Box (9) Panel guide for the Box |
Box Module
0 Slot Type
|
(1) DisplayPort 2 (2) Slide-in CFast slot (3) LEDs and power/reset button (4) HDD/SSD 2 (can be RAID configuration) (5) HDD/SSD 1 (can be RAID configuration) (6) SMA connector for the wiereless LAN external antenna (7) SMA connector for the GPRS external antenna (8) SMA connector for the wiereless LAN external antenna (9) DC power connector (10) Optional interface 1 (11) DisplayPort 1 (12) Eth1 (10/100/1000 Mbit/s) IEEE1588 (13) Eth2 (10/100/1000 Mbit/s) IEEE1588 (14) USB1 and USB2 (USB 3.0) (15) USB3 and USB4 (USB 2.0) (16) Optional interface 2 (17) COM1 port RS-232/RS-422/RS485 (isolated) (18) Ground connection pin |
2 Slot Type
|
(1) DisplayPort 2 (2) Slide-in CFast slot (3) LEDs and power/reset button (4) HDD/SSD 2 (can be RAID configuration) (5) HDD/SSD 1 (can be RAID configuration) (6) SMA connector for the wiereless LAN external antenna (7) SMA connector for the GPRS external antenna (8) SMA connector for the wiereless LAN external antenna (9) DC power connector (10) Optional interface 1 (11) DisplayPort 1 (12) Eth1 (10/100/1000 Mbit/s) IEEE1588 (13) Eth2 (10/100/1000 Mbit/s) IEEE1588 (14) USB1 and USB2 (USB 3.0) (15) USB3 and USB4 (USB 2.0) (16) PCI/PCIe (peripheral component interconnect express) slots (17) Optional interface 2 (18) COM1 port RS-232/RS-422/RS485 (isolated) (19) Ground connection pin |
-
*1 When installed, an optional disk adapter unit (PFXZPBADHDD2) that is separately sold is required.
-
*2 2 slot model only
-
*3 For use at 100 to 240 Vac, an optional AC/DC power adapter (PFXZPSPUAC3) that is separately sold is required.
-
*4 For VESA mounting, an optional VESA mounting kit (0 slot: PFXZPBADVS02, 2 slot: PFXZPBADVS22) that is separately sold is required.
-
*5 The operating temperature is limited to 45 ℃ and the cooling FAN is required for PCI/PCIE cards installed on board with power consumption from 3 W to 6 W maximum for two cards or 10 W maximum for one card.
|
|
|
|
|
|
