LDM-Series
Laser Micrometer Scanning Units (High Speed)
|
|
SPECIFICATIONS |
|
High Speed Scanning Type (2000 times/sec) |
|
Common specifications |
|
Measuring system |
Non-contact laser scanning system(2000time/sec) |
|
Light source |
Semiconductor laser diode(Max. output 1mW), Red(670nm), Continuous wave class 2 |
|
Structure of Unit protection |
Dust protection(IP-64) |
|
Ambient condition |
Temperature:0-45degree centigrade,
Humidity:35-85%RH(No condensation)
|
|
|
Individual specifications |
|
Model |
Measuring
range
(mm) |
Measuring
accuracy
[*1] |
Resolution |
Weight |
|
Single axis measuring Standard type |
|
LDM-301HS |
0.03～1 |
+/-1um |
+/-0.1um |
1kg |
|
LDM-302HS |
0.07～5 |
+/-1um |
+/-0.1um |
1kg |
|
LDM-303HS |
0.3～30 |
+/-2um |
+/-0.1um |
1kg |
|
LDM-304HS |
0.5～90 |
+/-5um |
+/-1um |
3.5kg |
|
Single axis measuring Separate type |
|
LDM-303HS-SP |
0.3～30 |
+/-2um |
+/-0.1um |
0.9kg |
|
LDM-304HS-SP |
0.5～90 |
+/-5um |
+/-1um |
2.5kg |
|
|
[*1]Measuring accuracy is stated on the conditions of average time more than 400 times and measurement within special measuring area. |
-
Distance between transmitter and receiver ( Separate model )
LDM-302H-SP --- 20mm Max.
LDM-303H-SP --- 400mm Max.
LDM-304H-SP --- 1000mm Max.
LDM-305H-SP --- 4000mm Max.
LDM-306H-SP --- 6000mm Max.
-
High temperature measuring object --- Optional remodel (Up to about 2000℃ Max. )
-
transparent measuring object --- Standard function of display unit
-
tranceparent film width --- optional remodel
|
|
ADD-ONS
 Signal Extender(LDM-201, LDM202) - extends cables when the distance between a scanning unit and a display unit exceeds 30 metres.
Signal Distributor(LDM-205, LDM-206) - divides output signals from a scanning unit.
BCD Distributor(LDM-B2)
|
|
|
|
LDM-Series - Laser Micrometer Scanning Units (Standard Speed)
|
|
SPECIFICATIONS |
|
Standard Speed Scanning Type (400 times/sec) |
|
Common specifications |
|
Measuring system |
Non-contact laser scanning system |
|
Light source |
Semiconductor laser diode(Max. output 1mW), Red(670nm), Continuous wave class 2 |
|
Structure of Unit protection |
Dust protection(IP-64) |
|
Ambient condition |
Temperature: 0-45degree centigrade,
Humidity: 35-85%RH(No condensation)
|
|
|
Individual specifications |
|
Model |
Measuring
range
(mm) [*1] |
Measuring
accuracy
[*2] |
Resolution |
Weight |
|
Single axis measuring Standard type |
|
LDM-301H |
0.02～1 |
+/- 1um |
+/- 0.1um |
1kg |
|
LDM-302H |
0.05～5 |
+/-1um |
+/-0.1um |
1kg |
|
LDM-303H |
0.3～30 |
+/-2um |
+/-0.1um |
1kg |
|
LDM-304H |
0.5～90 |
+/-5um |
+/-1um |
3.5kg |
|
LDM-305H |
1～180 |
+/-10um |
+/-1um |
15kg |
|
LDM-306H |
2～300[*2] |
+/-30um |
+/-1um |
34kg |
|
Single axis measuring Separate type |
|
LDM-302H-SP |
0.05～5 |
+/-1um |
+/-0.1um |
1kg |
|
LDM-303H-SP |
0.3～30 |
+/-2um |
+/-0.1um |
0.9kg |
|
LDM-304H-SP |
0.5～90 |
+/-5um |
+/-1um |
2.5kg |
|
LDM-305H-SP |
1～180 |
+/-10um |
+/-1um |
11kg |
|
LDM-306H-SP |
2～300*2 |
+/-30um |
+/-1um |
28kg |
|
Orthogonal Dual axes measuring type |
|
LDM-302H-XY |
0.05～5 |
+/-1um |
+/-0.1um |
2kg |
|
LDM-303H-XY |
0.3～30 |
+/-2um |
+/-0.1um |
2kg |
|
LDM-304H-XY |
0.5～90 |
+/-5um |
+/-1um |
14kg |
|
LDM-305H-XY |
1～180 |
+/-10um |
+/-1um |
50kg |
|
LDM-306H-XY |
2～300 |
+/-30um |
+/-1um |
70kg |
|
Swing type all circumference measuring[*3] |
LDM-303H-SP
LDM-703A |
0.3～30 |
+/-2um |
+/-0.1um |
9kg[*4] |
LDM-304H
LDM-704A |
0.5～90 |
+/-5um |
+/-1um |
27kg[*4] |
LDM-305H
LDM-705 |
1～180 |
+/-10um |
+/-1um |
60kg[*4] |
|
|
[*1]Measurement of large diameter more than several meters can be made by using 2 units of Scanning Unit
[*2]Measuring accuracy is stated on the conditions of average time more than 400 times and measurement within special measuring area.
[*3]LDM-703, LDM-704A and LDM-705 are Model No. only for Swing Mechanisms.
[*4]These weights are only for Swing Mechanisms.
|
|
ADD-ONS
Signal Extender(LDM-201, LDM202) - extends cables when the distance between a scanning unit and a display unit exceeds 30 metres.
Signal Distributor(LDM-205, LDM-206) - divides output signals from a scanning unit.
BCD Distributor(LDM-B2)
|
|
|
|
|
|
|
|
|
|
LDM-Series - Laser Micrometer Display Units
|
|
SPECIFICATIONS
|
|
2000/400 Scan type |
|
|

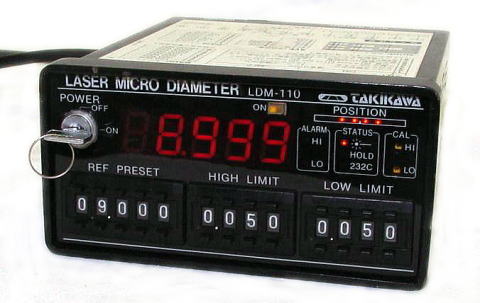

LDM-110 |

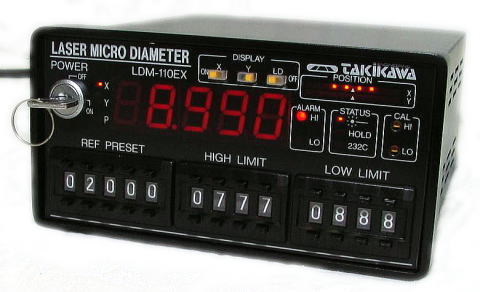

LDM-110EX |

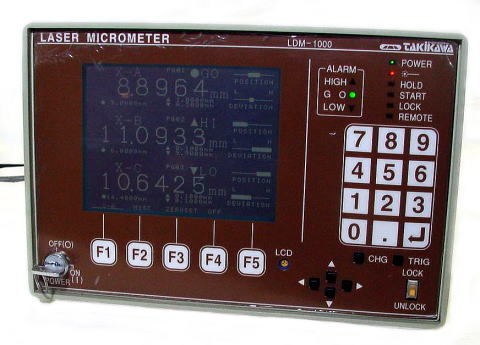

LDM-1000 |

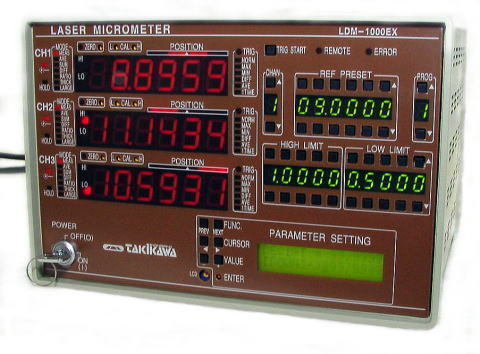

LDM-1000EX |
|
Picture |
 |
 |
 |
 |
|
No. of Axes |
For Single |
Max. 2 |
Max. 5 |
Max. 3 |
|
Scanning cycle |
400 times/sec |
400 times/sec |
400 times/sec |
400 times/sec |
|
No. of Averaging time |
1-2048
(16 steps) |
1-2048
(8 steps) |
1-2048(22 steps) at LDM-1000LS
1-1024(19 steps) at LDM-1000XY |
|
Measuring mode |
16 kinds |
8 kinds
(X,Y axis each) |
16 kinds + Optional edges measurement
per each axis |
|
Processing function |
NG |
Average, Difference, Large dia. measurement, etc. |
|
Cable cover(Wall) thickness processing |
NG |
NG |
OK(by LDM-1000XY) |
|
Display device |
7 segment LED |
Graphic LCD |
7 segment LED |
|
No. of Display digit |
4-5 digits |
4-5 digits |
3-6 digits |
3-6 digits |
|
Processing contents monitor |
NG |
NG |
OK |
OK |
|
Center position monitor |
LED(8pcs) |
LED(8pcs)
(X,Y axis each) |
Graphic bargraph
per each axis |
LED(8pcs) per each axis |
|
No. of channel of Recorder output |
1 |
1 |
1 channel per board(LDM-1000LS/XY) |
|
Recorder output performance |
Max.+/-10V, Resolution 12bits(=approx.10mV/1bit),
Output impedance 100ohm(approx.),
Deviation/Absolute value switch over available |
|
Recorder output gain |
1μm-1m/V(decade steps) |
0.1μm～1m/V(decade steps) |
|
Digital dia. controller connection |
OK |
OK |
NG |
NG |
|
Center value setting |
5 digits |
5 digits |
6 digits |
6 digits |
|
High/Lo limit tolerance setting |
4 digits |
4 digits |
6 digits |
5 digits |
|
High/Low limit contact output |
1a contact(*2) |
1a contact(*2) per board(LDM-1000LS/XY) |
|
Contact rating: AC250V 2A(Resistance load) |
|
Error contact output |
1b contact(Close when power OFF) |
1b contact(Close when power OFF)(Combined use by each board) |
|
Contact rating: AC250V 2A(Resistance load) |
|
Laser remote terminal |
OK |
OK (X,Y common) |
OK(each LDM-1000LS board) |
|
Hold terminal |
OK |
OK (X,Y,P common) |
OK(each LDM-1000LS/XY board) |
|
Edge monitoring function |
OK |
OK |
OK |
OK |
|
Self-diagnosis mode |
OK |
OK |
OK |
OK |
|
Multi-point calibration function |
OK |
NG |
NG |
NG |
|
Trigger function (Max. meas., Deviation meas., etc.) |
NG |
NG |
OK |
OK |
|
Offset function |
NG |
NG |
OK |
OK |
|
Zero set function |
OK |
NG |
OK |
OK |
|
mm/inch changeover function |
NG |
NG |
OK |
OK |
|
Programing function |
NG |
NG |
OK(30 kinds) |
OK(9 kinds) |
|
Graph display |
NG |
NG |
OK |
NG |
|
Serial port |
OK |
OK |
OK |
OK |
|
BCD output |
Option |
OK(by LDM-1000BCD) |
|
RS-485 Function |
Option |
NG |
|
Cable length |
Standard 5 meters, Max. 30 meters (Extensible to 120m.max. as option) |
|
Power supply |
AC100-240V Free power supply 50/60Hz |
|
Power consumption |
less than 11VA |
less than 14VA |
less than 15VA(only display unit)
less than 8VA(each board) |
|
Ambient condition |
Temperature:0-45 degree centigrade, Humidity:35～85%RH(no condensation) |
|
Outside dimension |
144(W) * 72(H) * 191(D)[mm] |
216(W) * 144(H) * 225(D)[mm] |
|
Weight |
Approx. 1.5kg |
Approx. 1.6kg |
Approx. 4kg (only display unit)
Approx. 280g (each board) |
|
|
|
|
2000/400 Scan type |
|
|

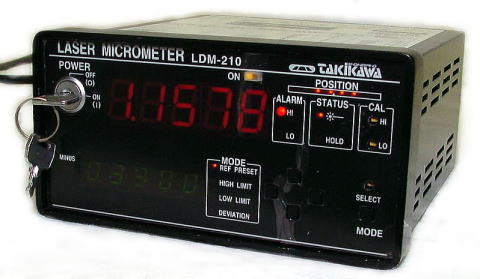

LDM-210 |

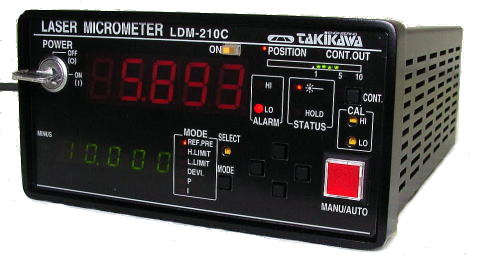

LDM-210C |

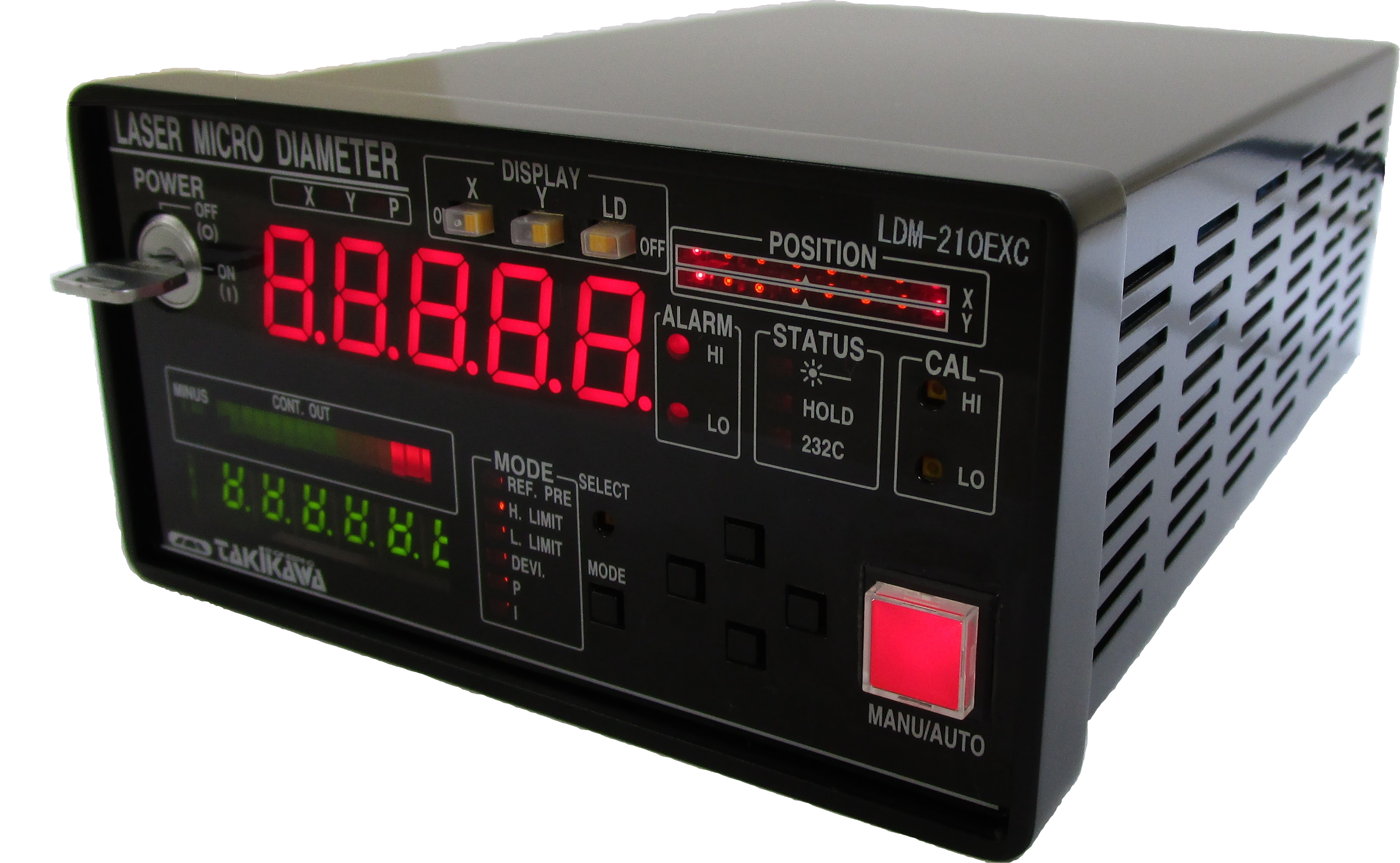

LDM-210EXC |
|
Picture |
 |
 |
 |
|
No. of Axes |
For Single |
Max. 2 |
|
Scanning cycle |
2000 times/sec or 400 times/sec |
|
No. of Averaging time |
1-2048 (12 steps) |
|
Measuring mode |
Optional edges measurement per each axis |
|
Processing function |
NG |
Average, Difference, Large dia. measurement, etc. |
|
Cable cover (Wall) thickness processing |
NG |
|
Display device |
7 segment LED |
|
No. of Display digit |
4-5 digits |
|
Processing contents monitor |
NG |
|
Center position monitor |
LED(8pcs) |
LED(15pcs) |
LED(8pcs) (X,Y axis each) |
|
No. of channel of recorder output
|
1 |
|
Recorder output performance |
Max.+/-10V, Resolution 12bits(=approx.10mV/1bit),
Output impedance 100ohm(approx.),
Deviation/Absolute value switch over available |
|
Recorder output gain |
1μm-1m/V(decade steps) |
|
Digital dia. controller connection |
OK |
NG
(Built-in Dia.Controller) |
|
Center value setting |
5 digits |
|
High/Lo limit tolerance setting |
5 digits |
|
High/Low limit contact output
|
1a contact(*2) |
|
Contact rating: AC250V 2A(Resistance load) |
|
Error contact output |
1b contact(Close when power OFF) |
|
Contact rating: AC250V 2A(Resistance load) |
|
Laser remote terminal |
OK |
OK(X,Y common) |
|
Hold terminal |
OK |
OK(X,Y common) |
|
Edge monitoring function |
OK |
|
Self-diagnosis mode |
OK |
|
Multi-point calibration function |
OK |
|
Trigger function (Max. meas., Deviation meas., etc.)
|
NG |
|
Offset function
|
OK(Ver2.15 or more) |
NG |
|
Zero set function |
OK |
NG |
|
mm/inch changeover function |
NG |
|
Programing function |
NG |
|
Graph display |
NG |
|
Serial port |
OK |
|
BCD output |
Option |
|
RS-485 Function |
Option |
|
Cable length |
Standard 5 meters, Max. 30 meters (Extensible to 120m.max. as option) |
|
Power supply |
AC100-240V Free power supply 50/60Hz |
|
Power consumption |
less than 15VA |
less than 20VA |
|
Ambient condition |
Temperature:0-45 degree centigrade, Humidity:35～85%RH(no condensation) |
|
Outside dimension |
144(W) * 72(H) * 191(D)[mm] |
144(W) * 72(H) * 241(D)[mm] |
|
Weight |
Approx. 1.5kg |
Approx. 1.8kg |
|
|
ADD-ONS
Signal Extender(LDM-201, LDM202) - extends cables when the distance between a scanning unit and a display unit exceeds 30 metres.
Signal Distributor(LDM-205, LDM-206) - divides output signals from a scanning unit.
BCD Distributor(LDM-B2)
|
|
|
|
|
|
|
|
|
|
|
OUTLINE
The AD-50 printer is an ideal recording device for quality control operation on an electric cable production line. It can continuously print messages and distances of produced electric cable when receiving alarm signals from laser micrometer, surface variation detector, spark tester, cable capacitance monitor, joint-detector, disconnection and a great number of other instruments.
FEATURES
A total of ten messages can be input.
Preset Setting (forecast,maximum) of count values can be made.
Scaling of counting pulse can be made.
Various setting of time, date, etc, can be battery backed up for a long- term.
Time, date and lot numbers can be printed out.
Correct printing-out of count values can be made by setting correction distance of each messages.
RS-232C is equiped as standard.
Super compact size and low cost.
|
|
Differences between AD-50 and AD-50E
|
|
SPECIFICATIONS
|
Counting value display |
6-digit, 2-color(Green/Red), 7-segment LED.
Zero suppress is available. |
|
Input clock for measuring |
Single/Double(A,B) phase pulse input is available,
Up/Down counting is available |
|
Clock Edge |
Rising or Falling |
|
Clock Rate |
Free setting between 0.00001m/pulse - 999999m/pulse |
|
Max. clock frequency |
2kPPS or 100PPS |
|
Count sensor power supply |
+12V Max70mA |
|
No. of Event Message |
10 (8 Events + RESET & PRINT) |
|
Event input |
Backside terminal block |
|
RESET Event input |
Backside terminal block & front panel push switch |
|
PRINTING Event input |
Backside terminal block & front panel push switch & RS-232C |
|
Message Change method |
By RS-232C interface |
|
Counting Value PRESET1 |
6 digit |
|
Counting Value PRESET2 |
6 digit |
|
Initial Setting |
6 digit |
|
Lot No. setting |
4 digit. Automatic increment is available by PRESET. |
|
Event distance compensation |
Correct count value is abailavle by Evevt input distance calibration setting for each event. |
|
PRESET output |
Count value display or 7-segment charges from Red to Green,
Front panel LED, RS-232C,
Relay contact("a" contact, AC250V Resistance load 2A) |
|
Printer |
Thermal type, 20 digit, 58mm wide |
|
Out-of-paper signal |
Front panel LED, relay contact, RS-232C,
Relay contact ("a" contact, AC250V Resistance load 2A) |
|
Timing function |
Year/Month/Date and Hour/Minute |
|
Battery back-up |
Back-up the setting of counting, timing, etc.
(Back-up hours ; 1 month or more at full charge) |
|
Communication |
RS-232C interface (Baud rate:300 - 19200bps) |
|
Power Source |
AC100 - 240V Free power supply 50/60Hz, 8VA or less |
|
Outside dimention |
144(W) * 144(H) * 191(D)[mm] |
|
Weight |
2.8kg |
|
Ambient condition |
Temperature:0 - 45 degree centigrage, Humidity:35 - 85%RH(No condensation) |
|
|
|
|
|
|
|
|
|
DETECTOR
|
|
|
|
Model Name |
|
|
1. TM-1000
1) TM-1100XY
2) TM-1003W
3) TM-1104W |
|
2. TM-3000
1) TM-3001W
2) TM-3002W
3) TM-3008W
4) TM-3016W |
|
3. TM-4000
1) TM-4001
2) TM-4002
3) TM-4008
4) TM-4016 |
|
4. TM-6000
5) TM-6004
6) TM-6008
7) TM-7003
8) TM-7009 |
|
|
 |
TM-1003
This device is used to detect the changes in the size of shadows blocked by a measured object. It can be used to detect bumps and dents in all types of manufacturing lines, such as vinyl wires, communication cables, power cables, fiber optic cables, enamel wires, coated wires, and pipes.
It is a non-tactile type that performs high speed, continuous detection, and it is easy to handle. |
 |
TM-3002W
The measurement range is 0.1~35mm. It is composed of two axes. The detectable size of concave-convex can be set to 0.5~10mm. The fault detection signals are generated as contact points and analog signals. Its top is open wide, so that it can easily pass through the cable. |
 |
TM-3004WA
The measurement range is 0.1~35mm. It can detect in four axial directions. Compared to two axial types, it has minimal grey areas. It is octagonal in shape, surrounding the surface of cable to perform perfect fault detection. |
 |
TM-4002
This is the most frequently used model for power cables. The measurement range is 0.1~60mm, and it is composed of two axes.
You can set it to 0.15~10mm. If it is out of range, then some signals will be outputted. |
 |
TM-6004
This model is used to detect concave-convex on the surface of thick cables with 1~80mm.
It has four axial detection and supports detection on an octagonal surface.
The thicker the cable is, the larger the grey area is. To minimize the grey area, it adopts eight axes with 16-gonal detection surfaces. For this purpose, you can combine two sets of TM-6004. |
|
|
|
|
|
|
Product Specs |
|
Composition |
For fine wire/Cable |
|
Model |
TM-1100XY |
TM-1003W |
TM-1104 |
|
Detectinf direction |
2 |
3 |
4 |
|
Measuring range |
 0.02 ~ 5mm |
|
Detecting sensitivity |
0.01 ~ 1 mm |
|
Slit Length |
18 mm |
12 mm |
18 mm |
|
Silt width |
0.5 mm |
|
Line speed |
1m/min ~ 1500m/min |
|
Alarm time |
0.5 sec |
0.05sec |
5sec |
|
Power supply |
AC 100V 50/60Hz |
DC ±15V |
AC 100V 50/60Hz |
|
Outside dimension |
260*265*60 |
150*140*40 |
350*280*55 |
|
Weight |
2.5kg |
1kg |
5kg |
|
Composition |
For middle dia. wire/cable |
|
Model |
TM-3001W |
TM-3002W |
TM-3004W |
TM-3008W |
TM-3016W |
|
Detectinf direction |
1 |
2 |
4 |
8 |
16 |
|
Measuring range |
0.1 ~ 35mm |
|
Detecting sensitivity |
0.5 ~ 10 mm |
|
Slit Length |
48 mm |
|
Silt width |
1 mm |
|
Line speed |
1 m / min ~ 1500 m / min |
|
Alarm time |
0.05 sec |
|
Power supply |
AC 100V 50 / 60Hz |
|
Outside dimension |
260*90*41 |
260*260*60 |
370*335*60 |
370*335*120 |
370*335*240 |
|
Weight |
1.5kg |
3kg |
6kg |
12kg |
24kg |
|
Composition |
For Large dia. wire /cable/ pipe |
|
Model |
TM-4001 |
TM-4002 |
TM-4004 |
TM-4008 |
TM-4016 |
|
Detecting direction |
1 |
2 |
4 |
8 |
16 |
|
Measuring range |
0.1 ~60mm |
|
Detecting sensitivity |
0.15 ~10mm |
|
Slit length |
70 mm |
|
Slit width |
1.5 mm |
|
Line speed |
1m/min ~1000m/min |
|
Alarm output |
Yellow or Red LED turns on, Relay contact output. |
|
Alarm time |
0.5 sec |
|
Power supply |
AC 100 V 50/60Hz |
|
Outside dimension |
540*160*100 |
630*560*160 |
807*674*136 |
807*674*272 |
807*680*424 |
|
Weight |
7kg |
25kg |
38kg |
76kg |
152kg |
|
Composition |
For Extra. Large dia. wire /cable/pipe |
|
Model |
TM-6004 |
TM-6008 |
TM-7003 |
TM-7009 |
|
Detecting direction |
4 |
8 |
3 |
9 |
|
Measuring range |
1 ~ 80mm |
1 ~ 130mm |
|
Detecting sensitivity |
0.2 ~ 10mm |
|
Slit length |
90mm |
140mm |
|
Slit width |
2 mm |
|
Line speed |
0.3m/min ~ 500m/min |
|
Alarm output |
Yellow or Red LED turns on, Relay contact output. |
|
Alarm time |
0.5sec |
|
Power supply |
AC 100 V 50/60Hz |
|
Outside dimension |
720*660*1153 |
720*660*306 |
990*930*1125 |
990*930*375 |
|
Weight |
38kg |
76kg |
40kg |
120kg |
|
|
|
|
|
|
|
