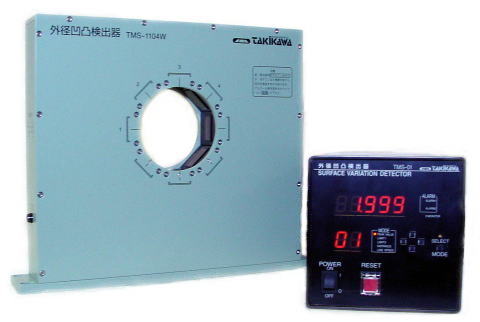

    TMS-Series - Surface Variation Detector (with Noise Cancelling Function)

    FEATURES

    Size of the detected variation (lump, neckdown or the like) can be seen at first sight on the display screen with 7 segments LED.Setting of 2 different detecting sensitivity level is available.

    Data of the detected variation is saved inside the display unit and, the size and position of the variation can be captured via

        RS-232C interface.

    Mal-function caused by dust, bugs, outside random light, etc, can be vastly diminished due to the noise cancelling function.

    Maximum 8 axes can be connected with single display unit.



    SPECIFICATIONS



    DETECTOR Display unit
     Model TMS-1104W  Model TMS-01
     Detecting direction 4 axis  Sampling Friquency 75KHz(4axis)
     Detection Method Double-slit, infrared LED projection type  Main Display 7segmentLED 5digit
     Detectable Outside Diameter φ0.02~5mm  Sub Display 7segmentLED 2digit
     Detecting Sensitivity 0.02~0.999mm  Recorder Output 0.1mm/V
     Detecting Accuracy +/-10μm. set value  Length Measurement input encorder input
     Slit length 18mm  Length Measurement power output DC12V Max50mA
     Slit width 0.5mm  Alarm Output Relay contact output(AC250V 2A Resistance load)
     Feeding speed[*1] 1m/min~1000m/min  Outside Contact input Reset input
     Response 3Hz~10KHz  RS-232C interface OK
         Cable Length
    (Between Sensor/Display)
    5m
         Alarm Time 0.01~0.999Sec
     Ambient Temperature -5 - 50 degree centigrade
    (No condensation)
     Power Source AC90~240V 50/60Hz
         Power Consumption 17VA
     Outside Dimension(W×H×D[mm]) 350×280×55  Outside Dimension(W×H×D[mm]) 144×144×210
     Weight 3.5kg  Weight 3kg

    [*1]Applicable Line speed range varies by variation height.
