    LDM-110

    OUTLINE

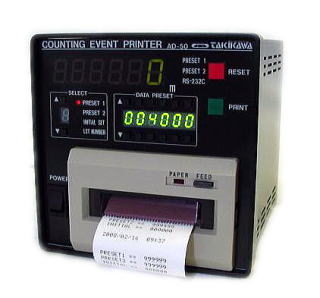

    The AD-50 printer is an ideal recording device for quality control operation on an electric cable production line. It can continuously print messages and distances of produced electric cable when receiving alarm signals from laser micrometer, surface variation detector, spark tester, cable capacitance monitor, joint-detector, disconnection and a great number of other instruments.



    FEATURES



    A total of ten messages can be input.

    Preset Setting (forecast,maximum) of count values can be made.

    Scaling of counting pulse can be made.

    Various setting of time, date, etc, can be battery backed up for a long-         term.

    Time, date and lot numbers can be printed out.

    Correct printing-out of count values can be made by setting correction         distance of each messages.

    RS-232C is equiped as standard.

    Super compact size and low cost.



    Differences between AD-50 and AD-50E



    SPECIFICATIONS



     Counting value display  6-digit, 2-color(Green/Red), 7-segment LED.
     Zero suppress is available.
     Input clock for measuring  Single/Double(A,B) phase pulse input is available,
     Up/Down counting is available
     Clock Edge  Rising or Falling
     Clock Rate  Free setting between 0.00001m/pulse - 999999m/pulse
     Max. clock frequency  2kPPS or 100PPS
     Count sensor power supply  +12V Max70mA
     No. of Event Message  10 (8 Events + RESET & PRINT)
     Event input  Backside terminal block
     RESET Event input  Backside terminal block & front panel push switch
     PRINTING Event input  Backside terminal block & front panel push switch & RS-232C
     Message Change method  By RS-232C interface
     Counting Value PRESET1  6 digit
     Counting Value PRESET2  6 digit
     Initial Setting  6 digit
     Lot No. setting  4 digit. Automatic increment is available by PRESET.
     Event distance compensation  Correct count value is abailavle by Evevt input distance calibration setting for  each event.
     PRESET output  Count value display or 7-segment charges from Red to Green,
     Front panel LED, RS-232C,
     Relay contact("a" contact, AC250V Resistance load 2A)
     Printer  Thermal type, 20 digit, 58mm wide
     Out-of-paper signal  Front panel LED, relay contact, RS-232C,
     Relay contact ("a" contact, AC250V Resistance load 2A)
    Timing function  Year/Month/Date and Hour/Minute
     Battery back-up  Back-up the setting of counting, timing, etc.
     (Back-up hours ; 1 month or more at full charge)
     Communication  RS-232C interface (Baud rate:300 - 19200bps)
     Power Source  AC100 - 240V Free power supply 50/60Hz, 8VA or less
     Outside dimention  144(W) * 144(H) * 191(D)[mm]
     Weight  2.8kg
     Ambient condition  Temperature:0 - 45 degree centigrage, Humidity:35 - 85%RH(No condensation)
