LLB300 / QSH02165
|
- Category : Miniature Load Button
- Description : LLB300 , 1000 lb , Subminiature Load Button , 15-5 PH S.S. , Vacuum Compatible/Low Outgassing , Temp Compensated -49 to 122 F [-45 to 50 C], Operational Temp -67 to 167 F [-55 to 75 C] , 29 Awg 4 Conductor Shielded Teflon Cable, 10ft long
|
LLB215 / FSH04426
|
- Category : Miniature Threaded Load Button
- Description : LLB215 , 25 lb , Subminiature Threaded Load Button w/ Bottom Cable Exit , RoHS Compliant , Material - 17-4 PH S.S. , #2-56-Thread , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 10 ft Long
|
LLB130 / QSH02098
|
- Category : Subminiature Load Button
- Description : LLB130 , 10 lb , Subminiature Load Button Load Cell , Internally Temperature Compensated Without External Circuitry , 17-4 PH S.S. , RoHS Compliant , 34 Awg 4 Conductor Braided Polyester Cable , 3 ft Long w/ ZCO940 Connector for USB220
|
LLB130 / QSH02193
|
- Category : Subminiature Load Button
- Description : LLB130 , 10 lb , Subminiature Load Button Load Cell , Internally Temperature Compensated Without External Circuitry , 17-4 PH S.S. , RoHS Compliant , 34 Awg 4 Conductor Braided Polyester Cable , 1700 mm Long w/ ZCO940 Connector
|
LLB130 / QSH02135
|
- Category : Subminiature Load Button
- Description : LLB130 , 25 lb , Subminiature Load Button Load Cell , Internally Temperature Compensated Without External Circuitry , 0.13" [3.3 mm] Height , Material - 17-4 PH S.S., RoHS Compliant, 34 Awg 4 Conductor Braided Polyester
|
LLB130 / QSH02199
|
- Category : Subminiature Load Button
- Description : LLB130 , 25 lb , Subminiature Load Button Load Cell , Internally Temperature Compensated , 17-4 PH S.S., RoHS Compliant , 34 Awg 4 Conductor Braided Cable , 200 mm long with 4 Pin Lemo Mating Connector FGG.0B.304.CLAD35
|
LLB130 / QSH02101
|
- Category : Subminiature Load Button
- Description : LLB130 , 50 lb , Subminiature Load Button Load Cell , Internally Temperature Compensated , 17-4 PH S.S. , RoHS Compliant , 34 Awg 4 Conductor Braided Polyester Cable , 5 ft Long , PHG.0B.304.CLLD35 Lemo Connector
|
LLW555 / FSH01641
|
- Category : Force Washer Load Cell
- Description : LLW555 , 2000 lb , Force Washer Load Cell , Fatigue Rated , Material - 2024-T4 , 1 3/4" [44.5 mm] ID , 26 Awg 4 Conductor Spiral Teflon Cable , 5 ft Long
|

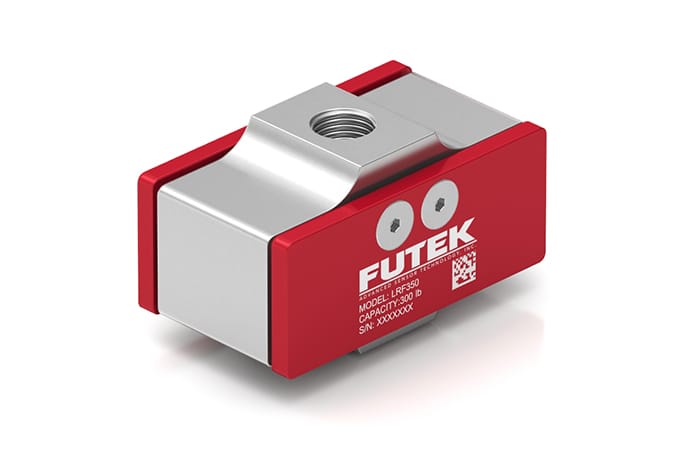

LRF350 / FSH04151
|
- Category : Low Profile Load Cell
- Description : LRF350 , 200 lb , Low Profile Tension & Compression , RoHS Compliant , Material - 2024-T4 , 3/8-24-Thread , 4 Pin Lemo Receptacle, EGG.0B.304.CLL
|
LRF350 / FSH04152
|
- Category : Low Profile Load Cell
- Description : LRF350 , 300 lb , Low Profile Tension & Compression , RoHS Compliant , Material - 2024-T4 , 3/8-24-Thread , 4 Pin Lemo Receptacle, EGG.0B.304.CLL
|
