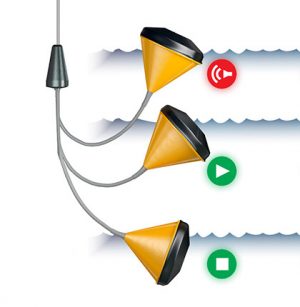

3Y
|
|
Brand : Kari
Media : Liquids
Application : Discharging-pump control+high level alarm. Pump control with 2 switching elements.
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 170 mm
Float casing length : 155 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
3A
|
|
Brand : Kari
Media : Liquids
Application : Charging-pump control+low level alarm. Pump control with 2 switching elements
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 170 mm
Float casing length : 155 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
3HE
|
|
Brand : Kari
Media : Liquids
Application : Discharging-pump control+isolated high level alarm.Pump control with 1 switching element.
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 170 mm
Float casing length : 155 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
3YE
|
|
Brand : Kari
Media : Liquids
Application : Disharging-pump control+isolated high level alarm. Pump control with 2 switching elements
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 170 mm
Float casing length : 155 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
3AE
|
|
Brand : Kari
Media : Liquids
Application : Charging-pump control+isolated low level alarm. Pump control with 2 switching elements.
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 170 mm
Float casing length : 155 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|

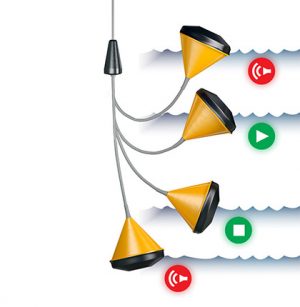

4H
|
|
Brand : Kari
Media : Liquids
Application : Disharging-pump control+high and low level alarm. Pump control with 1 switching element.
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 170 mm
Float casing length : 155 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
4L
|
|
Brand : Kari
Media : Liquids
Application : Charging-pump control+high and low level alarm. Pump control with 1 switching element.
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 170 mm
Float casing length : 155 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
4Y
|
|
Brand : Kari
Media : Liquids
Application : Discharging-pump control+high and low level alarm. Pump control with 2 switching elements.
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 170 mm
Float casing length : 155 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
4A
|
|
Brand : Kari
Media : Liquids
Application : Charging-pump control+high and low level alarm. Pump control with 2 switching elements.
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 170 mm
Float casing length : 155 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
3LE
|
|
Brand : Kari
Media : Liquids
Application : Charging-pump control+isolated low level alarm. Pump control with 1 switching element.
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 170 mm
Float casing length : 155 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
