C1C
|
|
Brand : Kari
Media : Liquids
Application : Use as change-over switch
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 99 mm
Float casing length : 140 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
C1H
|
|
Brand : Kari
Media : Liquids
Application : Use as high level alarm device
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 99 mm
Float casing length : 140 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
C1L
|
|
Brand : Kari
Media : Liquids
Application : Use as low level alarm device,
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 99 mm
Float casing length : 140 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|

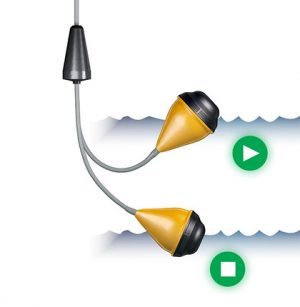

C2H
|
|
Brand : Kari
Media : Liquids
Application : Discharging-pump control or prevention of pump operation when no liquid is present. Pump control with 1 switching element.
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 99 mm
Float casing length : 140 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
C2Y
|
|
Brand : Kari
Media : Liquids
Application : Discharging-pump control with two switching elements. Optionally, two high level alarms.
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 99 mm
Float casing length : 140 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
C2L
|
|
Brand : Kari
Media : Liquids
Application : Charging-pump control with one switching element.
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 99 mm
Float casing length : 140 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
C2A
|
|
Brand : Kari
Media : Liquids
Application : Charging pump control with two switching elements. Optionally, two high level alarms.
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 99 mm
Float casing length : 140 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
C2HL
|
|
Brand : Kari
Media : Liquids
Application : High & low level alarm, suitable for such uses as alarm functions for expansion tank
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 99 mm
Float casing length : 140 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|

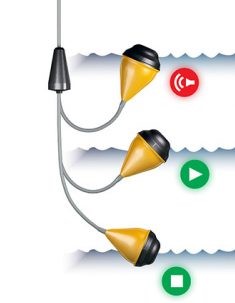

C3H
|
|
Brand : Kari
Media : Liquids
Application : Discharing-pump+high level alarm
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 99 mm
Float casing length : 140 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
C3L
|
|
Brand : Kari
Media : Liquids
Application : Charging-pump control+low level alarm
Switching element : microswitch
Voltage : 6..250V AC
Max. current : 6A res, 3A ind.
Max.DC power : 75 VA
Range of adjust. : 200..1200 mm
|
Cable length : 5m (other length supplied to order)
Dimeter of sensor : 99 mm
Float casing length : 140 mm
Float material : PP
Max. operating temperature : 55°C (70°C supplied to order)
Pressure rating : 200 kPa
Water-tightness : IP67
|
|
