Pro-face Edge Box Use case / Selection Guide

Pro-face Edge Box Selection guide

  Edge Box PC STM6000
Edge Box HMI		 STM6000
Gateway Box
Application Integration
Production Monitor
Get ready for Cloud service
Protocol Converter
On-demand HMI
Affordable Access Point
  Recommend
Availability

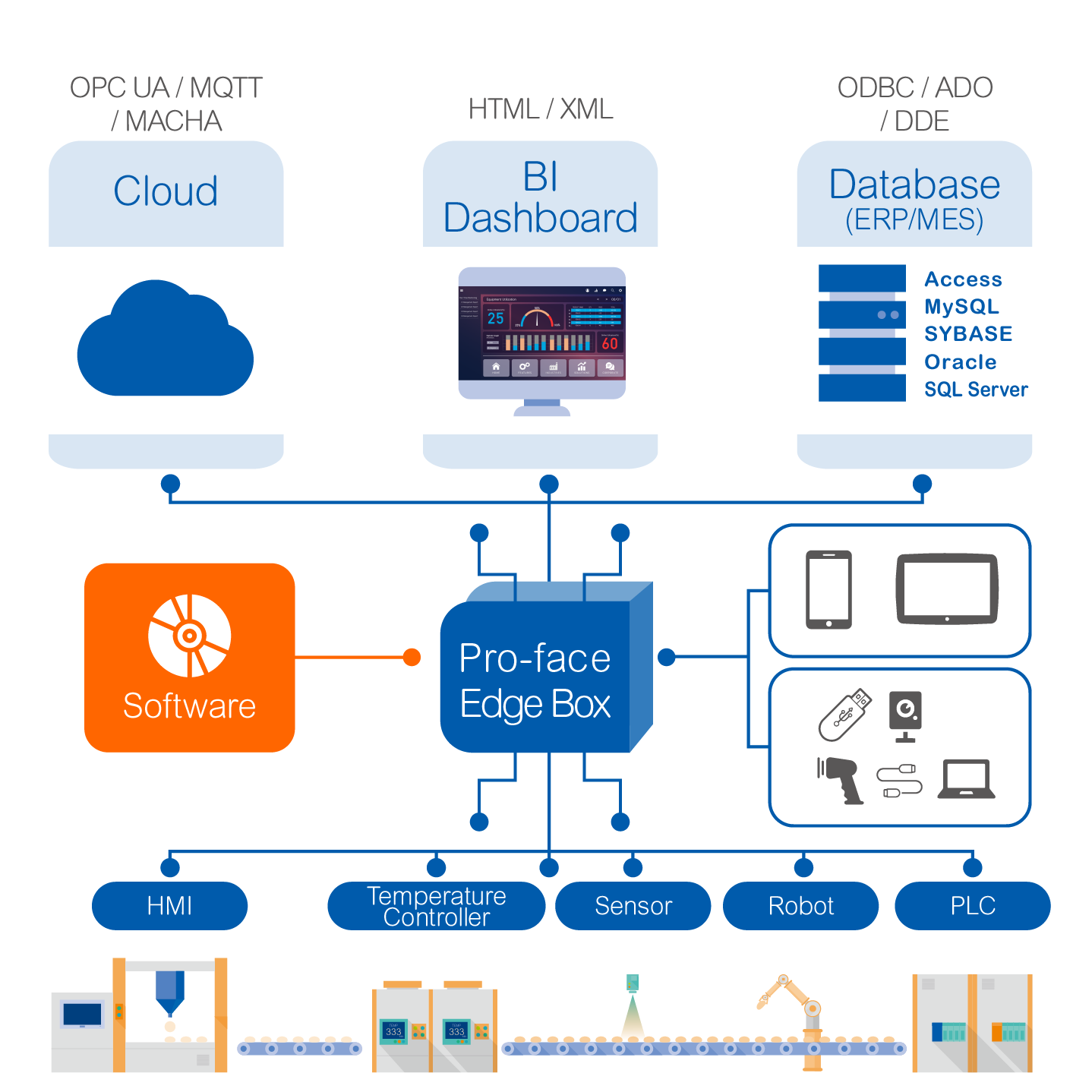

Application Integration

To run various software and any type of use case for any architecture need. Improve your productivity with the Open PC-based architecture experience.




Edge Box PC Selection Guide

  PS5000 PS6000


Basic Box
(Atom)

Standard Box
(Core i3)

Advanced Box
(Core i7 / Core i5 / Celeron)
UI design and integrate application software
(Powered by BLUE Open Studio)		 ps6000_sar3

Use together with other software and connect to IT system
(Powered by BLUE Open Studio including Data Base functionalities.)

 ps6000_star ps6000_sar3

Secure remote connect
(Powered by Pro-face Connect)

 ps6000_sar3

ps6000_sar3

ps6000_sar3

Simple field connections
(Compact operator panel)

 ps6000_sar3 ps6000_star

Wide field connections
(Several controllers connection)

 ps6000_star ps6000_sar3

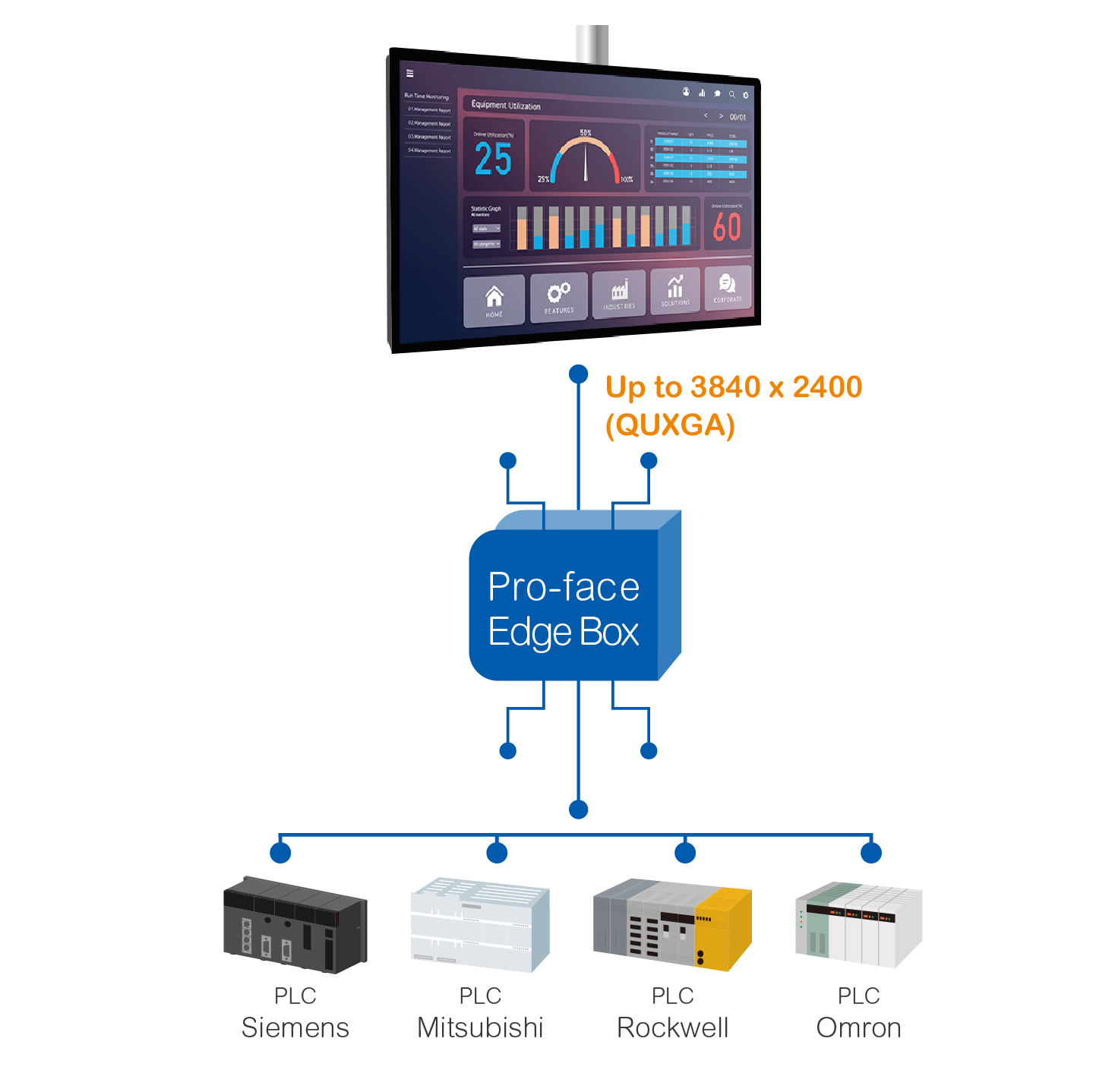

Production Monitor

Tailored visualization using Business Intelligence Dashboards with high-resolution. Optimize work by sharing production status with large-sized monitor.

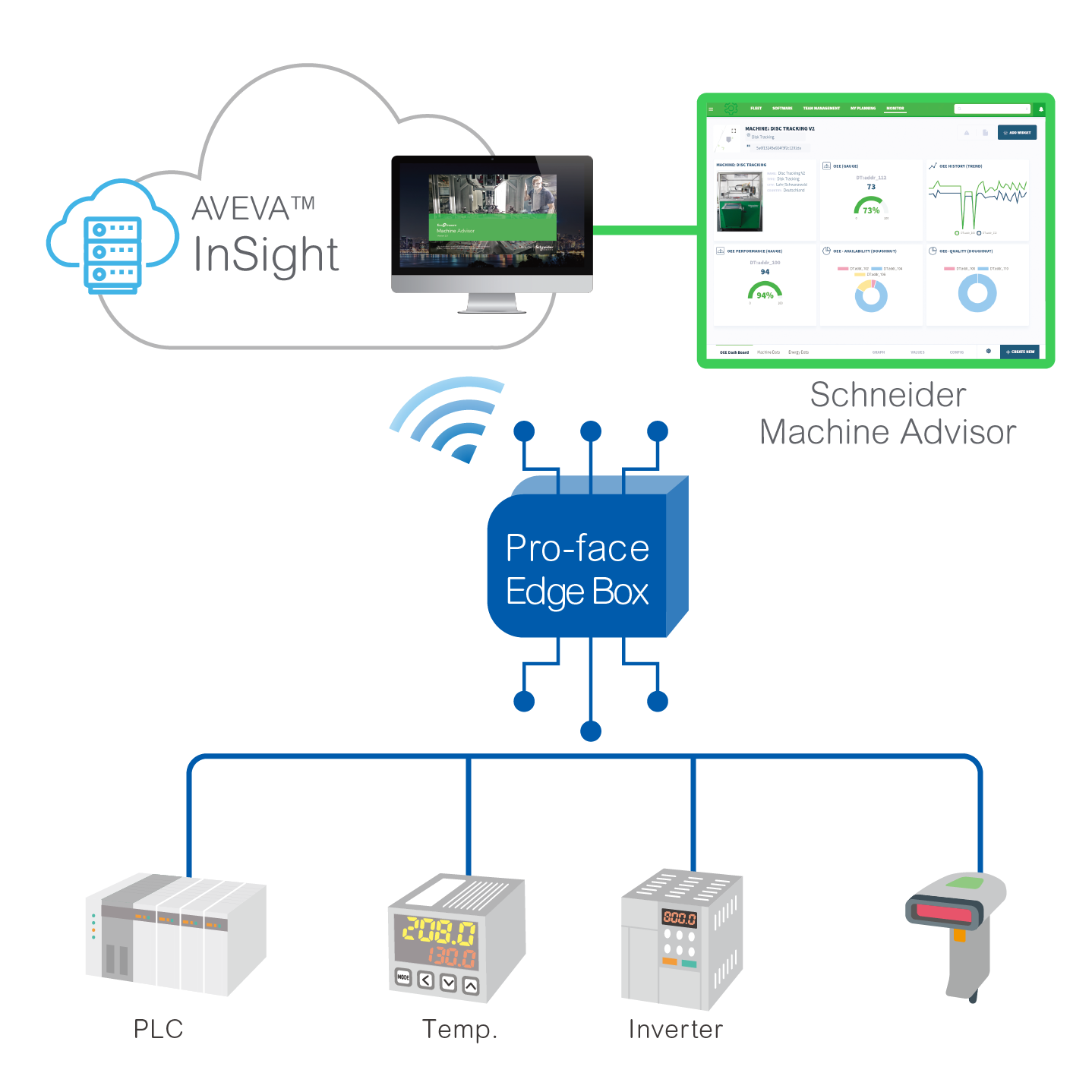

Get ready for Cloud service provided on Schneider Machine Advisor and AVEVA Insight

Affordable STM6000 Edge Box HMI collecting data from connected devices and forward Data to Machine Advisor/ AVEVA Insight with BLUE Open Studio Runtime. Monitor is a cloud-based service to predict asset’s service and to give access to the machine performance data (KPIs, dashboards), sending notifications and alerts in case of need. Use software in the cloud to fix machine issues.




Protocol Converter

Merge data from different devices. Unify protocols and collect data efficiently.Pro-face Edge Box collects various device data, including the time, temperature conditions, and sensor information via rich Pro-face connectivity.

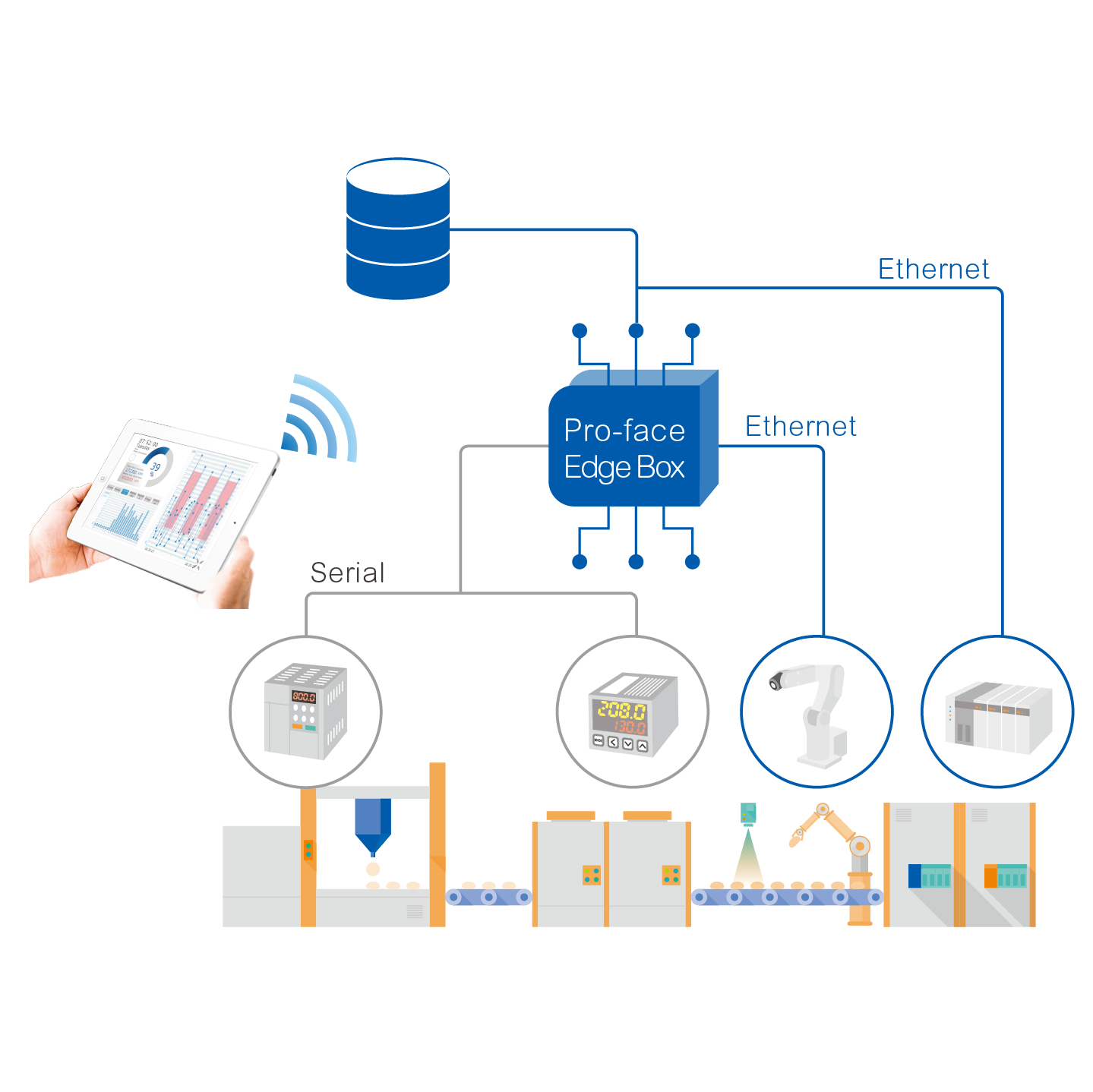

On-demand HMI

Pro-face Edge Box and tablets/PC to save space and reduce costs for efficient maintenance improvements on your machine.




Affordable Access Point

Remote Maintenance via a Pro-face Edge Box.Securely access your Pro-face Edge Box and connected devices without the need for a dedicated VPN router. The certified HTTPs encrypted communication reduces the setup at the customer as no special ports have to be configured by the IT department. Access is not limited to programming but also the Pro-face Edge can be operated via a standard web browser.







PFXSTM6B00D (STM6000 Gateway Box)
Standard product information
Family
Pro-face Edge Box
Model
PFXSTM6B00D
Global Code
PFXSTM6B00D
Product Features
Gateway Box
Sales Status
Sale
Repair Status
✔ (Maintenance service is available, able to be maintained.)
Product search item
Search Power Supply
AC/DC
Search Appearance
Separate
Function
Multi-touch
Ethernet
Equipped
Serial port
1
Front USB
Not equipped
Electrical specifications
Rated input voltage
24 Vdc
Input voltage limits
19.2 to 28.8 Vdc
Allowable voltage drop
5 ms or less
Power consumption
Max.6.8 W
When power is not supplied to external devices: 3.5 W
In-rush current
30 A or less
Noise immunity
Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)
Voltage endurance
1,000 Vac for 1 minute (between power terminal and FG terminal)
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
Environmental specifications
International safety standards
CE, UKCA, UL,cUL (508) Listed, Marine DNV, Marine ABS, Marine RINA, Marine BV, EAC, KC, C-Tick
Surrounding air temperature
0 to 60 °C [32 to 140 °F]
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Ambient humidity
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Storage humidity
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Air pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
Vibration resistance
IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
9 to 150 Hz fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approx. 100 min.)
Concussion resistance
IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
Electrical fast transient/burst
IEC 61000-4-4
2 kV: Power port (display unit)
1 kV: Signal ports
Electrostatic discharge immunity
Contact Discharge Method: 6 kV
Air Discharge Method: 8 kV
(IEC/EN61000-4-2 Level 3)
Memory
Application memory
When using BLUE:FLASH EPROM 128MB

Removable System: No
Local storage
467MB
Backup memory
When using BLUE:NVRAM 500KB

Battery: Unreplaceable battery by the customer/ Primary battery for clock data backup
Interface specifications
Serial (COM1)
Asynchronous Transmission: RS-232C / 422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 pin (plug)
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Output Current: 500 mA/port
Maximum transmission distance : 5 m [16.4 ft.]
USB (micro-B)
Conforms to USB 2.0 (micro-B) x 1, Maximum transmission distance : 5 m [16.4 ft]
Ethernet
IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 2
Structural specifications
Grounding
Functional grounding: Grounding resistance of 100 Ω or less, 2 mm2 (AWG 14) or thicker wire, or your country's applicable standard (SG and FG are connected inside the product).
Cooling method
Natural air circulation
Structure
IP20
External dimensions
W145.6 x H108.23 x D41.4 mm (5.73 x 4.26 x 1.63 in) (excluding protrusions)
Weight
0.27 kg (0.6 lb) or less
Dimensions
External dimensions
  1. Front
  2. Right
  3. Bottom





When Installation Adapter Attached

  1. Front
  2. Right

Parts Identification

  1. Status LED
  2. Bumper
  3. USB(Type A) interface
  4. USB(Type B) interface
  5. Power plug connector
  6. Serial interface(COM1)
  7. Ethernet interface(ETH1)
  8. Ethernet interface(ETH2)





PFXSTM6B00DIOT (STM6000 Edge Box HMI)
Standard product information
Family
Pro-face Edge Box
Model
PFXSTM6B00DIOT
Global Code
PFXSTM6B00DIOT
Product Features
Edge Box HMI
Sales Status
Sale
Repair Status
✔ (Maintenance service is available, able to be maintained.)
Product search item
Search Power Supply
AC/DC
Search Appearance
Separate
Function
Multi-touch
Ethernet
Equipped
Serial port
1
Front USB
Not equipped
Electrical specifications
Rated input voltage
24 Vdc
Input voltage limits
19.2 to 28.8 Vdc
Allowable voltage drop
5 ms or less
Power consumption
Max.6.8 W
When power is not supplied to external devices: 3.5 W
In-rush current
30 A or less
Noise immunity
Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)
Voltage endurance
1,000 Vac for 1 minute (between power terminal and FG terminal)
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
Environmental specifications
International safety standards
CE, UKCA, UL,cUL (508) Listed, Marine ABS, Marine RINA, EAC, KC, C-Tick
Surrounding air temperature
0 to 60 °C [32 to 140 °F]
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Ambient humidity
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Storage humidity
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Air pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
Vibration resistance
IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
9 to 150 Hz fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approx. 100 min.)
Concussion resistance
IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
Electrical fast transient/burst
IEC 61000-4-4
2 kV: Power port (display unit)
1 kV: Signal ports
Memory
Application memory
Editor : BLUE Open Studio    FLASH EPROM 220MB
Local Storage    FLASH EPROM 220MB
Removable System    No*1
Backup memory
Editor : BLUE Open Studio    -
Battery    Replaceable battery / Primary battery for clock data backup

1This memory is used for HMI Runtime and project data. This local storage is used for file storage. Alarm history data, event log, and data logging are stored into local storage. (Using FLASH EPROM)

Interface specifications
Serial (COM1)
Asynchronous Transmission: RS-232C / 422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 pin (plug)
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Output Current: 500 mA/port
Maximum transmission distance : 5 m [16.4 ft.]
USB (micro-B)
Conforms to USB 2.0 (micro-B) x 1, Maximum transmission distance : 5 m [16.4 ft]
Ethernet
IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 2
Structural specifications
Grounding
Functional grounding: Grounding resistance of 100 Ω or less, 2 mm2 (AWG 14) or thicker wire, or your country's applicable standard (SG and FG are connected inside the product).
Cooling method
Natural air circulation
Structure
IP20
External dimensions
W145.6 x H108.23 x D41.4 mm (5.73 x 4.26 x 1.63 in) (excluding protrusions)
Weight
0.27 kg (0.6 lb) or less
Dimensions
External dimensions
  1. Front
  2. Right
  3. Bottom





When Installation Adapter Attached

  1. Front
  2. Right

Parts Identification

  1. Status LED
  2. Bumper
  3. USB(Type A) interface
  4. USB(Type B) interface
  5. Power plug connector
  6. Serial interface(COM1)
  7. Ethernet interface(ETH1)
  8. Ethernet interface(ETH2)





PFXPL2Nxxxxx4xxx00 (Edge Box PC)
Standard product information
Family
Pro-face Edge Box
Model
PFXPL2Nxxxxx4xxx00
Global Code
PFXPL2Nxxxxx4xxx00
Product Features
Edge Box PC
Sales Status
Sale
Repair Status
✔ (Maintenance service is available, able to be maintained.)
End of sales
To be confirmed
End of repair
To be confirmed
Replacement option 1
Code
To be confirmed
Comment
Please contact your [local Pro-face office]



Product search item
Search Power Supply
AC/DC
Search Appearance
Separate
Function
Multi-touch
Ethernet
Equipped
Serial port
1
Front USB
Not equipped
Industrial PC specifications
Supported OS
Windows 10 IoT Enterprise 2016 LTSB (Software Version: 3.0 or less) *
Windows 10 IoT Enterprise 2019 LTSC (Software Version: 4.0 or later) *
* OS Version depends on the Software version
CPU
Intel Atom E3930 1.3 GHz
Main Memory
4 GB / 8 GB, DDR3L 1600 MHz, SO-DIMM SDRAM
Storage Memory
eMMC (64GB / 128GB) x 1*1
Graphic Accelerator
Intel HD Graphics
Video Memory
Up to 2 GB, Shared system memory
Graphics
Full HD TFT (1,920 x 1,080 pixels)

1Optional interface mounted type only. For use with HDD or SDD, an option unit (PFXZPEADHDD2) that is separately sold is required. HDD and SSD can be selected for secondary storage only.

Electrical specifications
Rated Input Voltage
DC: 12 to 24 Vdc ±20 %
AC: 100 to 240 Vac (Option)
Power Consumption
25W
In-Rush Current
2.03 A
Environmental specifications
International Safety Standards
CCC, CE, C-Tick, EAC, KC, UL,cUL (61010) Listed
Surrounding Air Temperature
0 to 55 °C [32 to 131 °F]
When using HDD/internal expansion option: 0 to 45 °C [32 to 113 °F]
Storage Temperature
-30 to +70 °C [-22 to 158 °F]
Ambient Humidity
10 to 95 % RH (Wet bulb temperature: 40 °C [104 °F] max. - no condensation)
Storage Humidity
10 to 95 % RH (Wet bulb temperature: 40 °C [104 °F] max. - no condensation)
Pollution Degree
For use in Pollution Degree 2 environment
Air pressure (altitude range)
2,000 m [6,561 ft.] max.
Vibration resistance
[Operation for products with SSD storage device] 5 to 500 Hz: 2 Grms
[Operation for products with HDD storage device] 5 to 500 Hz: 1 Grms
Concussion resistance
IEC 60068-2-27 Ea test
Electromagnetic Compatibility (EMC)
Immunity to High Frequency Interference
Electromagnetic Emissions Class A
Interface specifications
Serial (COM1)
RS-232C (non isolated), Connector: D-Sub 9 pin (plug)
Serial (COM2)
RS-232C / 422 / 485 (non isolated), Connector: D-Sub 9 pin (plug)
USB Type A
Conforms to USB 3.0 (Type A) x 2
Conforms to USB 2.0 (Type A) x 2
Ethernet (LAN1)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
Ethernet (LAN2)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
Video
Display Port x 2
Internal Expansion
mini PCIe x 1
Structural specifications
Cooling method
Passive heat sink
External dimensions
Optional interface non-mounted type: W38 x H150 x D187 mm [W1.50 x H5.91 x D7.36 in.]
Optional interface mounted type: W54 x H150 x D187 mm [W2.13 x H5.91 x D7.36 in.]
Weight
Optional interface non-mounted type: 1.25 kg [2.75 lb]
Optional interface mounted type: 1.3 kg [2.86 lb]
Dimensions
External installation diagram

Optional Interface Non-mounted Type

Optional Interface Mounted Type




External dimensions with attached cable / Descriptions

Descriptions

Optional Interface Non-mounted Type

(1) DisplayPort 2 (2) DisplayPort 1 (3) LEDs and power/reset button (4) SMA connector for the WLan A external antenna (5) SMA connector for the GPRS/4G external antenna (6) SMA connector for the WLan B external antenna (7) DC power connector (8) COM1 port RS-232 (non-isolated) (9) COM2 port RS-232 (non-isolated), RS-422/485 (non-isolated) (10) USB1 and USB2 (USB 2.0) (11) USB3 and USB4 (USB 3.0) (12) ETH1 (10/100/1000 Mb/s) IEEE1588 (13) ETH2 (10/100/1000 Mb/s) IEEE1588 (14) Ground connection pin



Optional Interface Mounted Type

(1) DisplayPort 2 (2) DisplayPort 1 (3) LEDs and power/reset button (4) SMA connector for the WLan A external antenna (5) SMA connector for the GPRS/4G external antenna (6) SMA connector for the WLan B external antenna (7) DC power connector (8) COM1 port RS-232 (non-isolated) (9) COM2 port RS-232 (non-isolated), RS-422/485 (non-isolated) (10) USB1 and USB2 (USB 2.0) (11) USB3 and USB4 (USB 3.0) (12) ETH1 (10/100/1000 Mb/s) IEEE1588 (13) ETH2 (10/100/1000 Mb/s) IEEE1588 (14) Optional interface (15) Ground connection pin





PFXPL2Bxxxxx4xxx00 (Edge Box PC)
Standard product information
Family
Pro-face Edge Box
Model
PFXPL2Bxxxxx4xxx00
Global Code
PFXPL2Bxxxxx4xxx00
Product Features
Edge Box PC
Sales Status
Sale
Repair Status
✔ (Maintenance service is available, able to be maintained.)
End of sales
To be confirmed
End of repair
To be confirmed
Replacement option 1
Code
To be confirmed
Comment
Please contact your [local Pro-face office]



Product search item
Search Power Supply
AC/DC
Search Appearance
Separate
Function
Multi-touch
Ethernet
Equipped
Serial port
1
Front USB
Not equipped
Industrial PC specifications
Supported OS
Windows 10 IoT Enterprise 2016 LTSB (Software Version: 3.0 or less) *
Windows 10 IoT Enterprise 2019 LTSC (Software Version: 4.0 or later) *
* OS Version depends on the Software version
CPU
Intel Atom E3930 1.3 GHz
Main Memory
4 GB / 8 GB, DDR3L 1600 MHz, SO-DIMM SDRAM
Storage Memory
eMMC (64GB / 128GB) x 1*1
Graphic Accelerator
Intel HD Graphics
Video Memory
Up to 2 GB, Shared system memory
Graphics
Full HD TFT (1,920 x 1,080 pixels)

1Optional interface mounted type only. For use with HDD or SDD, an option unit (PFXZPEADHDD2) that is separately sold is required. HDD and SSD can be selected for secondary storage only.

Electrical specifications
Rated Input Voltage
DC: 12 to 24 Vdc ±20 %
AC: 100 to 240 Vac (Option)
Power Consumption
25W
In-Rush Current
2.03 A
Environmental specifications
International Safety Standards
CCC, CE, C-Tick, EAC, KC, UL,cUL (61010) Listed
Surrounding Air Temperature
0 to 55 °C [32 to 131 °F]
When using HDD/internal expansion option: 0 to 45 °C [32 to 113 °F]
Storage Temperature
-30 to +70 °C [-22 to 158 °F]
Ambient Humidity
10 to 95 % RH (Wet bulb temperature: 40 °C [104 °F] max. - no condensation)
Storage Humidity
10 to 95 % RH (Wet bulb temperature: 40 °C [104 °F] max. - no condensation)
Pollution Degree
For use in Pollution Degree 2 environment
Air pressure (altitude range)
2,000 m [6,561 ft.] max.
Vibration resistance
[Operation for products with SSD storage device] 5 to 500 Hz: 2 Grms
[Operation for products with HDD storage device] 5 to 500 Hz: 1 Grms
Concussion resistance
IEC 60068-2-27 Ea test
Electromagnetic Compatibility (EMC)
Immunity to High Frequency Interference
Electromagnetic Emissions Class A
Interface specifications
Serial (COM1)
RS-232C (non isolated), Connector: D-Sub 9 pin (plug)
Serial (COM2)
RS-232C / 422 / 485 (non isolated), Connector: D-Sub 9 pin (plug)
USB Type A
Conforms to USB 3.0 (Type A) x 2
Conforms to USB 2.0 (Type A) x 2
Ethernet (LAN1)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
Ethernet (LAN2)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
Video
Display Port x 2
Internal Expansion
mini PCIe x 1
Structural specifications
Cooling method
Passive heat sink
External dimensions
Optional interface non-mounted type: W38 x H150 x D187 mm [W1.50 x H5.91 x D7.36 in.]
Optional interface mounted type: W54 x H150 x D187 mm [W2.13 x H5.91 x D7.36 in.]
Weight
Optional interface non-mounted type: 1.25 kg [2.75 lb]
Optional interface mounted type: 1.3 kg [2.86 lb]
Dimensions
External installation diagram

Optional Interface Non-mounted Type

Optional Interface Mounted Type




External dimensions with attached cable / Descriptions

Descriptions

Optional Interface Non-mounted Type

(1) DisplayPort 2 (2) DisplayPort 1 (3) LEDs and power/reset button (4) SMA connector for the WLan A external antenna (5) SMA connector for the GPRS/4G external antenna (6) SMA connector for the WLan B external antenna (7) DC power connector (8) COM1 port RS-232 (non-isolated) (9) COM2 port RS-232 (non-isolated), RS-422/485 (non-isolated) (10) USB1 and USB2 (USB 2.0) (11) USB3 and USB4 (USB 3.0) (12) ETH1 (10/100/1000 Mb/s) IEEE1588 (13) ETH2 (10/100/1000 Mb/s) IEEE1588 (14) Ground connection pin



Optional Interface Mounted Type

(1) DisplayPort 2 (2) DisplayPort 1 (3) LEDs and power/reset button (4) SMA connector for the WLan A external antenna (5) SMA connector for the GPRS/4G external antenna (6) SMA connector for the WLan B external antenna (7) DC power connector (8) COM1 port RS-232 (non-isolated) (9) COM2 port RS-232 (non-isolated), RS-422/485 (non-isolated) (10) USB1 and USB2 (USB 2.0) (11) USB3 and USB4 (USB 3.0) (12) ETH1 (10/100/1000 Mb/s) IEEE1588 (13) ETH2 (10/100/1000 Mb/s) IEEE1588 (14) Optional interface (15) Ground connection pin





  1. Proface | Edge Box | PFXP6CBCTO
  2. Proface | Edge Box | PFXP65BCTO
  3. Proface | Edge Box | PFXP67BCTO
  4. Proface | Edge Box | Connectable Devices

Page 5 of 126
