Easy Harmony iPC

Entry level All-in-one Panel IPC

Part of Easy Series

The offer is to provide a more competitive bundle solution of IPC offers and SCADA software for the stand-alone machine and line management.







Optimized 15"(4:3) DC
Optimized 15.6" Wide DC
Performance 15.6" Wide DC
Performance 18.5" Wide DC





PFXES5700WADW
Standard product information
Family
Industrial PC (IPC)
Series
ES5000 Series
Model
PFXES5700WADW
Global Code
PFXES5700WADW
Product Features
15" Wide All-in-One Panel PC (Celeron)
Industrial PC specifications
Supported OS
Windows10 LTSC 2019
CPU
Intel Celeron 3855U 1.6 GHz
Main Memory
4 GB, DDR4, 2133 MHz, SO-DIMM SDRAM
Storage Memory
mSATA SSD (128GB)
Display specifications
Display Type
TFT 真彩 LCD
Display Size
15.6" 宽屏
Resolution
1,366 x 768像素 (FWXGA)
Display Colors
1670万色
Backlight service life
50,000小时以上(在25℃的环境下连续工作)
Brightness Control
无级调节
Touch Panel Type
电阻式(模拟、单点触摸)
Electrical specifications
Rated Input Voltage
12~24 Vdc
Power Consumption
28 W
Environmental specifications
International Safety Standards
CE, KC
Surrounding Air Temperature
0~55 °C 带 SSD,mSATA 或M.2(2280 NVMe1.3)
Storage Temperature
-20 ~ +60 °C
Storage Humidity
10~95%RH(无凝露，湿球温度计温度：60 °C以下)
Pollution Degree
2级污染
Air pressure (altitude range)
海拔2,000米以下
Vibration resistance
3~150 Hz: 1 Grms 带SSD, 三维
Interface specifications
Serial (COM1)
RS-232/422/485 (带自动数据流量控制的RS-485)可拔码开关设置、非电隔离, 数据传输速率：最高115,200 bps，D-Sub 9针(凸型)
Serial (COM2)
RS-232/422/485 (带自动数据流量控制的RS-485)可拔码开关设置、非电隔离, 数据传输速率：最高115,200 bps，D-Sub 9针(凸型)
USB Type A
USB 3.0 (Type-A) x 4
Ethernet (LAN1)
10/100/1000Mbit/s (RJ-45接头)
Ethernet (LAN2)
10/100/1000Mbit/s (RJ-45接头)
Video
HDMI x 1
Expansion slot
2.5" SATA(SATA-III) x 1，M.2(2280 NVMe1.3) x 1
Structural specifications
Cooling method
被动散热器，无风扇运行
Protective structure
IP65 (前面板)
Installation Method
面板安装
VESA支架安装
Weight
3.62 kg
Dimensions

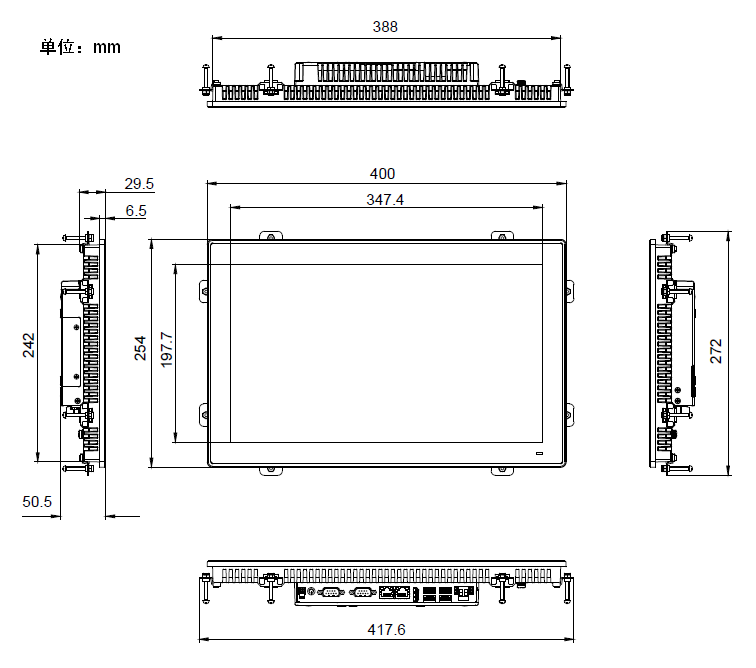

External installation diagram

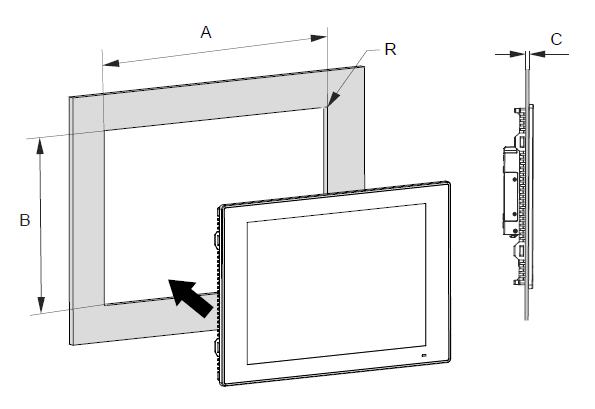

Panel cut dimensions
A B C R
390 ±1.0 mm 244 ±1.0 mm 1~4 mm 2 mm





PFXES5700TADW
Standard product information
Family
Industrial PC (IPC)
Series
ES5000 Series
Model
PFXES5700TADW
Global Code
PFXES5700TADW
Product Features
15" All-in-One Panel PC (Celeron)
Industrial PC specifications
Supported OS
Windows10 LTSC 2019
CPU
Intel Celeron 3855U 1.6 GHz
Main Memory
4 GB, DDR4, 2133 MHz, SO-DIMM SDRAM
Storage Memory
mSATA SSD (128GB)
Display specifications
Display Type
TFT 真彩 LCD
Display Size
15"
Resolution
1,024 x 768 像素 (XGA)
Display Colors
1670万色
Backlight service life
50,000小时以上(在25℃的环境下连续工作)
Brightness Control
无级调节
Touch Panel Type
电阻式(模拟、单点触摸)
Electrical specifications
Rated Input Voltage
12~24 Vdc
Power Consumption
25W
Environmental specifications
International Safety Standards
CE, KC
Surrounding Air Temperature
0~55 °C 带 SSD,mSATA 或M.2(2280 NVMe1.3)
Storage Temperature
-20 ~ +60 °C
Storage Humidity
10~95%RH(无凝露，湿球温度计温度：60 °C以下)
Pollution Degree
2级污染
Air pressure (altitude range)
海拔2,000米以下
Vibration resistance
3~150 Hz: 1 Grms 带SSD, 三维
Interface specifications
Serial (COM1)
RS-232/422/485 (带自动数据流量控制的RS-485)可拔码开关设置、非电隔离, 数据传输速率：最高115,200 bps，D-Sub 9针(凸型)
Serial (COM2)
RS-232/422/485 (带自动数据流量控制的RS-485)可拔码开关设置、非电隔离, 数据传输速率：最高115,200 bps，D-Sub 9针(凸型)
Ethernet (LAN1)
10/100/1000Mbit/s (RJ-45接头)
Ethernet (LAN2)
10/100/1000Mbit/s (RJ-45接头)
Video
HDMI x 1
Expansion slot
2.5" SATA(SATA-III) x 1，M.2(2280 NVMe1.3) x 1
Structural specifications
Cooling method
被动散热器，无风扇运行
Protective structure
IP65 (前面板)
Installation Method
面板安装
VESA支架安装
Weight
3.5 kg
Dimensions

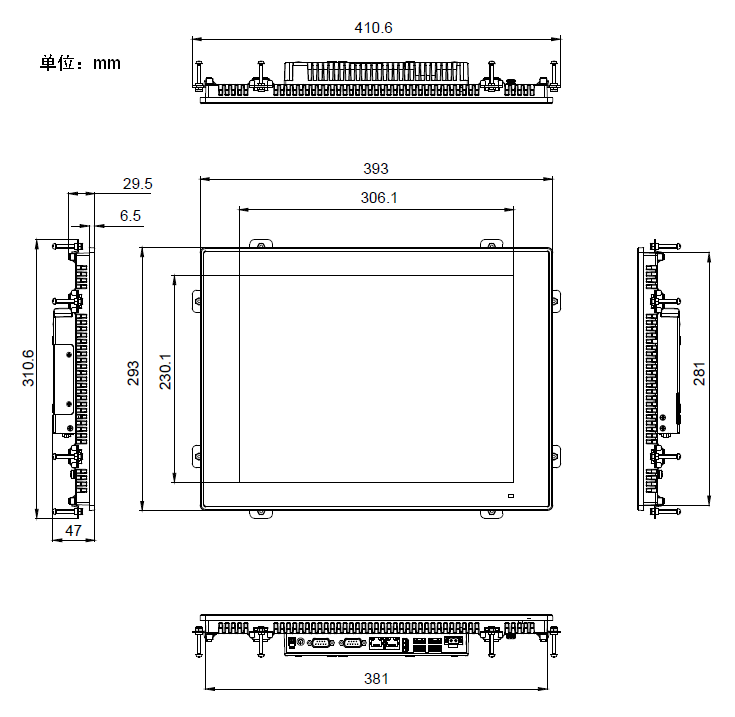

External installation diagram
Panel cut dimensions
A B C R
383 mm ±1.0 mm 283mm ±1.0 mm 1~4 mm 2 mm







ES5000 Series Support/Downloads

Manual

Catalog







FP6000 Series Options


Accessory Options

Product number Description
PFXZPBSSD122 SSD 128GB *reuse PS5000’s SSD
PFXZPBSSD252 SSD 256 GB *reuse PS5000’s SSD
PFXYPACCKTPSX1 Fasteners and screws, DC Power Terminal block, HDD bracket adapter.

Software

Product Name Model No. Description
GP-Pro EX PFXEXEDV** Screen-creation software
GP-Pro EX Editor License *1 PFXEXEDLSV** GP-Pro EX editor license
GP-Pro EX Editor
Group License *2		 10 licenses PFXEXGRPLS**10 GP-Pro EX editor group license
25 licenses PFXEXGRPLS**25
50 licenses PFXEXGRPLS**50
WinGP for IPC EX-WINGP-IPC Runtime license on Pro-face's IPC,
for using the screen data created with
the screen editor GP-Pro EX
Pro-Server EX Developer PFXEXSDVV** Software that connects a PC
to a GP4000 / 3000 via Ethernet
and collects and transmits data
Pro-Server EX Developer License *3 EX-SED-LICENSE Pro-Server EX developer license
Pro-Server EX Runtime License *4 EX-SRT-LICENSE Pro-Server EX runtime license
GP-Viewer EX 1 license EX-VIEWER-LICENSE License allowing PS5000 to access
Pro-face HMI in remote mode.
10 licenses EX-VIEWER-LICENSE-10
30 licenses EX-VIEWER-LICENSE-30
Pro-face Remote HMI
(iPhone, iPad, iPod touch) V*.*		 PFXEXRHIOSV** Software to operate Pro-face HMI screen
on iPhone, iPad and iPod touch
Pro-face Remote HMI
(Android) V*.*		 PFXEXRHANDV** Software to operate Pro-face HMI screen
on Android OS
Pro-face Remote HMI Free (Android) V*.* PFXEXRHANDTRV** Free software to operate Pro-face HMI screen
on tablets or smartphones with Android OS *5
Pro-face Remote HMI Client for Win 1 license PFXEXRHCLS Software for remote viewing of Pro-face HMI
from desktop PC (license key code)
10 licenses PFXEXRHCLS10
30 licenses PFXEXRHCLS30
Pro-face Remote HMI Server 1 license PFXEXRHSLS Software to operate Windows programs
via the Pro-face Remote HMI APP
on any Android or iOS device, single license

*1Purchase this product when installing GP-Pro EX in a second or subsequent PC. One license is required for each PC.

*2Group License consists of one set of Serial No. / Key Code for installation on 10 PCs. (Should be used in the same office.)

*3Purchase this product when installing the settings editor and Run time in subsequent PCs.

*4Purchase this license when installing only Run time in subsequent PCs. One license is required for each PC.

*5Connectable to a server for 30 days after initial activation.
