    TM-Series - Surface Variation Detector





    OUTLINE

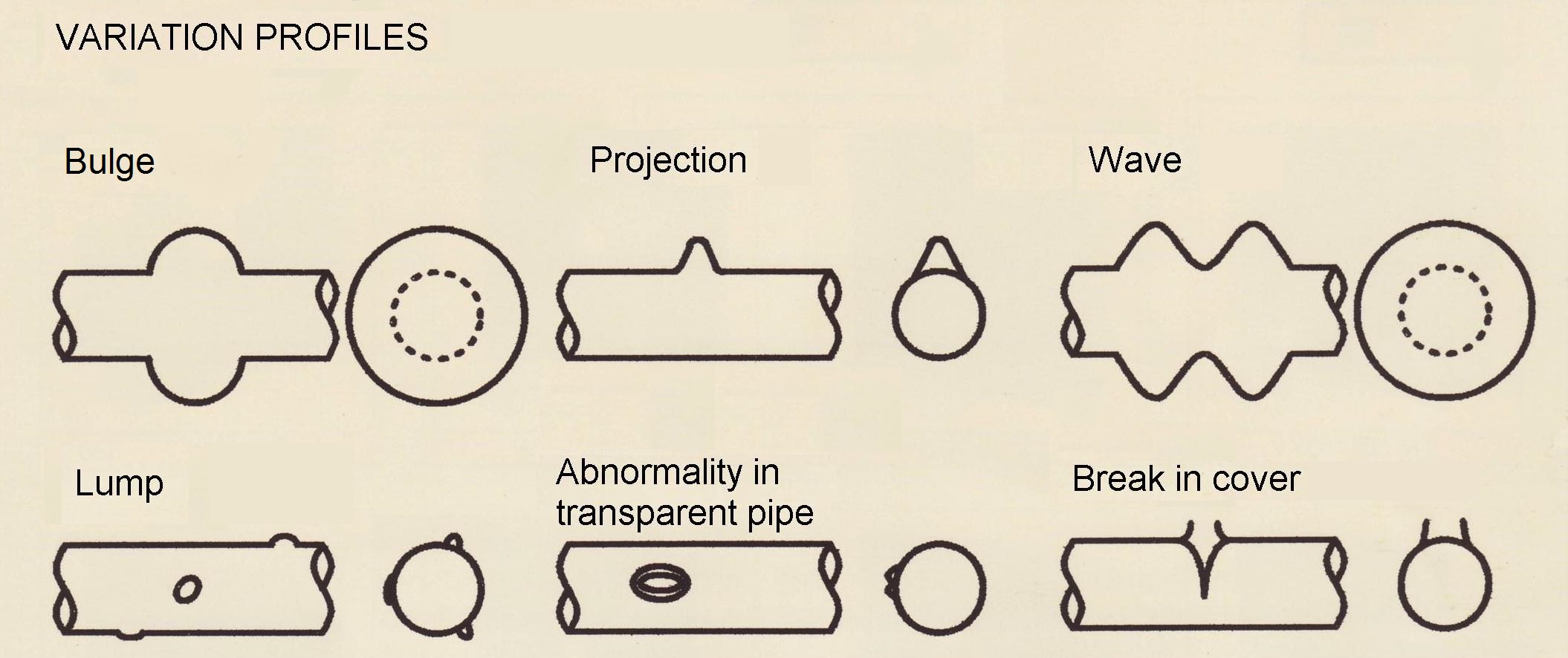

    • The TM-series Surface Variation Detectors are designed to monitor surface variations on an object by means of emitting light to the object and detecting differences of interrupted light volume which is affected by the variation.
    • Our TM-series detectors can be used on the production lines of all products such as optical fibers, enamel, electric and vinyl wires, communication and power cables, metal and glass rods, plastic tubes, pipes, hose, etc., where detecting surface variations is important.



    FEATURES

    Non-contact type detection & reliable, continuous high speed detection

    Applicable for wide range of line speed from low to high speed

    Uninterruptable by color and material of the object

    Resistant against object vibration

    Simple adjustment of detection level by direct reading

    Highly accurate multi-axis variation detection

    Detection of various variations with wide range from 10 micron to more then a few millimeters

    Easy operation and simple maintenance



    For Fine wire/cables (Target Dia.: Φ0.02~3mm, 0.02~5mm)

      For Fine wire/cable
     Model TM-503W TM-1100XY TM-1003W TM-1104W
     Detecting direction 3 2 3 4
     Measuring method Double-slit, infrared LED projection type
     Measuring range 0.02 - 3mm 0.02 - 10mm 0.02 - 5mm 0.02 - 10mm
     Detecting sensitivity 0.01 - 1mm
     Detecting accuracy +/-1% of max. set value
     Slit length 6mm 18mm 12mm 18mm
     Slit width 0.1mm 0.5mm
     Line speed[*1] 5m/min-2000m/min 1m/min - 1500m/min
     Recorder output +/-0.2V/0.1mm +/-1V/0.1mm +/-0.5V/0.1mm +/-1V/0.1mm
     Alarm output Red LED turns on,
    Relay contact output(AC250V 2A Resistance load)
     Alarm time[*2] 0.1 sec 0.5 sec 0.1 sec 0.5 sec
     Ambient temperature -5 - 50 degree centigrade(No condensation)
     Power supply[*3] DC+/-15V AC100V 50/60Hz DC+/-15V AC100V 50/60Hz
     Power consumption 6VA 10VA 4VA 10VA
     Outside demension (W * H * D[mm]) 150 * 140 * 40 260 * 265 * 60 150 * 140 * 40 350 * 280 * 55
     Weight 0.8kg 2.5kg 1kg 5kg

    [ *1] PW-01 is a TM-1003W dedicated power supply unit. PW-02 is a power supply unit of the TM-503W.



    For Middle dia. wire/cable. (Target Dia.: Φ0.1~35mm)
     Model TM-3001W TM-3002W TM-3004WA TM-3008W
    (TM-3004WA)
    (TM-3004WB)
    TM-3016W
    (TM-3004WA)
    (TM-3004WB)
    (TM-3004WC)
    (TM-3004WD)
     Detecting direction 1 2 4 8 16
     Detecting method Double-slit, infrared LED projection type
     Measuring range 0.1 - 35mm
     Detecting sensitivity 0.05 - 10mm
     Detecting accuracy +/-1% of max. set value
     Slit length 48mm
     Slit width 1mm
     Line speed[*1] 1m/min - 1500m/min
     Recorder output +/-0.1V/0.1mm(on each axis)
     Alarm output Red LED turns on,
    Relay contact output(AC250V 2A Resistance load)
     Alarm time[*2] 0.5 sec
     Ambient temperature -5 - 50 degree centigrade(No condensation)
     Power supply[*3] AC100V 50/60Hz
     Power consumption 5VA 10VA 10VA 20VA 40VA
     Outside demension (W * H * D) 260 * 90
    * 41mm
    260 * 260
    * 60mm
    370 * 335
    * 60mm
    370 * 335
    * 120mm
    370 * 335
    * 240mm
     Weight 1.5kg 3kg 6kg 12kg 24kg



    For Large dia. wire/cable/pipe
     Model TM-4001 TM-4002 TM-4004A TM-4008
    (TM-4004A)
    (TM-4004B)
    TM-4016
    (TM-4004A)
    (TM-4004B)
    (TM-4004C)
    (TM-4004D)
     Detecting direction 1 2 4 8 16
     Detecting method Single-slit, white tungsten lamp projection type
     Measuring range 0.1 - 60mm
     Detecting sensitivity 0.15 - 10mm
     Detecting accuracy +/-2% of max. set value
     Slit length 70mm
     Slit width 1.5mm
     Line speed[*1] 1m/min - 1000m/min
     Recorder output +/-0.1V/0.1mm(on each axis)
     Alarm output Yellow or Red LED turns on
    Relay contact output (AC250V 2A Resistance load)
     Alarm time[*2] 0.5 sec
     Ambient temperature -5 - 50 degree centigrade(No condensation)
     Power supply[*3] AC100V 50/60Hz
     Power consumption 10VA 20VA 30VA 60VA 120VA
     Outside demension (W * H * D) 540 * 160
    * 100mm
    630 * 560
    * 160mm
    807 * 674
    * 136mm
    807 * 674
    * 272mm
    807 * 680
    * 424mm
     Weight 7kg 25kg 38kg 76kg 152kg



    For Extra large dia. wire/cable/pipe
     Model TM-6004A TM-6008
    (TM-6004A)
    (TM-6004B)
    TM-7003A TM-7009
    (TM-7003A)
    (TM-7003B)
    (TM-7003C)
    TM-7012
    (TM-7012A)
    (TM-7012B)
    (TM-7012C)
    (TM-7012D)
     Detecting direction 4 8 3 9 12
     Detecting method Single-slit, white tungsten lamp projection type
     Measuring range 1 - 80mm 1 - 130mm
     Detecting sensitivity 0.2 - 10mm
     Detecting accuracy +/-2% of max. set value
     Slit length 90mm 140mm
     Slit width 1.5mm
     Line speed[*1] 0.3m/min - 500m/min
     Recorder output +/-0.1V/0.1mm(on each axis)
     Alarm output Yellow or Red LED turns on
    Relay contact output (AC250V 2A Resistance load)
     Alarm time[*2] 0.5 sec
     Ambient temperature -5 - 50 degree centigrade(No condensation)
     Power supply[*3] AC100V 50/60Hz
     Power consumption 30VA 60VA 30VA 90VA 120VA
     Outside demension (W * H * D) 720 * 660
    * 153mm
    720 * 660
    * 306mm
    990 * 930
    * 125mm
    990 * 930
    * 375mm
    990 * 930
    * 500mm
     Weight 38kg 76kg 60kg 180kg 240kg

    [*1] Applicable Line speed range varies by variation height.
    [*2] HOLD output is available. (Option)
    [*3] AC200V Power supply type is available. (Option)
    In addition, other models for detecting more directions such as TM-6020(20 axes) are also available.
