NM-8BH
|
|
Brand : Kansai
Media : Powder, Granules
Model : NM-8BH (Heat resistant type)
Type : Rotary paddle type
Appliation : Suitable for powder not much sticking to the tank wall.
Power : 100-110VAC or 200-220VAC 50/60Hz
Rate of rotation : 1 rpm/50Hz
|
Power consumption : 4W
Detection torque : 1470-1764 N.m x 10e-4
Mounting : Horizintal mounting
Flange size : JIS5K65A equivalent
Allowable temperature : Below 180°C (in a tank).
Allowable pressure : 19.6 kPa
Enclosure rating : IP55
|
|
NM-8BN(S)
|
|
Brand : Kansai
Media : Powder, Granules

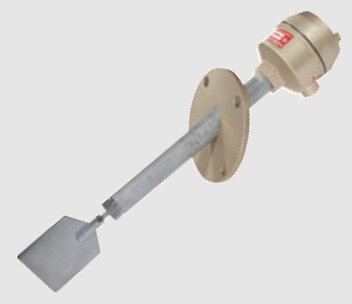

Model : NM-8BN(S) (Diagonal flange type)
Type : Rotary paddle type
Appliation : Suitable for powder not much sticking to the tank wall.
Power : 100-110VAC or 200-220VAC 50/60Hz
Rate of rotation : 1 rpm/50Hz
|
Power consumption : 4W
Detection torque : 1470-1764 N.m x 10e-4
Mounting : Diagonal mounting.Best to mount at the conical area directly, 45° angle.
Flange size : JIS5K65A equivalent
Allowable temperature : Below 50°C (in a tank).
Allowable pressure : 19.6 kPa
Enclosure rating : IP55
|
|
FL-GM
|
|
Brand : Kansai
Media : Powder, Granules
Model : FL-GM (Explosion proof)
Type : Rotary paddle type
Appliation : Suitable for powder not much sticking to the tank wall.
Power : 100-110VAC or 200-220VAC 50/60Hz
Rate of rotation : 1 rpm/50Hz
|
Power consumption : 4W
Detection torque : 1470-1764 N.m x 10e-4
Mounting : Horizontal mouting
Flange size : JIS5K65A equivalent
Allowable temperature : Below 50°C (in a tank).
Allowable pressure : 19.6 kPa
Enclosure rating : IP55
|
|
FL-GMA
|
|
Brand : Kansai
Media : Powder, Granules
Model : FL-GMA (Adjustable shaft type),(Explosion proof)
Type : Rotary paddle type
Appliation : Suitable for powder not much sticking to the tank wall.
Power : 100-110VAC or 200-220VAC 50/60Hz
Rate of rotation : 1 rpm/50Hz
|
Power consumption : 4W
Detection torque : 1470-1764 N.m x 10e-4
Mounting : Vertical mouting
Flange size : JIS5K65A equivalent
Allowable temperature : Below 50°C (in a tank).
Allowable pressure : 19.6 kPa
Enclosure rating : IP55
|
|
FL-GMS
|
|
Brand : Kansai
Media : Powder, Granules
Model : FL-GMA (Protective-tube extension type),(Explosion proof)
Type : Rotary paddle type
Appliation : Suitable for powder not much sticking to the tank wall.
Power : 100-110VAC or 200-220VAC 50/60Hz
Rate of rotation : 1 rpm/50Hz
|
Power consumption : 4W
Detection torque : 1470-1764 N.m x 10e-4
Mounting : Vertical,horizontal and diagonal mouting
Flange size : JIS5K65A equivalent
Allowable temperature : Below 50°C (in a tank).
Allowable pressure : 19.6 kPa
Enclosure rating : IP55
|
|
FL-GMH
|
|
Brand : Kansai
Media : Powder, Granules
Model : FL-GMA (Protective-tube extension type),(Explosion proof)
Type : Rotary paddle type
Appliation : Suitable for powder not much sticking to the tank wall.
Power : 100-110VAC or 200-220VAC 50/60Hz
Rate of rotation : 1 rpm/50Hz
|
Power consumpton : 4W
Detection torque : 1470-1764 N.m x 10e-4
Mounting : Horizontal mouting
Flange size : JIS5K65A equivalent
Allowable temperature : Below 50°C (in a tank).
Allowable pressure : 19.6 kPa
Enclosure rating : IP55
|
|
NNL-8B
|
|
Brand : Kansai
Media : Powder, Granules
Model : NNL-8B (Standard flange)
Type : Reversible rotary paddle type, longer lasting & highly stable.
Appliation : Suitable for powder not much sticking to the tank wall.
Power : 100-110VAC or 200-220VAC 50/60Hz
Rate of rotation : 1 rpm/50Hz
|
Power consumption : 4W
Detection torque : 1470-1764 N.m x 10e-4
Mounting : Horizontal mouting
Flange size : JIS5K65A equivalent
Allowable temperature : Below 50°C (in a tank).
Allowable pressure : 19.6 kPa
Enclosure rating : IP55
|
|
NNL-8BA
|
|
Brand : Kansai
Media : Powder, Granules
Model : NNL-8BA (Adjustable shaft)
Type : Reversible paddle type
Appliation : Suitable for powder not much sticking to the tank wall.Longer lasting and highly stable.
Power : 100-110VAC or 200-220VAC 50/60Hz
Rate of rotation : 1 rpm/50Hz
|
Power consumption : 4W
Detection torque : 1470-1764 N.m x 10e-4
Mounting : Vertical falnge type
Flange size : JIS5K65A equivalent
Allowable temperature : Below 50°C (in a tank).Heat resistant type can be available.
Allowable pressure : 19.6 kPa
Enclosure rating : IP55
|
|
NNL-8BS
|
|
Brand : Kansai
Media : Powder, Granules
Model : NL-8BS (Protective-tube extension type)
Type : Reversible paddle type
Appliation : Suitable for powder not much sticking to the tank wall.Longer lasting & hihgly stable.
Power : 100-110VAC or 200-220VAC 50/60Hz
Rate of rotation : 1 rpm/50Hz
|
Power consumption : 4W
Detection torque : 1470-1764 N.m x 10e-4
Mounting : Vertical,horizontal and diagonal monting can be selected.
Flange size : JIS5K65A equivalent
Allowable temperature : Below 50°C (in a tank).Heat resistant type can be available.
Allowable pressure : 19.6 kPa
Enclosure rating : IP55
|
|
NNL-8BH
|
|
Brand : Kansai
Media : Powder, Granules
Model : NNL-8BH (Heat resistant type)
Type : Reversible paddle type
Appliation : Suitable for powder not much sticking to the tank wall. Longer lasting & highly stable.
Power : 100-110VAC or 200-220VAC 50/60Hz
Rate of rotation : 1 rpm/50Hz
|
Power consumption : 4W
Detection torque : 1470-1764 N.m x 10e-4
Mounting : Horizintal mounting
Flange size : JIS5K65A equivalent
Allowable temperature : Below 250°C (in a tank). Special version of max 1000°C.
Allowable pressure : 19.6 kPa
Enclosure rating : IP55
|
|
