Brand : Kansai

Media : Powder, granules , lump

Model : KPS-123/124 (Touch roller type)

Type : Speed detector

Application : To use for catching conveyor performance via easy fixing.Reliably monitoring rotating speed.

Power source : 105/220VAC ±10% 50/60Hz

Power consumption : 2.5VA

Output contact : SPDT

Output capacity : 250VAC 5A, 30VDC 5A

Allowable speed : Below 2000rpm

Setup range : 3-1999rpm

Measurement error : 2rpm

Start-up compensation time : 0 to 99 seconds

Temperature : -10°C ~60°C (no compensation)

Enclosure rating : IP-54 or equivalent

Brand : Kansai

Media : Powder, granules , lump

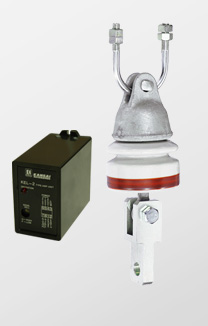

Model : KEL-2

Type : Leak type level switch

Application : It can be used for all products including sand as building materials,gravel,crushed rocks etc as long as they contain some moisture

Power source : 105/220VAC ±10% 50/60Hz

Output contact : SPDT x 1

Output capacity : 250VAC 10A

Temperature : 0°C ~60°C (no compensation or freez required)

Sensitivity : Max.about 10MΩ – Min.about 30kΩ

Sensitivity setting : 16 Steps adjustable between Max. & Min.

Brand : Kansai

Media : Powder, granules , lump

Model : TC-3 (Standard type)

Type : Tilt switch

Application : Suitable for detecting Coarse Grains and Agglomerates (small pieces). Level switch detecting the presence of measured objects from change in the body's tilt.

Weight : About 1.3Kg (Aluminum casting)

Output contact : SPDT x 1

Output capacity : 250VAC 10A

Temperature : -10°C ~80°C (no compensation/ no freezing )

Conduit connection : 3/8" (with gland)

Conformable cable : 3/8" three core cable

Sensing-paddle fitting : NPT 1/2

Enclosure rating : IP-56

Brand : Kansai

Media : Powder, granules , lump

Model : TC-1 (Heavy loading type)

Type : Tilt switch

Application : Suitable for bulk solids in 50mm or over such as coal, ore, broken stone etc. Level switch detecting the presence of measured objects from change in the body's tilt.

Weight : About 1.3Kg (Cast-iron)

Output contact : SPDT x 1

Output capacity : 250VAC 10A

Temperature : -10°C ~120°C (no compensation/ no freezing )

Conduit connection : 1/2" (with gland)

Conformable cable : 1/4" three core cable

Sensing-paddle fitting : NPT 1

Enclosure rating : IP-56

Brand : Kansai

Class : General Purpose

Media : Liquid only

Process Pressure : Atmospheric

Process Temperature : 200 °C

Changing Density : Good

Changing Dielec. Constant : Good

Change in Temp & Pressure : Good

Condesing Vapor : Good

Bubbles : Good

Foam : Good

Coating Liquid : Good

Crystallizing Liquid : Good

Sludge & Slurries : Condition Apply

Top Mount : Direct (Flange)

Mixer/Agitator : Condition Apply
