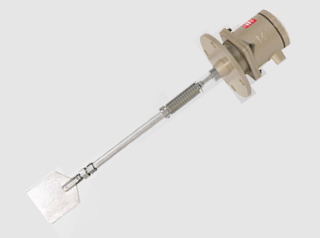

LS-S
|
|
Brand : Kansai
Media : Powder, Granules
Model : LS-S (Extension pipe)
Type : Small rotatry paddle type level switch
Appliation : Suitable for small tank
Power : 100-110VAC or 200-220VAC 50/60Hz
Power consumption : 1.5W
|
Paddle rotation : 0.83 rpm (50Hz) / 1.00 rpm (60Hz)
Detection torque : 170-270 N.m x10e-4
Paddle type: Unfolding paddle
Mounting : Horizontal mounting
Flange size : 80 x 80 mm
Temperature : Below 50°C (in a tank)
Material : Wetted parts of SS available.
Enclosure rating : IP55
|
|
LS-H
|
|
Brand : Kansai
Media : Powder, Granules
Model : LS-H (Heat-resistant)
Type : Small rotatry paddle type level switch
Appliation : Suitable for small tank
Power : 100-110VAC or 200-220VAC 50/60Hz
Power consumption : 1.5W
|
Paddle rotation : 0.83 rpm (50Hz) / 1.00 rpm (60Hz)
Detection torque : 170-270 N.m x10e-4
Paddle type: Unfolding paddle
Mounting : Horizontal mounting
Flange size : 80 x 80 mm
Temperature : 0~120°C
Material : Wetted parts of SS available.
Enclosure rating : IP55
|
|
SWM-8B
|
|
Brand : Kansai
Media : Powder, Granules
Model : SWM-8B (Standard)
Type : Swing type level switch
Appliation : Suitable for pressuruzed tank. Have a durability three times as much as rotatry type.
Power : 100-110VAC or 200-220VAC 50/60Hz (allowable range 85~250VAC)
|
Power consumption : 12W
Stepping angle : 15° (twice/sec)
Mounting : Horizontal mounting
Flange size : JIS5K65A
Pressure : 0.2 MPa (optionally 0.5 MPa)
Temperature : Ambient 50°C , inside tank 60°C
Material : 304SS for paddle,main shaft
Enclosure rating : IP55
|
|
SWM-8BS
|
|
Brand : Kansai
Media : Powder, Granules
Model : SWM-8BS (Protective-tube extension)
Type : Swing type level switch
Appliation : Suitable for pressuruzed tank. Have a durability three times as much as rotatry type.
Power : 100-110VAC or 200-220VAC 50/60Hz (allowable range 85~250VAC)
|
Power consumption : 12W
Stepping angle : 15° (twice/sec)
Mounting : Horizontal mounting
Flange size : JIS5K65A
Pressure : 0.2 MPa (optionally 0.5 MPa)
Temperature : Ambient 50°C , inside tank 60°C
Material : 304SS for paddle, main shaft
Enclosure rating : IP55
|
|
SWM-8BH
|
|
Brand : Kansai
Media : Powder, Granules
Model : SWM-8BH (Heat-resistant)
Type : Swing type level switch
Appliation : Suitable for pressuruzed tank. Have a durability three times as much as rotatry type.
Power : 100-110VAC or 200-220VAC 50/60Hz (allowable range 85~250VAC)
|
Power consumption : 12W
Stepping angle : 15° (twice/sec)
Mounting : Horizontal mounting
Flange size : JIS5K65A
Pressure : 19.6 KPa (standard)
Temperature : Max 250°C
Material : 304SS for paddle, main shaft
Enclosure rating : IP55
|
|
SWM-8BA
|
|
Brand : Kansai
Media : Powder, Granules
Model : SWM-8BA (Shaft-length adjustment)
Type : Swing type level switch
Appliation : Suitable for pressuruzed tank. Have a durability three times as much as rotatry type.
Power : 100-110VAC or 200-220VAC 50/60Hz (allowable range 85~250VAC)
|
Power consumption : 12W
Stepping angle : 15° (twice/sec)
Mounting : Horizontal mounting
Flange size : JIS5K65A
Pressure : 0.2 MPa
Temperature : Ambient 50°C, inside tank 60°C
Material : 304SS for paddle, main shaft
Enclosure rating : IP55
|
|
SWM-15B
|
|
Brand : Kansai
Media : Powder, Granules
Model : SWM-15B (Load resistance)
Type : Swing type level switch
Appliation : Suitable for pressuruzed tank. Have a durability three times as much as rotatry type.
Power : 100-110VAC or 200-220VAC 50/60Hz (allowable range 85~250VAC)
|
Power consumption : 12W
Stepping angle : 15° (twice/sec)
Mounting : Horizontal mounting
Flange size : JIS5K65A
Pressure : 0.2 MPa , 0.5 MPa
Temperature : Ambient 50°C, inside tank 60°C
Material : 304SS for paddle, main shaft
Enclosure rating : IP55
|
|
MWS2-24TN/RN
|
|
Brand : Kansai
Media : Powder, Granules, Lamp
Model : MWS2-24TN/RN (Standard flange type)
Type : Microwave type level switch
Appliation : Suitable for detecting dust, coal, gravels, granules, etc.
Voltage : 105V / 210 VAC ±10% 50/60 Hz
Frequency : 24GHz
|
Power consumption : 2VA (Transmitter)/ 5VA (Receiver)
Operating distance : Switching system by range SW (Mini : 3, Max : 35m)
Contact capacity : 250VAC 5A
Mounting : Horizontal mounting
Process conection : JIS5K50A or over
Ambient temp : -20°C~+60°C
Enclosure rating : IP67
|
|
MWS2-24TN-RN-S
|
|
Brand : Kansai
Media : Powder, Granules, Lamp
Model : MWS2-24TN_RN-S (Screwed joint type)
Type : Microwave type level switch
Appliation : Suitable for detecting dust, coal, gravels, granules, etc.
Voltage : 105V / 210 VAC ±10% 50/60 Hz
Frequency : 24GHz
|
Power consumption : 2VA (Transmitter)/ 5VA (Receiver)
Operating distance : Switching system by range SW max. 1m
Contact capacity : 250VAC 5A
Mounting : Horizontal mounting
Process conection : G1B(screwed) 304SS
Ambient temp : -20°C~+60°C
Enclosure rating : IP67
|
|
KF-207
|
|
Brand : Kansai
Media : Liquid
Model : KF-207
Type : Horizontal type level switch
Application : Water, oil, general liquid. No power sorce is needed.
Contact capacity : 250VAC 5A
|
Float dimension : Ø40 x 110L
S.G of liquid : Over 0.88
Mounting : Horizontal mounting
Process conection : JIS5K40A
Allow.pressure : Max. 490kPa
Temperature : 100°C
Enclosure rating : IP67
|
|
